Whirlpool
Wall Oven/Microwave Combo

Model # WOC95EC0AH00 Official Whirlpool 30" electric built-in combination microwave

Here are the diagrams and repair parts for Official Whirlpool WOC95EC0AH00 30" electric built-in combination microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Microwave Door Switch W10330566
#15

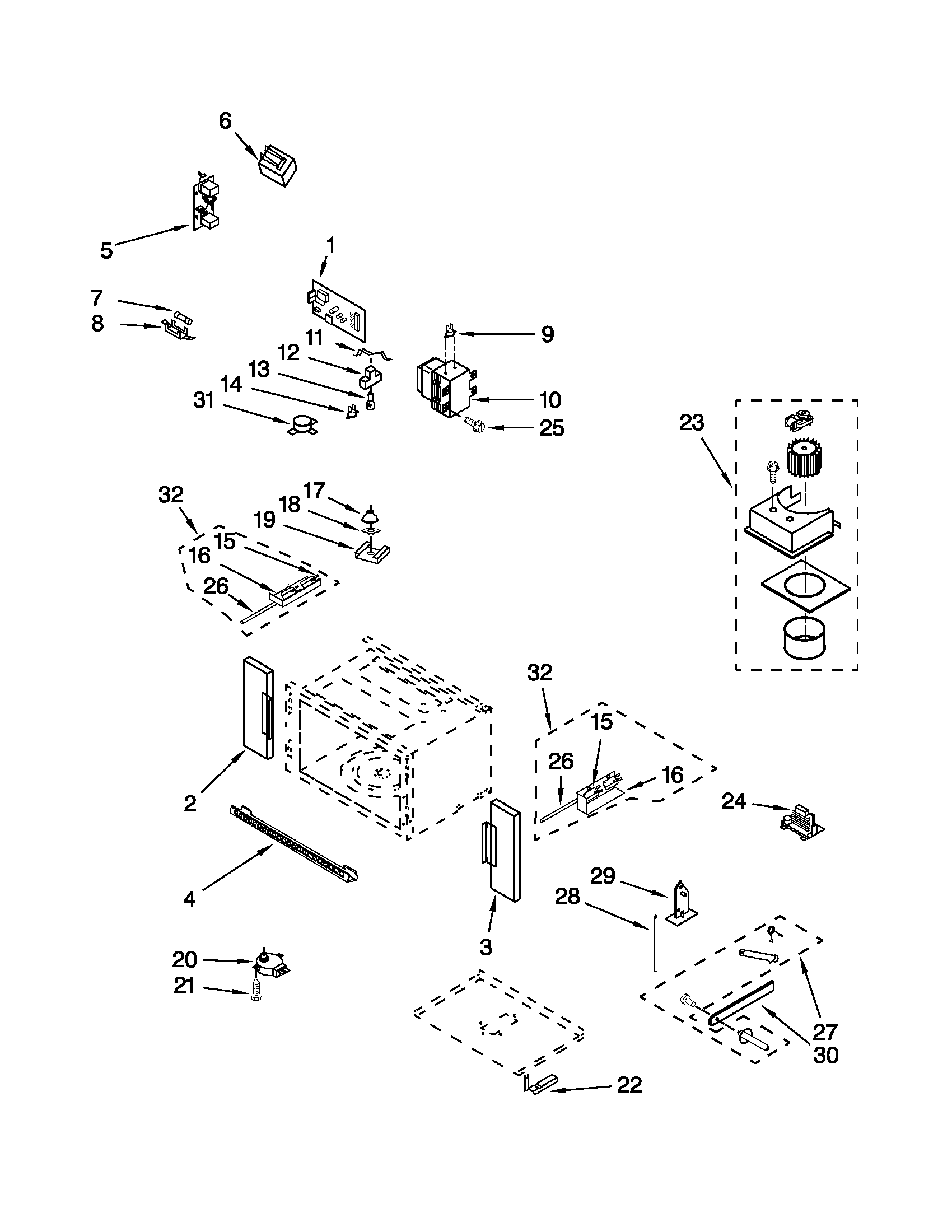

Cabinet and stirrer parts diagram

Microwave door switch

Part #W10330566

Replaced by #W10211972

?
Manufacturer substitution
This part replaces W10330566. Substitute parts can look different from the original.
BEST SELLER
$25.98 |
53% OFF MSRP : $55.00
In Stock
Appliance Touch-up Paint 72017
#NI

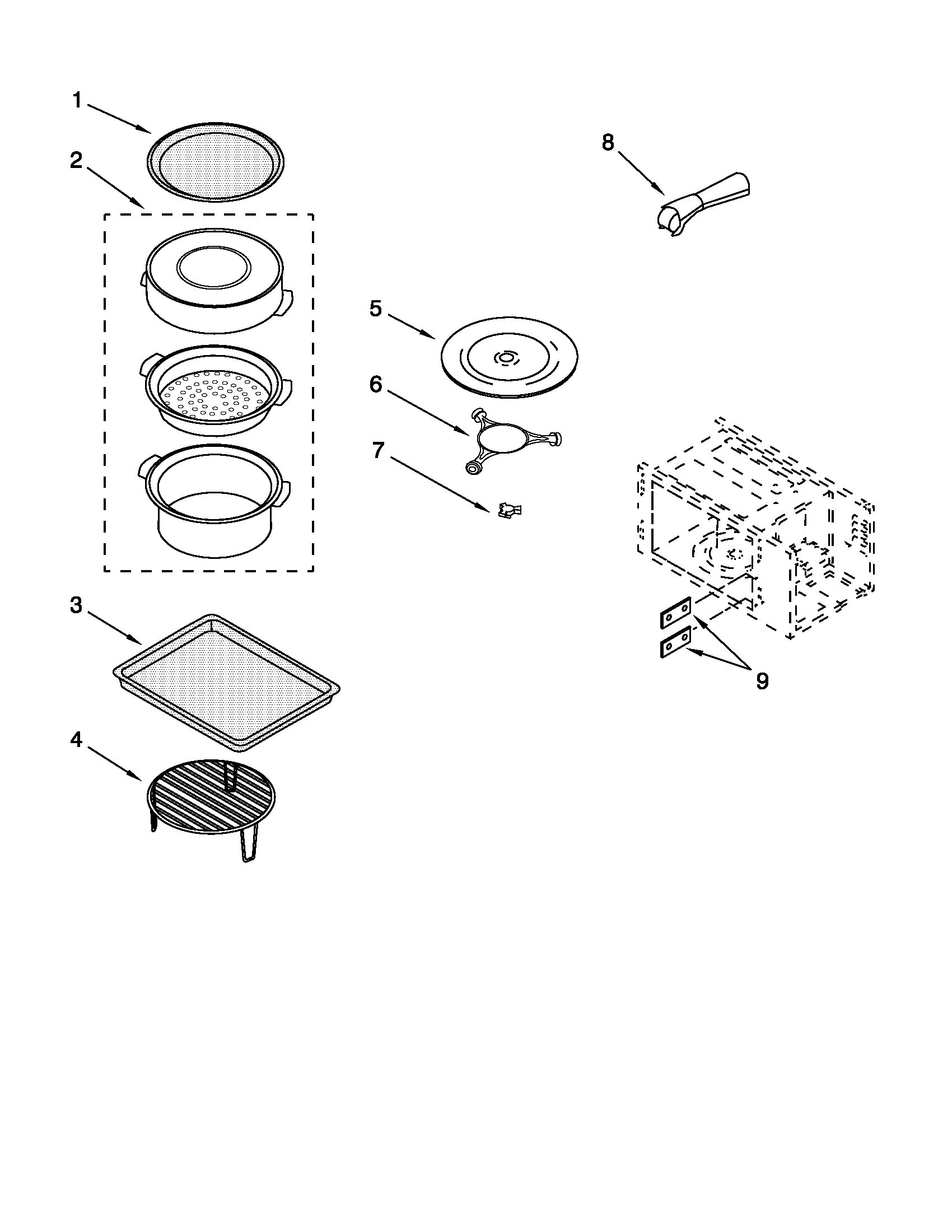

Optional parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Magnetron W10120113
#10

Cabinet and stirrer parts diagram

Magnetron

Part #W10120113

The manufacturer no longer makes this part, and there's no substitute part

Spray W 350930
#NI

Optional parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Oven Bake Element W10282948
#7

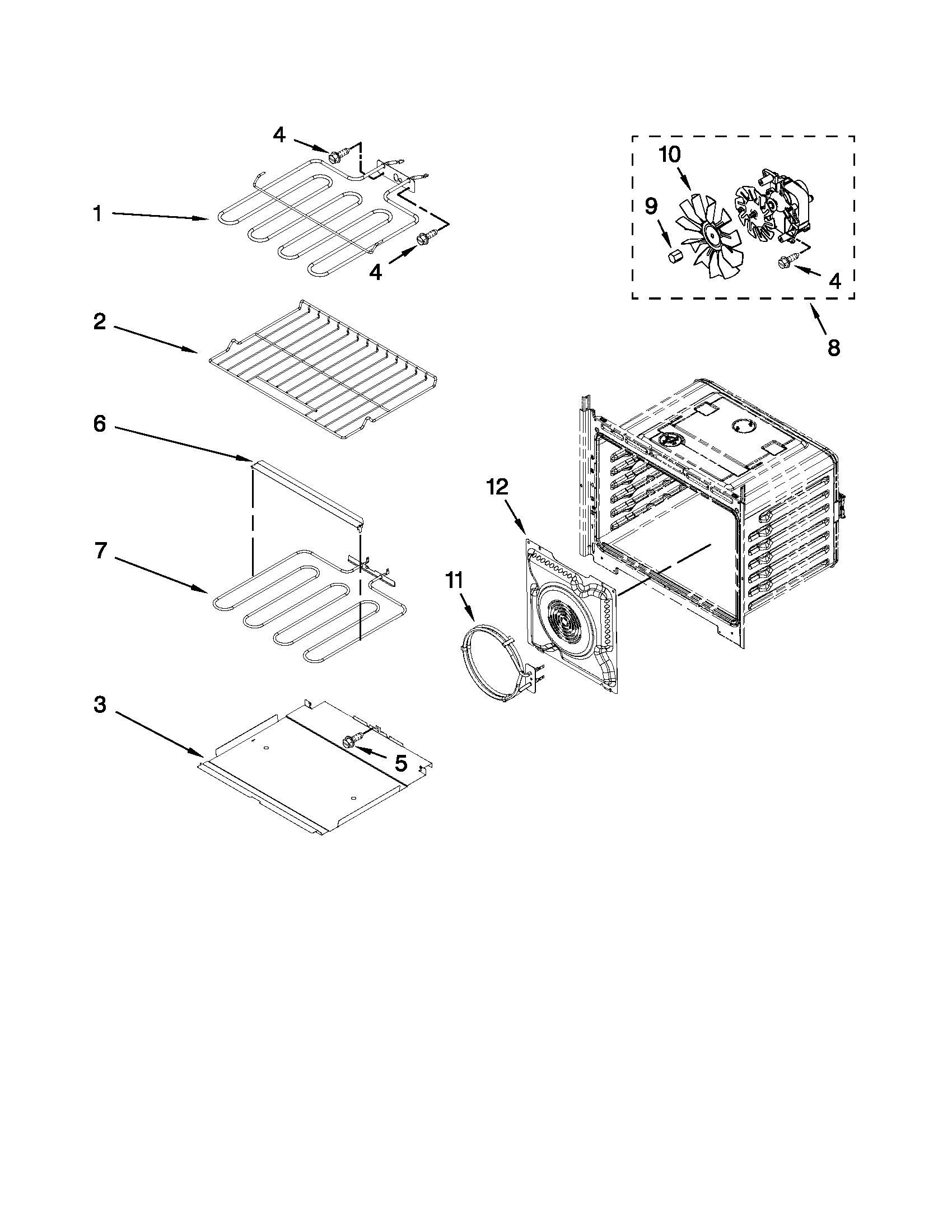

Internal oven parts diagram

Oven bake element

Part #W10282948

Replaced by #W11545804

?
Manufacturer substitution
This part replaces W10282948. Substitute parts can look different from the original.
BEST SELLER
$60.68 |
8% OFF Phone Price : $65.68
In Stock
Sensor Probe 7430P043-60
#16

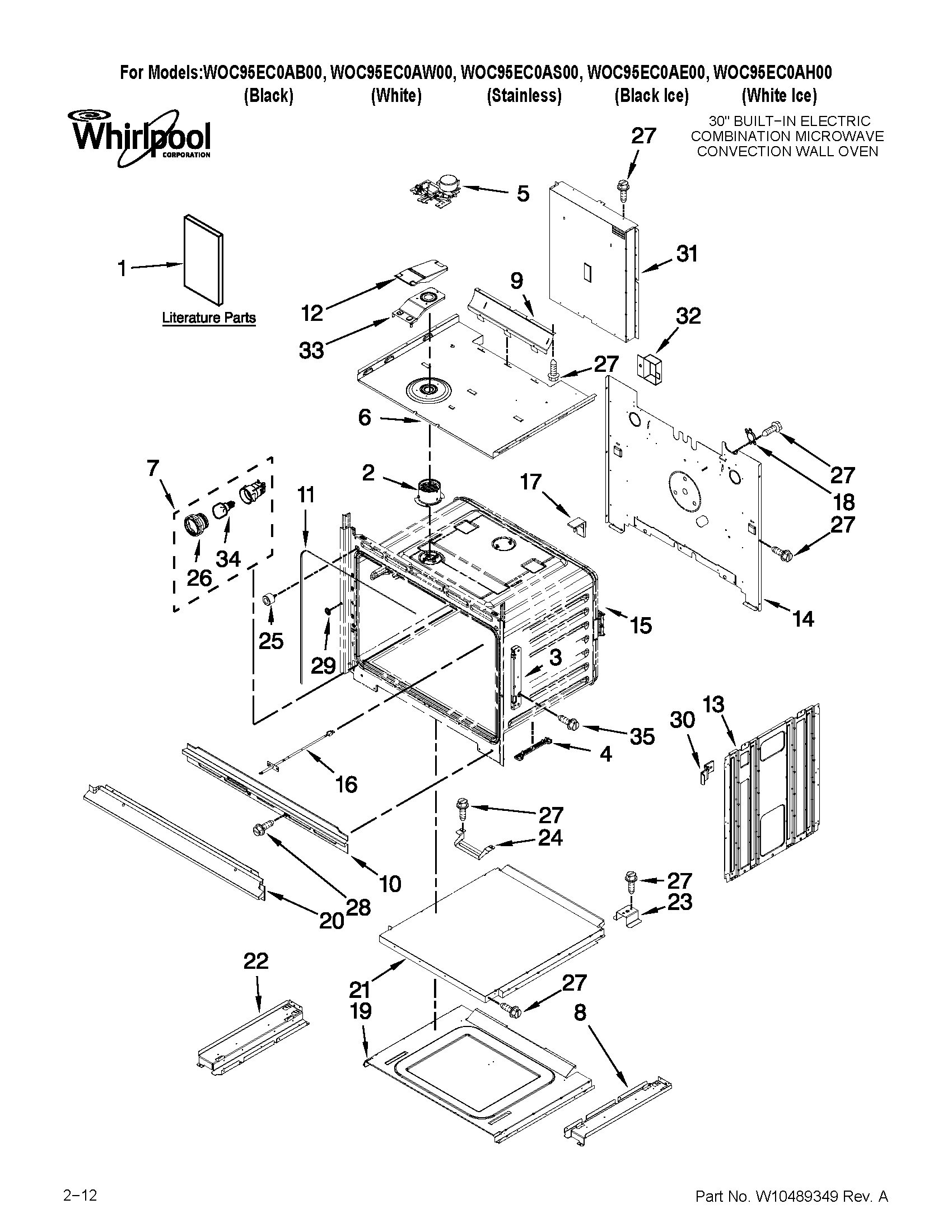

Oven parts diagram

Sensor probe

Part #7430P043-60

Replaced by #WP74008369

?
Manufacturer substitution
This part replaces 7430P043-60. Substitute parts can look different from the original.
BEST SELLER
$96.39 |
9% OFF Phone Price : $106.39
In Stock
Oven Baseless Lamp W10287972
#13

Cabinet and stirrer parts diagram

Oven baseless lamp

Part #W10287972

Replaced by #W10886919

?
Manufacturer substitution
This part replaces W10287972. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$22.89 |
18% OFF Phone Price : $27.89
In Stock
Oven Door Glass W10284901
#9

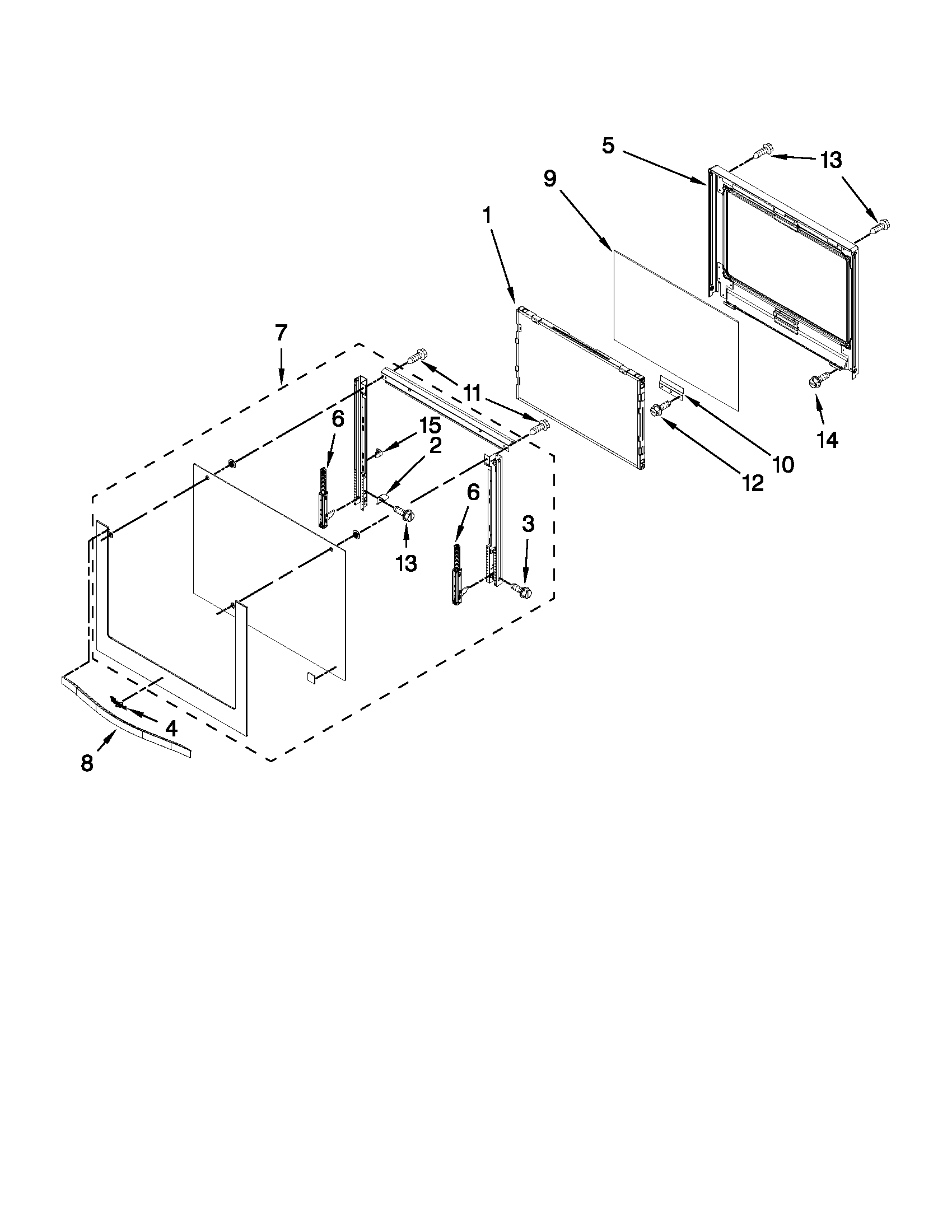

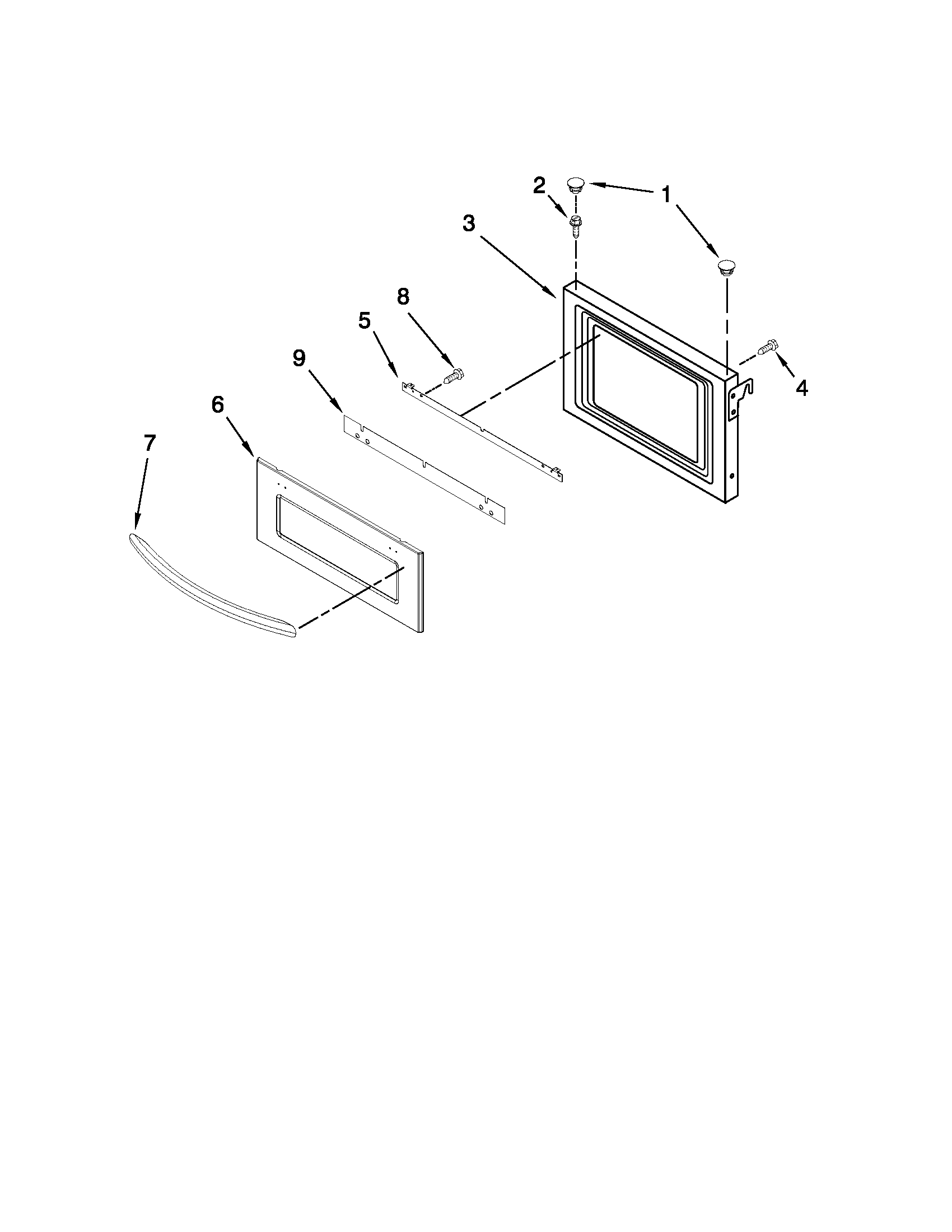

Oven door parts diagram

Oven door glass

Part #W10284901

Replaced by #WPW10618107

?
Manufacturer substitution
This part replaces W10284901. Substitute parts can look different from the original.
$93.79 |
33% OFF MSRP : $140.00
In Stock
Light Lens W10412722
#26

Oven parts diagram

Light lens

Part #W10412722

Replaced by #WPW10412722

?
Manufacturer substitution
This part replaces W10412722. Substitute parts can look different from the original.
This item is not returnable
$13.22 |
13% OFF Phone Price : $15.22
In Stock
Wall Oven Light Bulb W10412711
#34

Oven parts diagram

Wall oven light bulb

Part #W10412711

Replaced by #WPW10412711

?
Manufacturer substitution
This part replaces W10412711. Substitute parts can look different from the original.
$20.60 |
20% OFF Phone Price : $25.60
In Stock
