Sony
DVD Player

Model # BDP-S3200 Official Sony dvd player

Here are the diagrams and repair parts for Official Sony BDP-S3200 dvd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |
Opt Device 882045207
#153

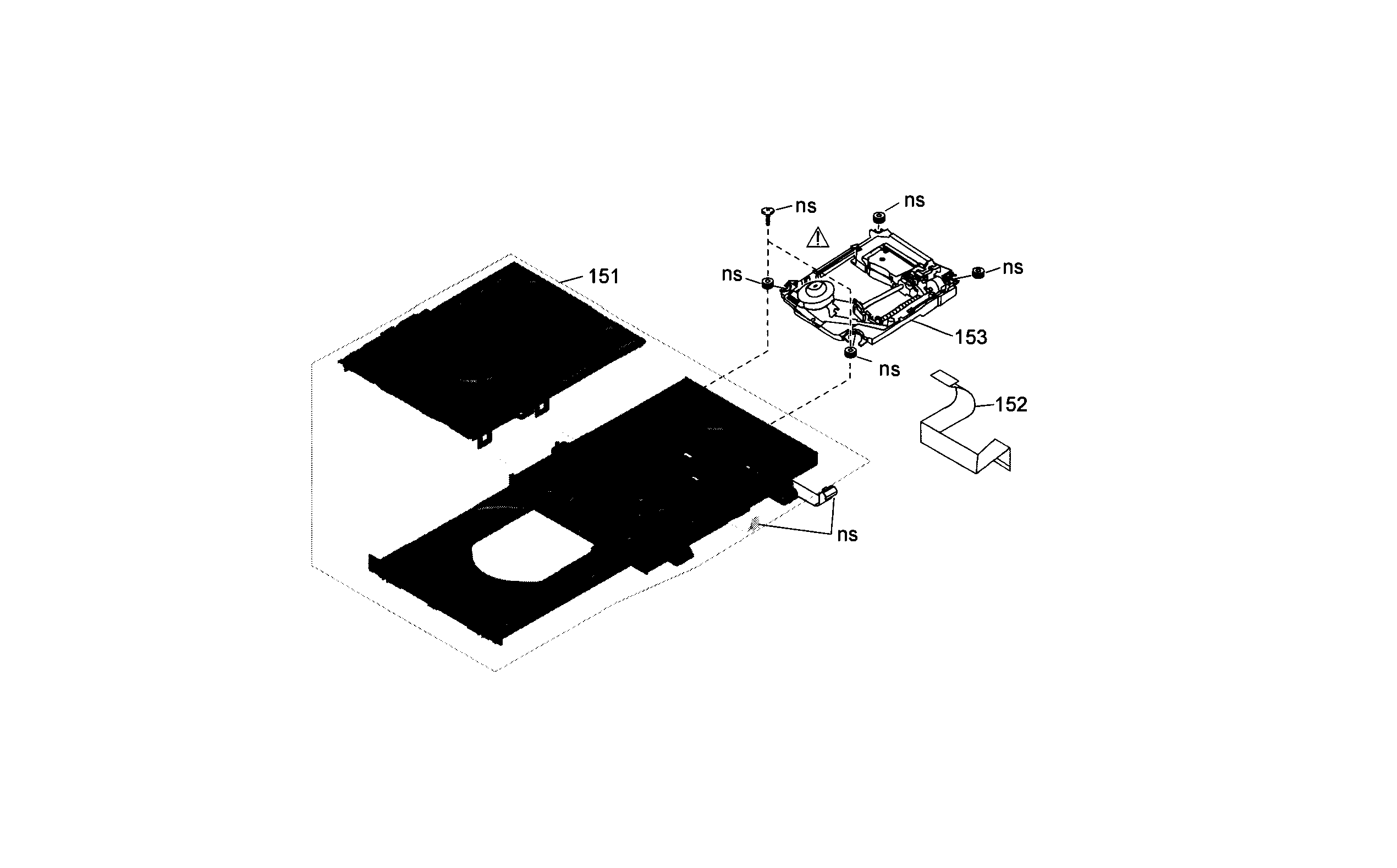

Bd section diagram

Opt device

Part #882045207

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb A1976041A
#104

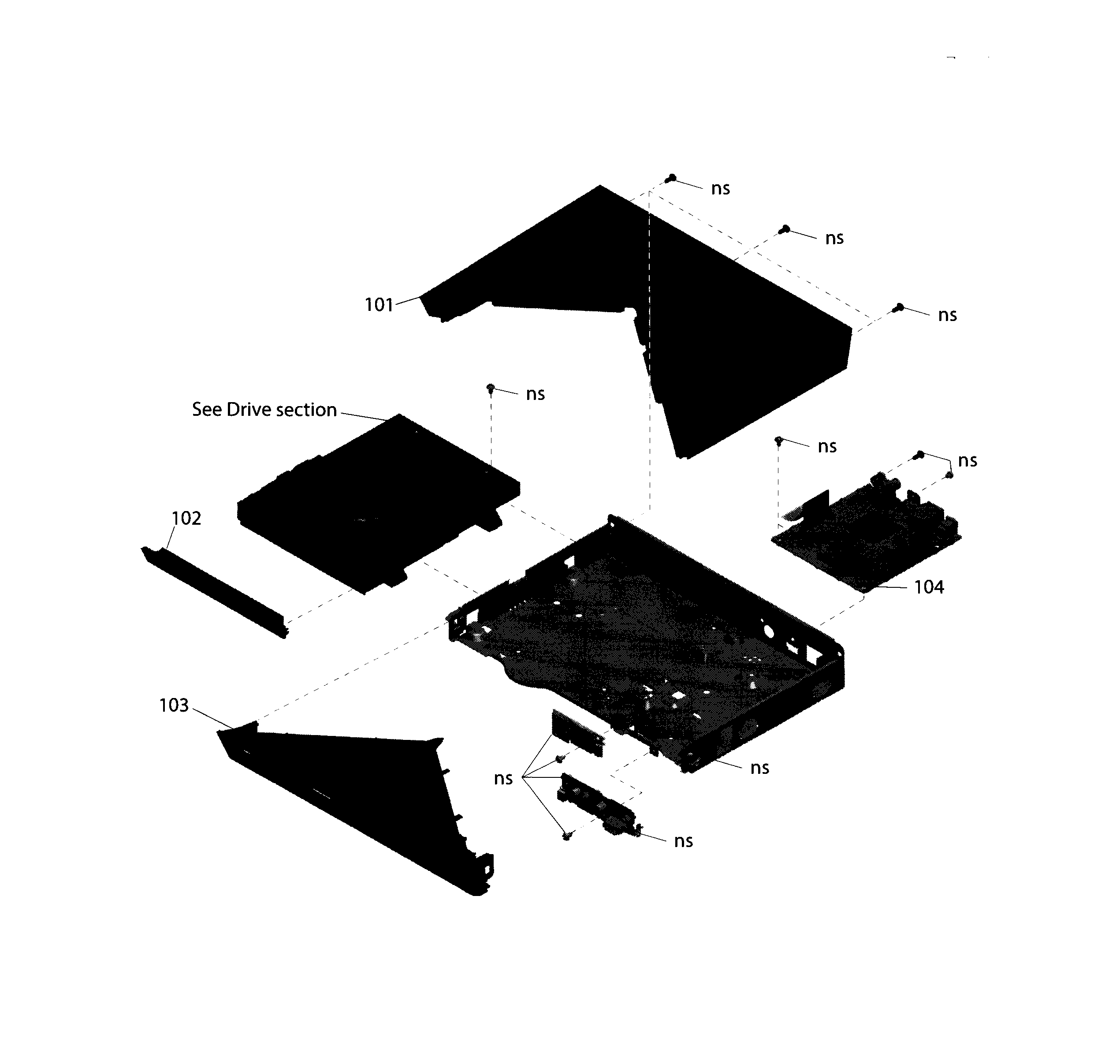

Case & main chassis diagram

Main pcb

Part #A1976041A

The manufacturer no longer makes this part, and there's no substitute part

Ac Adapter 149268711
#NI

Case & main chassis diagram

Ac adapter

Part #149268711

The manufacturer no longer makes this part, and there's no substitute part

Loading Fo A1850153D
#151

Bd section diagram

Loading fo

Part #A1850153D

The manufacturer no longer makes this part, and there's no substitute part

Remote Control 149267811
#NI

Case & main chassis diagram

Remote control

Part #149267811

The manufacturer no longer makes this part, and there's no substitute part

Flat Cable 184810421
#152

Bd section diagram

Flat cable

Part #184810421

The manufacturer no longer makes this part, and there's no substitute part

Front Panel Assembly X25880982
#103

Case & main chassis diagram

Front panel assembly

Part #X25880982

The manufacturer no longer makes this part, and there's no substitute part

Tray Cover Assembly X25881001
#102

Case & main chassis diagram

Tray cover assembly

Part #X25881001

The manufacturer no longer makes this part, and there's no substitute part

Case Upper A1976040A
#101

Case & main chassis diagram

Case upper

Part #A1976040A

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 447620341
#NI

Case & main chassis diagram

Owner's manual

Part #447620341

The manufacturer no longer makes this part, and there's no substitute part
