Model #HT-C6930W/XAA Official Samsung dvd home theater system

Here are the diagrams and repair parts for Samsung HT-C6930W-XAA dvd home theater system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 151 parts

Integrated Circuit#NI

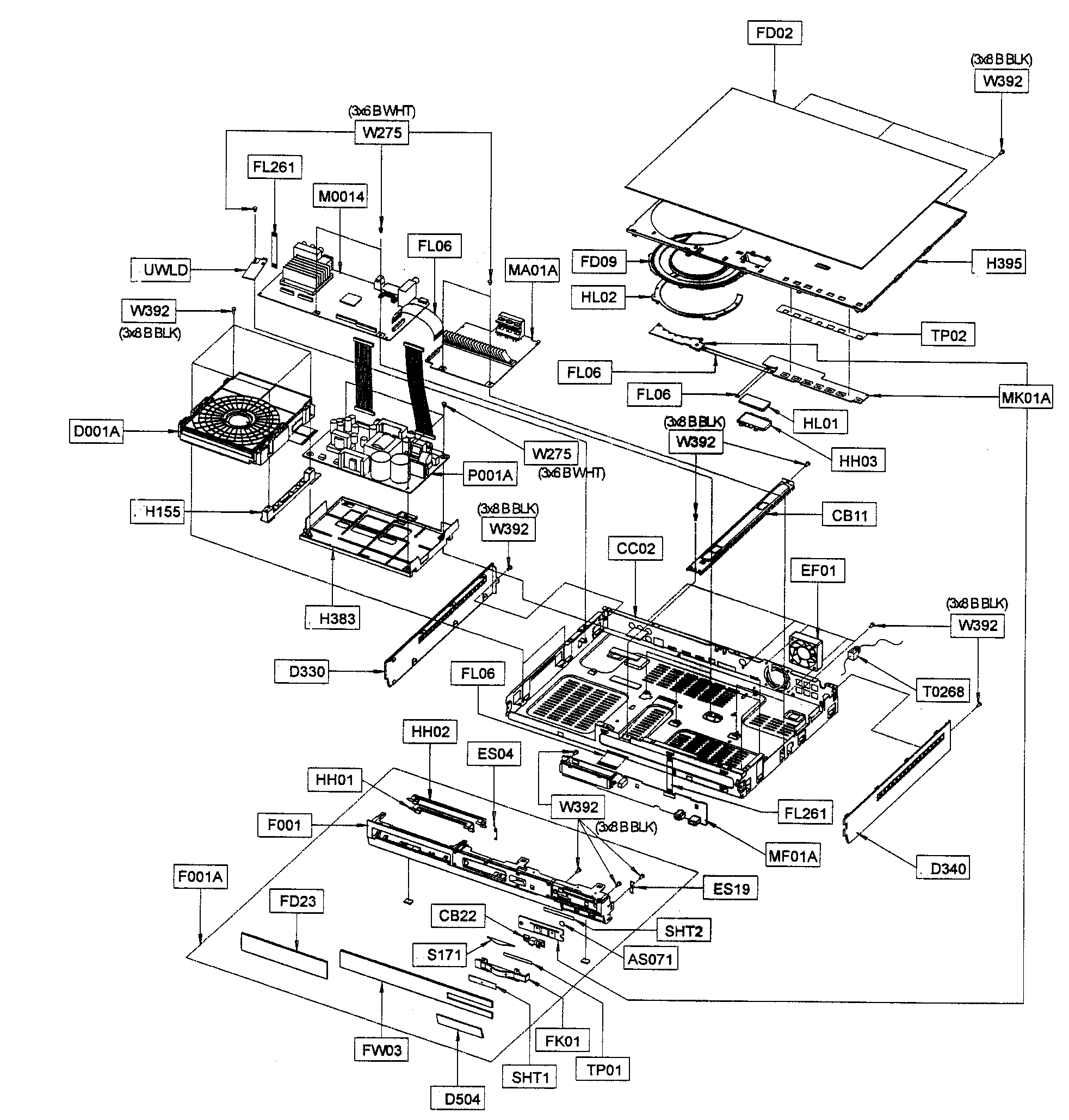

Cabinet parts Diagram

Integrated circuit

Part #1203-001212

The manufacturer no longer makes this part, and there's no substitute part

DVD Player Optical Pick-Up#DP

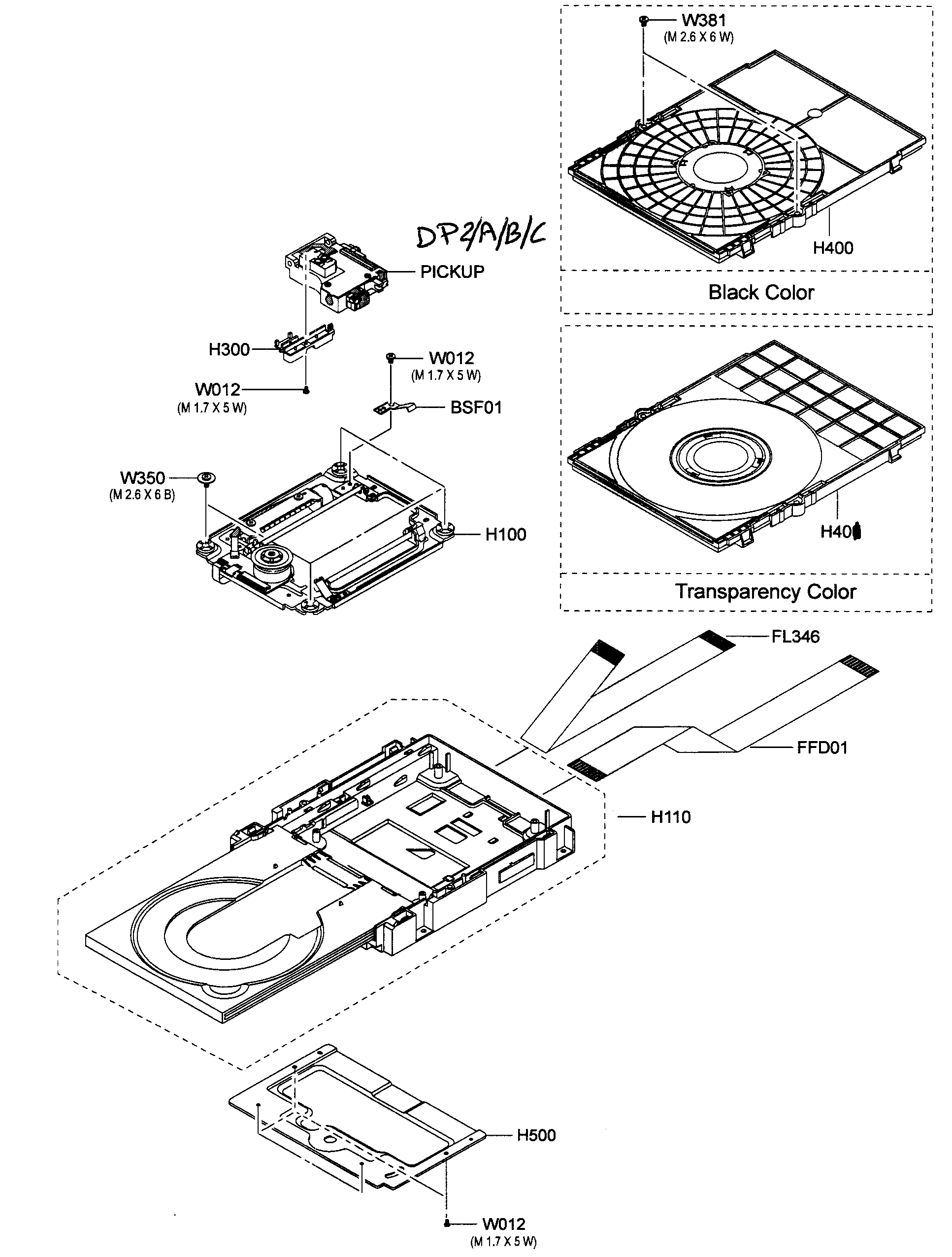

Dvd deck Diagram

Dvd player optical pick-up

Part #AK96-01213A

The manufacturer no longer makes this part, and there's no substitute part

Television Screw#W392

Cabinet parts Diagram

Television screw

Part #6003-000282

The manufacturer no longer makes this part, and there's no substitute part

PCB Front#MF1A

Cabinet parts Diagram

Pcb front

Part #AH94-02460C

The manufacturer no longer makes this part, and there's no substitute part

DVD Player Speaker#4

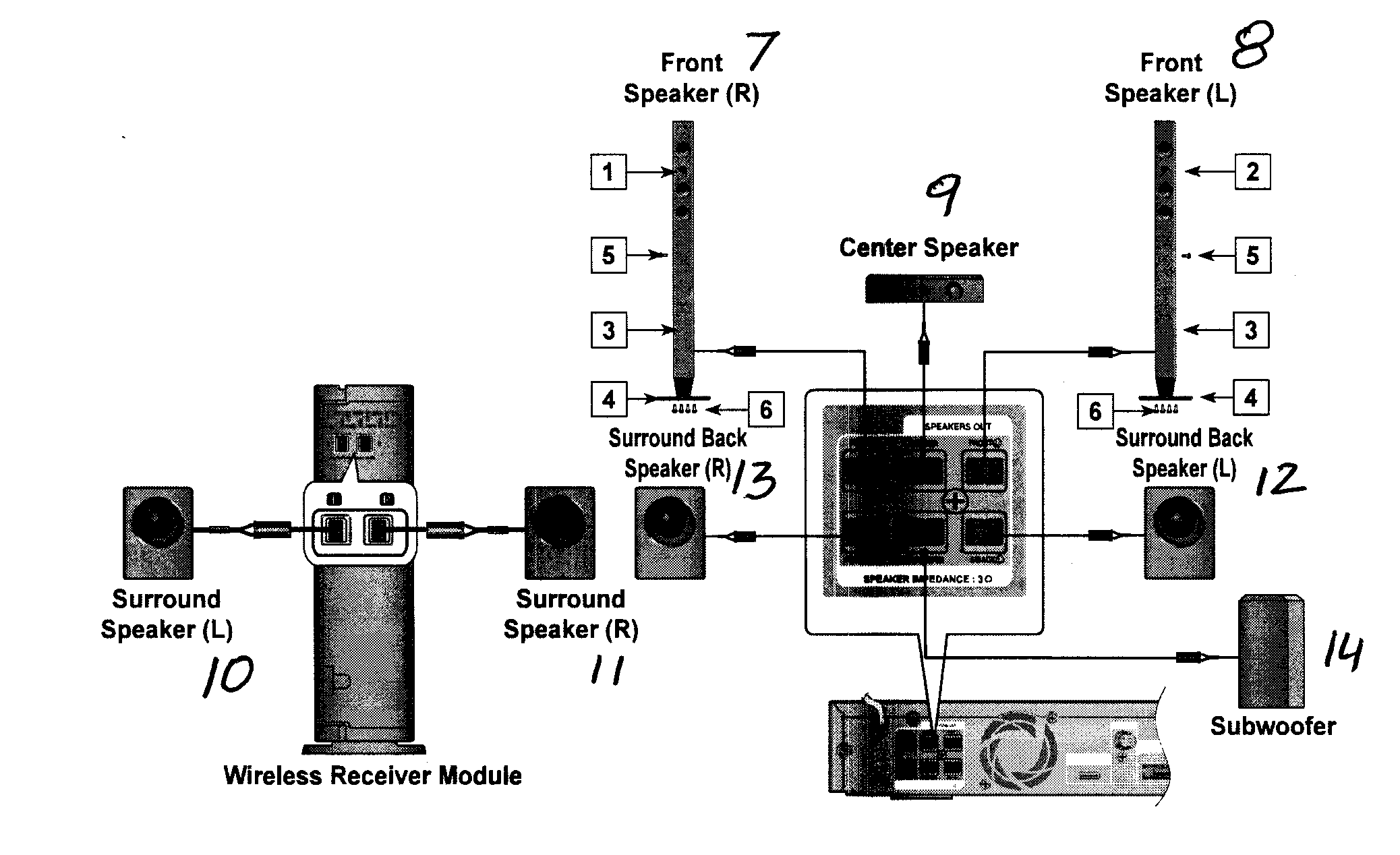

Speakers Diagram

Dvd player speaker

Part #AH81-05710A

The manufacturer no longer makes this part, and there's no substitute part

Usb P Assembly#UWLD

Cabinet parts Diagram

Usb p assembly

Part #AK96-01284A

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit#NI

Cabinet parts Diagram

Integrated circuit

Part #1203-000187

The manufacturer no longer makes this part, and there's no substitute part

DVD Player Optical Drive Engine#D1A

Cabinet parts Diagram

Dvd player optical drive engine

Part #AK96-01214L

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit#NI

Cabinet parts Diagram

Integrated circuit

Part #1103-001410

The manufacturer no longer makes this part, and there's no substitute part

Fan#EF01

Cabinet parts Diagram

Fan

Part #3103-001251

The manufacturer no longer makes this part, and there's no substitute part
