Model #217590093 Official Craftsman electric fishing motor

Here are the diagrams and repair parts for Craftsman 217590093 electric fishing motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 67 parts

    Screw#32

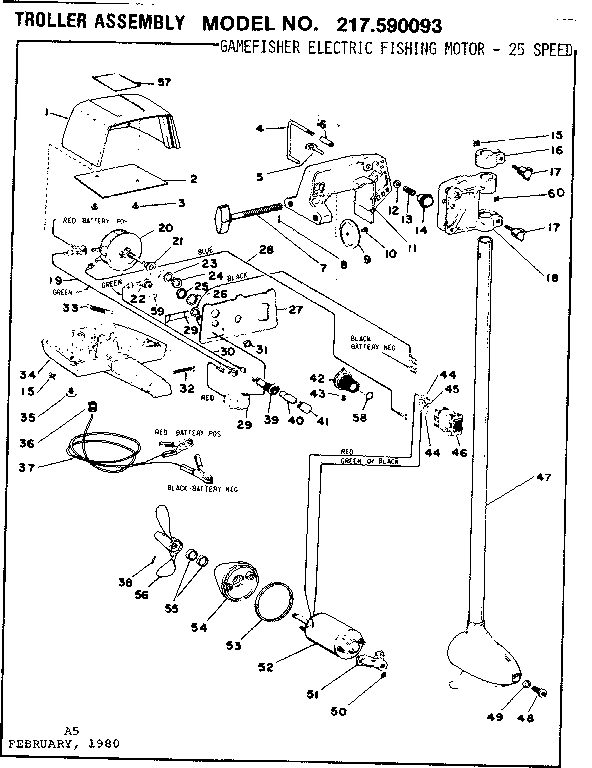

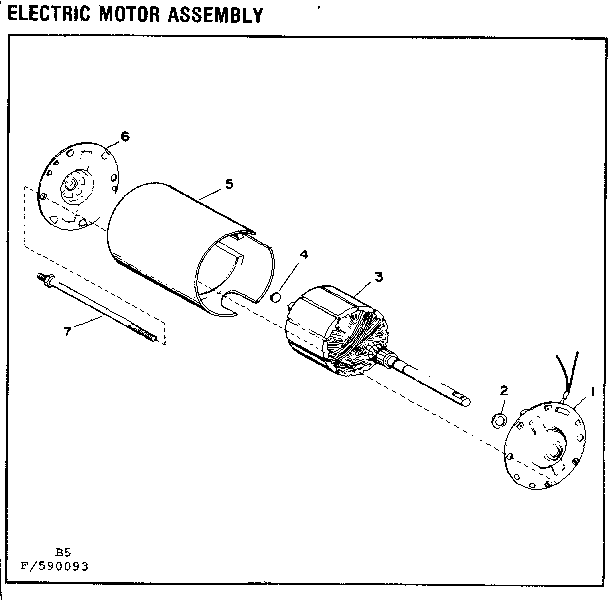

    Troller asm Diagram

    Screw

    Part #557

    The manufacturer no longer makes this part, and there's no substitute part

    Screw#35

    Troller asm Diagram

    Screw

    Part #60

    The manufacturer no longer makes this part, and there's no substitute part

    Oil Seal#55

    Troller asm Diagram

    Oil seal

    Part #26329

    The manufacturer no longer makes this part, and there's no substitute part

    Pin#38

    Troller asm Diagram

    Pin

    Part #7094

    The manufacturer no longer makes this part, and there's no substitute part

    Nut

    See All Related Diagrams

    Nut

    Part #2428

    The manufacturer no longer makes this part, and there's no substitute part

    Pin#6

    Troller asm Diagram

    Pin

    Part #7438

    The manufacturer no longer makes this part, and there's no substitute part

    Lock Washer#23

    Troller asm Diagram

    Lock washer

    Part #4803

    The manufacturer no longer makes this part, and there's no substitute part

    Screw#43

    Troller asm Diagram

    Screw

    Part #61

    The manufacturer no longer makes this part, and there's no substitute part

    Pin#8

    Troller asm Diagram

    Pin

    Part #7036

    The manufacturer no longer makes this part, and there's no substitute part

    Nut#50

    Troller asm Diagram

    Nut

    Part #2008

    The manufacturer no longer makes this part, and there's no substitute part
