Model #VTR630D-01 Official Thermador remote blower

Here are the diagrams and repair parts for Thermador VTR630D-01 remote blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Showing 10 of 13 parts

Range Hood Vent Damper#111

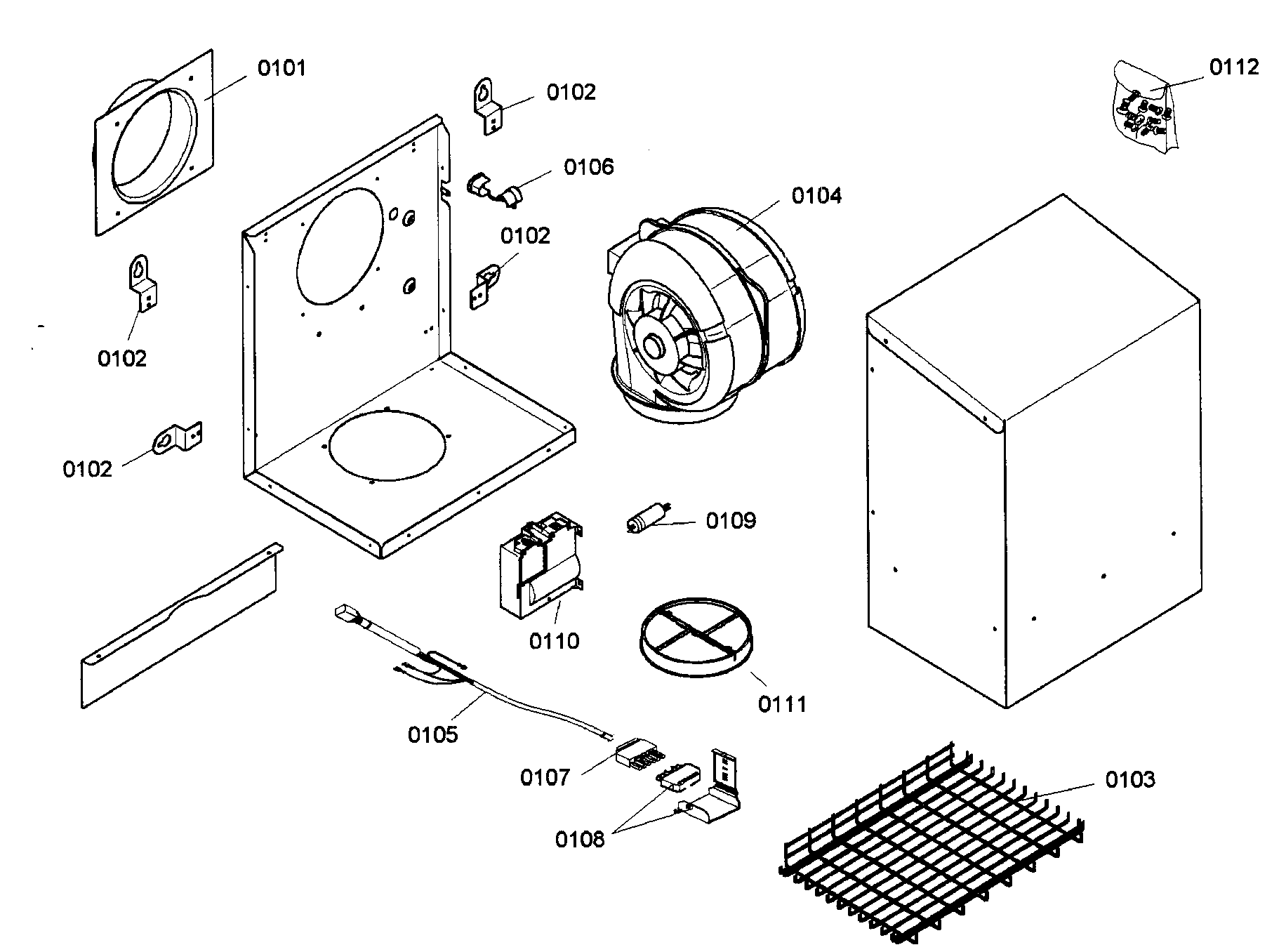

Range hood Diagram

1way flap

Part #641745
Replaced by #00641745
?
Manufacturer substitution
This part replaces 641745. Substitute parts can look different from the original.
In Stock
$35.49 |
12% OFF
Phone Price: $40.49
Bushing#108

Range hood Diagram

Socket

Part #606532
Replaced by #00606532
?
Manufacturer substitution
This part replaces 606532. Substitute parts can look different from the original.
In Stock
$29.62
Capacitor#109

Range hood Diagram

Capacitor

Part #418385
Replaced by #00418385
?
Manufacturer substitution
This part replaces 418385. Substitute parts can look different from the original.
In Stock
$51.91
Bracket#102

Range hood Diagram

Bracket

Part #606554
Replaced by #00606554
?
Manufacturer substitution
This part replaces 606554. Substitute parts can look different from the original.
In Stock
$11.24
Display Motor#105

Range hood Diagram

Cable harness

Part #671730
Replaced by #00671730
?
Manufacturer substitution
This part replaces 671730. Substitute parts can look different from the original.
In Stock
$430.49
Stud#101

Range hood Diagram

Stud

Part #641729
Replaced by #00641729
?
Manufacturer substitution
This part replaces 641729. Substitute parts can look different from the original.
In Stock
$45.15
Range Hood Fan Motor Assembly#104

Range hood Diagram

Fan motor

Part #662225
Replaced by #11007194
?
Manufacturer substitution
This part replaces 662225. Substitute parts can look different from the original.
In Stock
$407.55 |
$10.00 OFF
Phone Price: $417.55
Housing#110

Range hood Diagram

Housing

Part #418533
Replaced by #00418533
?
Manufacturer substitution
This part replaces 418533. Substitute parts can look different from the original.
In Stock
$29.62
Grid#103

Range hood Diagram

Grid

Part #662238
Replaced by #00662238
?
Manufacturer substitution
This part replaces 662238. Substitute parts can look different from the original.
In Stock
$49.49
Plug#107

Range hood Diagram

Plug

Part #418034
Replaced by #00418034
?
Manufacturer substitution
This part replaces 418034. Substitute parts can look different from the original.
In Stock
$35.27
