Model #MVAL012ME2AA1 Official Haier air handler

Here are the diagrams and repair parts for Haier MVAL012ME2AA1 air handler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 14 parts

Fan Shroud#15

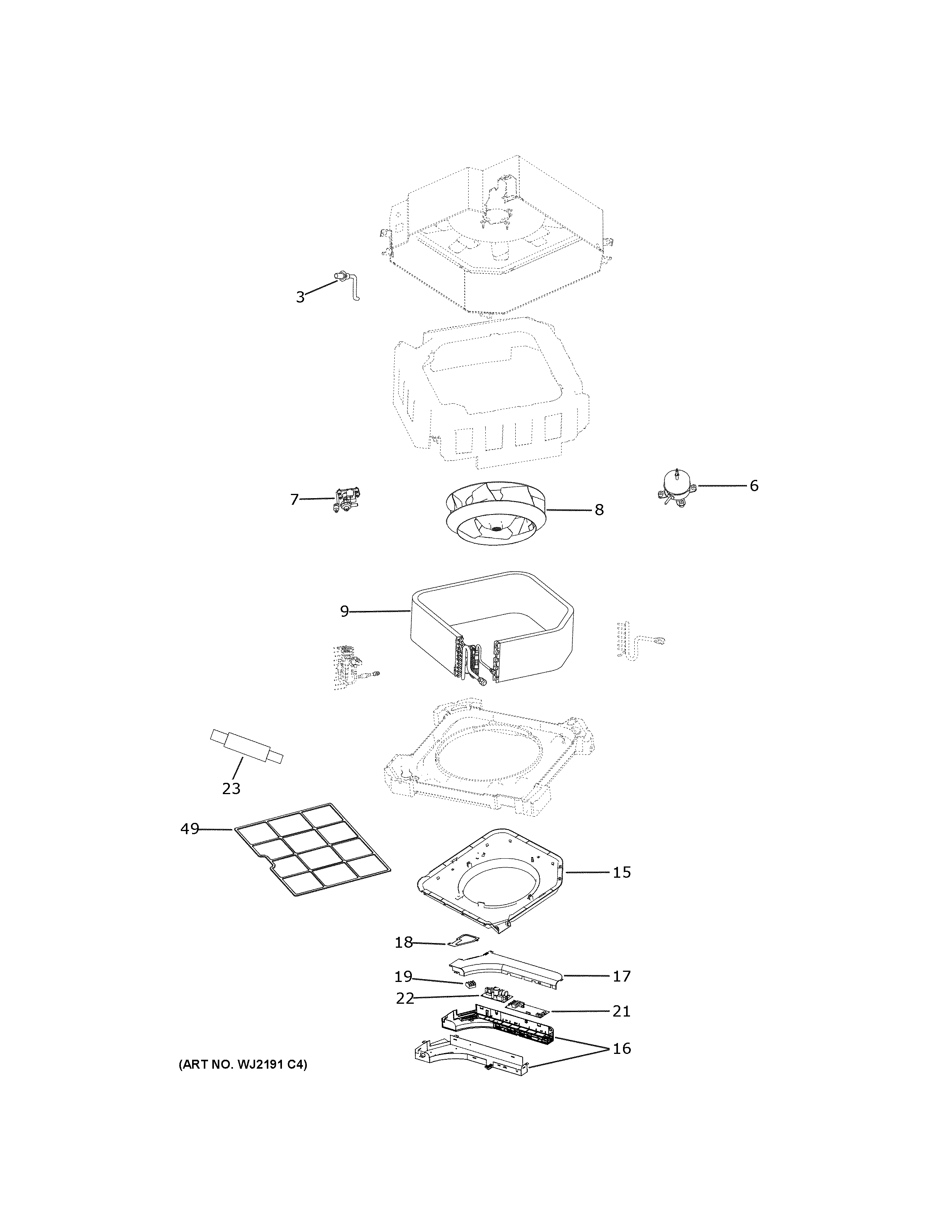

Air handler Diagram

Fan shroud

Part #WJ76X22541
In Stock
$91.85
Drain Tube#3

Air handler Diagram

Drain tube

Part #WJ53X22525
In Stock
$17.77
Fan Blade#8

Air handler Diagram

Fan blade

Part #WJ73X22529
In Stock
$159.51
Control Box#18

Air handler Diagram

Control box

Part #WJ76X22522
This item is not returnable
In Stock
$4.35
ICR PUMP#7

Air handler Diagram

Icr pump

Part #WJ26X22532
In Stock
$147.22
Fan Motor#6

Air handler Diagram

Fan motor

Part #WJ94X22540
In Stock
$312.48
Power Supply#22

Air handler Diagram

Power supply

Part #WJ26X22535
In Stock
$140.55
Drain Hose#23

Air handler Diagram

Drain hose

Part #WJ53X22524
In Stock
$21.11
CONTROL BOX#17

Air handler Diagram

Control box

Part #WJ76X22523
Replaced by #WJ76X29474
?
Manufacturer substitution
This part replaces WJ76X22523. Substitute parts can look different from the original.
In Stock
$28.00
CONTROL BOX#16

Air handler Diagram

Control box

Part #WP76X26765

The manufacturer no longer makes this part, and there's no substitute part
