Kenmore
Upright Freezer

Model #25323024101 Official Kenmore freezer

Here are the diagrams and repair parts for Kenmore 25323024101 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

Showing 10 of 107 parts

Freezer Door Gasket (replaces 216522312, 5304507208)#1

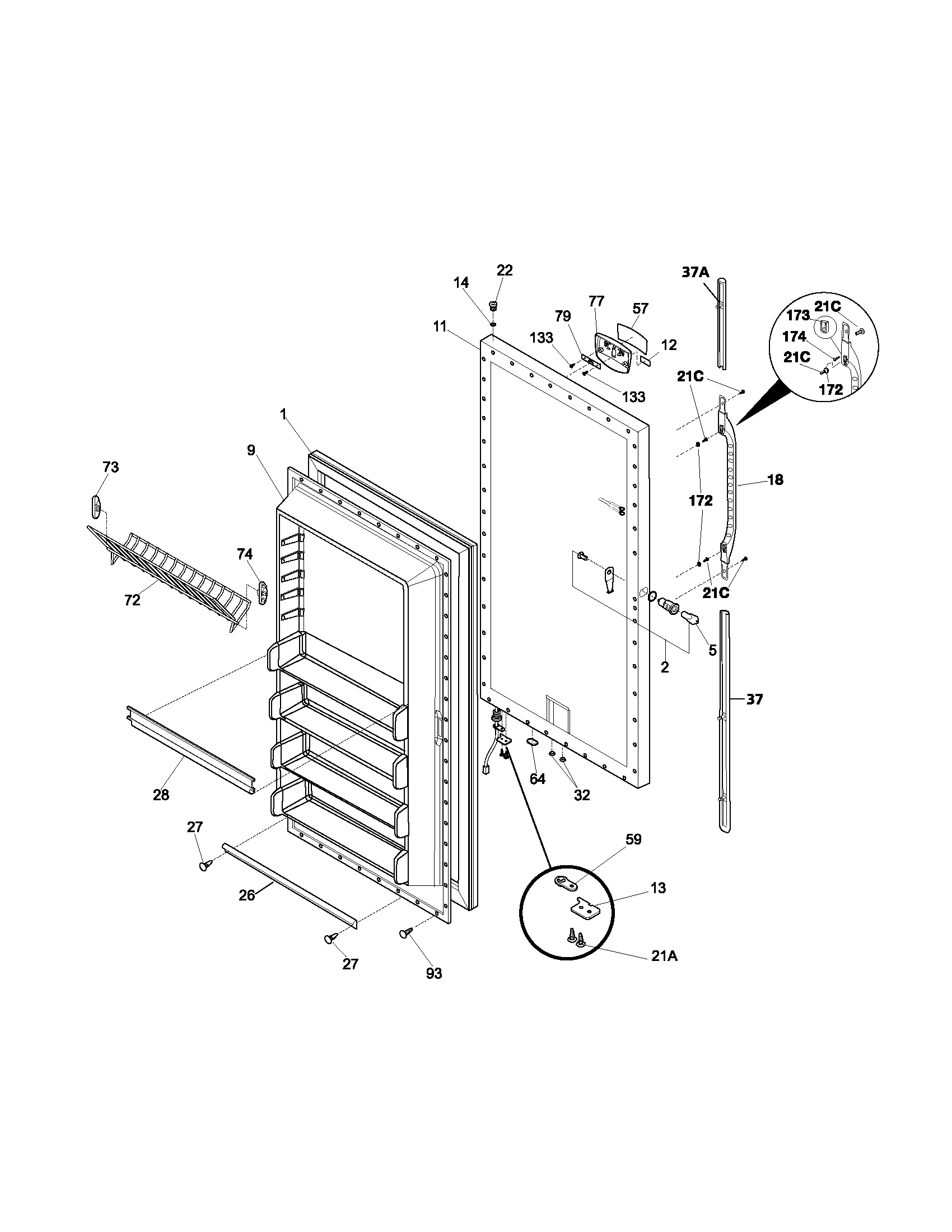

Door Diagram

Freezer door gasket

Part #216522312
Replaced by #5304507199
?
Manufacturer substitution
This part replaces 216522312. Substitute parts can look different from the original.
BEST SELLER
In Stock
$86.55 |
33% OFF
MSRP: $130.00
Freezer Door Key#5

Door Diagram

Freezer door key

Part #216702900
Replaced by #297147700
?
Manufacturer substitution
This part replaces 216702900. Substitute parts can look different from the original.
BEST SELLER
In Stock
$6.55 |
13% OFF
Phone Price: $7.55
Refrigerator Evaporator Fan Blade#5

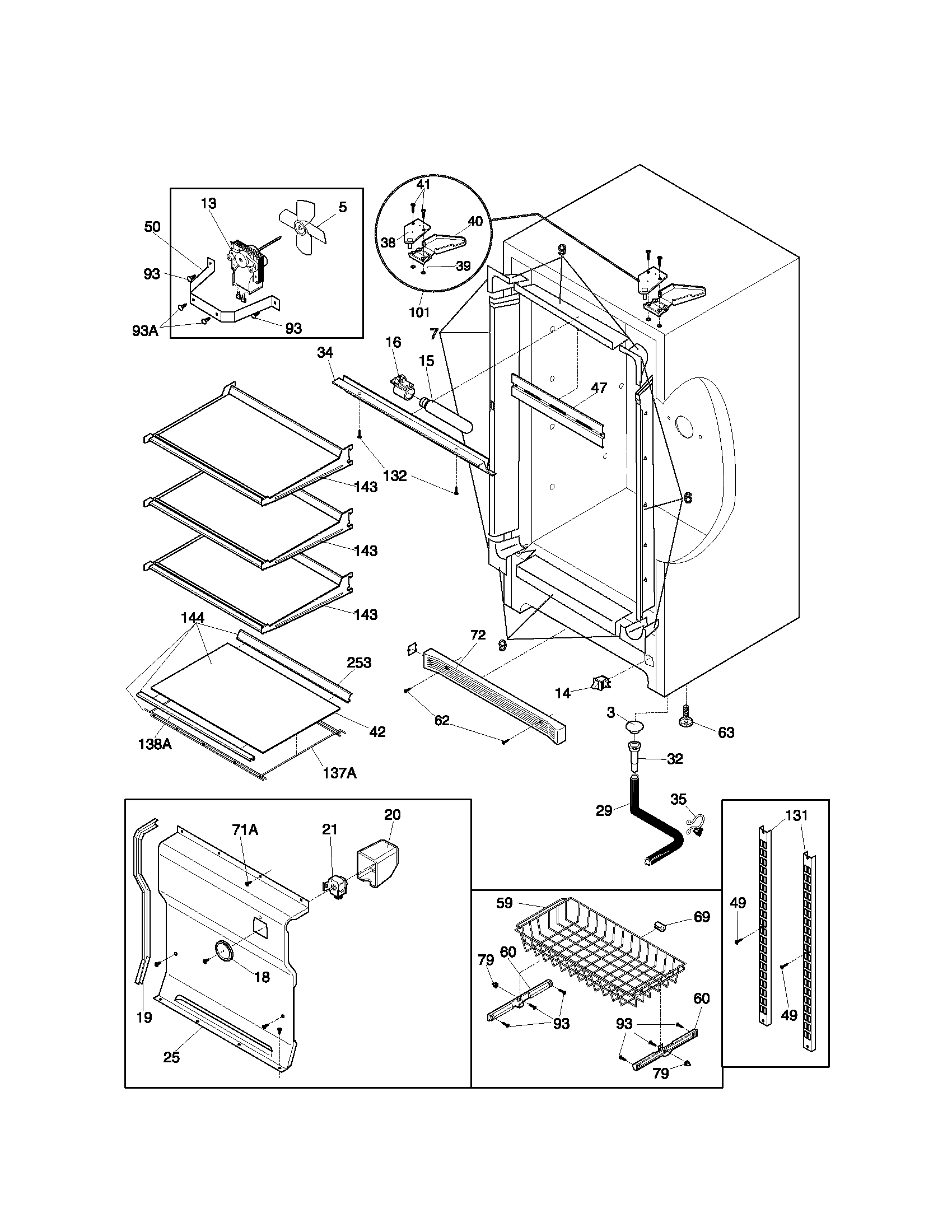

Cabinet Diagram

Blade

Part #216325600
Replaced by #5308000010
?
Manufacturer substitution
This part replaces 216325600. Substitute parts can look different from the original.
BEST SELLER
In Stock
$39.39 |
11% OFF
Phone Price: $44.39
Freezer Door Secondary Gasket#26

Door Diagram

Sec, gasket

Part #216524200
Replaced by #216524201
?
Manufacturer substitution
This part replaces 216524200. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$34.32 |
13% OFF
Phone Price: $39.32
Freezer Evaporator Fan Motor#13

Cabinet Diagram

Fan motor

Part #216822500
Replaced by #5304436055
?
Manufacturer substitution
This part replaces 216822500. Substitute parts can look different from the original.
BEST SELLER
In Stock
$98.00 |
9% OFF
Phone Price: $108.00
Freezer Defrost Heater#14

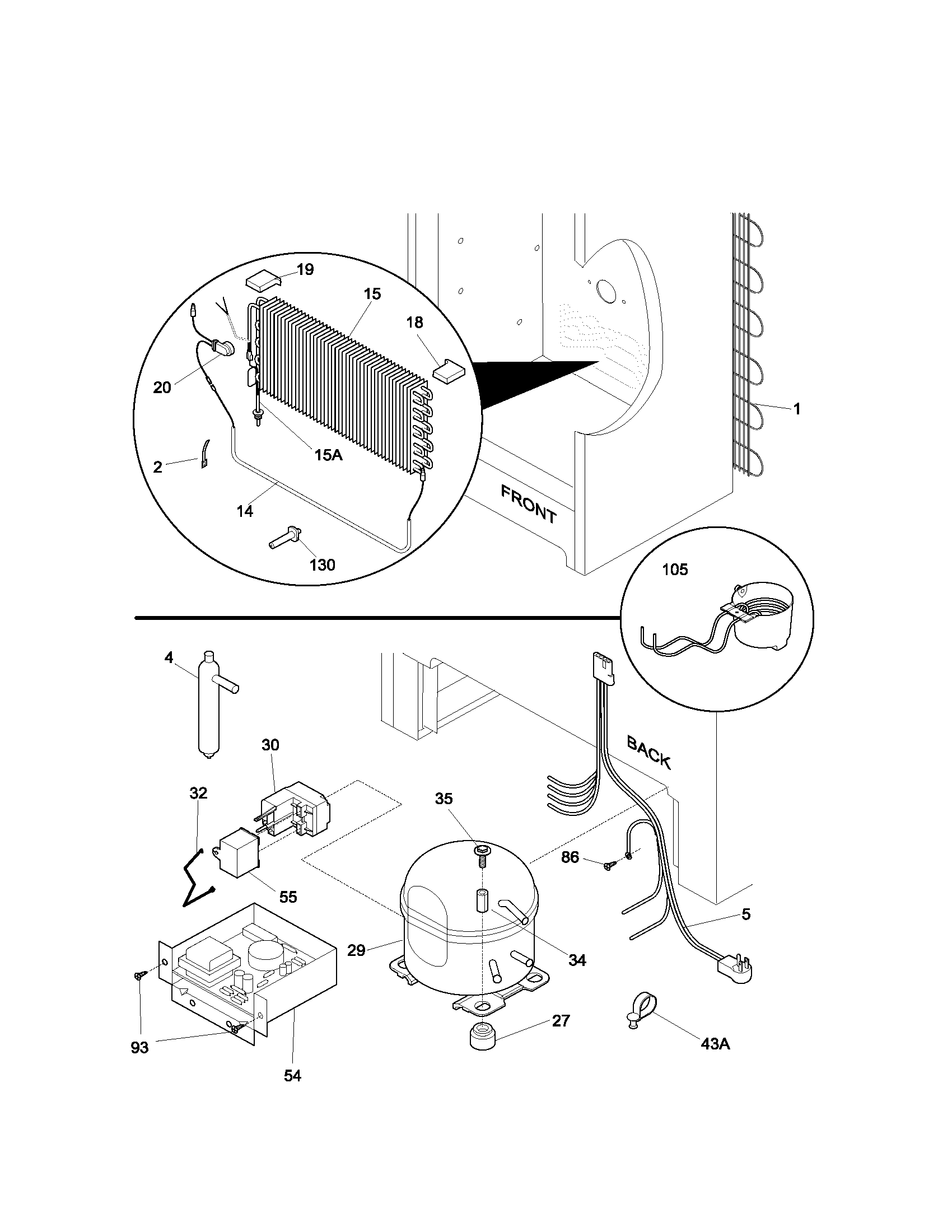

System Diagram

Freezer defrost heater

Part #216730700
BEST SELLER
In Stock
$79.49 |
6% OFF
Phone Price: $84.49
Freezer Door Handle Mounting Block#173

Door Diagram

Freezer door handle mounting block

Part #218396700
BEST SELLER
In Stock
$36.46 |
12% OFF
Phone Price: $41.46
Freezer Evaporator#15

System Diagram

Evaporator

Part #216737300
Replaced by #297414901
?
Manufacturer substitution
This part replaces 216737300. Substitute parts can look different from the original.
In Stock
$110.45 |
8% OFF
Phone Price: $120.45
Refrigerator Screw#41

Cabinet Diagram

Screw

Part #216850900
Replaced by #241710601
?
Manufacturer substitution
This part replaces 216850900. Substitute parts can look different from the original.
This item is not returnable
In Stock
$14.19 |
12% OFF
Phone Price: $16.19
Freezer Temperature Control Thermostat#21

Cabinet Diagram

In Stock
$54.67
