Model #11321300 Official Craftsman floor model drill press & bench

Here are the diagrams and repair parts for Craftsman 11321300 floor model drill press & bench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 108 parts

Drill Press Spindle#13

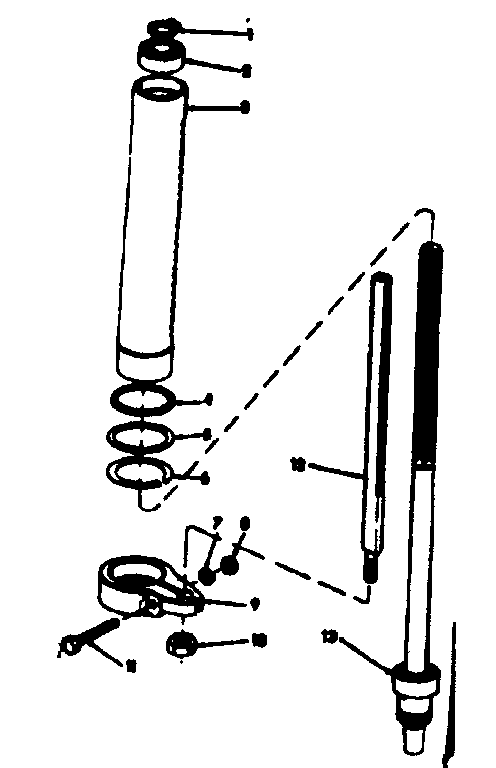

Spindle assembly Diagram

Drill press spindle

Part #71077

The manufacturer no longer makes this part, and there's no substitute part

Drill Press Feed Return Spring (replaces 38939)#37

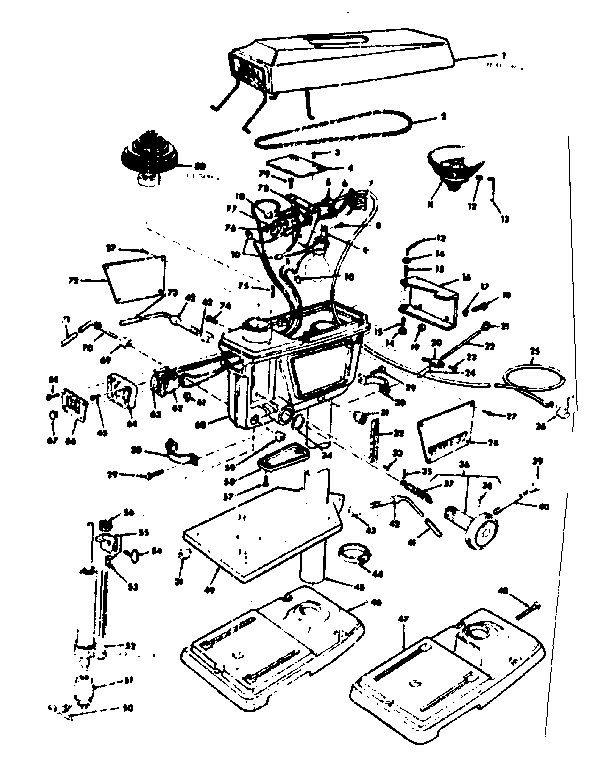

Unit Diagram

Drill press feed return spring (replaces 38939)

Part #38989

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Knob#39

Unit Diagram

Power tool knob

Part #38546

The manufacturer no longer makes this part, and there's no substitute part

Thumb Screw#54

Unit Diagram

Thumb screw

Part #60191

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing#2

Spindle assembly Diagram

Power tool bearing

Part #3509

The manufacturer no longer makes this part, and there's no substitute part

Screw#74

Unit Diagram

Screw

Part #132124

The manufacturer no longer makes this part, and there's no substitute part

In Ret Ring#17

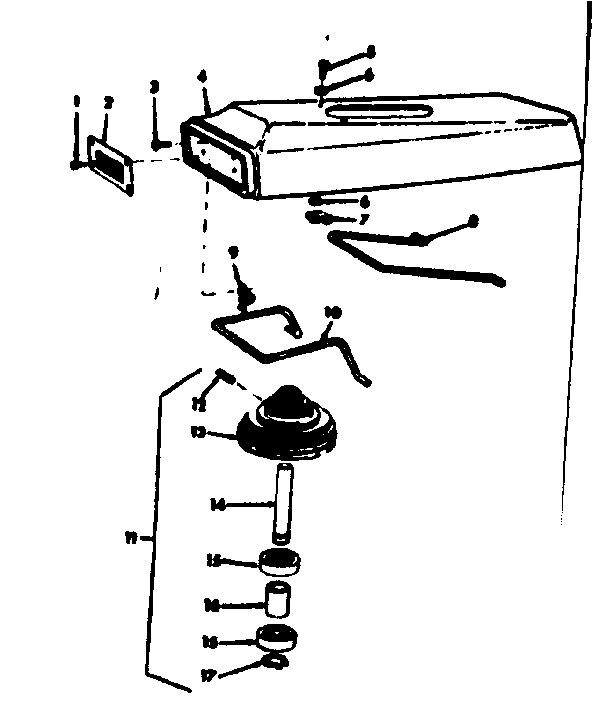

Guard assembly Diagram

In ret ring

Part #18414

The manufacturer no longer makes this part, and there's no substitute part

Washer#6

Guard assembly Diagram

Washer

Part #60158

The manufacturer no longer makes this part, and there's no substitute part

Screw#12

Unit Diagram

Screw

Part #9411963

The manufacturer no longer makes this part, and there's no substitute part

Screw#3

Unit Diagram

Screw

Part #111633

The manufacturer no longer makes this part, and there's no substitute part
