LG
Countertop Microwave

Model #LRM1230B Official LG microwave

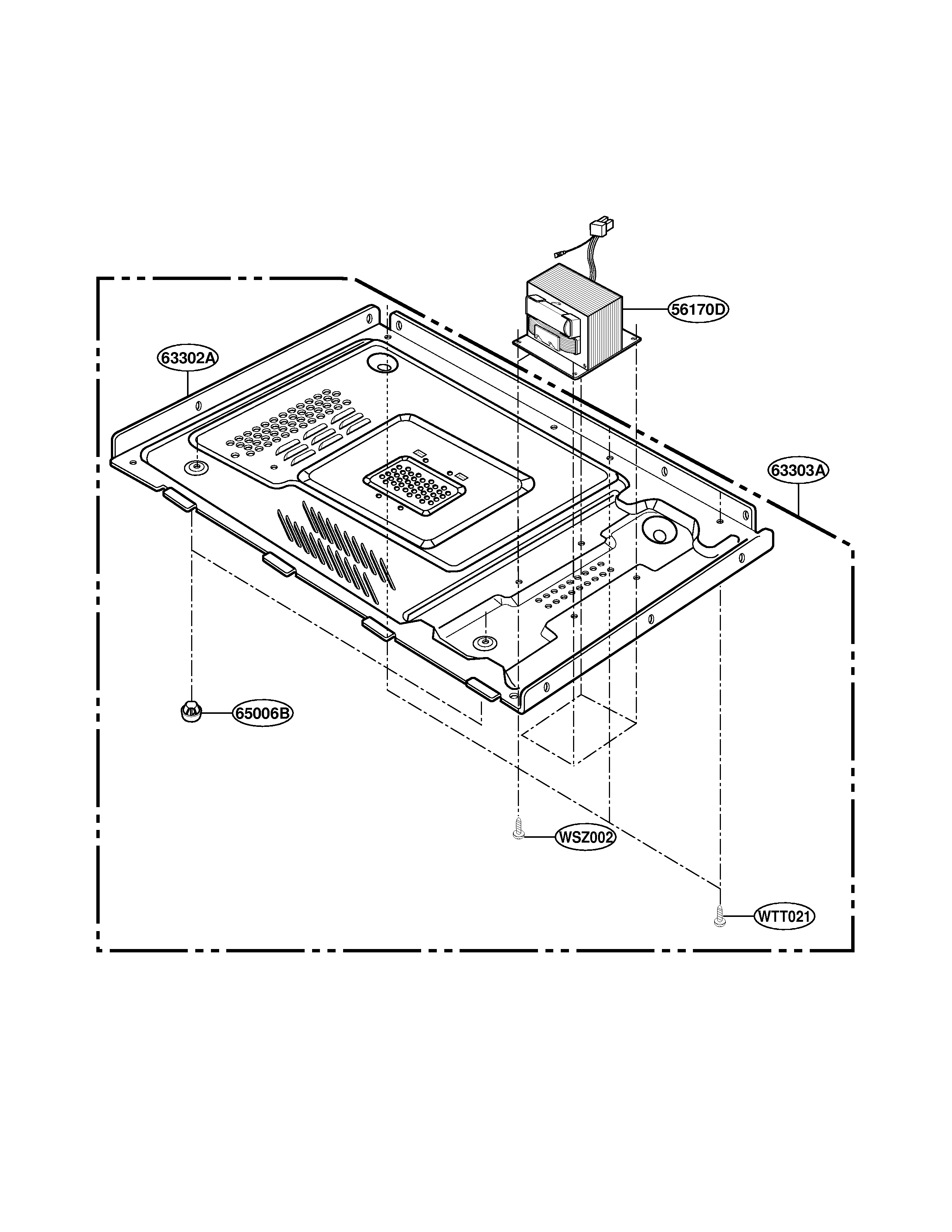

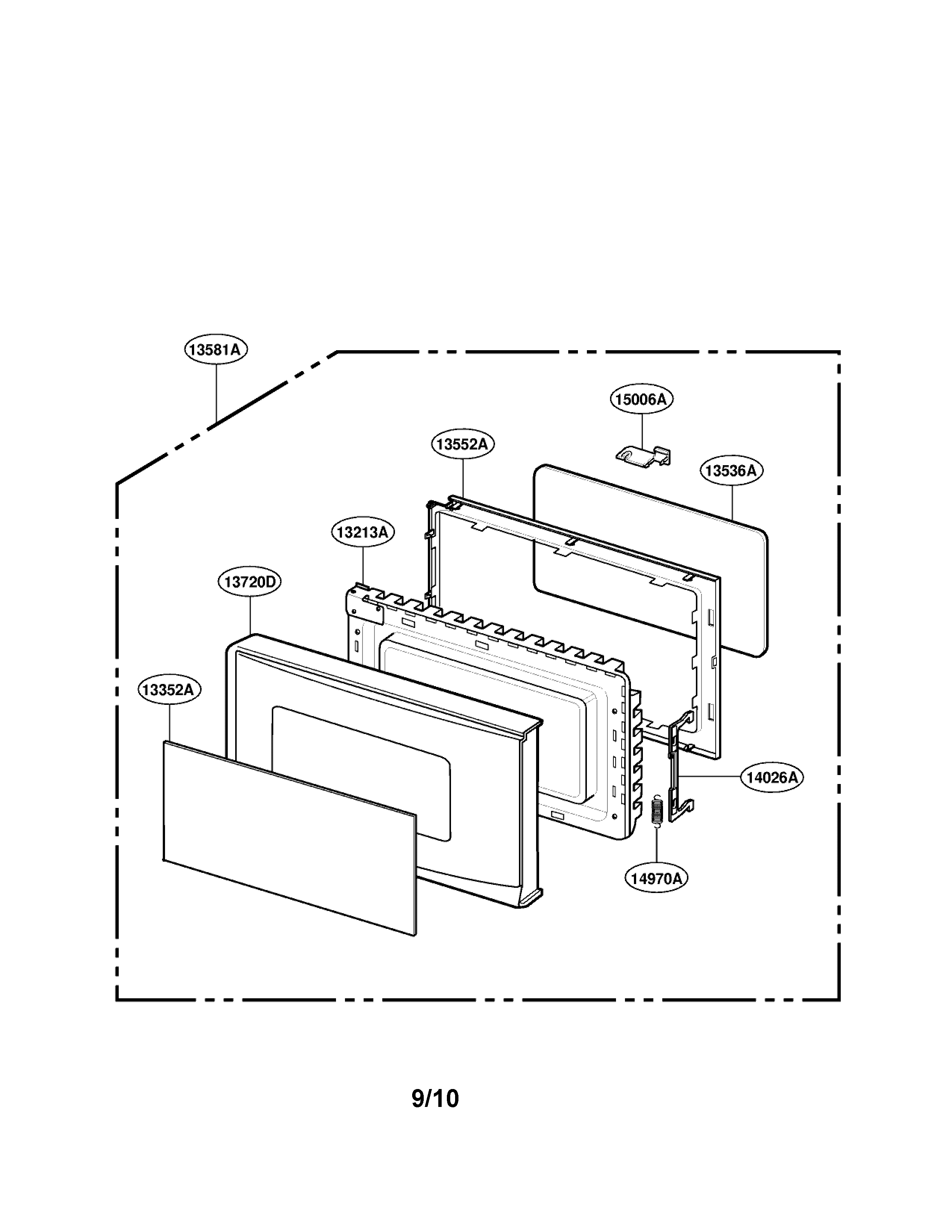

Here are the diagrams and repair parts for LG LRM1230B microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 58 parts

Microwave Door Interlock Switch#4660A

Latch board parts Diagram

Microwave door interlock switch

Part #6600W1K001C
BEST SELLER
In Stock
$7.29 |
12% OFF
Phone Price: $8.29
Microwave Light Bulb (replaces 6912W3B002G)#5691

Interior parts Diagram

Microwave light bulb (replaces 6912w3b002g)

Part #6912W3B002L
BEST SELLER
This item is not returnable
In Stock
$9.57 |
9% OFF
Phone Price: $10.57
Microwave Door Interlock Switch#4660

Latch board parts Diagram

Microwave door interlock switch

Part #6600W1K001D
BEST SELLER
In Stock
$6.82 |
13% OFF
Phone Price: $7.82
Microwave Turntable Motor#3654

Oven cavity parts Diagram

Microwave turntable motor

Part #6549W1S011B
BEST SELLER
This item is not returnable
In Stock
$18.31 |
10% OFF
Phone Price: $20.31
Microwave Magnetron#5632

Interior parts Diagram

Microwave magnetron

Part #6324W1A001L
BEST SELLER
In Stock
$57.75 |
8% OFF
Phone Price: $62.75
Microwave High-Voltage Diode#5685

Interior parts Diagram

Microwave high-voltage diode

Part #6021W3B001R
Replaced by #6021W3B001V
?
Manufacturer substitution
This part replaces 6021W3B001R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$6.31 |
14% OFF
Phone Price: $7.31
Microwave Fuse#50FZ

Interior parts Diagram

Microwave fuse

Part #3B74133Q
BEST SELLER
This item is not returnable
In Stock
$4.69 |
18% OFF
Phone Price: $5.69
Microwave Screw#WTT0

Interior parts Diagram

Microwave screw

Part #1TTL0402818
This item is not returnable
In Stock
$5.41 |
16% OFF
Phone Price: $6.41
Microwave Door Release Button Spring#2497

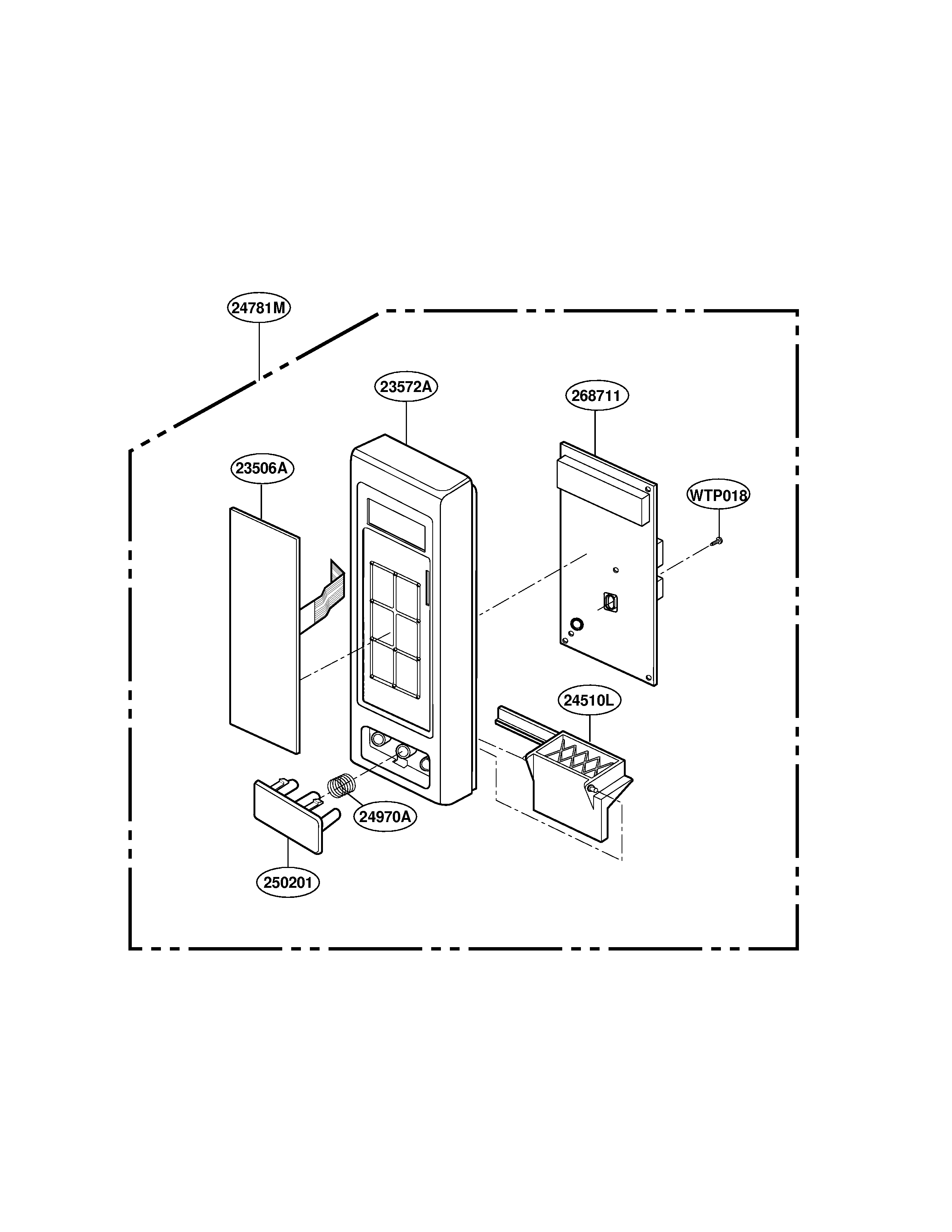

Controller parts Diagram

Microwave door release button spring

Part #4B72023B
This item is not returnable
In Stock
$5.41 |
16% OFF
Phone Price: $6.41
Microwave Screw

See All Related Diagrams

Microwave screw

Part #1SBF0402418
This item is not returnable
In Stock
$5.41 |
16% OFF
Phone Price: $6.41
