Craftsman
Drill Press

Model #33525986 Official Craftsman drill press stand

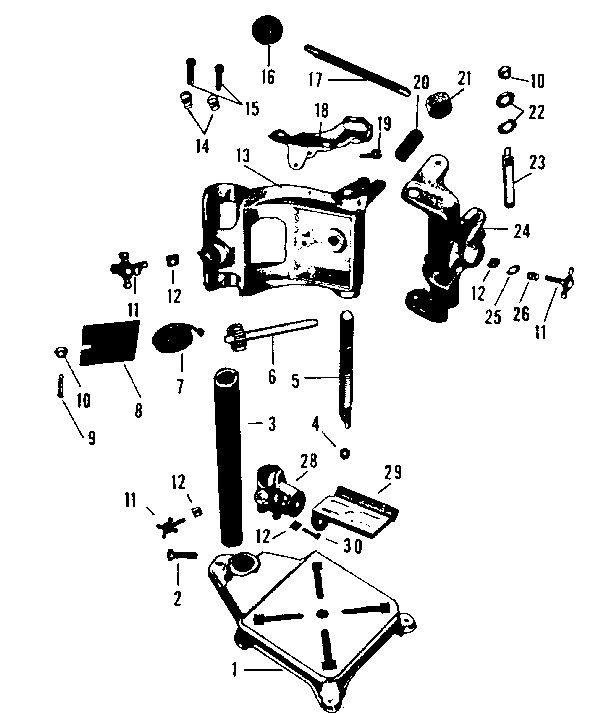

Here are the diagrams and repair parts for Craftsman 33525986 drill press stand, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 29 parts

Washer#25

Unit parts Diagram

Washer

Part #5025

The manufacturer no longer makes this part, and there's no substitute part

Screw#15

Unit parts Diagram

Screw

Part #5015

The manufacturer no longer makes this part, and there's no substitute part

Rack Nut#4

Unit parts Diagram

Rack nut

Part #5013

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut#10

Unit parts Diagram

Lock nut

Part #5010

The manufacturer no longer makes this part, and there's no substitute part

Base Table#1

Unit parts Diagram

Base table

Part #5001

The manufacturer no longer makes this part, and there's no substitute part

Set Screw#19

Unit parts Diagram

Set screw

Part #5019

The manufacturer no longer makes this part, and there's no substitute part

Set Screw#2

Unit parts Diagram

Set screw

Part #5002

The manufacturer no longer makes this part, and there's no substitute part

Handle Knob#16

Unit parts Diagram

Handle knob

Part #5016

The manufacturer no longer makes this part, and there's no substitute part

Collar#21

Unit parts Diagram

Collar

Part #5024

The manufacturer no longer makes this part, and there's no substitute part

Spring#14

Unit parts Diagram

Spring

Part #5014

The manufacturer no longer makes this part, and there's no substitute part
