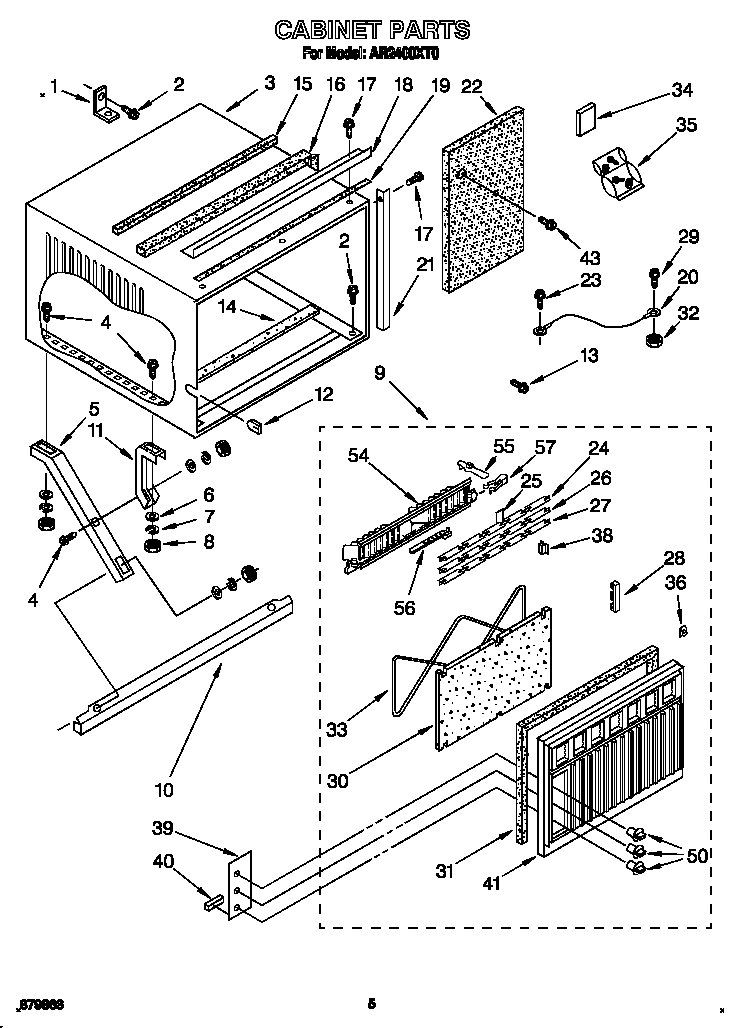

Model #AR2400XT0 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Whirlpool AR2400XT0 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 183 parts

Appliance Screw

See All Related Diagrams

Screw

Part #487910
Replaced by #WP488729
?
Manufacturer substitution
This part replaces 487910. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39
Appliance Silicone Sealant (replaces 279368)#10

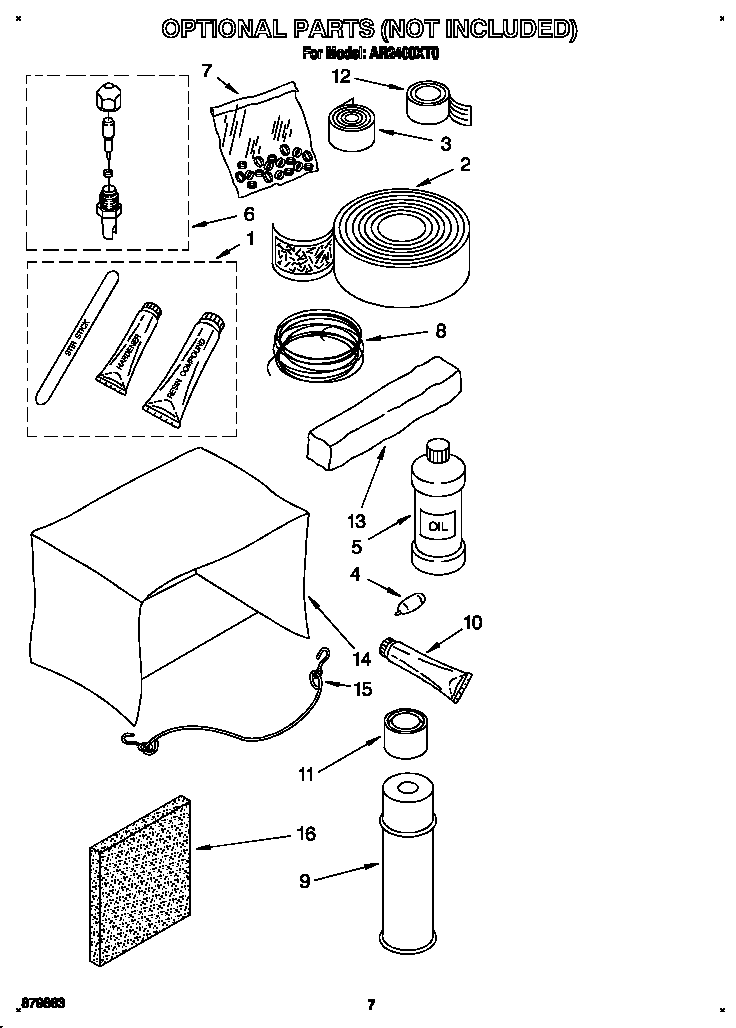

Optional parts (not included) Diagram

Cement

Part #279368
Replaced by #WP279368
?
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
In Stock
$41.59 |
11% OFF
Phone Price: $46.59
Refrigerator Service Valve, 3/4-in#6G

Optional parts (not included) Diagram

Valve kit

Part #978030
Replaced by #978030
?
Manufacturer substitution
This part replaces 978030. Substitute parts can look different from the original.
In Stock
$40.49 |
11% OFF
Phone Price: $45.49
Refrigerator Service Valve#6B

Optional parts (not included) Diagram

Valve kit

Part #978025
Replaced by #WP978025
?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
In Stock
$18.97 |
37% OFF
MSRP: $30.00
Bracket Support#24

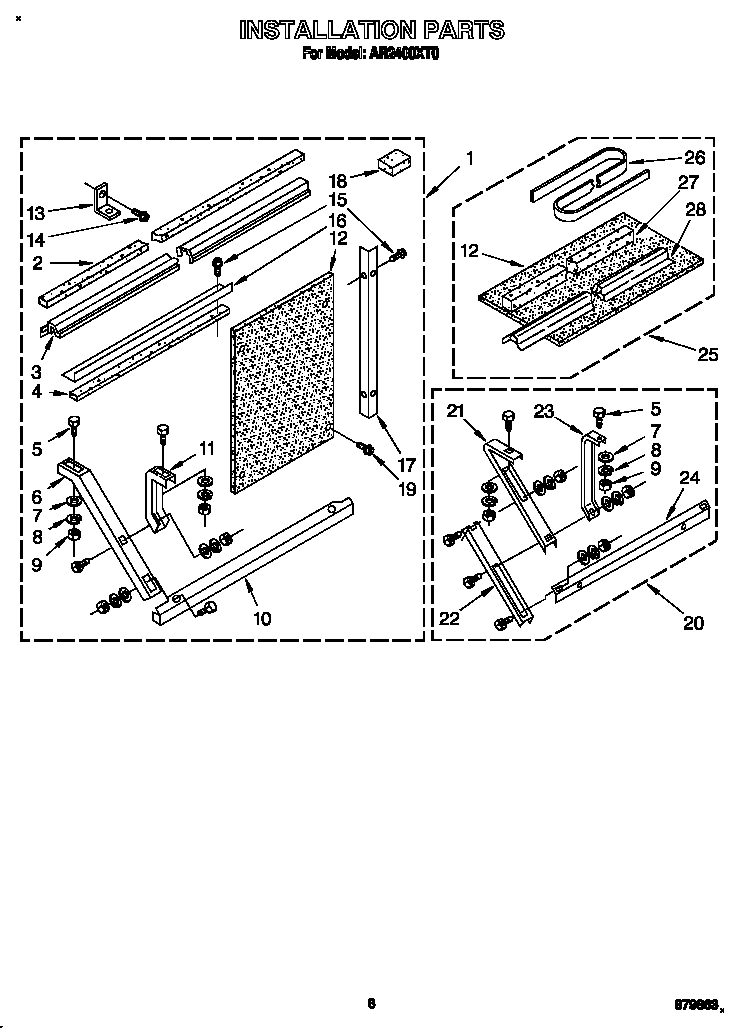

Installation Diagram

Bracket support

Part #644281
In Stock
$35.98
Refrigerator Vinyl Tape#3

Optional parts (not included) Diagram

Tape

Part #479502
Replaced by #W11238399
?
Manufacturer substitution
This part replaces 479502. Substitute parts can look different from the original.
In Stock
$55.36
Screw#4A

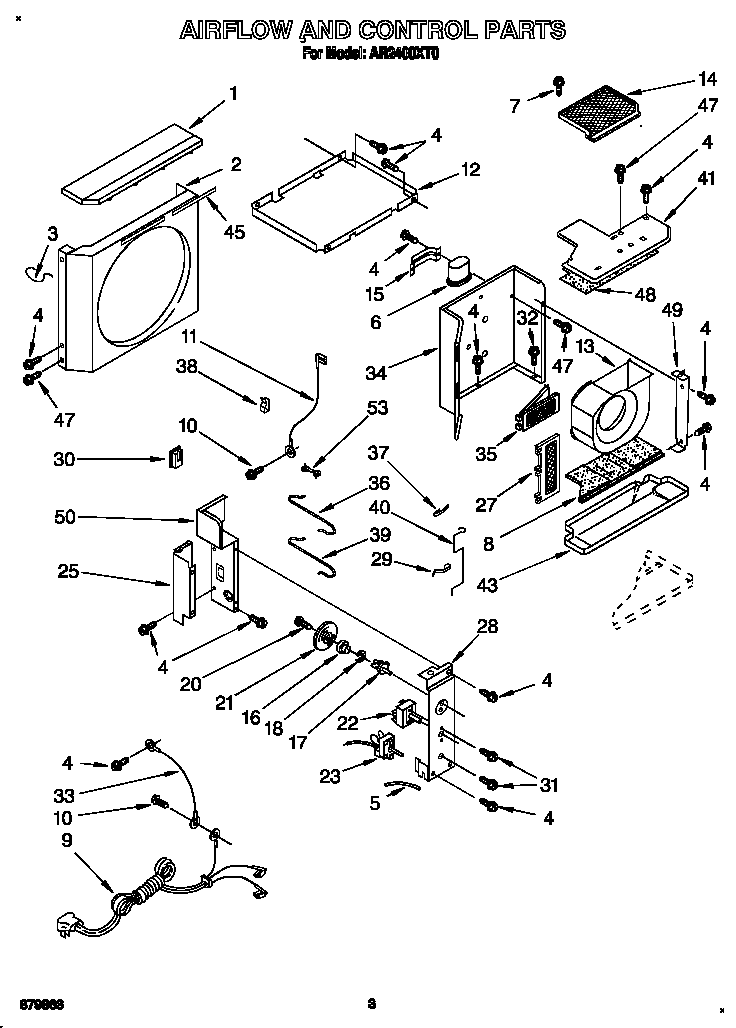

Airflow and control Diagram

Screw

Part #488861

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Foam Seal#45B

Airflow and control Diagram

Seal

Part #997267
Replaced by #WP854334
?
Manufacturer substitution
This part replaces 997267. Substitute parts can look different from the original.
In Stock
$9.99 |
9% OFF
Phone Price: $10.99
Dishwasher Screw

See All Related Diagrams

Screw

Part #488017
Replaced by #WP965173
?
Manufacturer substitution
This part replaces 488017. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.85
Gasket#15

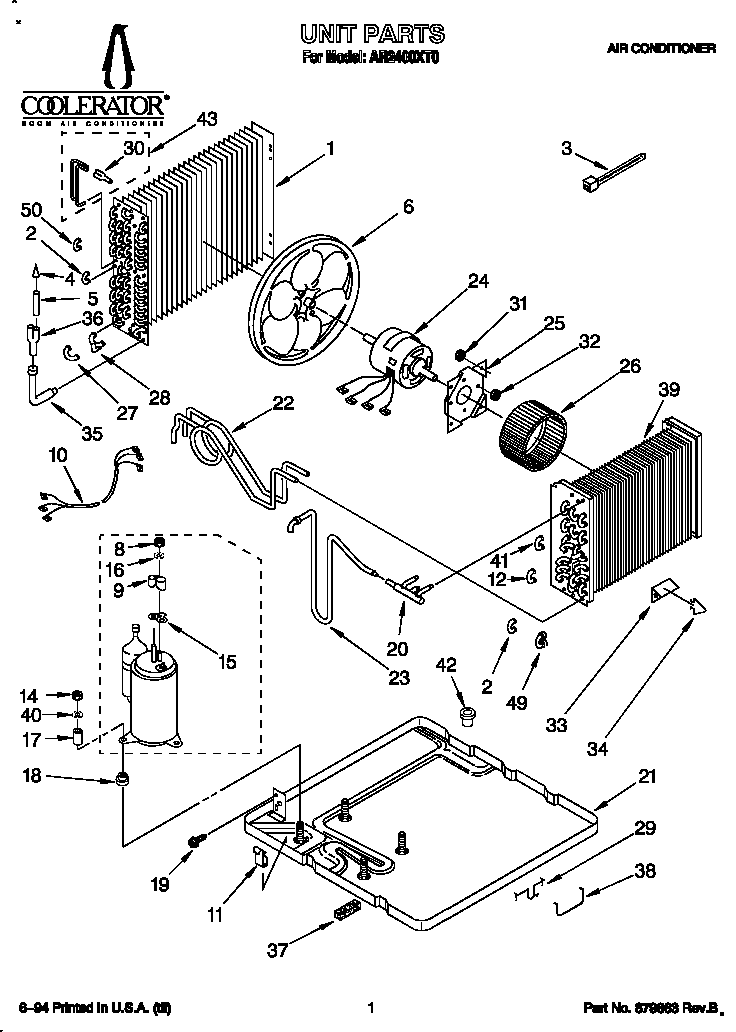

Unit Diagram

Lock nut

Part #950035
Replaced by #WP950035
?
Manufacturer substitution
This part replaces 950035. Substitute parts can look different from the original.
In Stock
$29.89
