Warming Drawer

Model # ZTD910WF3WW Official GE warming drawer

Here are the diagrams and repair parts for Official GE ZTD910WF3WW warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |

Cover WB02X11008
#24

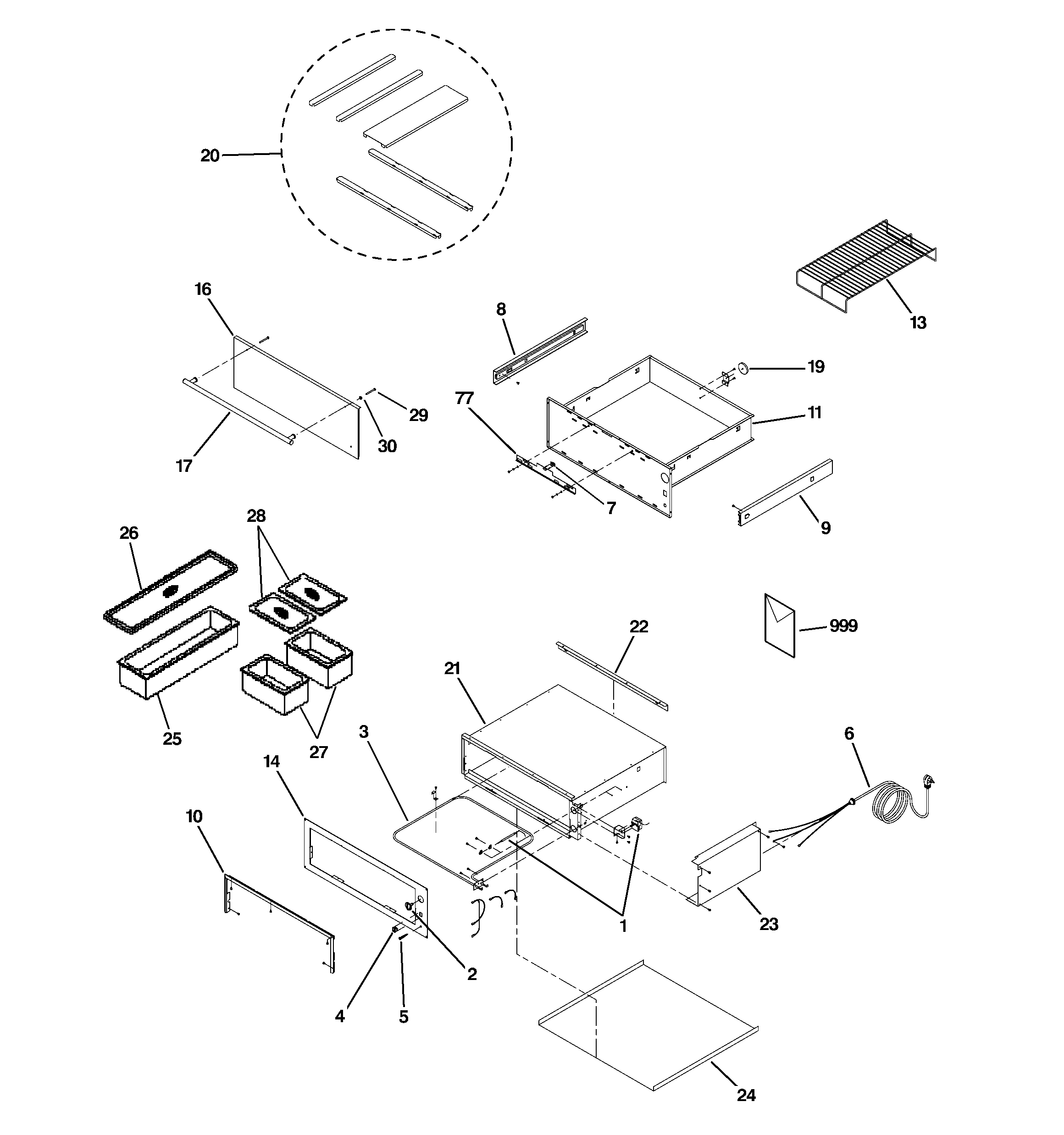

Warming drawer diagram

Cover

Part #WB02X11008

In Stock
Heating Element WB44X10029
#3

Warming drawer diagram

Heating element

Part #WB44X10029

$86.69
5% OFF Phone Price : $91.69
In Stock
Cover WB49X10161
#28

Warming drawer diagram

Cover

Part #WB49X10161

In Stock
Quarter Pan WB49X10160
#27

Warming drawer diagram

Quarter pan

Part #WB49X10160

In Stock
Pan WB49X10158
#25

Warming drawer diagram

Pan

Part #WB49X10158

In Stock
Magnet Closure WB02X10592
#19

Warming drawer diagram

Magnet closure

Part #WB02X10592

In Stock
Indicator Lamp WB02X10587
#5

Warming drawer diagram

Indicator lamp

Part #WB02X10587

$74.69
6% OFF Phone Price : $79.69
In Stock
Cavity 30" WB63X10045
#21

Warming drawer diagram

Cavity 30"

Part #WB63X10045

In Stock
Cover WB49X10159
#26

Warming drawer diagram

Cover

Part #WB49X10159

In Stock
Bolt,hex Hea WB01X10288
#29

Warming drawer diagram

Bolt,hex hea

Part #WB01X10288

This item is not returnable
In Stock
