Model #ALE331RAC Official Amana dryer

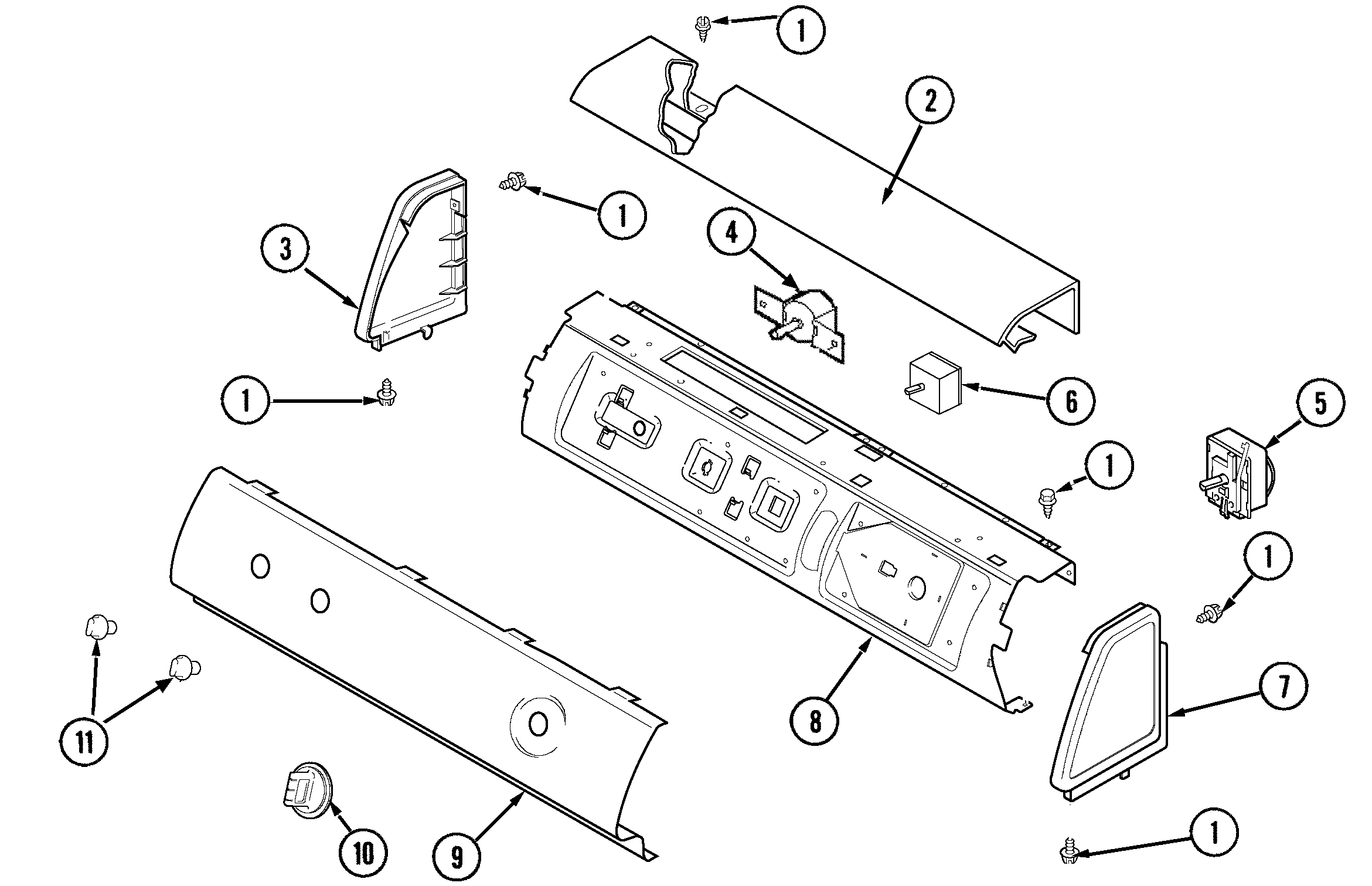

Here are the diagrams and repair parts for Amana ALE331RAC dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 107 parts

Dryer Drum Belt (replaces 40111201)#1

Motor & fan Diagram

Dryer belt

Part #40111201
Replaced by #WP40111201
?
Manufacturer substitution
This part replaces 40111201. Substitute parts can look different from the original.
BEST SELLER
In Stock
$15.11 |
39% OFF
MSRP: $24.59
Dryer Drum Glide Bearing (replaces 37001298)#11

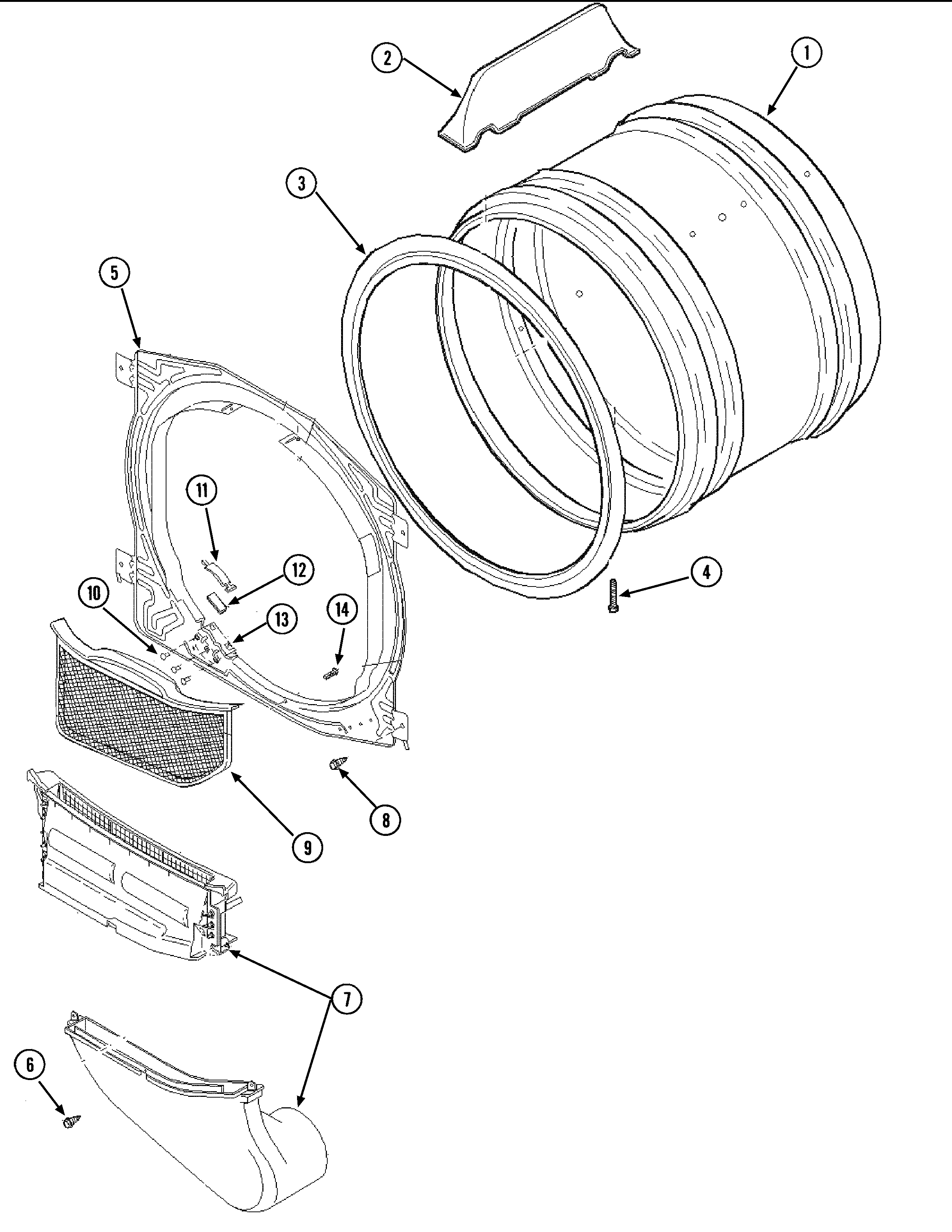

Front bulkhead, air duct & cylinder Diagram

Glide

Part #40116501
Replaced by #WP37001298
?
Manufacturer substitution
This part replaces 40116501. Substitute parts can look different from the original.
BEST SELLER
In Stock
$8.69 |
10% OFF
Phone Price: $9.69
Dryer Thermal Fuse, 360-degree F (replaces 40113801)#4

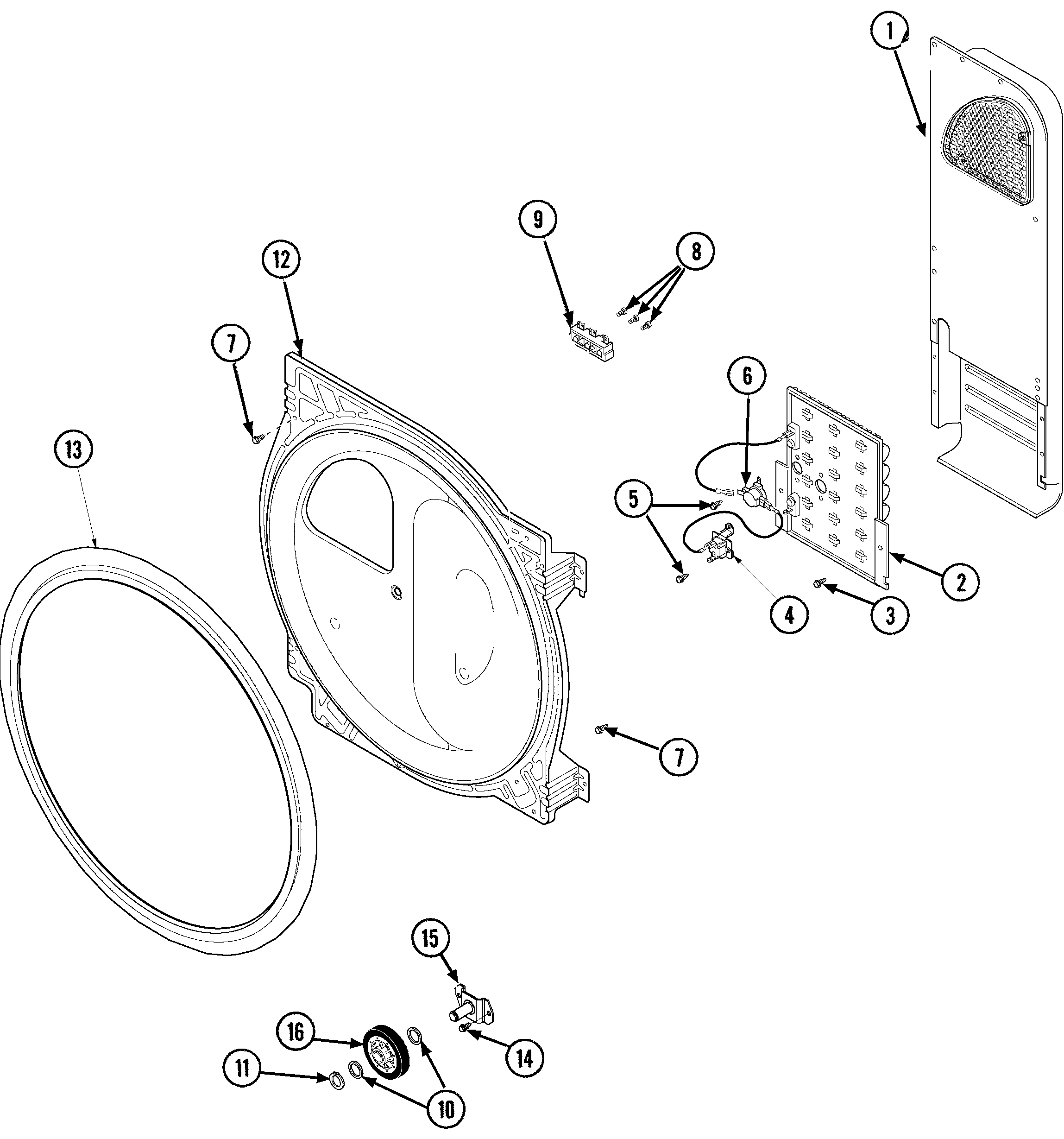

Rear bulkhead, air duct, heater & roller Diagram

Thermal fuse

Part #40113801
Replaced by #WP40113801
?
Manufacturer substitution
This part replaces 40113801. Substitute parts can look different from the original.
BEST SELLER
In Stock
$13.79 |
13% OFF
Phone Price: $15.79
Dryer Idler Pulley (replaces Y54414)#17

Motor & fan Diagram

Pulley

Part #54414
Replaced by #WPY54414
?
Manufacturer substitution
This part replaces 54414. Substitute parts can look different from the original.
In Stock
$17.09 |
10% OFF
Phone Price: $19.09
Dryer Drum Glide Bracket#13

Front bulkhead, air duct & cylinder Diagram

Cylinder bracket

Part #37001036
Replaced by #WP37001036
?
Manufacturer substitution
This part replaces 37001036. Substitute parts can look different from the original.
In Stock
$35.19 |
12% OFF
Phone Price: $40.19
Laundry Appliance Retainer Ring

See All Related Diagrams

Retainer ring

Part #23748
Replaced by #WP23748
?
Manufacturer substitution
This part replaces 23748. Substitute parts can look different from the original.
This item is not returnable
In Stock
$8.59 |
10% OFF
Phone Price: $9.59
Dryer Nut#20

Motor & fan Diagram

Hex nut

Part #52566
Replaced by #WPW10139757
?
Manufacturer substitution
This part replaces 52566. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.33
Dryer Idler Pulley Arm#15

Motor & fan Diagram

Idler assembly

Part #40113501
Replaced by #WP37001144
?
Manufacturer substitution
This part replaces 40113501. Substitute parts can look different from the original.
This item is not returnable
In Stock
$22.79 |
18% OFF
Phone Price: $27.79
Dryer Door Catch#18

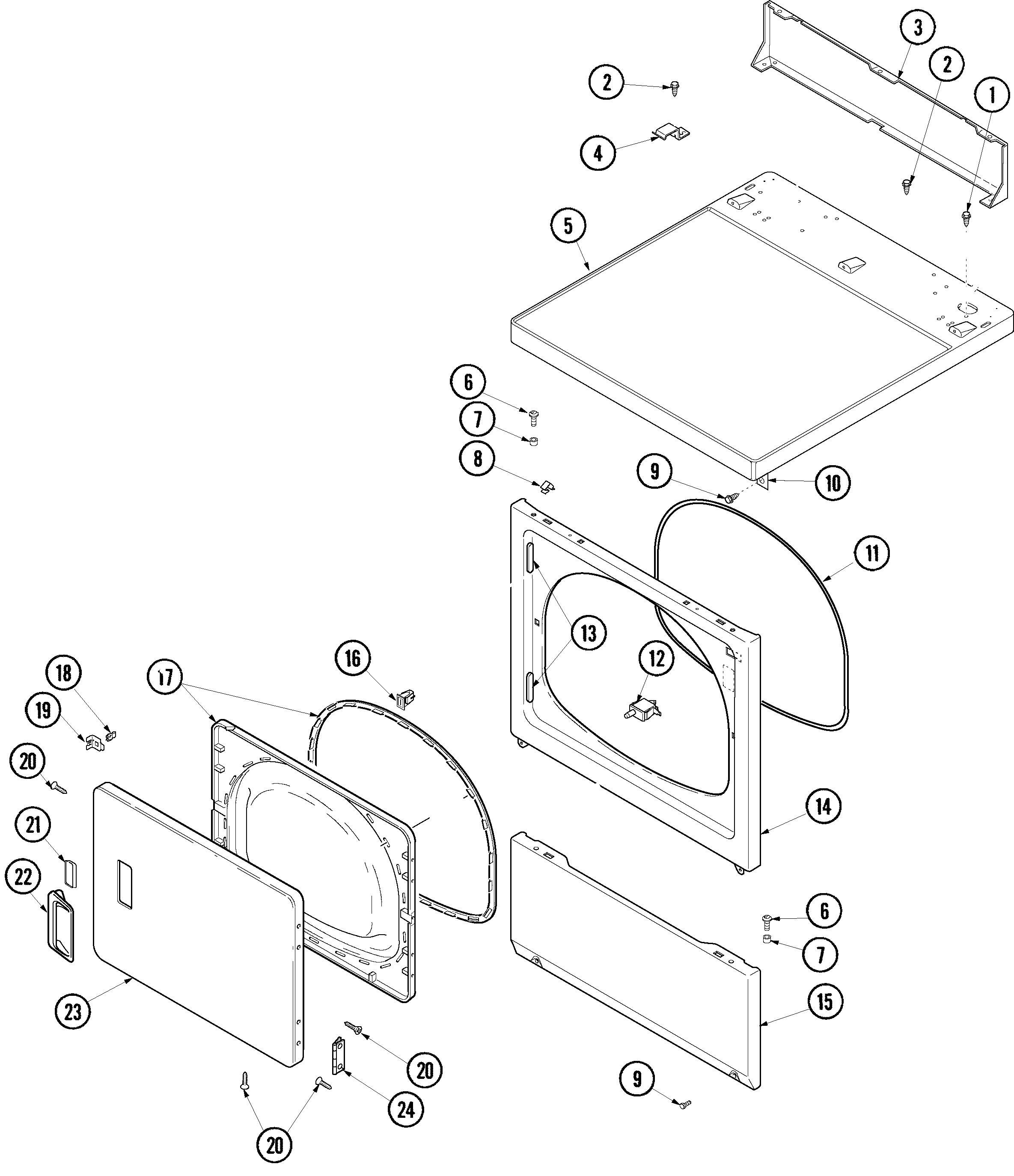

Door, front, access and top panels Diagram

Strike

Part #500039
Replaced by #LA-1003
?
Manufacturer substitution
This part replaces 500039. Substitute parts can look different from the original.
This item is not returnable
In Stock
$20.69 |
19% OFF
Phone Price: $25.69
Laundry Appliance Screw, #12-14 x 1/2-in

See All Related Diagrams

Screw

Part #503661
Replaced by #WP27001200
?
Manufacturer substitution
This part replaces 503661. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39
