Model #502472380 Official Sears 27" lightweight bicycle

Here are the diagrams and repair parts for Sears 502472380 27" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 118 parts

F Axle Set#11

Unit parts Diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Kickstand#13

Unit parts Diagram

Kickstand

Part #302336

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe

See All Related Diagrams

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Safety Lever

#NI

All parts Diagram

Safety lever

Part #304241

The manufacturer no longer makes this part, and there's no substitute part

Dbl Sprocket#17

Unit parts Diagram

Dbl sprocket

Part #34903C

The manufacturer no longer makes this part, and there's no substitute part

Spring#6

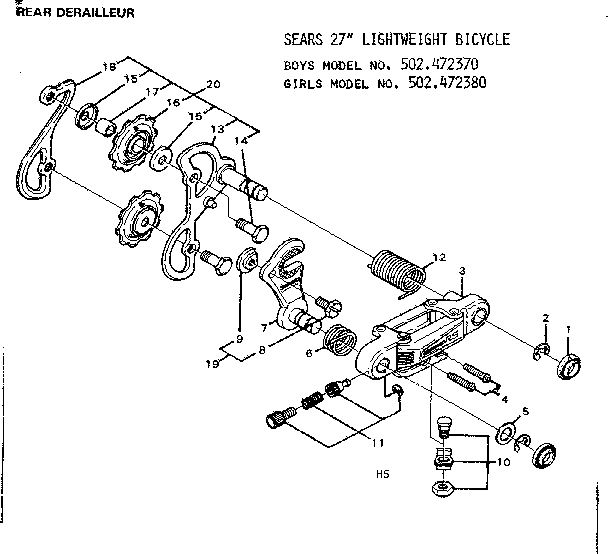

Rear derailleur Diagram

Spring

Part #300829

The manufacturer no longer makes this part, and there's no substitute part

Frame#1B

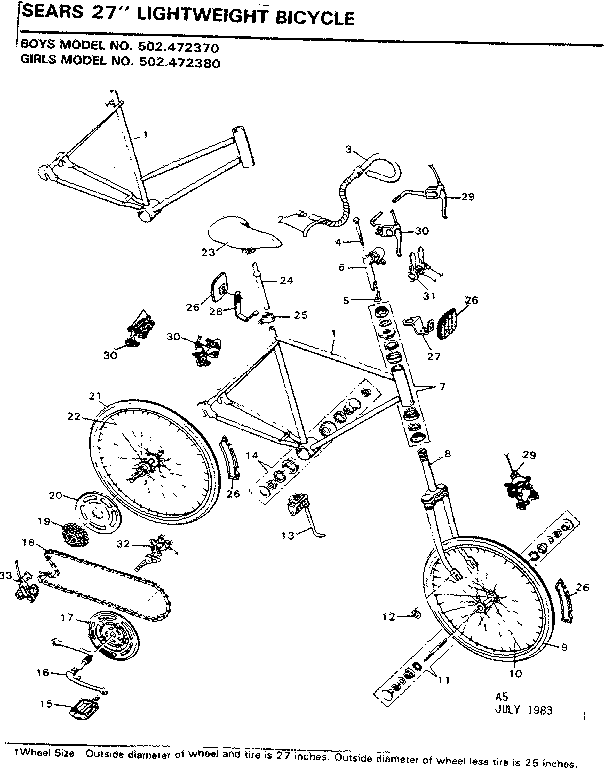

Unit parts Diagram

Frame

Part #32106-405

The manufacturer no longer makes this part, and there's no substitute part

Hanger#9

Center pull caliper brake Diagram

Hanger

Part #304221

The manufacturer no longer makes this part, and there's no substitute part

Tape/plugs#2

Unit parts Diagram

Tape/plugs

Part #37309

The manufacturer no longer makes this part, and there's no substitute part

Wheel Retain#12

Unit parts Diagram

Wheel retain

Part #32375Z

The manufacturer no longer makes this part, and there's no substitute part
