GE
Built-In Microwave

Model # SCB2000FCC03 Official GE microwave

Here are the diagrams and repair parts for Official GE SCB2000FCC03 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

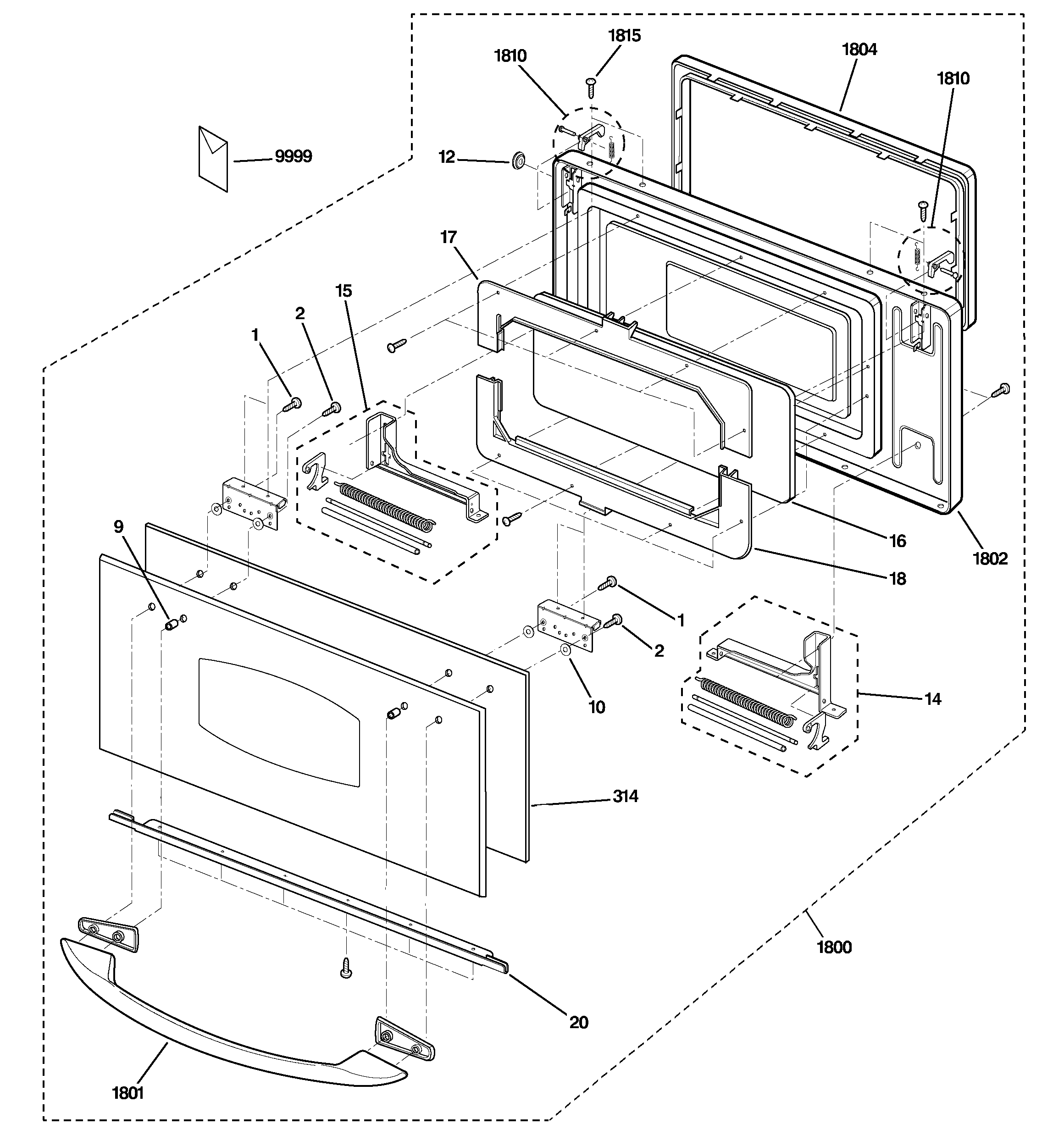

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |

Microwave Fuse WB27X10388
#1626

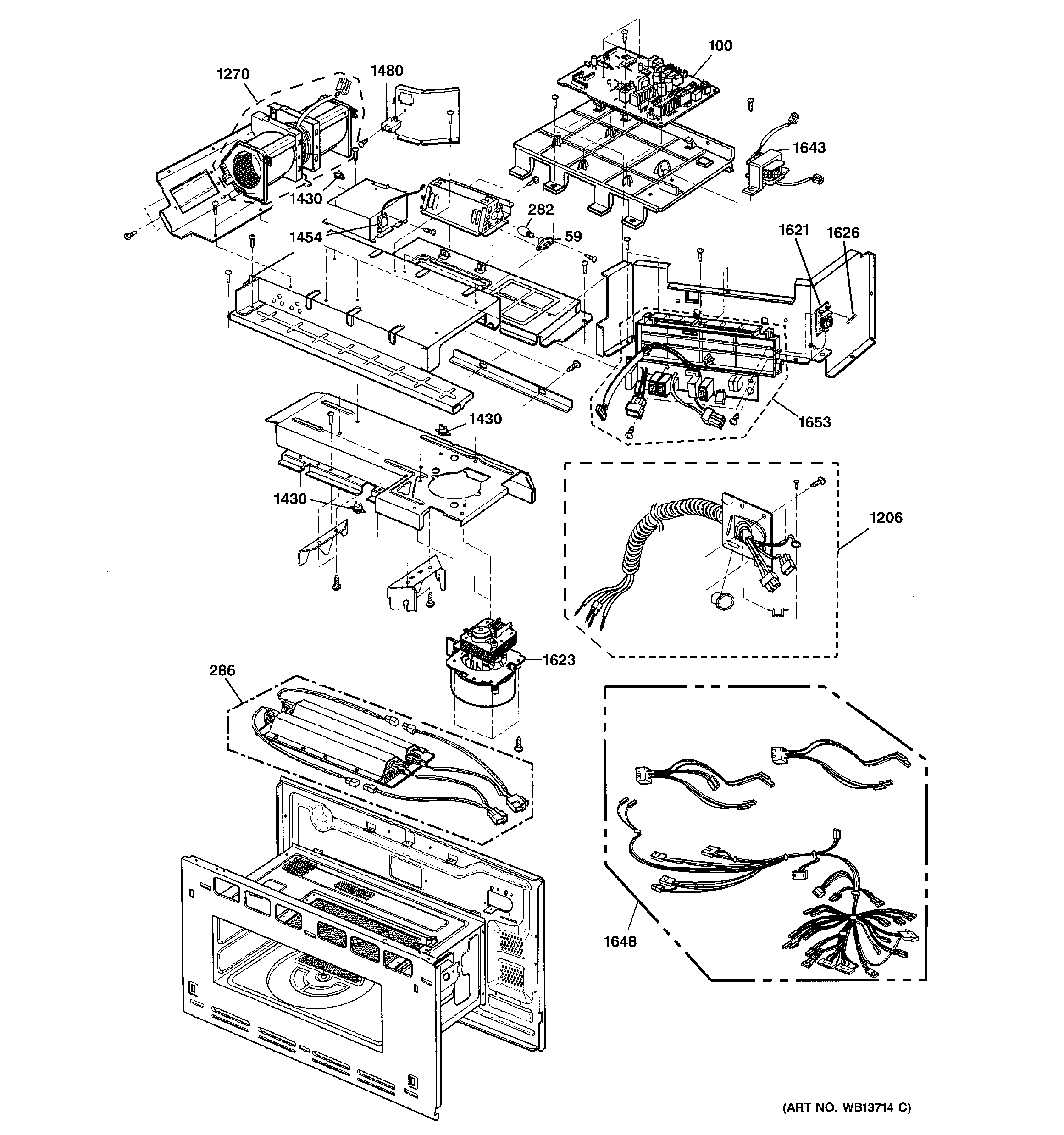

Interior parts (2) diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73
9% OFF Phone Price : $10.73
In Stock
Lamp WB36X10132
#282

Interior parts (2) diagram

Lamp

Part #WB36X10132

Replaced by #WB36X10328

?
Manufacturer substitution
This part replaces WB36X10132. Substitute parts can look different from the original.
$15.30
12% OFF Phone Price : $17.30
In Stock
Monitor Switch WB24X0817
#1445

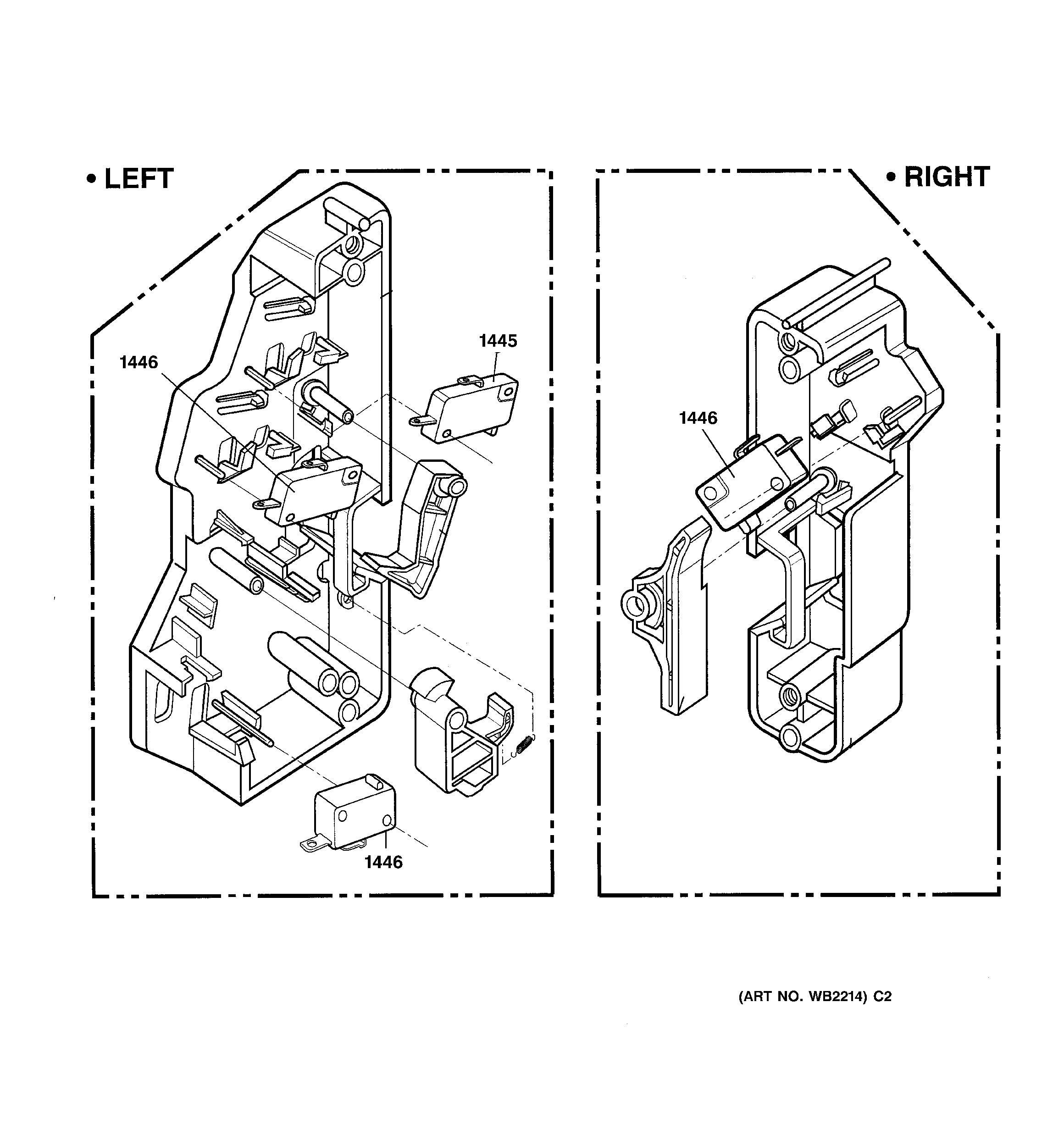

Latch board parts diagram

Monitor switch

Part #WB24X0817

Replaced by #WB24X25397

?
Manufacturer substitution
This part replaces WB24X0817. Substitute parts can look different from the original.
$22.56
18% OFF Phone Price : $27.56
In Stock
Microwave Thermal Cut-off WB21X10046
#1430

Interior parts (2) diagram

Microwave thermal cut-off

Part #WB21X10046

$26.23
16% OFF Phone Price : $31.23
In Stock
Trim WB07X10376
#32

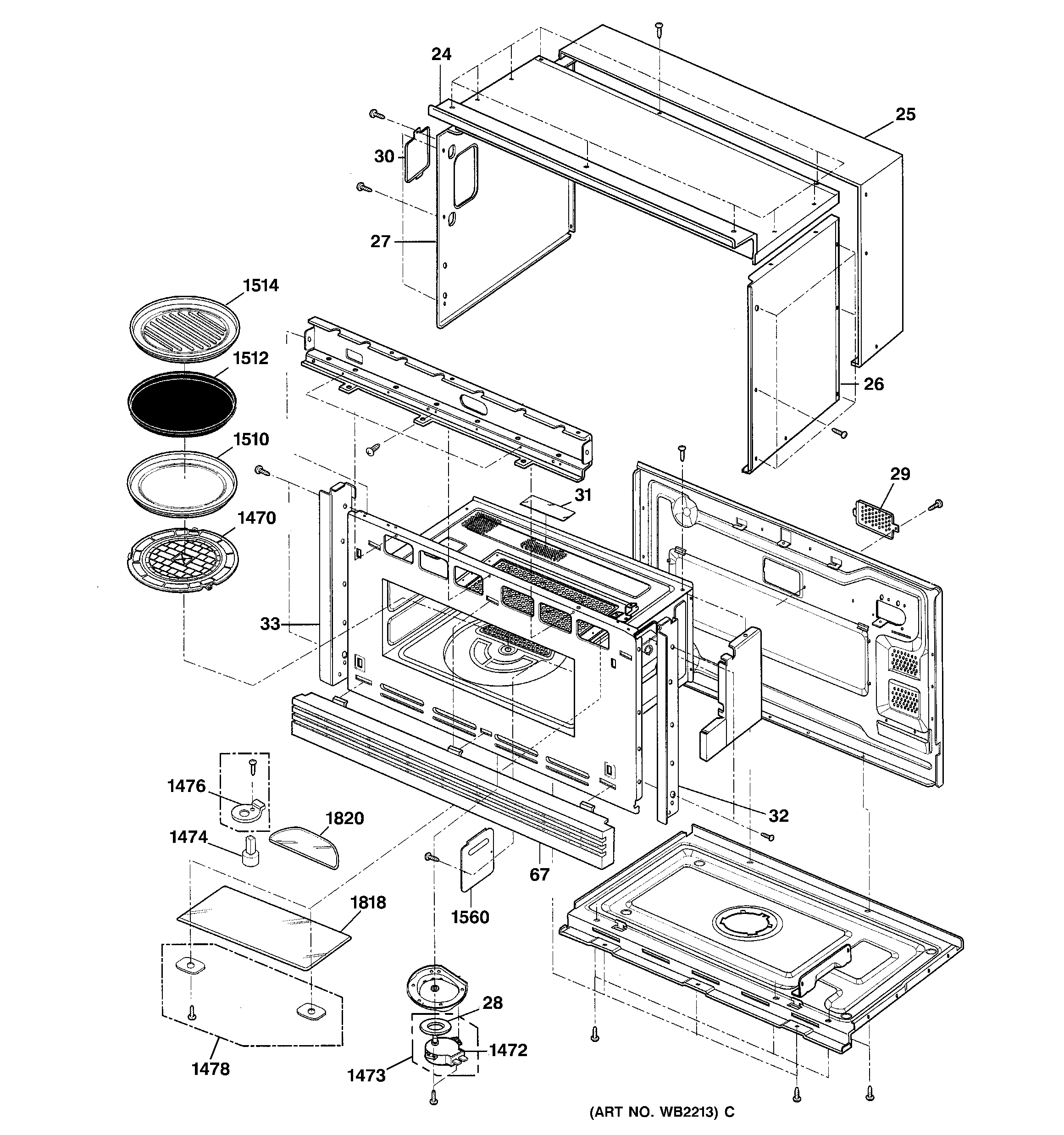

Oven cavity parts diagram

Trim

Part #WB07X10376

In Stock
Controller WB07X10656
#68

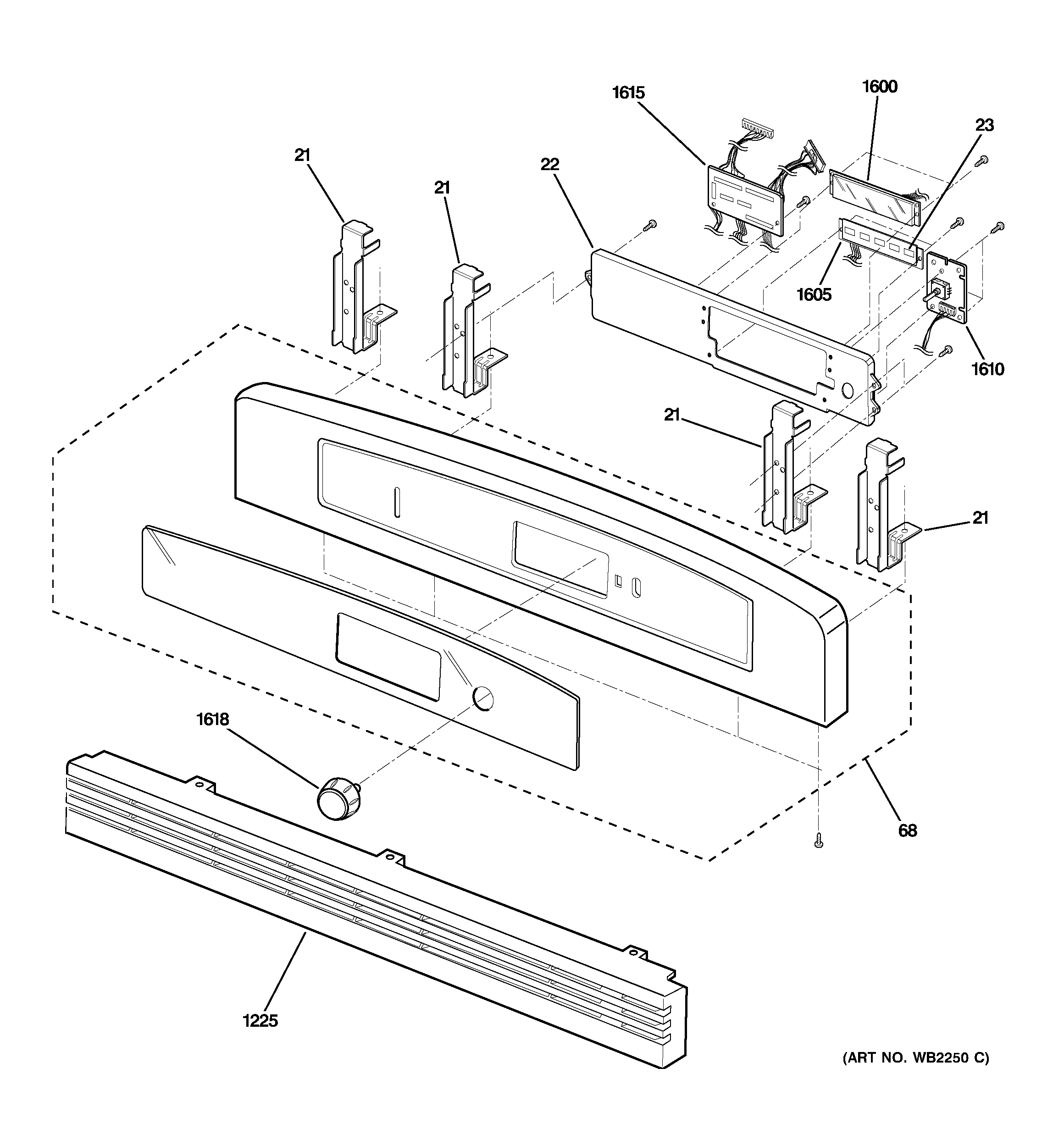

Control panel diagram

Controller

Part #WB07X10656

$93.69
5% OFF Phone Price : $98.69
In Stock
Microwave Waveguide Cover WB06X10215
#1560

Oven cavity parts diagram

Microwave waveguide cover

Part #WB06X10215

$21.62
19% OFF Phone Price : $26.62
In Stock
Microwave High-voltage Transformer (replaces Wb27x10331, Wb27x10393) WB27X10923
#1433

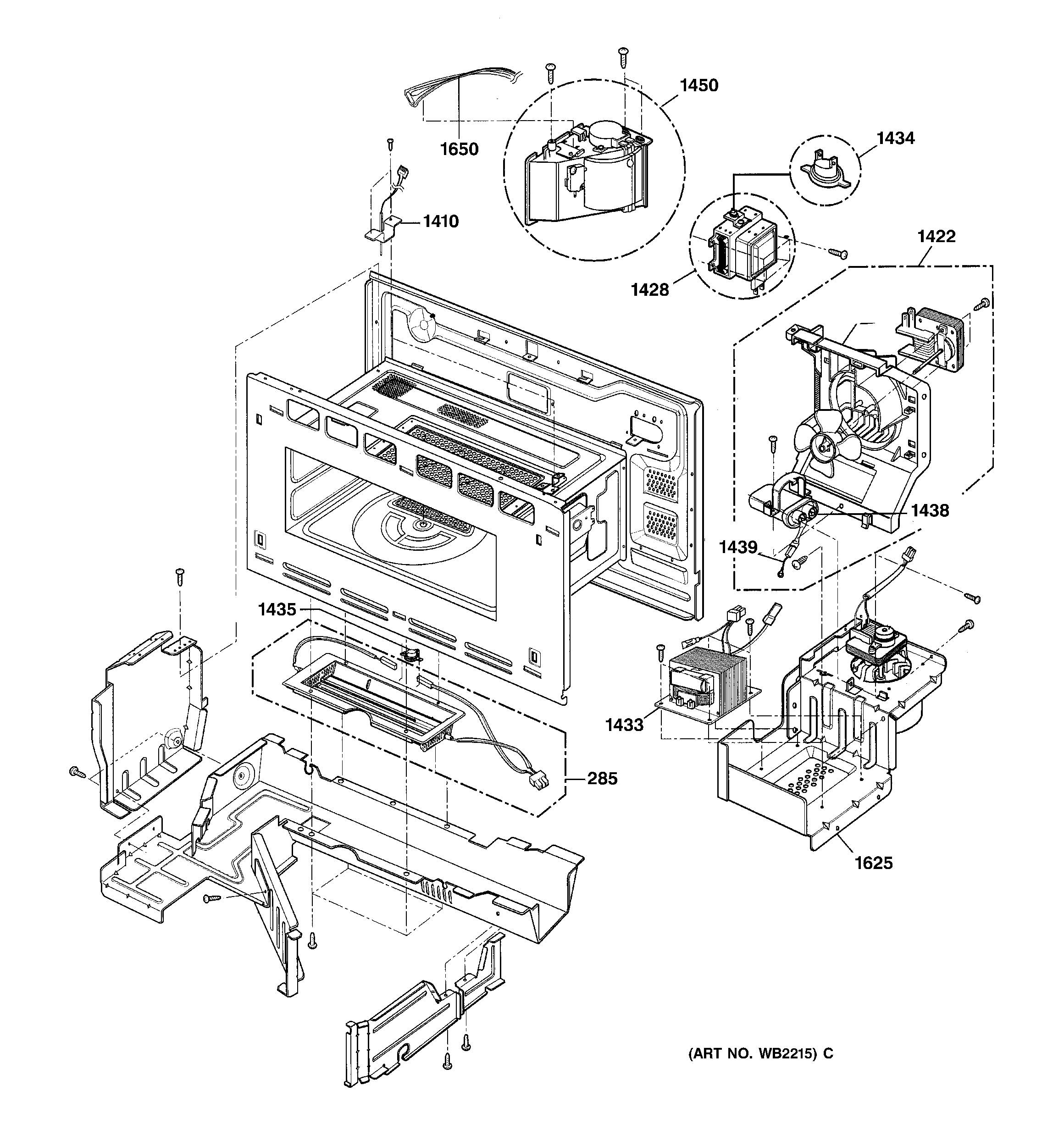

Interior parts (1) diagram

Microwave high-voltage transformer (replaces wb27x10331, wb27x10393)

Part #WB27X10923

In Stock
Microwave Upper Glass Cover WB36X10129
#1818

Oven cavity parts diagram

Microwave upper glass cover

Part #WB36X10129

$113.79
8% OFF Phone Price : $123.79
In Stock
Thermistor WB27X10386
#1410

Interior parts (1) diagram

Thermistor

Part #WB27X10386

In Stock
