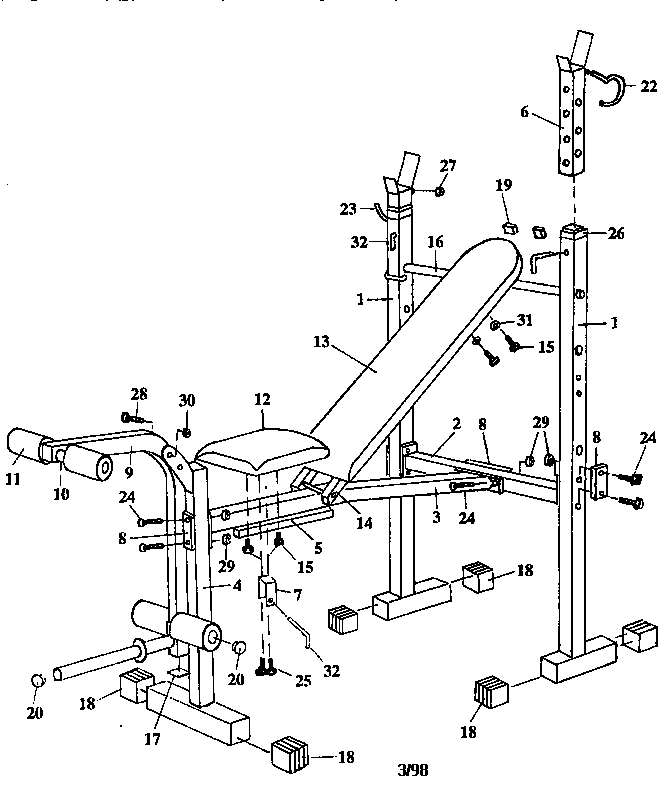

Model #G4340 Official Gold's Gym dynamax 2500 weight system

Here are the diagrams and repair parts for Gold's Gym G4340 dynamax 2500 weight system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 32 parts

M Cap Scrw#28

Unit parts Diagram

M cap scrw

Part #428821

The manufacturer no longer makes this part, and there's no substitute part

Screw#25

Unit parts Diagram

Screw

Part #426604

The manufacturer no longer makes this part, and there's no substitute part

Bolt#15

Unit parts Diagram

Bolt

Part #427611

The manufacturer no longer makes this part, and there's no substitute part

Bolt#24

Unit parts Diagram

Bolt

Part #428722

The manufacturer no longer makes this part, and there's no substitute part

Bracket#7

Unit parts Diagram

Bracket

Part #435094

The manufacturer no longer makes this part, and there's no substitute part

Plate#8

Unit parts Diagram

Plate

Part #435095

The manufacturer no longer makes this part, and there's no substitute part

Bar#5

Unit parts Diagram

Bar

Part #450015

The manufacturer no longer makes this part, and there's no substitute part

End Cap#18

Unit parts Diagram

End cap

Part #413353

The manufacturer no longer makes this part, and there's no substitute part

CROSS FRAME#3

Unit parts Diagram

Cross frame

Part #457222

The manufacturer no longer makes this part, and there's no substitute part

Leg Lift#9

Unit parts Diagram

Leg lift

Part #457136

The manufacturer no longer makes this part, and there's no substitute part
