Frigidaire
Wall Oven/Microwave Combo

Model # FGMC3065KBB Official Frigidaire wall oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire FGMC3065KBB wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

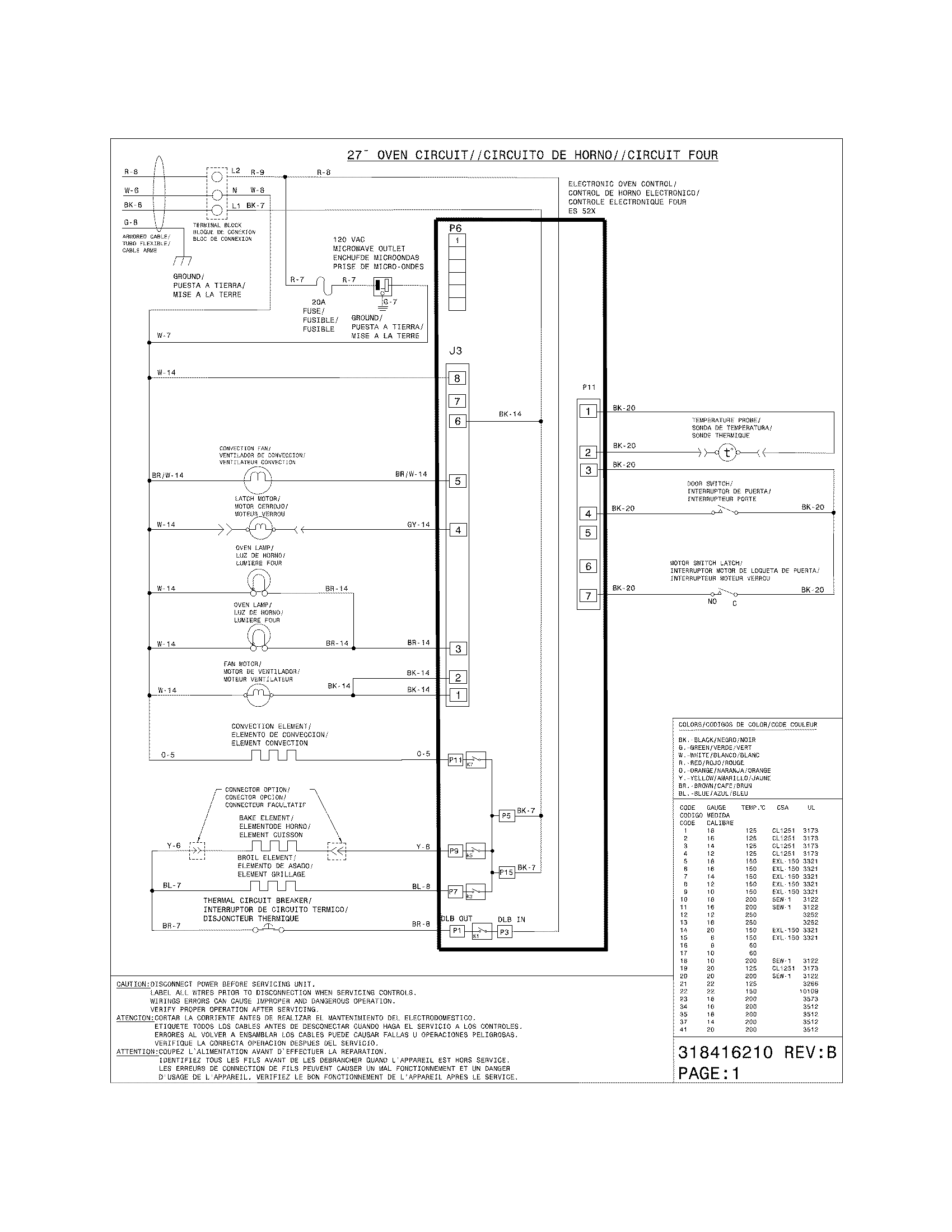

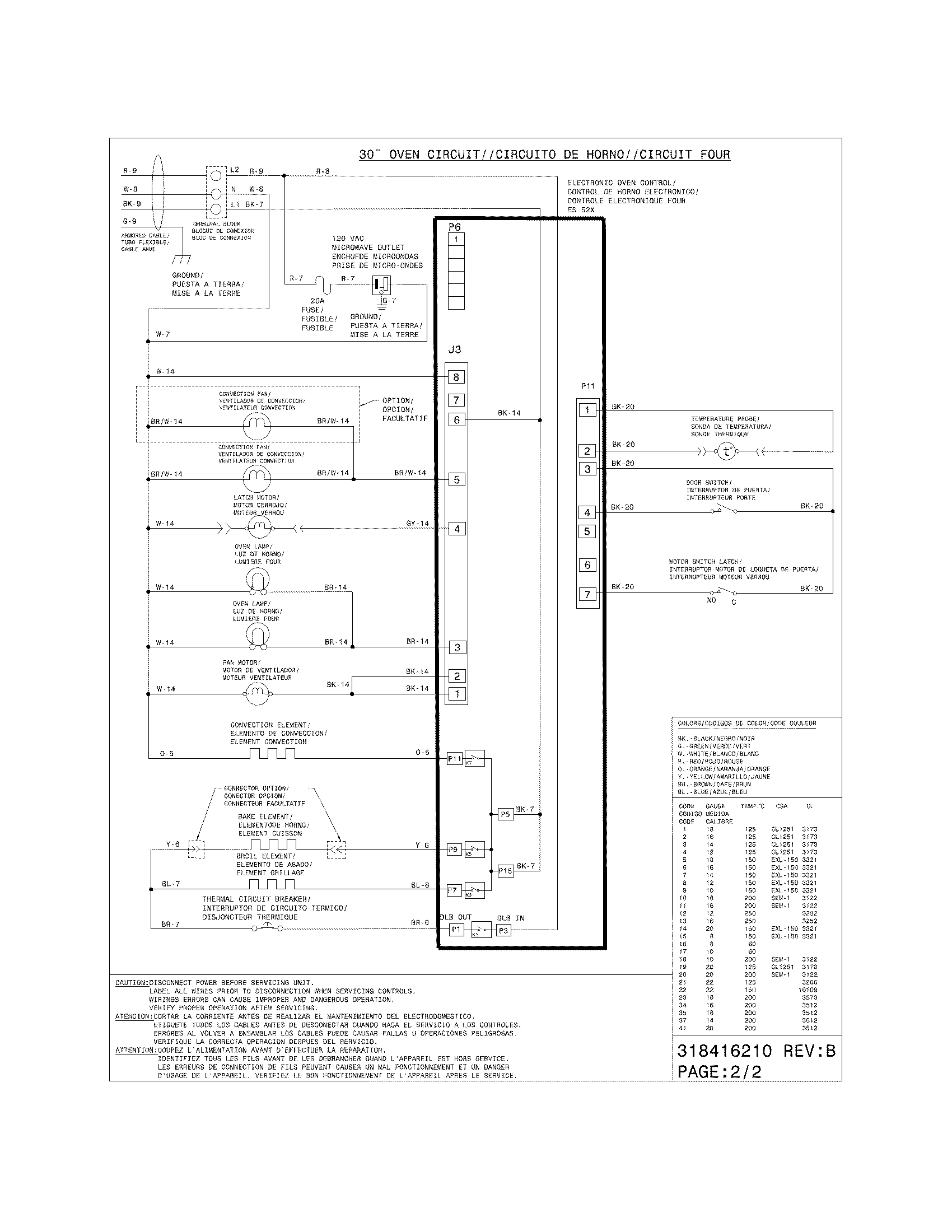

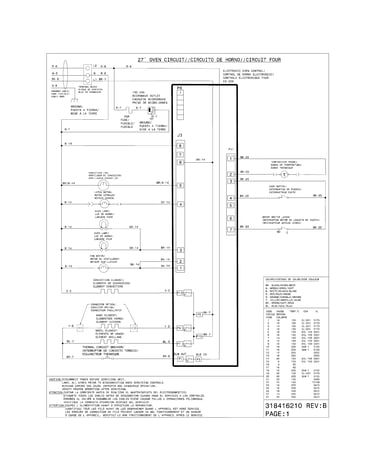

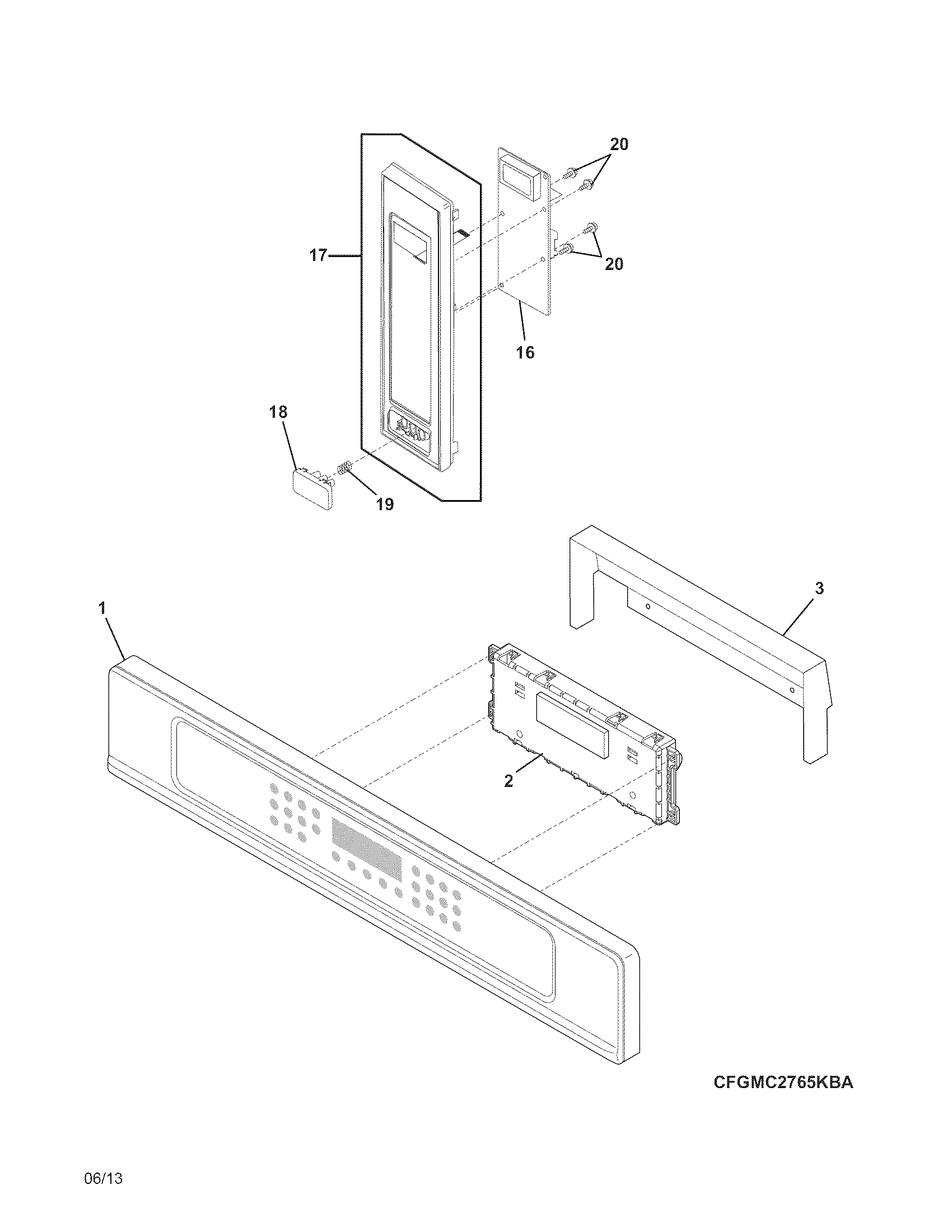

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Range Oven Temperature Sensor 318562500
#37

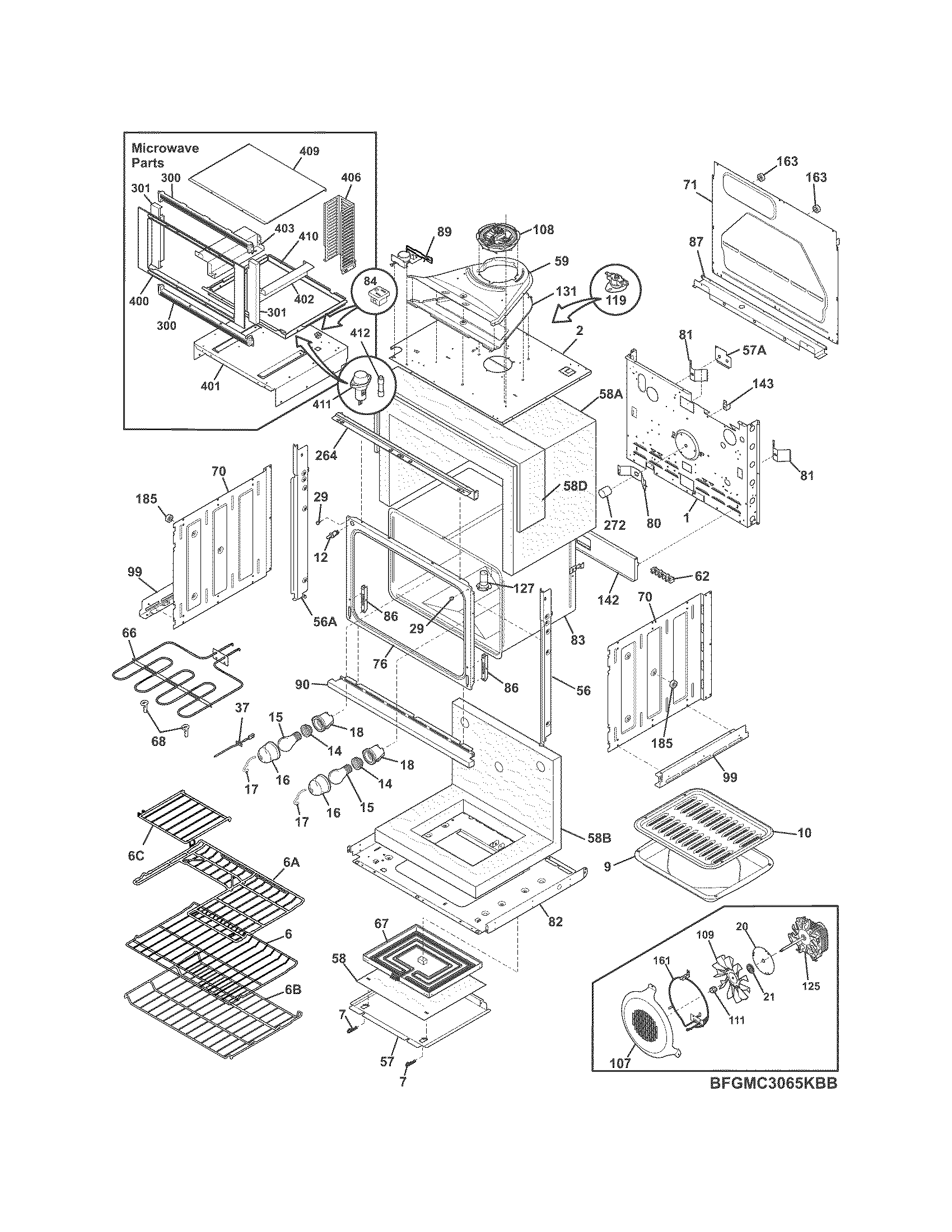

Lower oven diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$33.57 |
13% OFF Phone Price : $38.57
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

Lower oven diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$15.31 |
12% OFF Phone Price : $17.31
In Stock
Range Oven Door Inner Glass 316117500
#8

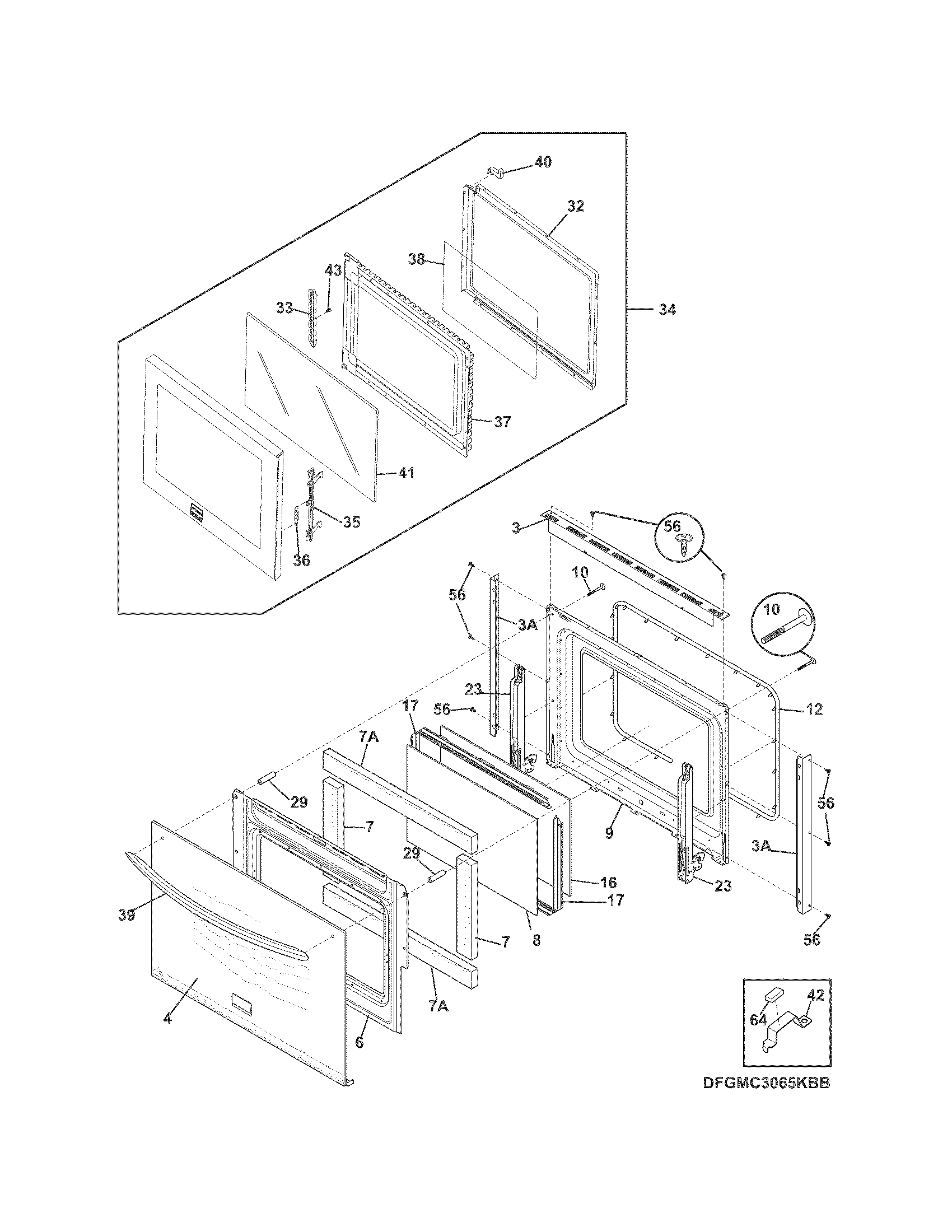

Doors diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$93.59 |
5% OFF Phone Price : $98.59
In Stock
Range High-limit Thermostat (replaces 318578501) 318578506
#119

Lower oven diagram

Range high-limit thermostat (replaces 318578501)

Part #318578506

BEST SELLER
$38.58 |
11% OFF Phone Price : $43.58
In Stock
Range Bake Element (replaces 318601601, 808650402) 318601604
#67

Lower oven diagram

Range bake element (replaces 318601601, 808650402)

Part #318601604

BEST SELLER
$202.63 |
5% OFF Phone Price : $212.63
In Stock
Terminal Block 316056000
#62

Lower oven diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Wall Oven Microwave Magnetron 5304472253
#8

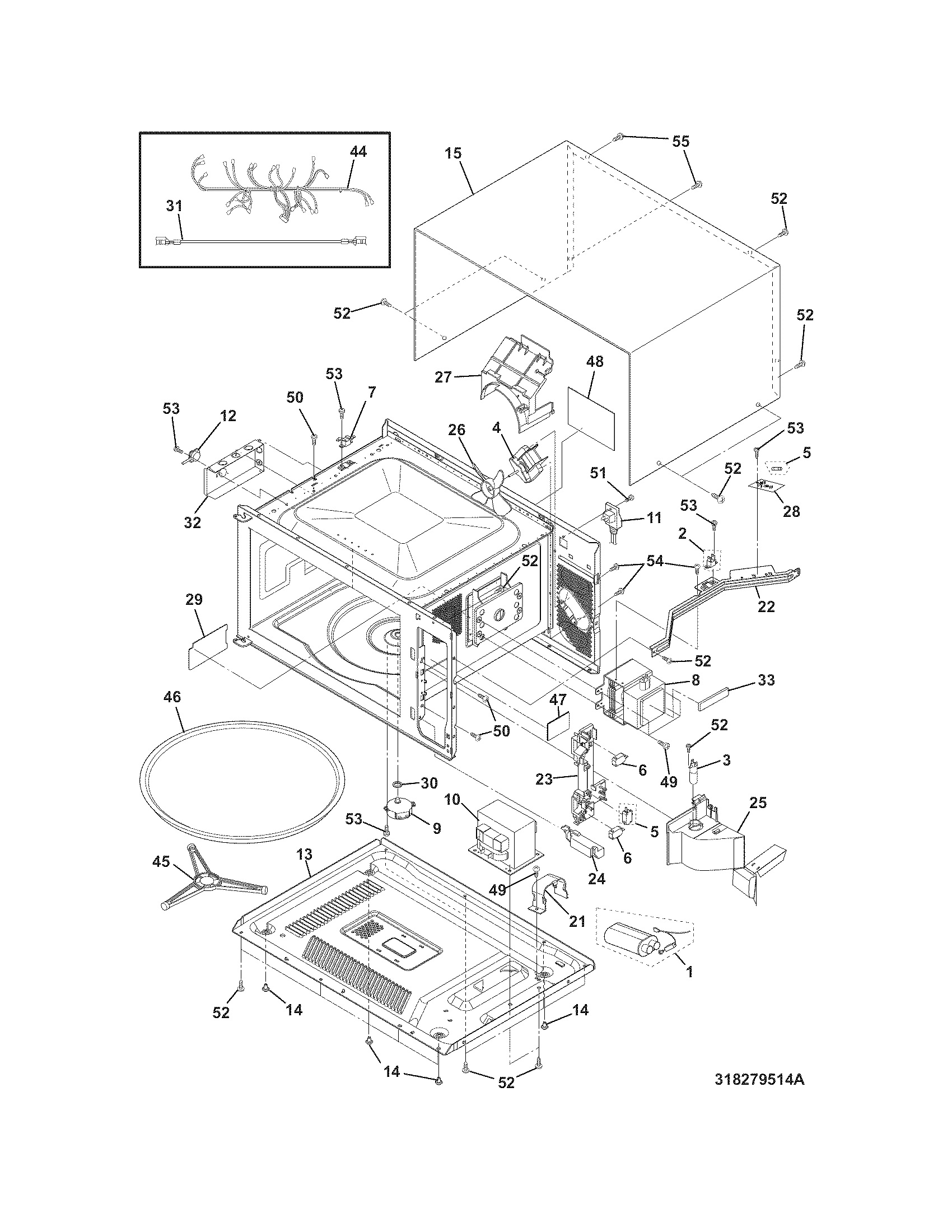

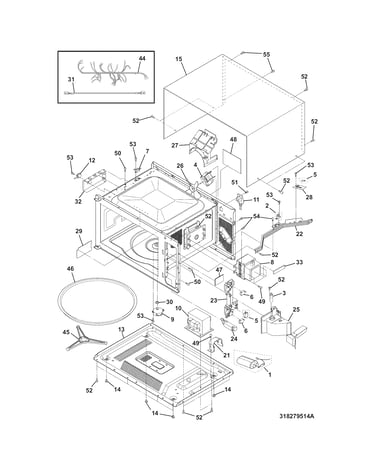

Microwave diagram

Wall oven microwave magnetron

Part #5304472253

Replaced by #5304521745

?
Manufacturer substitution
This part replaces 5304472253. Substitute parts can look different from the original.
BEST SELLER
$163.69 |
6% OFF Phone Price : $173.69
In Stock
Range Convection Fan Blade (replaces 139009100, 316136400, 318398300) 318398302
#109

Lower oven diagram

Range convection fan blade (replaces 139009100, 316136400, 318398300)

Part #318398302

BEST SELLER
$23.89 |
17% OFF Phone Price : $28.89
In Stock
Range Oven Light Lens 318406100
#16

Lower oven diagram

Range oven light lens

Part #318406100

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 318406100. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Range Broil Element (replaces 318255800) 318255807
#66

Lower oven diagram

Range broil element (replaces 318255800)

Part #318255807

BEST SELLER
$228.06 |
$10.00 OFF Phone Price : $238.06
In Stock
