Frigidaire
Electric Cooktop

Model # FPIC3095MSA Official Frigidaire cooktop

Here are the diagrams and repair parts for Official Frigidaire FPIC3095MSA cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

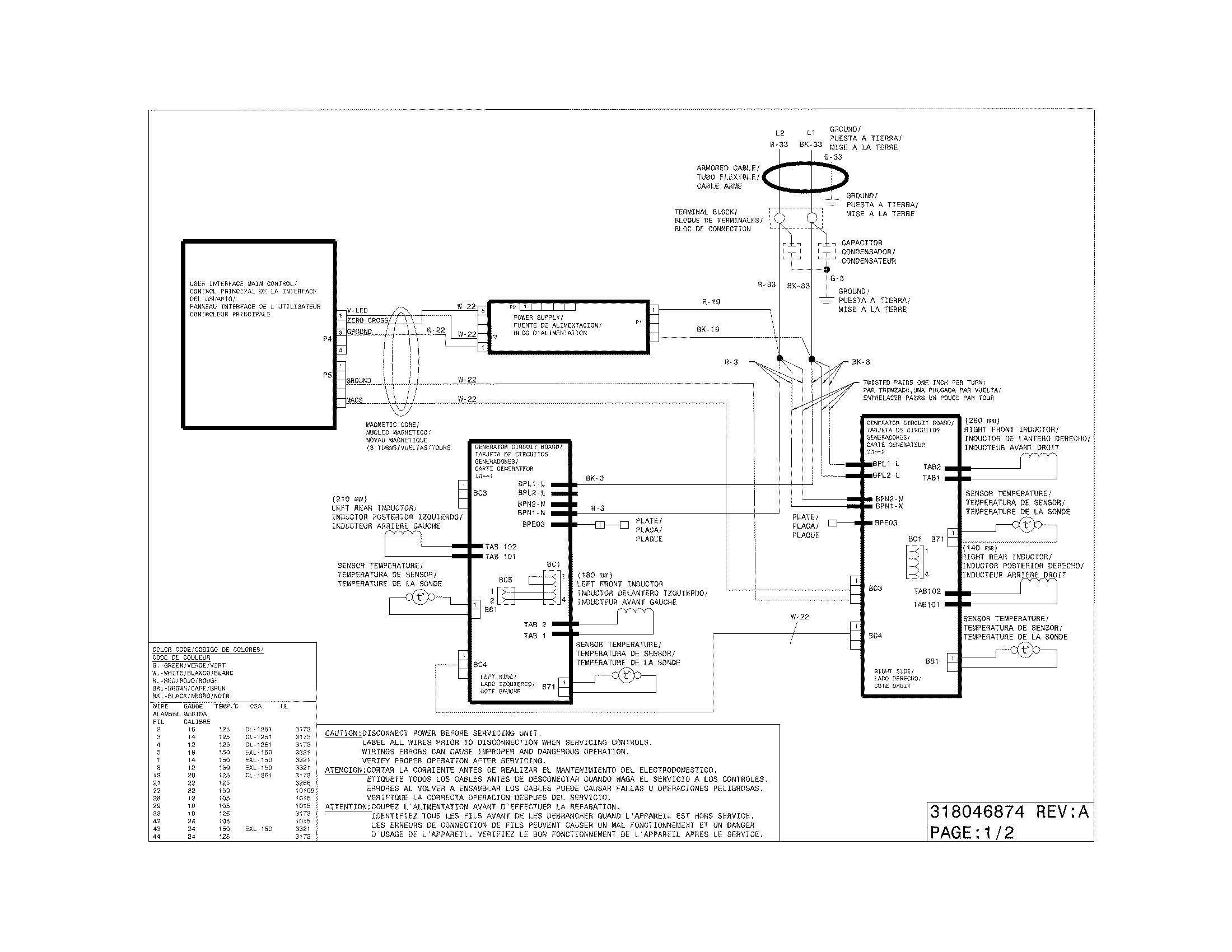

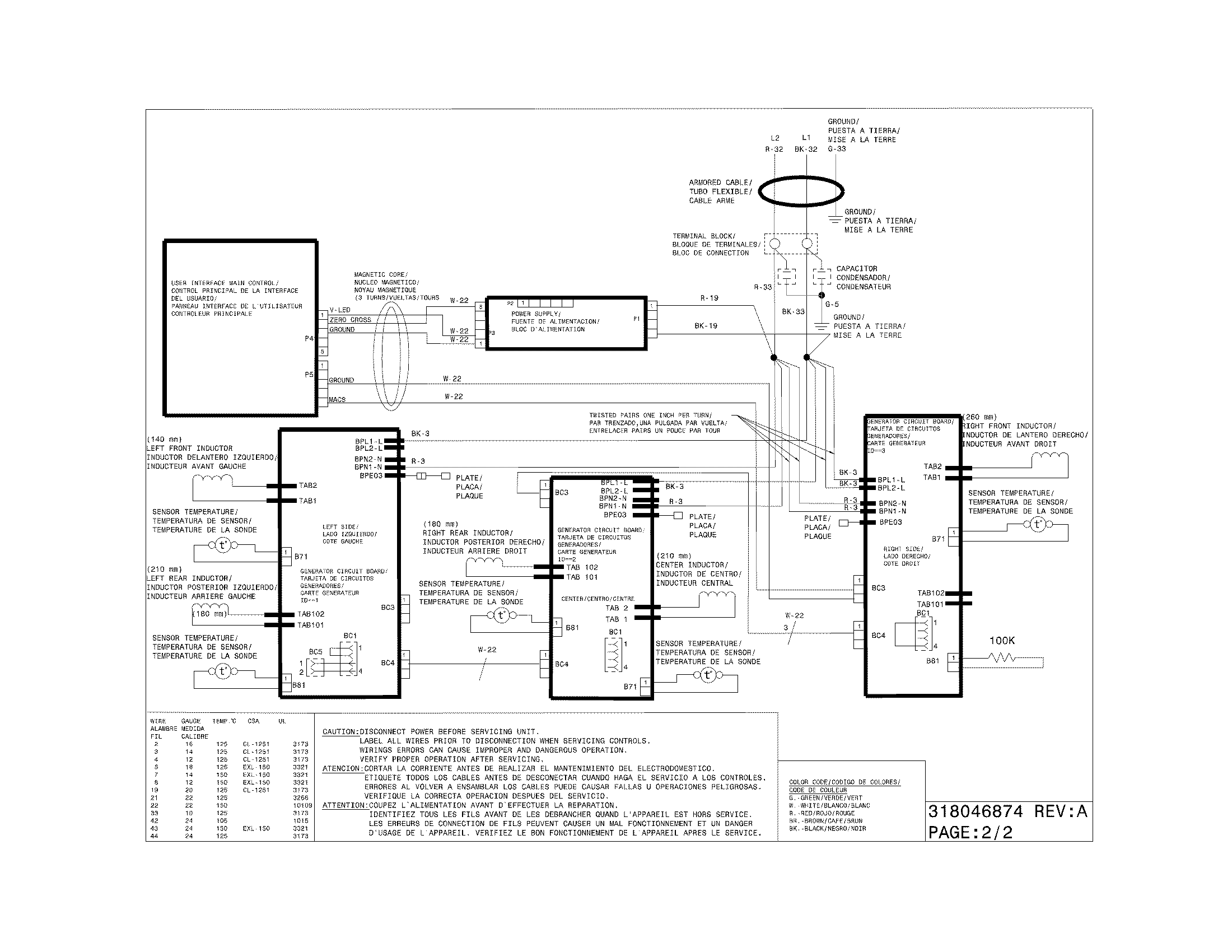

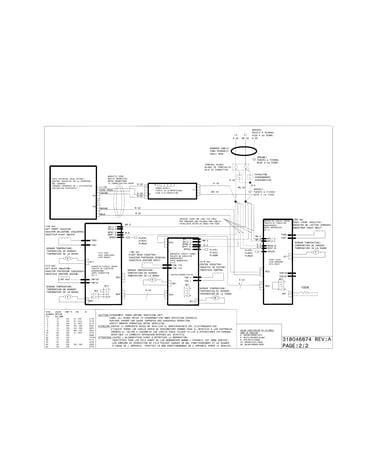

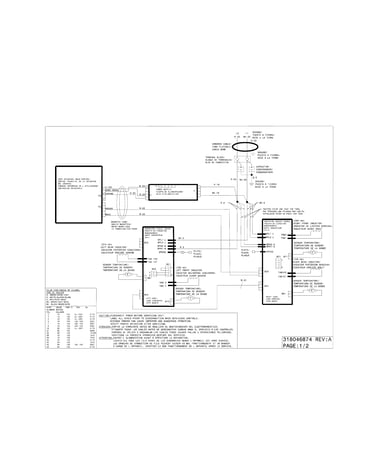

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |

Cooktop Induction Power Supply Board 318416300
#97

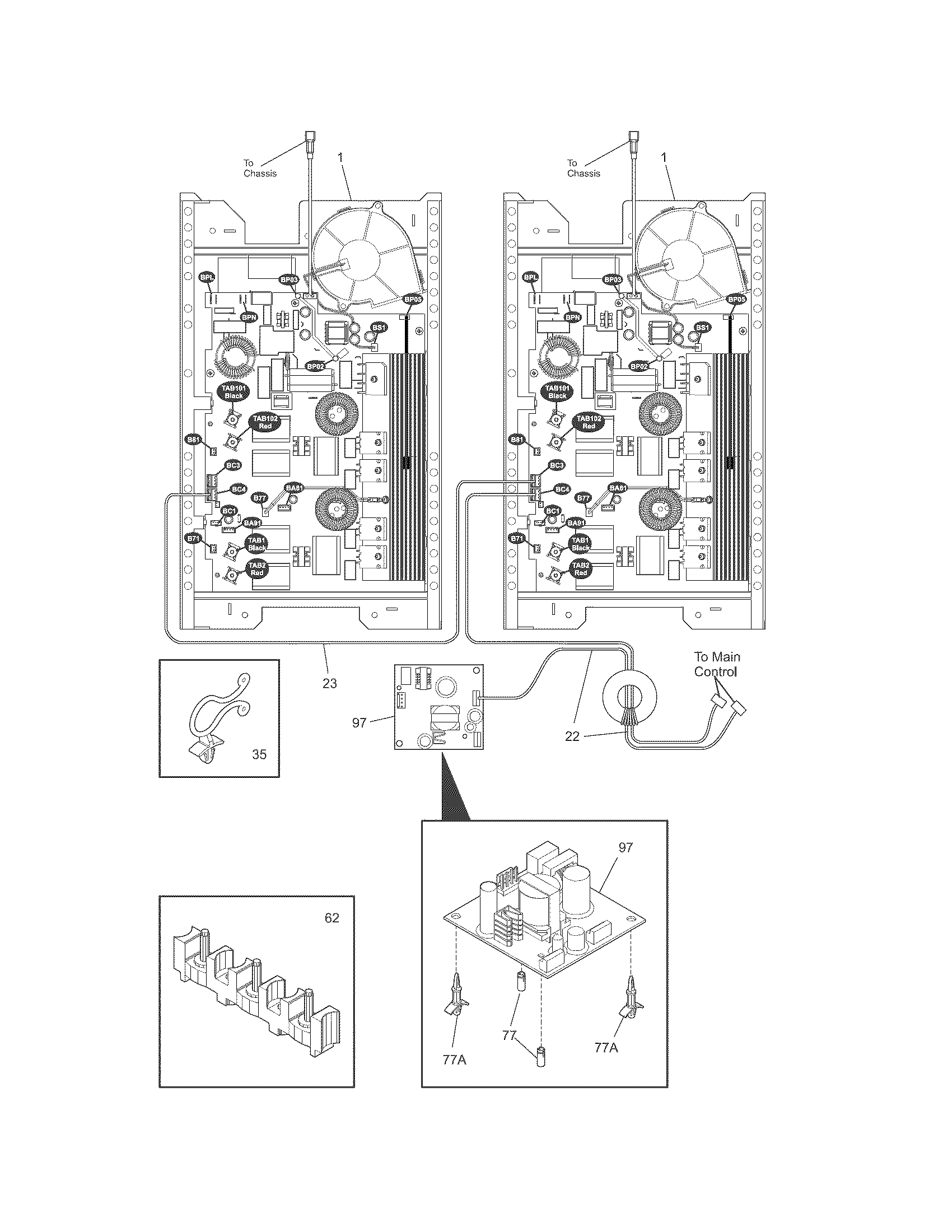

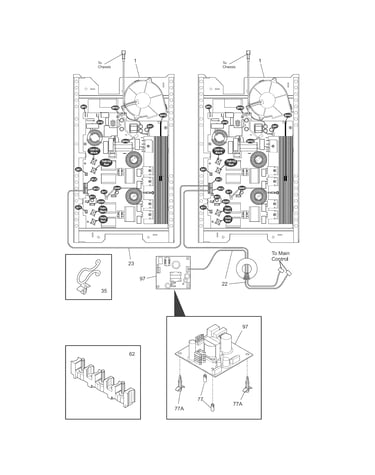

Controls/induction unit diagram

Cooktop induction power supply board

Part #318416300

$166.62
6% OFF Phone Price : $176.62
In Stock
Range Nut 5303323144
#NI

Controls/induction unit diagram

Range nut

Part #5303323144

In Stock
Wire Box 318394497
#NI

Controls/induction unit diagram

Wire box

Part #318394497

In Stock
Cooktop Main Top Seal, 0.5 X 14-in 5304424462
#NI

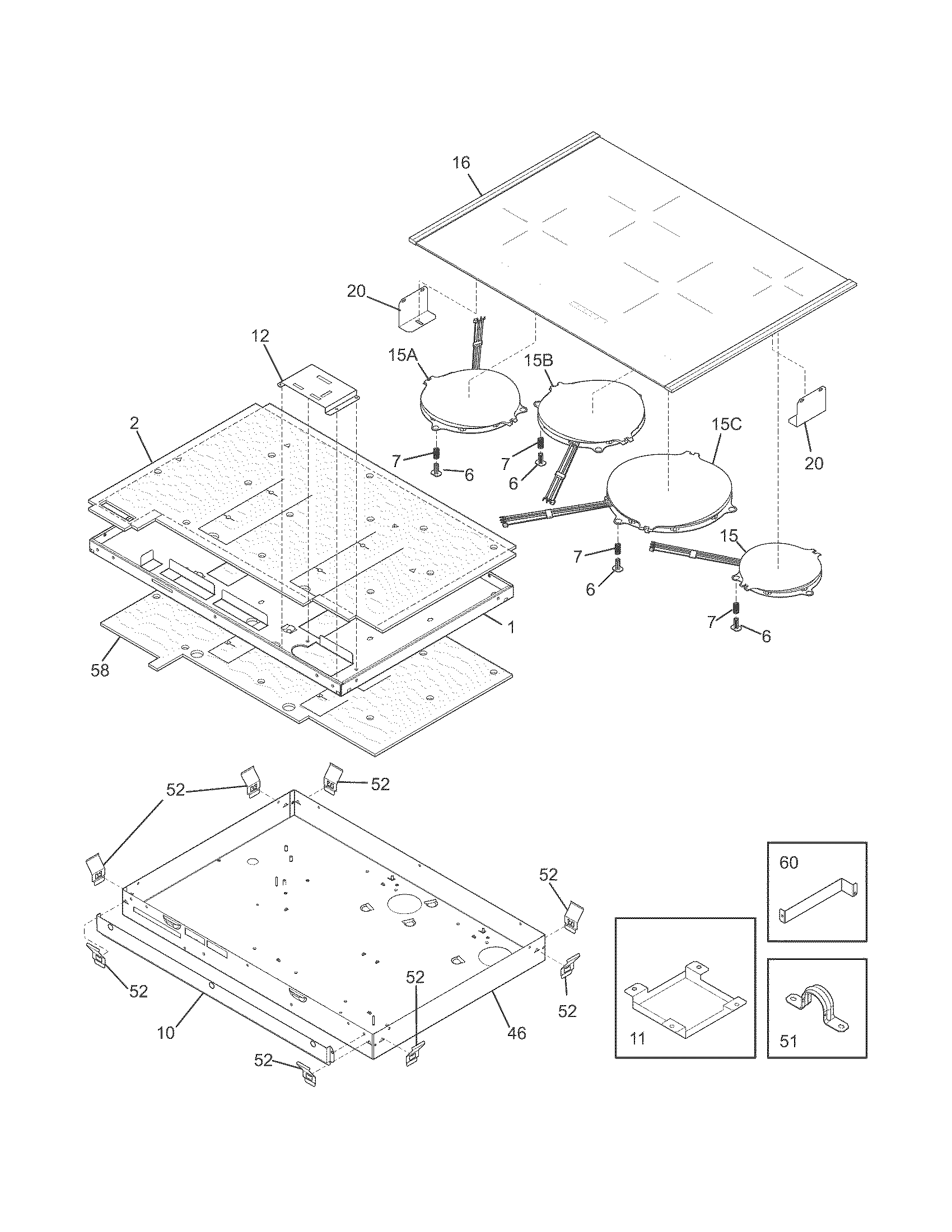

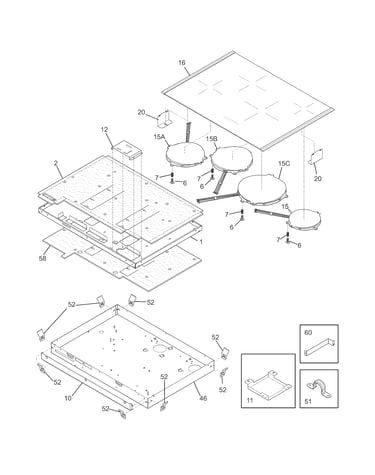

Maintop/surface units diagram

Cooktop main top seal, 0.5 x 14-in

Part #5304424462

In Stock
Cooktop Wire Harness 318578343
#22

Controls/induction unit diagram

Cooktop wire harness

Part #318578343

In Stock
Range Induction Element Pin 318405000
#6

Maintop/surface units diagram

Range induction element pin

Part #318405000

In Stock
Cooktop Main Top Assembly (black And Stainless) 318935220
#16

Maintop/surface units diagram

Cooktop main top assembly (black and stainless)

Part #318935220

In Stock
Range Power Control Board Support 316114100
#77A

Controls/induction unit diagram

Range power control board support

Part #316114100

$52.42
9% OFF Phone Price : $57.42
In Stock
Range Surface Induction Element, 180-mm 318329242
#15A

Maintop/surface units diagram

Range surface induction element, 180-mm

Part #318329242

In Stock
Bracket 318389600
#51

Maintop/surface units diagram

Bracket

Part #318389600

In Stock
