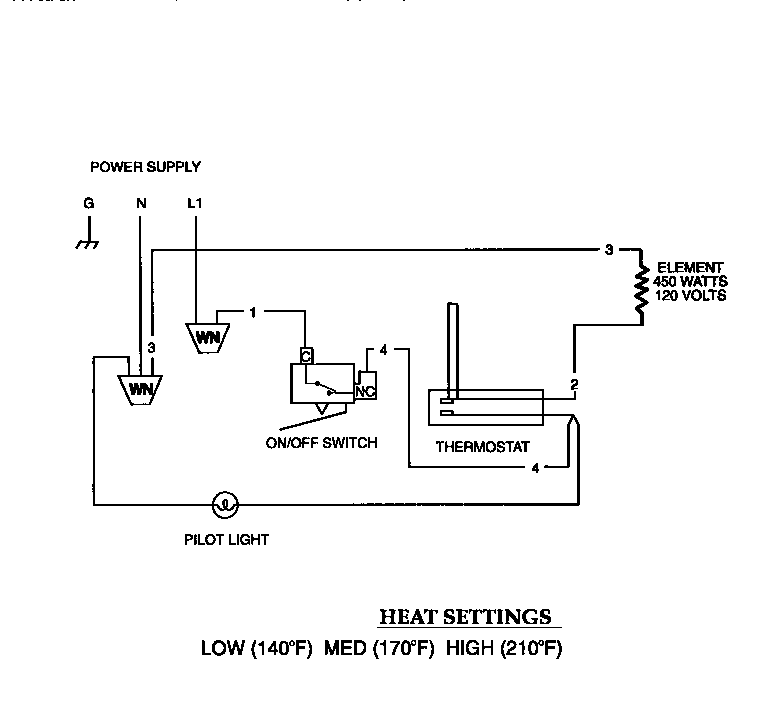

Thermador
Warming Drawer

Model #WD24N Official Thermador warming drawer

Here are the diagrams and repair parts for Thermador WD24N warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 33 parts

Clip

#NI

All parts Diagram

Clip

Part #14-19-717
This item is not returnable
In Stock
$2.16
Lens Pilot

#NI

All parts Diagram

Lens

Part #14-19-714
Replaced by #00189455
?
Manufacturer substitution
This part replaces 14-19-714. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.65
Screen

See All Related Diagrams

Screen

Part #14-90-116

The manufacturer no longer makes this part, and there's no substitute part

Screw, 2-pack#2

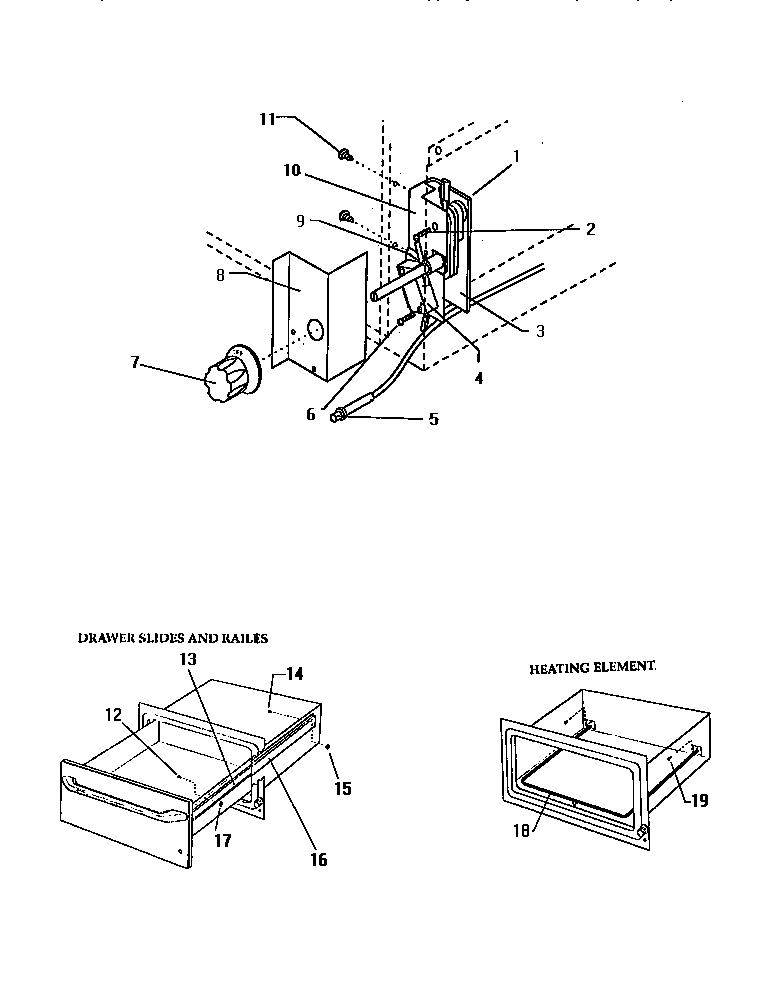

Heating control Diagram

Screw, 2-pack

Part #14-90-268

The manufacturer no longer makes this part, and there's no substitute part

MOIST/DRY PLATE ASSEMBLY#14

Body Diagram

Moist/dry plate assembly

Part #14-07-330

The manufacturer no longer makes this part, and there's no substitute part

HEATING ELEMENT (450 WATT, 120 VOLT)#18

Heating control Diagram

Heating element (450 watt, 120 volt)

Part #14-29-003-01

The manufacturer no longer makes this part, and there's no substitute part

Door Gasket#1

Body Diagram

Door gasket

Part #14-07-303

The manufacturer no longer makes this part, and there's no substitute part

GLASS SUPPORT ASSY, STAINLESS#2

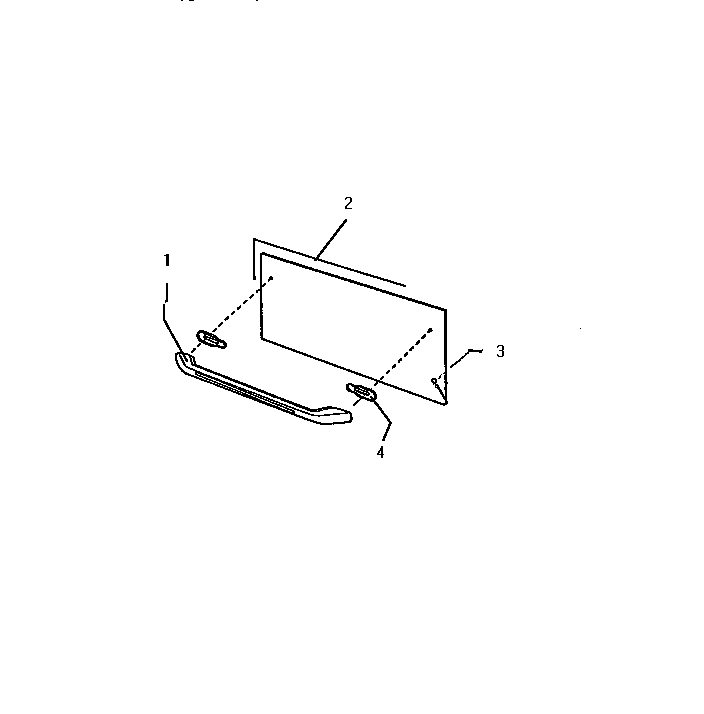

Drawer panel support assembly Diagram

Glass support assy, stainless

Part #14-07-334-03

The manufacturer no longer makes this part, and there's no substitute part

Front Frame#2

Body Diagram

Front frame

Part #14-07-299

The manufacturer no longer makes this part, and there's no substitute part

DRAWER FRONT, BLACK#15

Body Diagram

Drawer front, black

Part #14-07-289-01

The manufacturer no longer makes this part, and there's no substitute part
