Frigidaire
Wall Oven/Microwave Combo

Model # PLEB27M9ECB Official Frigidaire wall oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire PLEB27M9ECB wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

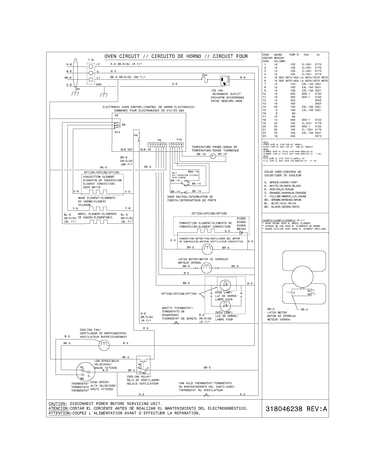

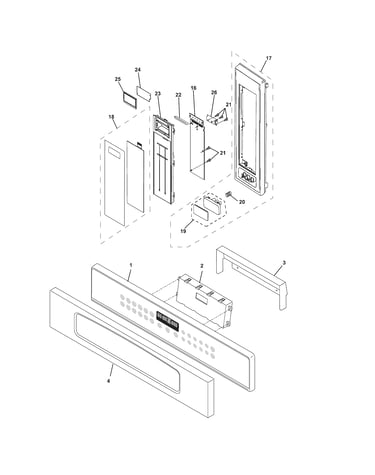

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |

Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

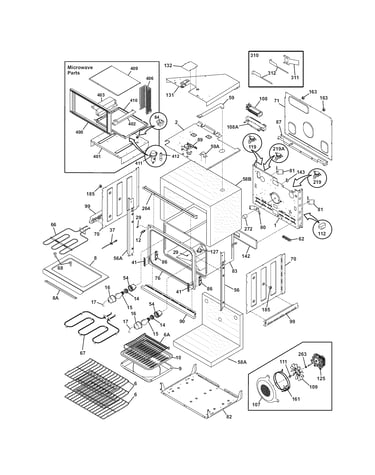

Lower oven diagram

Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$45.69
10% OFF Phone Price : $50.69
In Stock
Range Oven Light Bulb 5303013071
#15

Lower oven diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.31
12% OFF Phone Price : $17.31
In Stock
Range Bake Element (replaces 318254908) 318254902
#67

Lower oven diagram

Range bake element (replaces 318254908)

Part #318254902

BEST SELLER
$160.73
6% OFF Phone Price : $170.73
In Stock
Wall Oven Door Inner Glass (replaces 7318212200) 318212200
#8

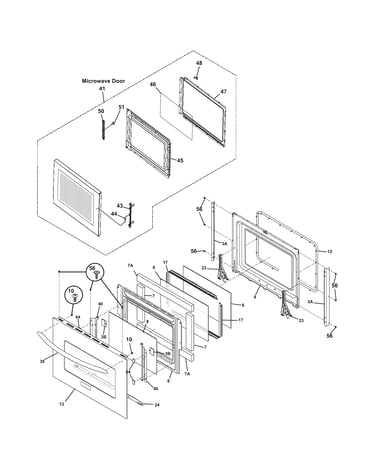

Doors diagram

Wall oven door inner glass (replaces 7318212200)

Part #318212200

BEST SELLER
$74.50
6% OFF Phone Price : $79.50
Back Order
Washer 316136500
#263

Lower oven diagram

Washer

Part #316136500

Replaced by #316008401

?
Manufacturer substitution
This part replaces 316136500. Substitute parts can look different from the original.
BEST SELLER
$12.32
14% OFF Phone Price : $14.32
In Stock
Range Convection Fan Blade Nut (replaces 318399800, 5303311205, 7316136600) 316136600
#111

Lower oven diagram

Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)

Part #316136600

$19.99
9% OFF Phone Price : $21.99
In Stock
Microwave Glass Turntable Tray 5304440868
#54

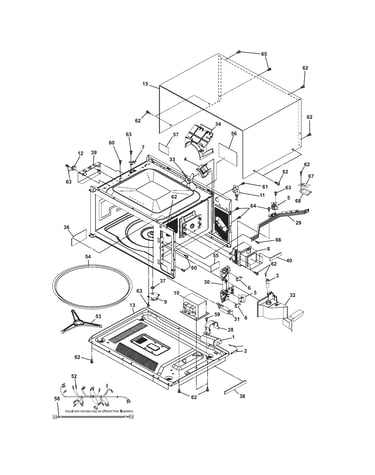

Upper oven diagram

Microwave glass turntable tray

Part #5304440868

Replaced by #5304529482

?
Manufacturer substitution
This part replaces 5304440868. Substitute parts can look different from the original.
$85.30
6% OFF Phone Price : $90.30
In Stock
Switch 318089917
#12

Lower oven diagram

Switch

Part #318089917

Replaced by #316445501

?
Manufacturer substitution
This part replaces 318089917. Substitute parts can look different from the original.
$63.47
7% OFF Phone Price : $68.47
In Stock
Switch 5304440841
#31

Upper oven diagram

Switch

Part #5304440841

Replaced by #5304485407

?
Manufacturer substitution
This part replaces 5304440841. Substitute parts can look different from the original.
$51.29
9% OFF Phone Price : $56.29
In Stock
Thermostat 318003613
#219

Lower oven diagram

Thermostat

Part #318003613

Replaced by #318003624

?
Manufacturer substitution
This part replaces 318003613. Substitute parts can look different from the original.
This item is not returnable
$24.59
17% OFF Phone Price : $29.59
In Stock
