Model #6093WD Official Makita cordless drill/driver

Here are the diagrams and repair parts for Makita 6093WD cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 54 parts

Cam Plate#5

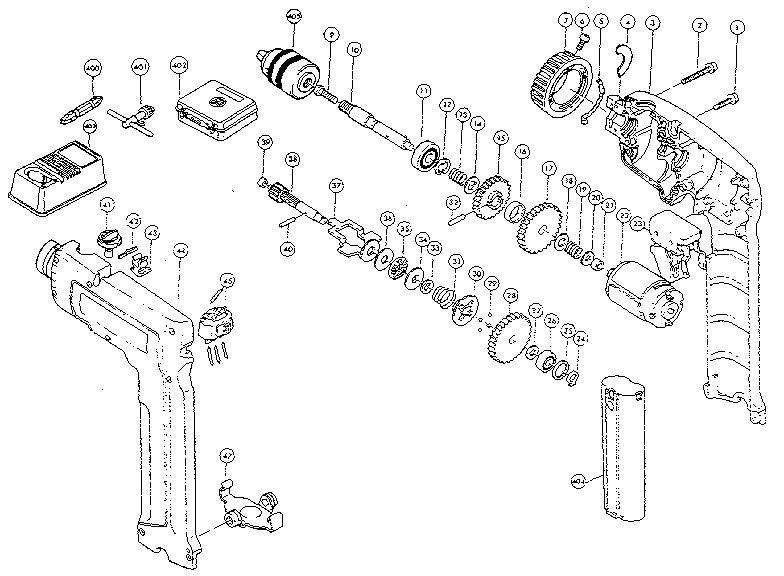

Gear assembly Diagram

Cam plate

Part #343410-1

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer#20

Gear assembly Diagram

Flat washer

Part #253807-5

The manufacturer no longer makes this part, and there's no substitute part

Bearing#39

Gear assembly Diagram

Bearing

Part #214019-5

The manufacturer no longer makes this part, and there's no substitute part

Ring#24

Gear assembly Diagram

Ring

Part #961002-0

The manufacturer no longer makes this part, and there's no substitute part

Pln Bearing#21

Gear assembly Diagram

Pln bearing

Part #214017-9

The manufacturer no longer makes this part, and there's no substitute part

Needle Gauge#35

Gear assembly Diagram

Needle gauge

Part #216401-4

The manufacturer no longer makes this part, and there's no substitute part

Screw#6

Gear assembly Diagram

Screw

Part #251322-3

The manufacturer no longer makes this part, and there's no substitute part

Phillips Bit#400

Gear assembly Diagram

Phillips bit

Part #784202-3

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cam#30

Gear assembly Diagram

Clutch cam

Part #223059-2

The manufacturer no longer makes this part, and there's no substitute part

Swtch Varabl#23

Gear assembly Diagram

Swtch varabl

Part #651343-9

The manufacturer no longer makes this part, and there's no substitute part
