Craftsman
Wet/Dry Vacuum

Model #1250467685-8 Official Craftsman vacuum

Here are the diagrams and repair parts for Craftsman 1250467685-8 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 20 parts

Shop Vacuum Dust Brush, 1-1/4-in#15

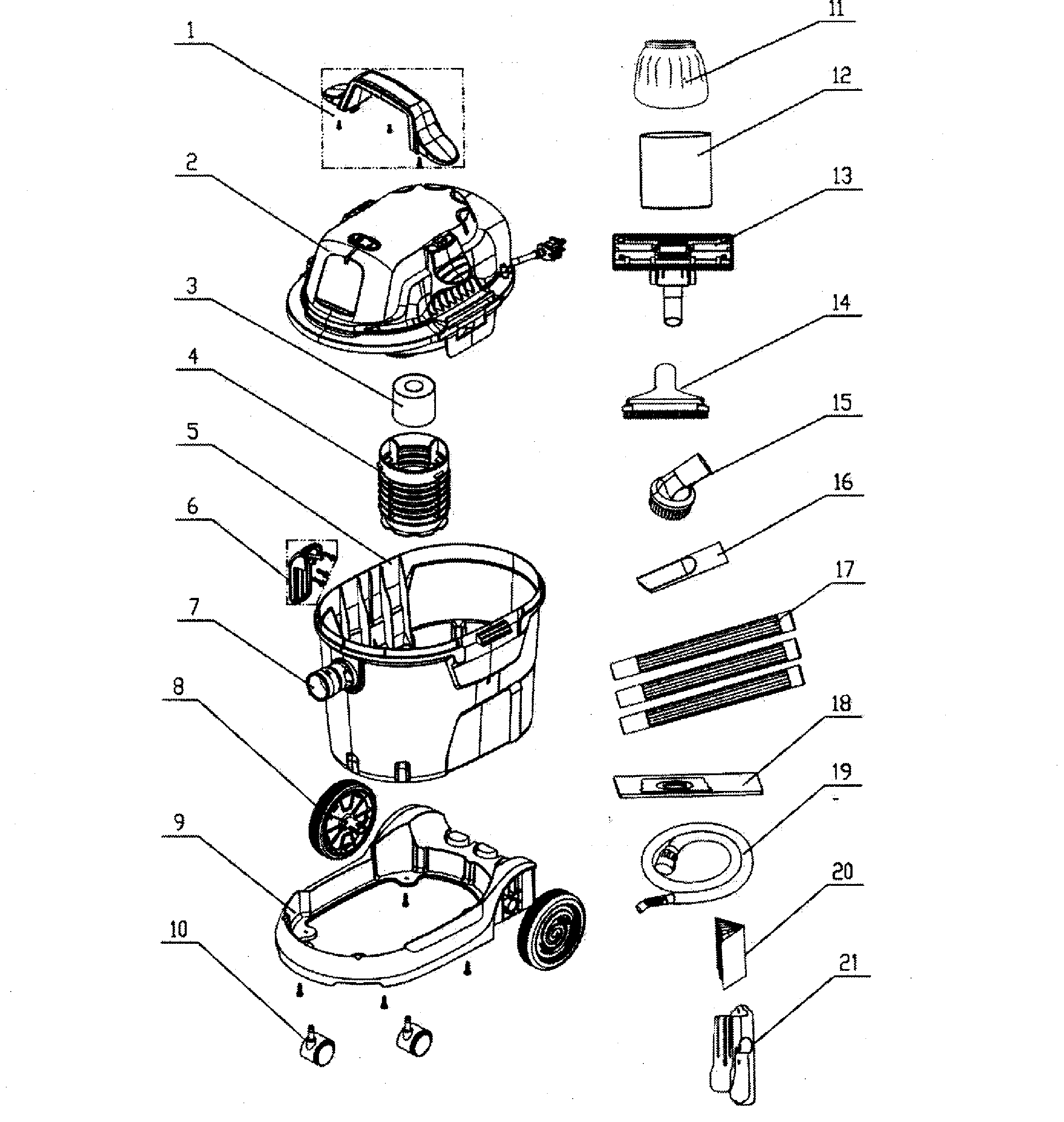

Vacuum Diagram

Round dust

Part #FV7773.01.00
Replaced by #551004116
?
Manufacturer substitution
This part replaces FV7773.01.00. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$10.79 |
16% OFF
Phone Price: $12.79
Shop Vacuum Combination Floor Nozzle#13

Vacuum Diagram

Shop vacuum combination floor nozzle

Part #FV7723.01.00
Replaced by #551004115
?
Manufacturer substitution
This part replaces FV7723.01.00. Substitute parts can look different from the original.
This item is not returnable
In Stock
$27.99 |
15% OFF
Phone Price: $32.99
DUST BAG#18

Vacuum Diagram

Dust bag

Part #FV9620.01.00
Replaced by #551098110
?
Manufacturer substitution
This part replaces FV9620.01.00. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.20
Vacuum Port#7

Vacuum Diagram

Vacuum port

Part #TVQTXK.12.01
Replaced by #551012104
?
Manufacturer substitution
This part replaces TVQTXK.12.01. Substitute parts can look different from the original.
This item is not returnable
In Stock
$2.16
TOOL CREVI#16

Vacuum Diagram

Crevice tool

Part #FV7772.02.01
Replaced by #551012109
?
Manufacturer substitution
This part replaces FV7772.02.01. Substitute parts can look different from the original.
This item is not returnable
In Stock
$7.50
Shop Vacuum Wall Bracket#21

Vacuum Diagram

Shop vacuum wall bracket

Part #FV9201.02.01
Replaced by #551098111
?
Manufacturer substitution
This part replaces FV9201.02.01. Substitute parts can look different from the original.
This item is not returnable
In Stock
$7.20
FLOAT

See All Related Diagrams

Float and filter cage

Part #TVQTZS.05.YZ
Replaced by #551012115
?
Manufacturer substitution
This part replaces TVQTZS.05.YZ. Substitute parts can look different from the original.
This item is not returnable
In Stock
$2.71
EXT WANDS#17

Vacuum Diagram

Extension wand

Part #FV7902.01.01
Replaced by #551003109
?
Manufacturer substitution
This part replaces FV7902.01.01. Substitute parts can look different from the original.
This item is not returnable
In Stock
$7.50
WHEEL ASSEMB#8

Vacuum Diagram

Wheel

Part #TVQTGL.20.00
Replaced by #551102104
?
Manufacturer substitution
This part replaces TVQTGL.20.00. Substitute parts can look different from the original.
In Stock
$10.26
CASTER#10

Vacuum Diagram

Vacuum caster

Part #TVQTJL.12.00
Replaced by #551091105
?
Manufacturer substitution
This part replaces TVQTJL.12.00. Substitute parts can look different from the original.
This item is not returnable
In Stock
$2.57
