Bissell
Canister Vacuum

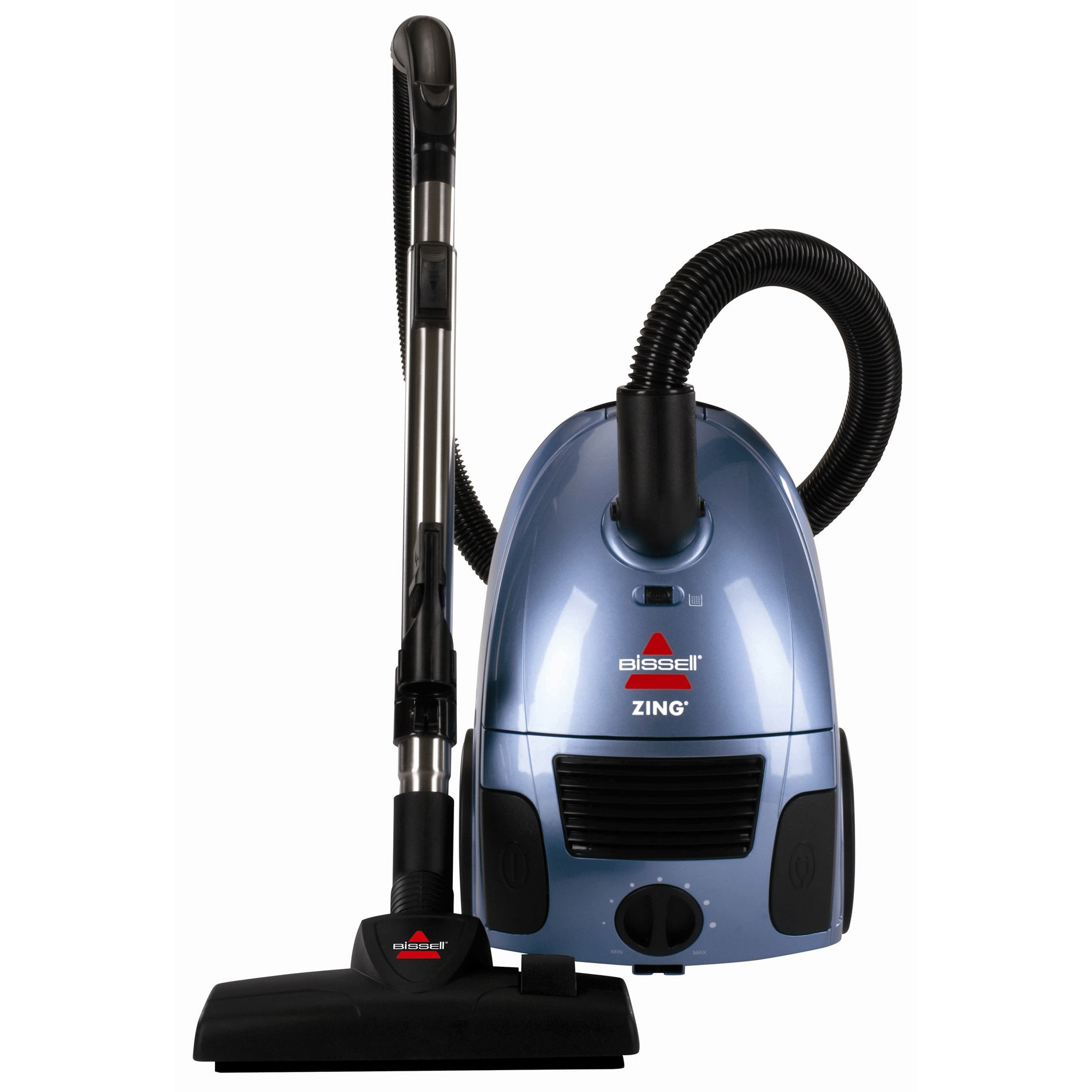

Model #22Q3 Official Bissell vacuum

Here are the diagrams and repair parts for Bissell 22Q3 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 14 parts

Fr Wheel#8

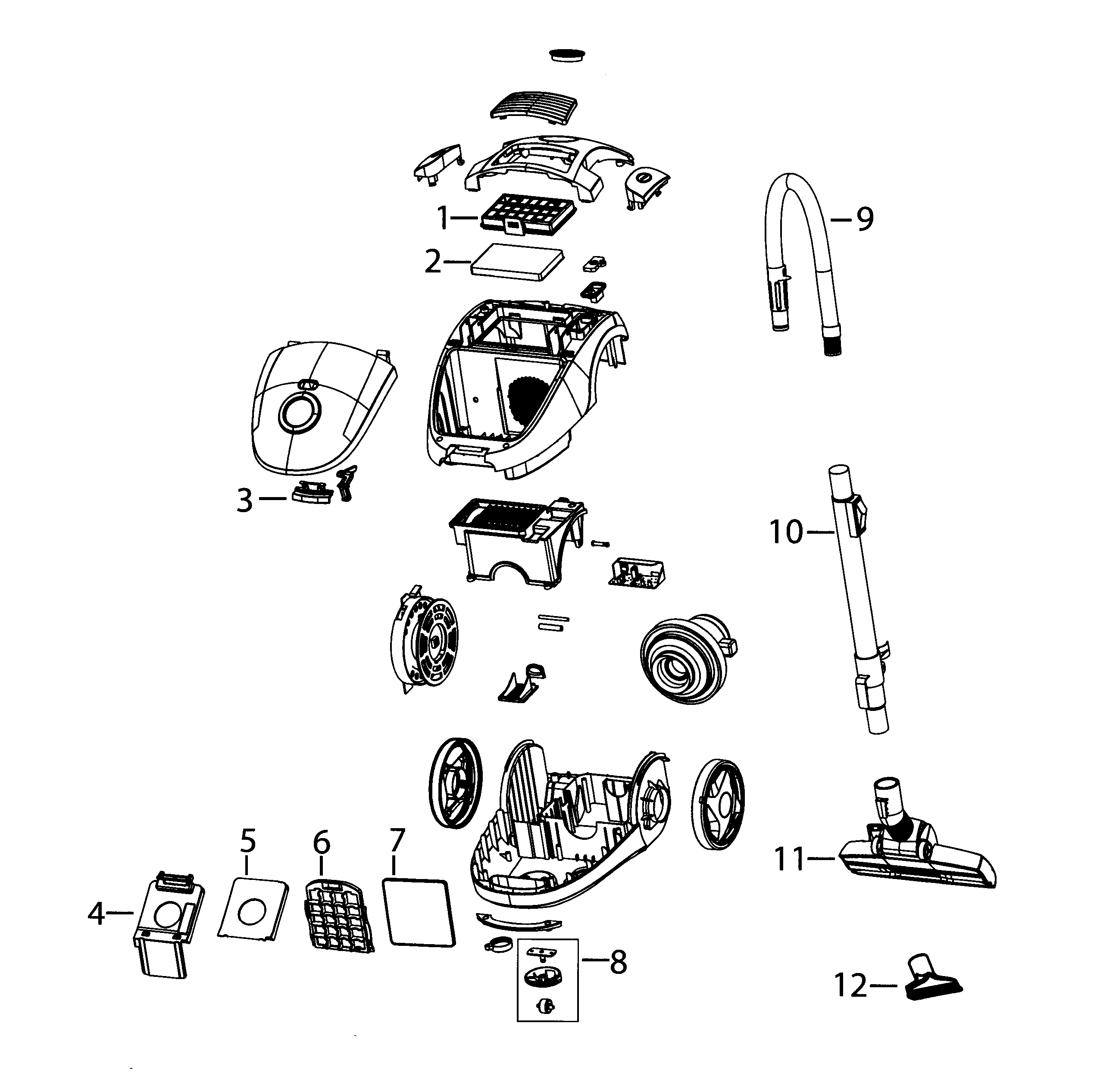

Vacuum assy Diagram

Fr wheel

Part #2037507

The manufacturer no longer makes this part, and there's no substitute part

Upholstery#12

Vacuum assy Diagram

Upholstery

Part #2037509

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual#NI

Vacuum assy Diagram

Owner's manual

Part #1104232

The manufacturer no longer makes this part, and there's no substitute part

Extension Wand#10

Vacuum assy Diagram

Extension wand

Part #2037510

The manufacturer no longer makes this part, and there's no substitute part

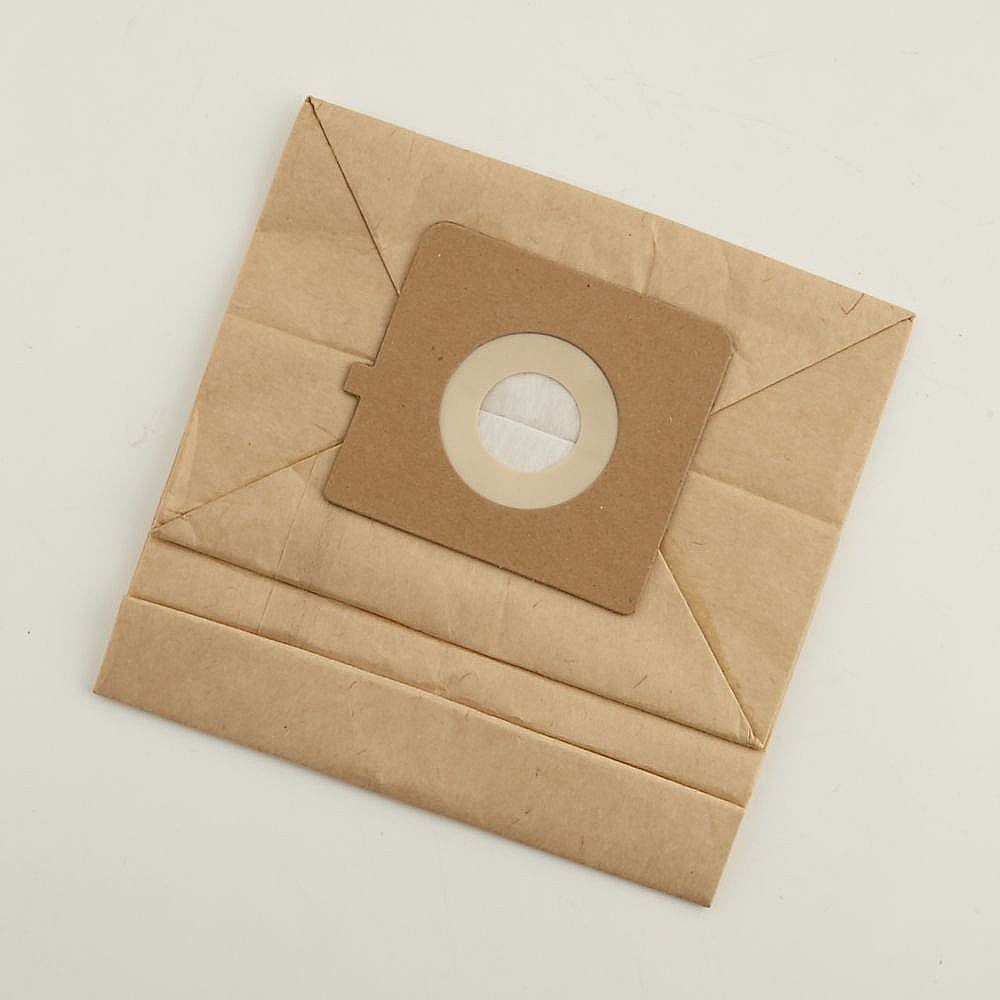

Vacuum Bag#5

Vacuum assy Diagram

Vacuum bag

Part #2037500

The manufacturer no longer makes this part, and there's no substitute part

Hose Assembly#9

Vacuum assy Diagram

Hose assembly

Part #2037511

The manufacturer no longer makes this part, and there's no substitute part

Latch#3

Vacuum assy Diagram

Latch

Part #2037506

The manufacturer no longer makes this part, and there's no substitute part

Filter Frame#6

Vacuum assy Diagram

Filter frame

Part #2037502

The manufacturer no longer makes this part, and there's no substitute part

Floor Nozzle#11

Vacuum assy Diagram

Floor nozzle

Part #2037508

The manufacturer no longer makes this part, and there's no substitute part

Tool#NI

Vacuum assy Diagram

Tool

Part #2037280

The manufacturer no longer makes this part, and there's no substitute part
