Model # SCB1000MCC001 Official GE microwave

Here are the diagrams and repair parts for Official GE SCB1000MCC001 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

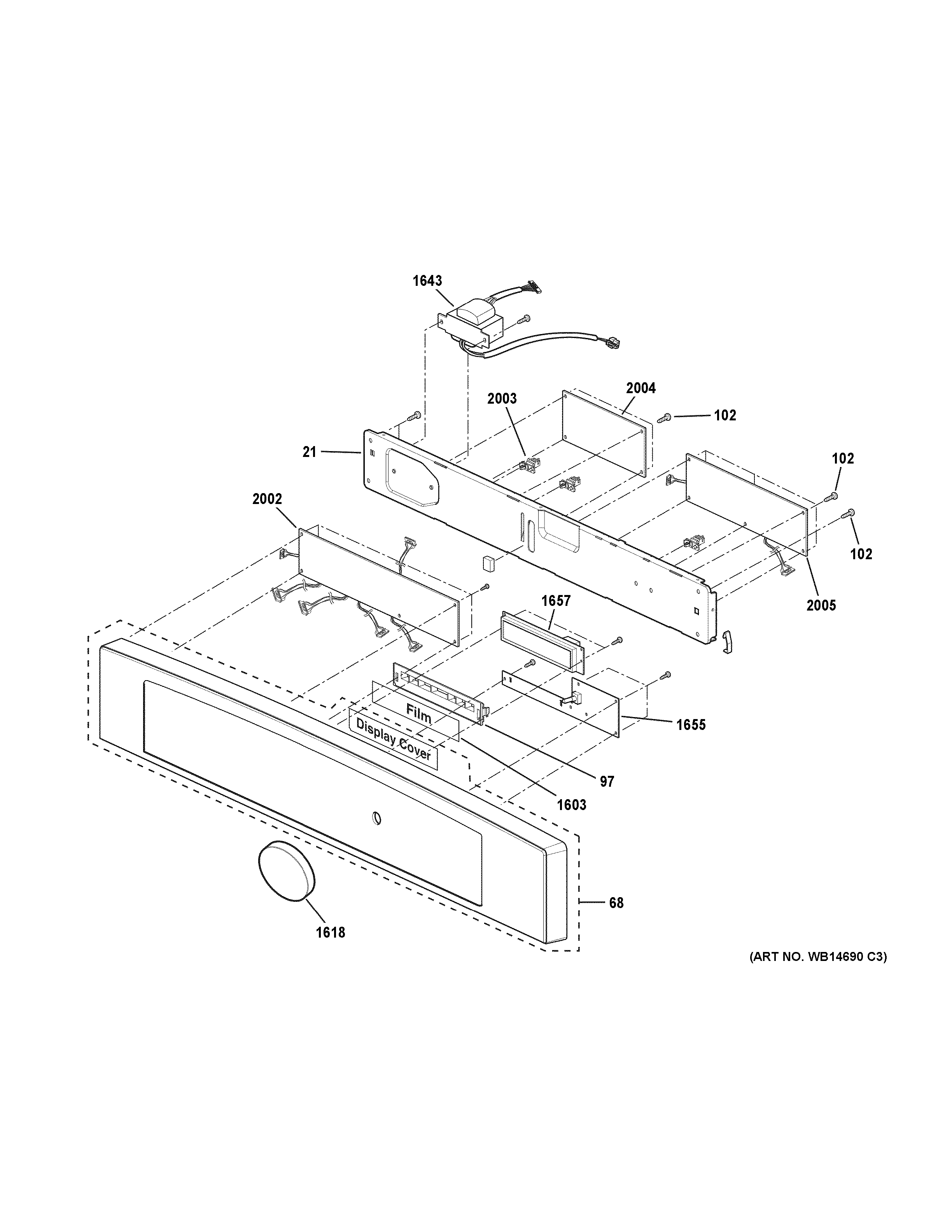

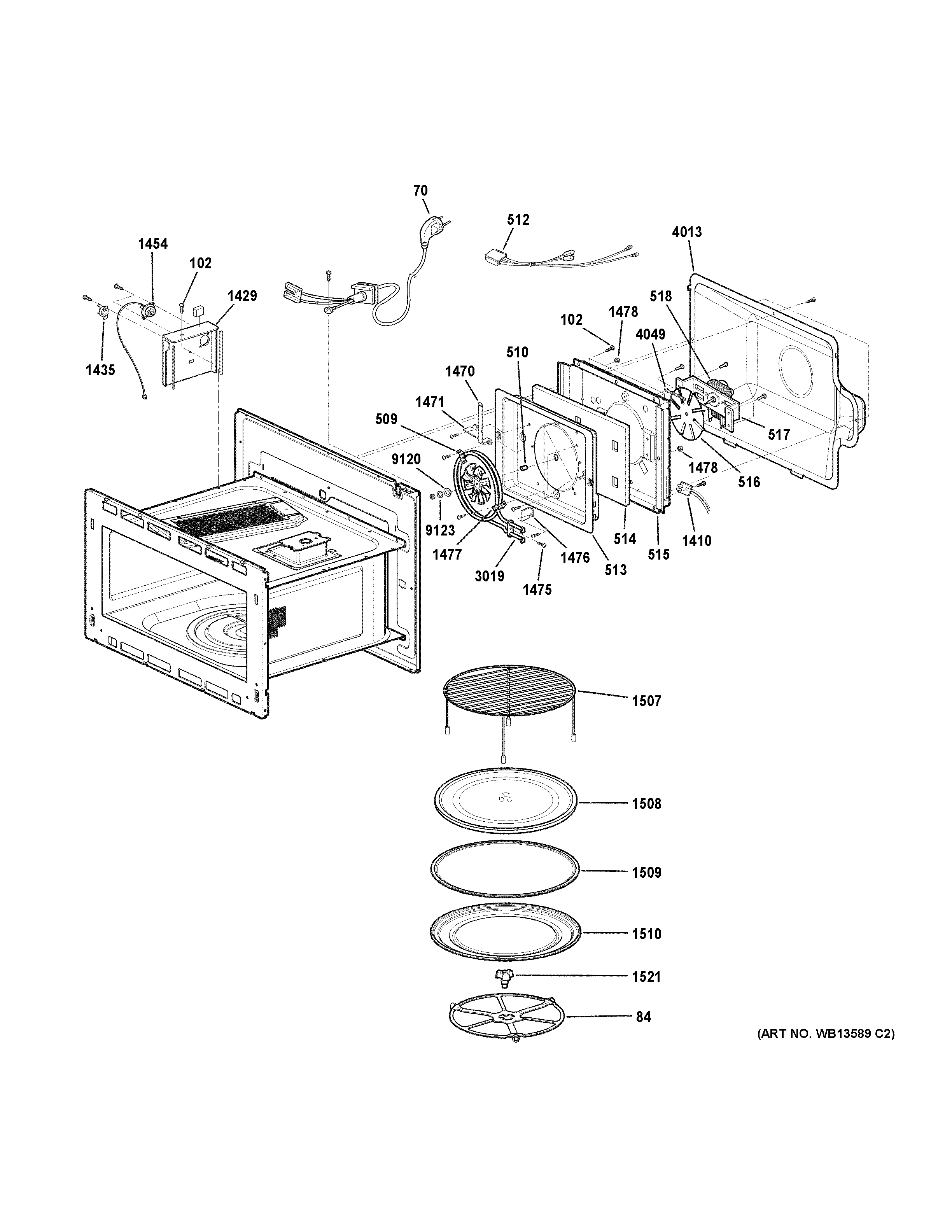

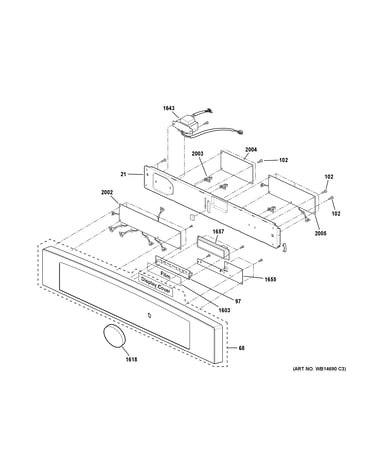

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Microwave Fuse WB27X10388
#47

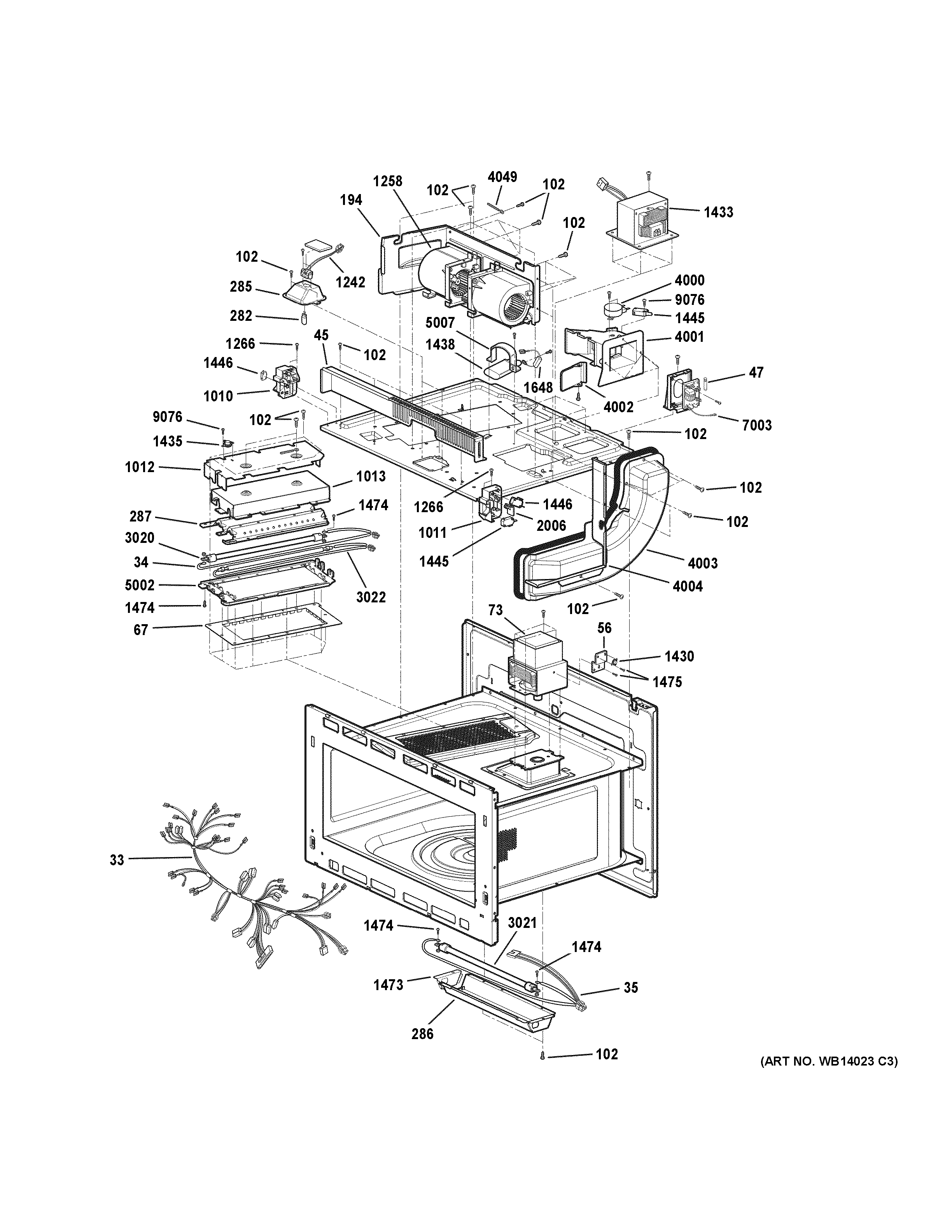

Interior parts (2) diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave Magnetron WB27X10305
#73

Interior parts (2) diagram

Microwave magnetron

Part #WB27X10305

The manufacturer no longer makes this part, and there's no substitute part

Primary Switch WB24X0815
#1446

Interior parts (2) diagram

Primary switch

Part #WB24X0815

Replaced by #WB24X10047

?
Manufacturer substitution
This part replaces WB24X0815. Substitute parts can look different from the original.
BEST SELLER
$24.27 |
17% OFF Phone Price : $29.27
In Stock
Drive Capacitor WB27X10701
#1438

Interior parts (2) diagram

Drive capacitor

Part #WB27X10701

Replaced by #WB27X11033

?
Manufacturer substitution
This part replaces WB27X10701. Substitute parts can look different from the original.
BEST SELLER
$41.91 |
11% OFF Phone Price : $46.91
In Stock
Cable WB18X10286
#1648

Interior parts (2) diagram

Cable

Part #WB18X10286

Replaced by #WB27X10037

?
Manufacturer substitution
This part replaces WB18X10286. Substitute parts can look different from the original.
BEST SELLER
$24.73 |
17% OFF Phone Price : $29.73
In Stock
Microwave Thermal Cut-off (replaces Wb27x10788) WB21X10148
#1430

Interior parts (2) diagram

Microwave thermal cut-off (replaces wb27x10788)

Part #WB21X10148

BEST SELLER
$21.10 |
19% OFF Phone Price : $26.10
In Stock
Latch Board WB06X10640
#1011

Interior parts (2) diagram

Latch board

Part #WB06X10640

Replaced by #WB10X32577

?
Manufacturer substitution
This part replaces WB06X10640. Substitute parts can look different from the original.
$13.42 |
13% OFF Phone Price : $15.42
In Stock
Microwave Turntable Motor (replaces Wb26x10075) WB26X10193
#1472

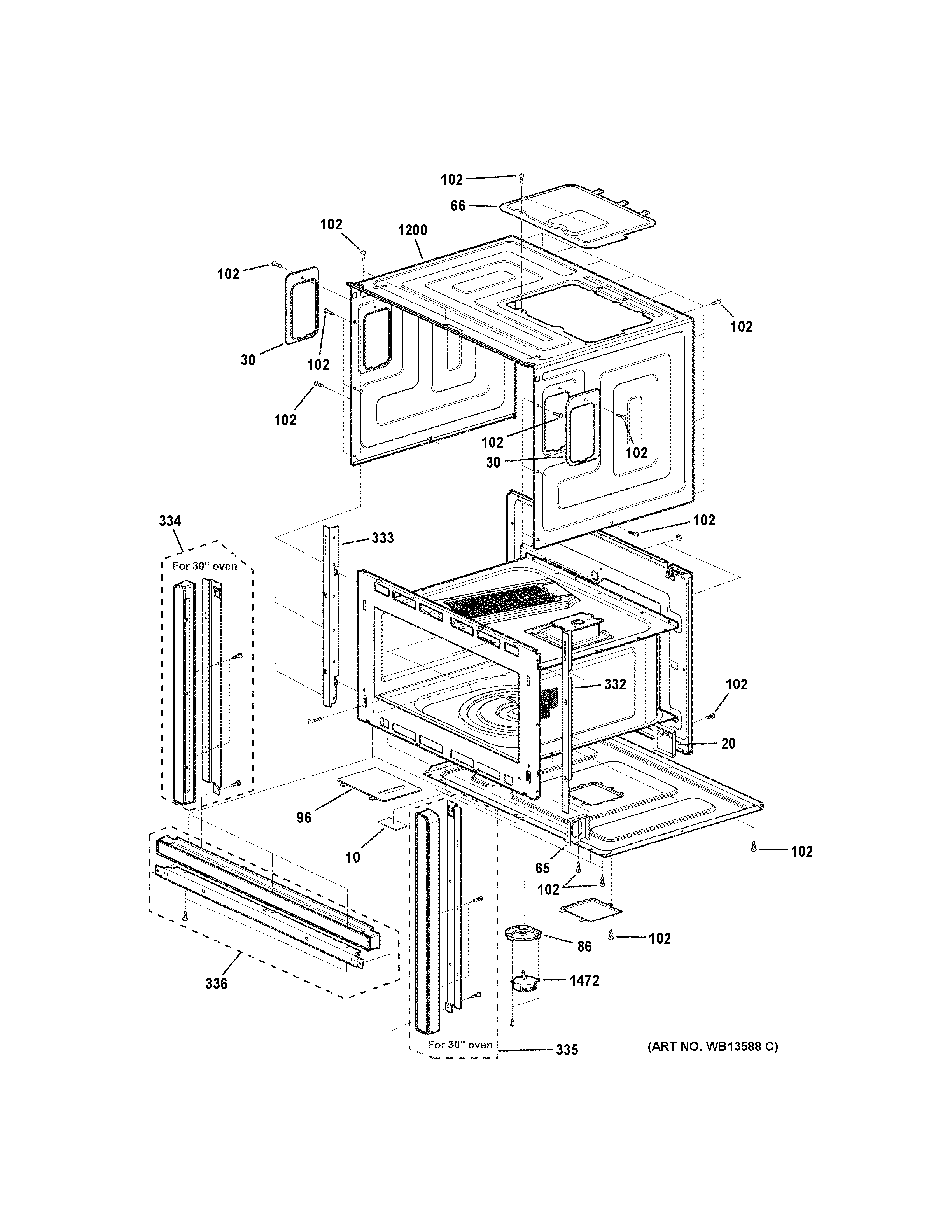

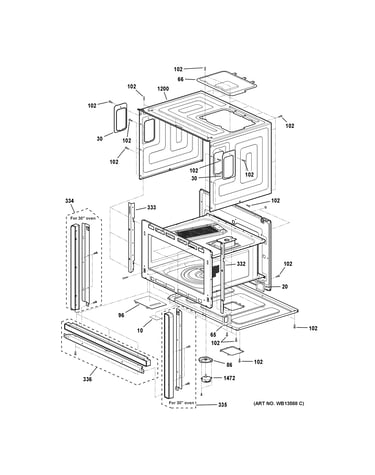

Oven cavity parts diagram

Microwave turntable motor (replaces wb26x10075)

Part #WB26X10193

$88.34 |
5% OFF Phone Price : $93.34
In Stock
Removal Door WB01X10318
#9999

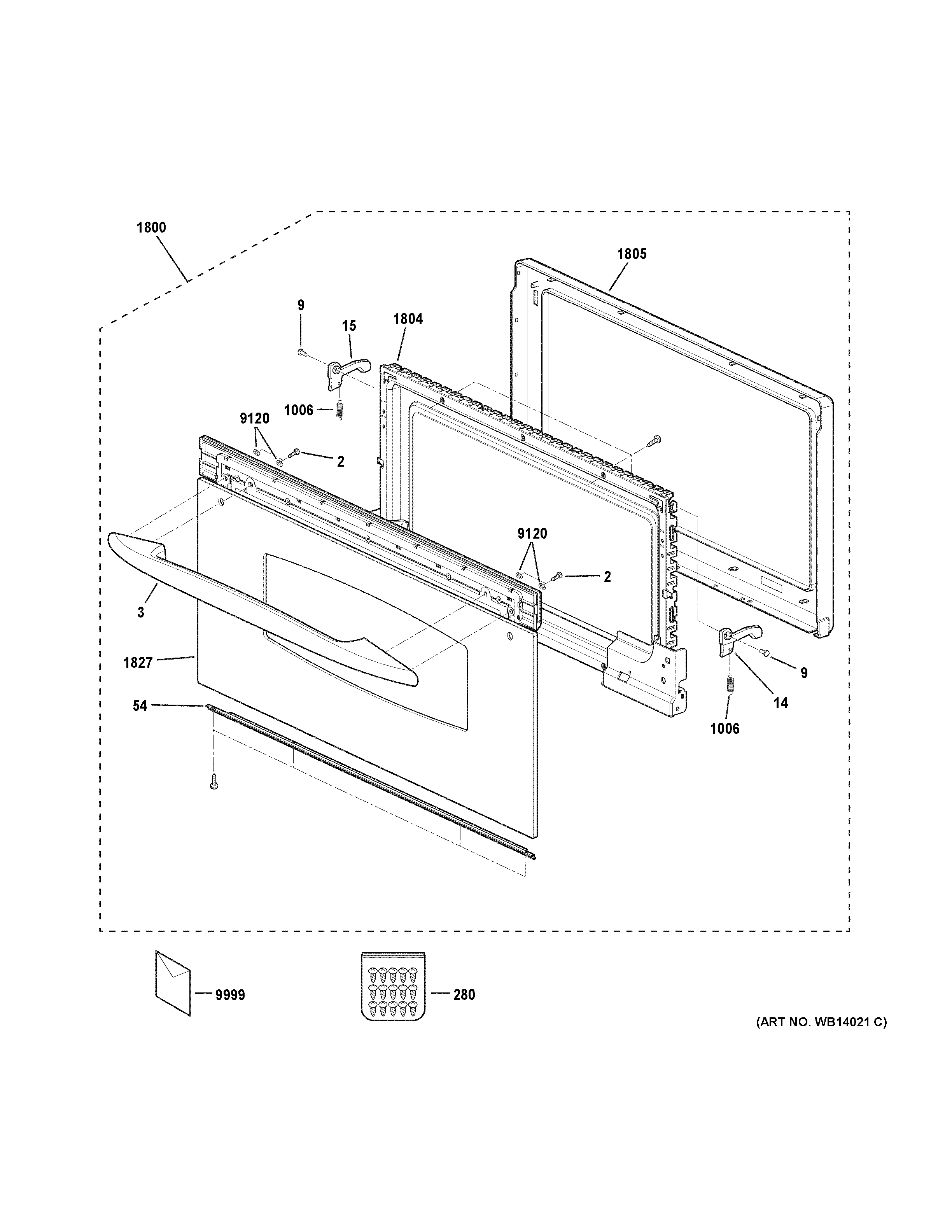

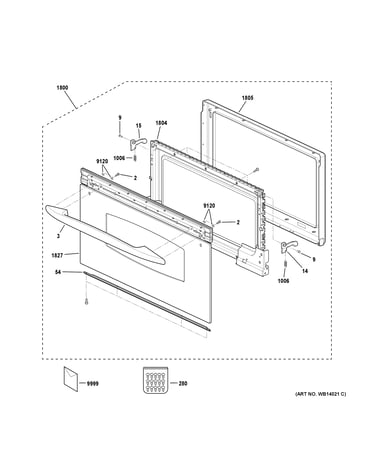

Door parts diagram

Removal door

Part #WB01X10318

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Circulating Motor WB26X10182
#1258

Interior parts (2) diagram

Circulating motor

Part #WB26X10182

$105.77 |
9% OFF Phone Price : $115.77
In Stock
