LG
Microwave/Hood Combo

Model # LMVM2055SB Official LG microwave

Here are the diagrams and repair parts for Official LG LMVM2055SB microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

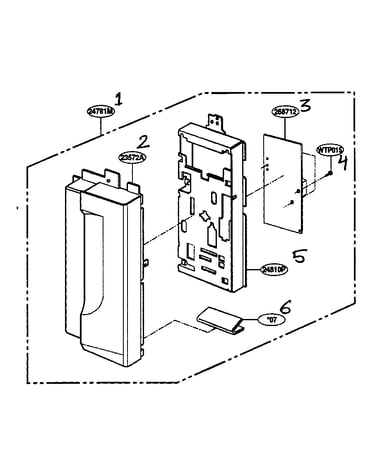

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |

Microwave Charcoal Filter 5230W1A003A
#8

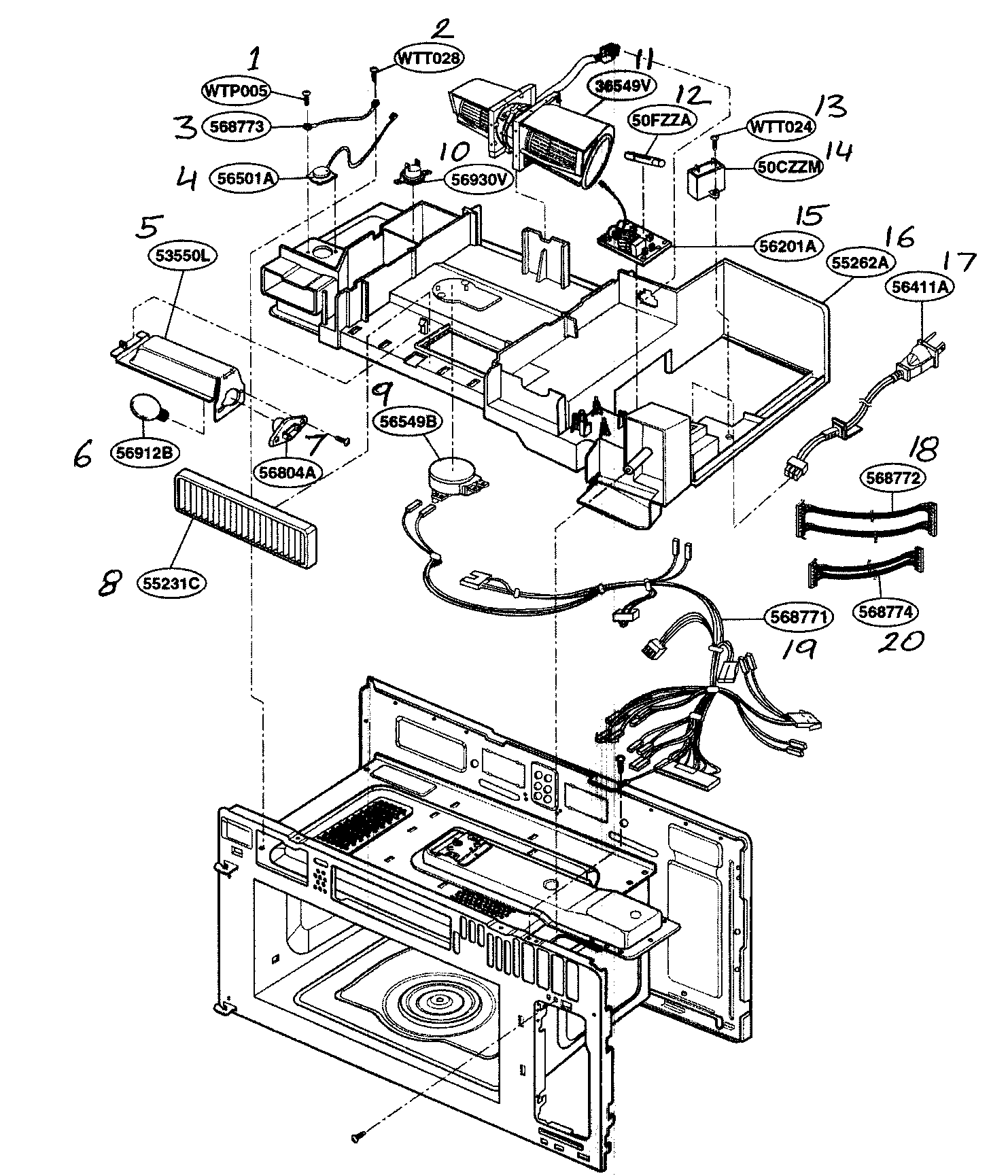

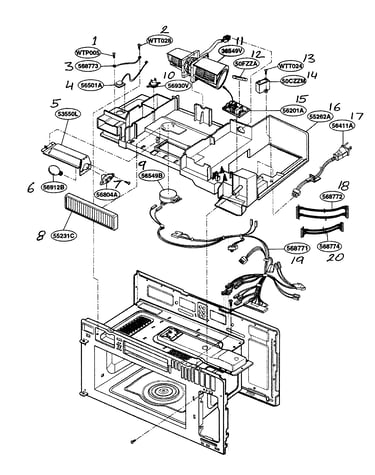

Interior parts 2 diagram

Microwave charcoal filter

Part #5230W1A003A

BEST SELLER
$28.19
15% OFF Phone Price : $33.19
In Stock
Microwave Light Bulb 6912A40002D
#20

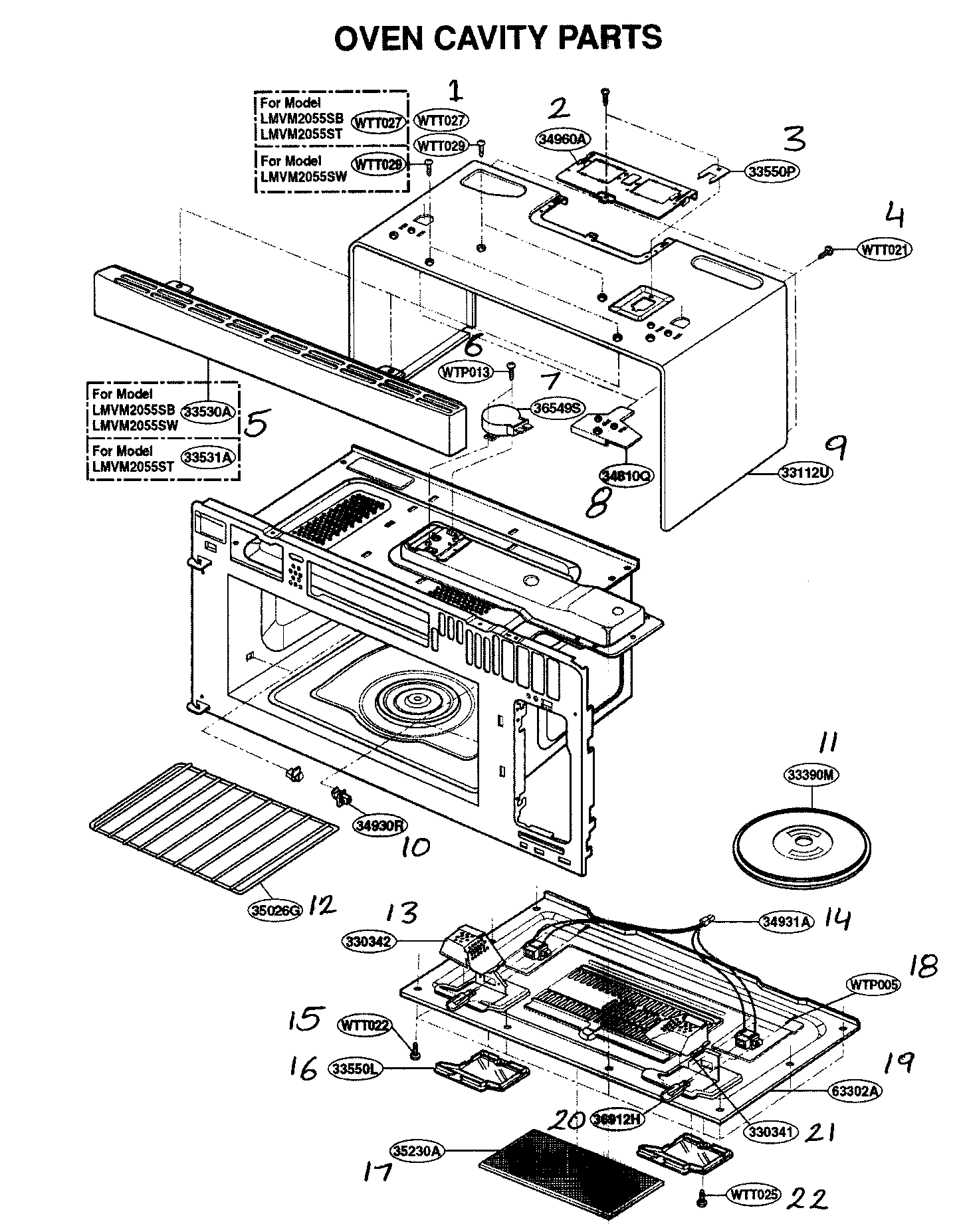

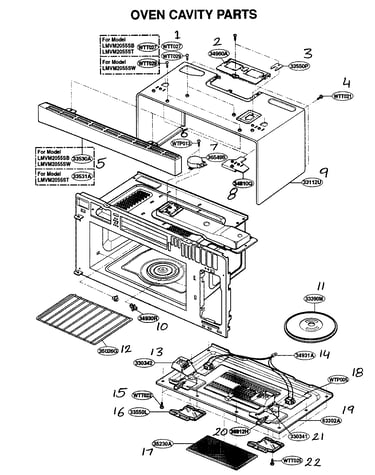

Oven cavity parts diagram

Microwave light bulb

Part #6912A40002D

Replaced by #6912A40002E

?
Manufacturer substitution
This part replaces 6912A40002D. Substitute parts can look different from the original.
BEST SELLER
$15.82
11% OFF Phone Price : $17.82
In Stock
Microwave Micro-switch 6600W1K004C
#4

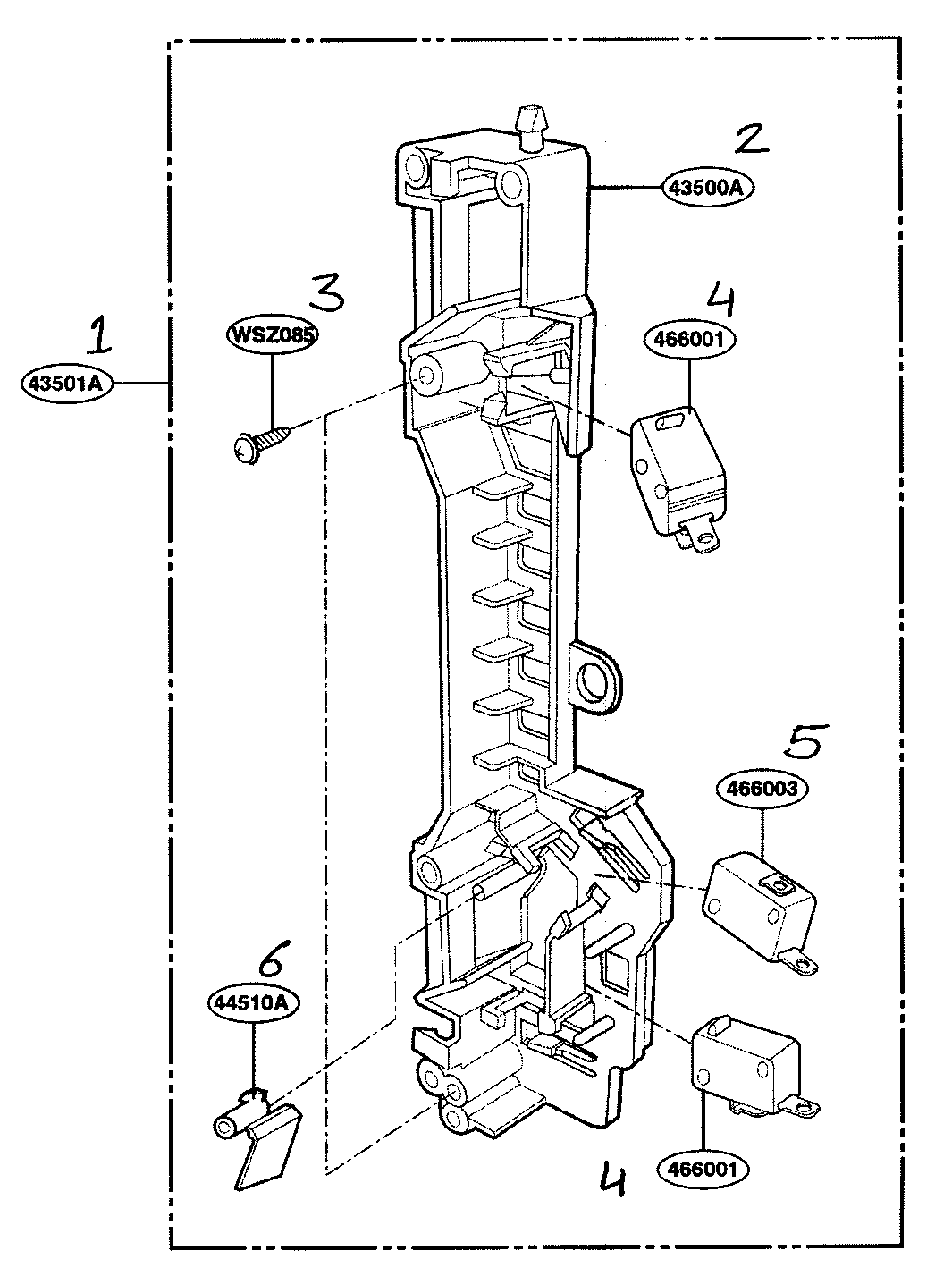

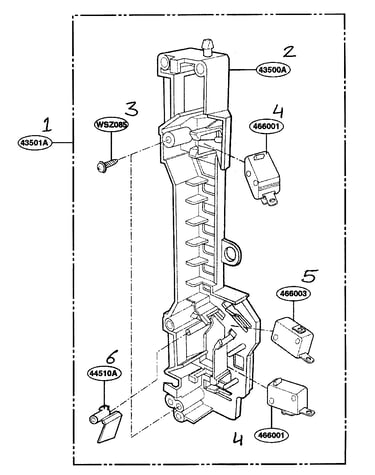

Latch board parts diagram

Microwave micro-switch

Part #6600W1K004C

Replaced by #6600W1K001D

?
Manufacturer substitution
This part replaces 6600W1K004C. Substitute parts can look different from the original.
BEST SELLER
$9.76
9% OFF Phone Price : $10.76
In Stock
Microwave Door Latch Hook 4026W2A015A
#19

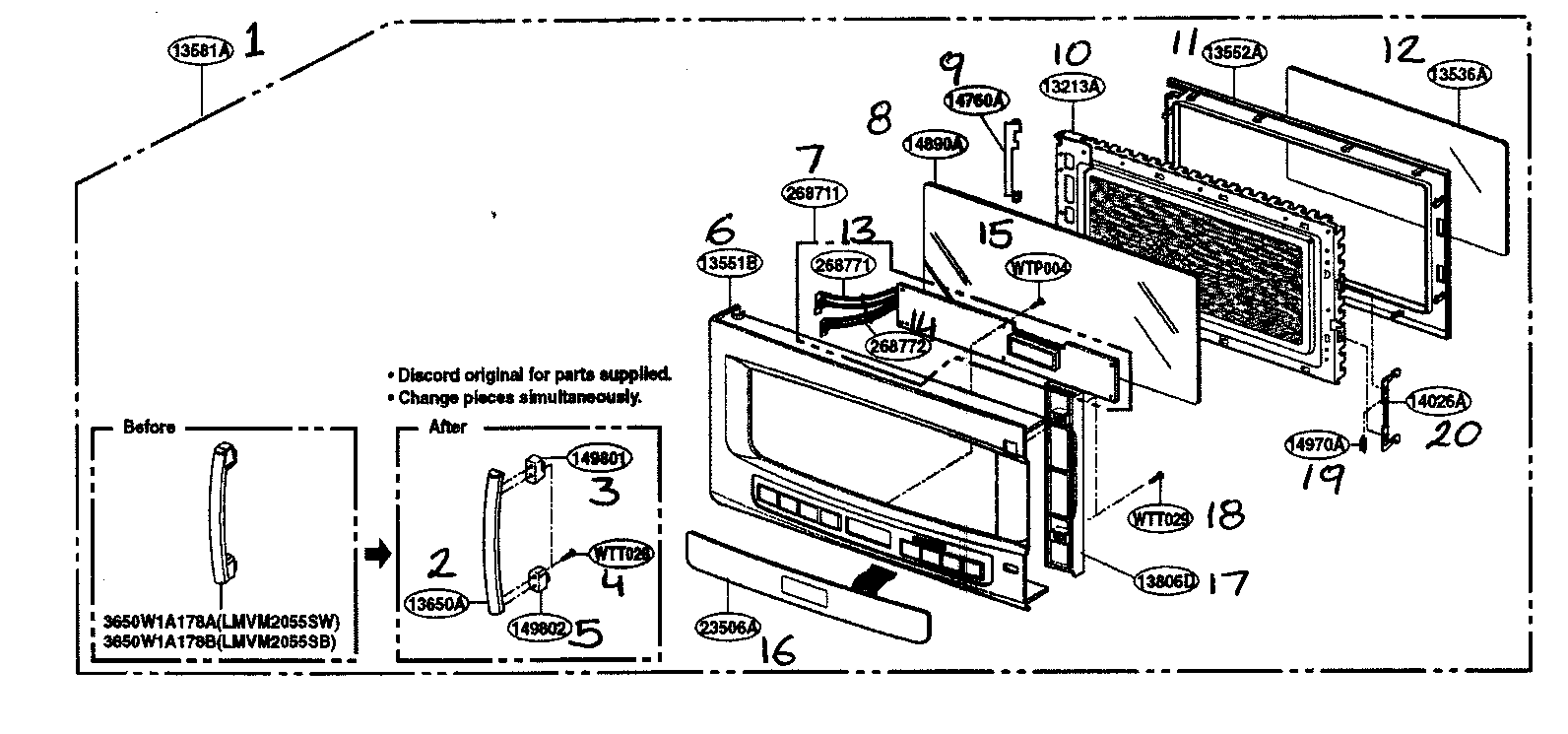

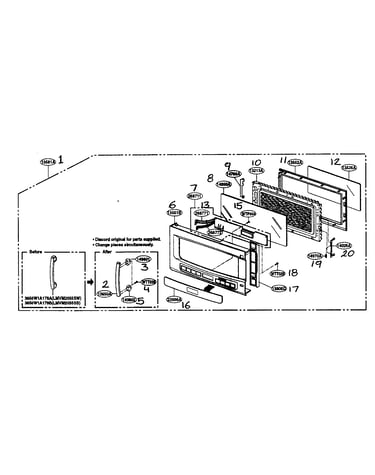

Door parts diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.48
15% OFF Phone Price : $6.48
In Stock
Damper 3B71432A
#2

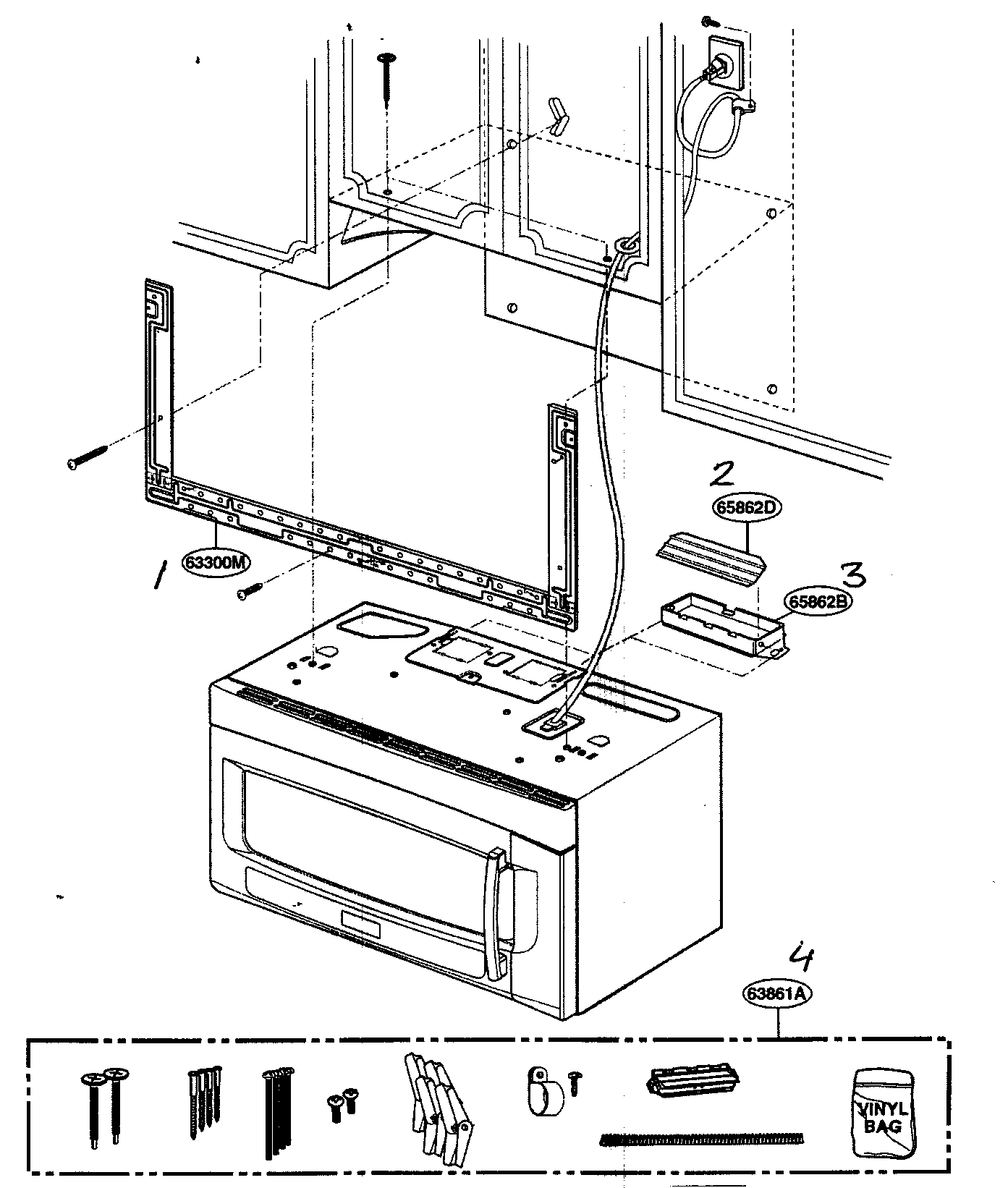

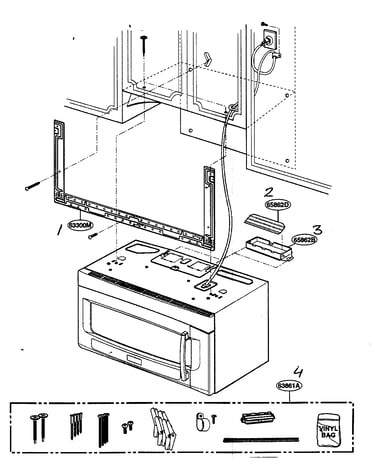

Installation parts diagram

Damper

Part #3B71432A

Replaced by #4900W1A001B

?
Manufacturer substitution
This part replaces 3B71432A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.52
11% OFF Phone Price : $9.52
In Stock
Microwave Exhaust Damper Bracket 3B72144A
#3

Installation parts diagram

Microwave exhaust damper bracket

Part #3B72144A

Replaced by #4810W1A151A

?
Manufacturer substitution
This part replaces 3B72144A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.43
14% OFF Phone Price : $14.43
In Stock
High-voltage Diode 6021W3B001Q
#23

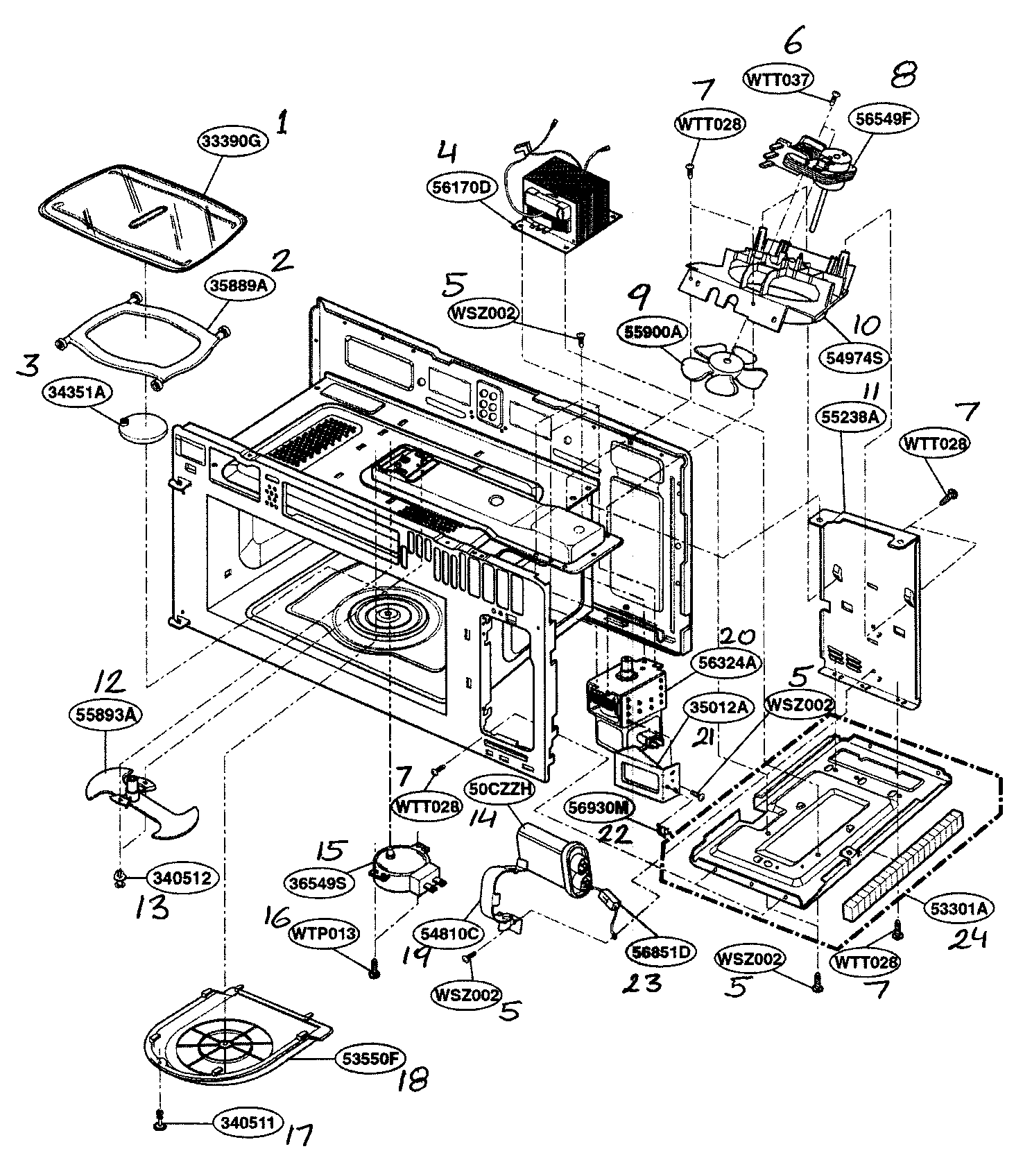

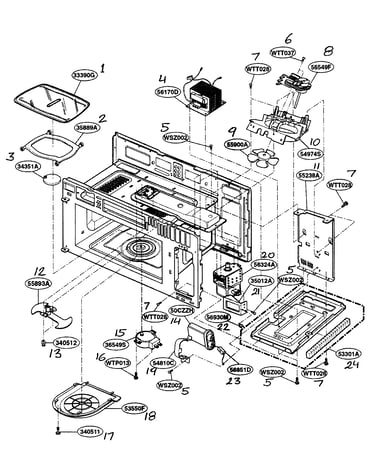

Interior parts 1 diagram

High-voltage diode

Part #6021W3B001Q

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001Q. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.92
13% OFF Phone Price : $7.92
In Stock
Microwave Magnetron 6324W1A001E
#20

Interior parts 1 diagram

Microwave magnetron

Part #6324W1A001E

Replaced by #6324W1A001L

?
Manufacturer substitution
This part replaces 6324W1A001E. Substitute parts can look different from the original.
BEST SELLER
$91.94
5% OFF Phone Price : $96.94
In Stock
Hrdwre Kit 2B72771H
#4

Installation parts diagram

Hrdwre kit

Part #2B72771H

Replaced by #3861W1A043C

?
Manufacturer substitution
This part replaces 2B72771H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$23.37
18% OFF Phone Price : $28.37
In Stock
Microwave High-voltage Capacitor (replaces 0czzw1h001q, 0czzw1h002h, 0czzw1h003h, 0czzw1h003j, 6120w3h003j, 6120wrh001h) 0CZZW1H004C
#14

Interior parts 1 diagram

Microwave high-voltage capacitor (replaces 0czzw1h001q, 0czzw1h002h, 0czzw1h003h, 0czzw1h003j, 6120w3h003j, 6120wrh001h)

Part #0CZZW1H004C

$17.81
10% OFF Phone Price : $19.81
In Stock
