Model #HXA224AKA1 Official ICP condensing unit

Here are the diagrams and repair parts for ICP HXA224AKA1 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 28 parts

White-Rodgers Central Air Conditioner Contactor#4

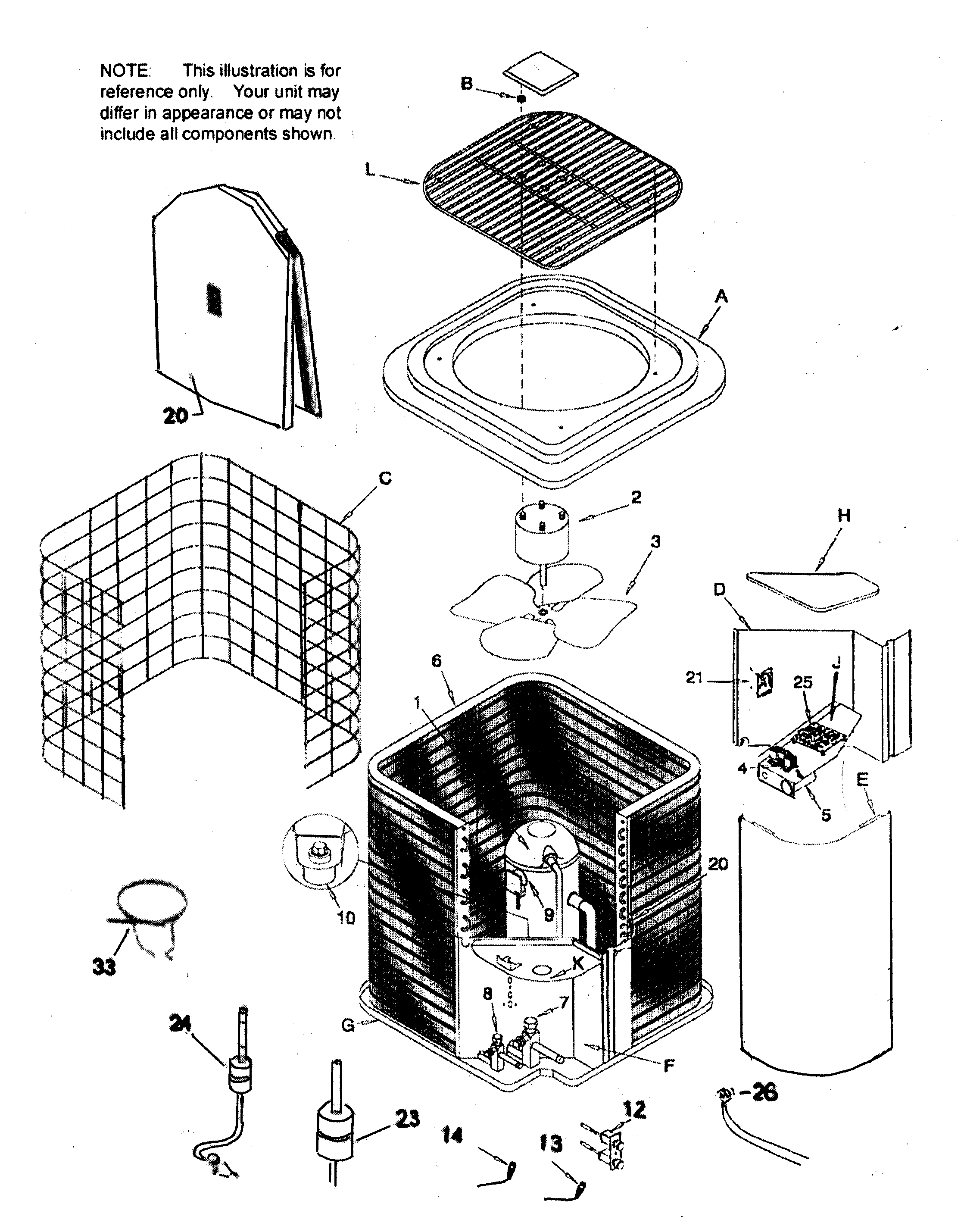

Condensing unit Diagram

Contactor

Part #1050699
Replaced by #94-388
?
Manufacturer substitution
This part replaces 1050699. Substitute parts can look different from the original.
In Stock
$33.20 |
13% OFF
Phone Price: $38.20
Central Air Conditioner Condenser Fan Blade#3

Condensing unit Diagram

In Stock
$60.61
Grille Inl#C

Condensing unit Diagram

Grille inl

Part #1086267
In Stock
$64.09 |
7% OFF
Phone Price: $69.09
Central Air Conditioner Condenser Fan Motor#2

Condensing unit Diagram

In Stock
$284.94
Ctrl Press#13

Condensing unit Diagram

Ctrl press

Part #1087885
In Stock
$35.18
Box Cover#E

Condensing unit Diagram

Box cover

Part #1087541
In Stock
$30.08
Central Air Conditioner Refrigerant Suction Line Service Valve#7

Condensing unit Diagram

Temp Sw#26

Condensing unit Diagram

Temp sw

Part #1172013
In Stock
$8.49
Central Air Conditioner Filter Dryer#24

Condensing unit Diagram

In Stock
$53.88
Grl Dischr#L

Condensing unit Diagram

Grl dischr

Part #1085984
In Stock
$200.94
