Kenmore
Air Purifier

Model #6358314700 Official Kenmore electronic air cleaner

Here are the diagrams and repair parts for Kenmore 6358314700 electronic air cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 24 parts

Supply-pwr#11

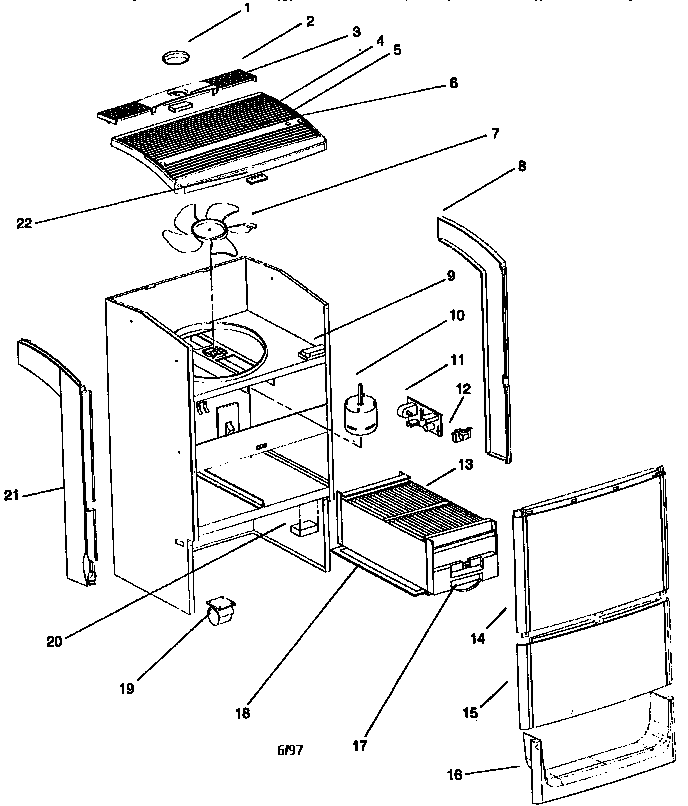

Unit parts Diagram

Supply-pwr

Part #349960-002

The manufacturer no longer makes this part, and there's no substitute part

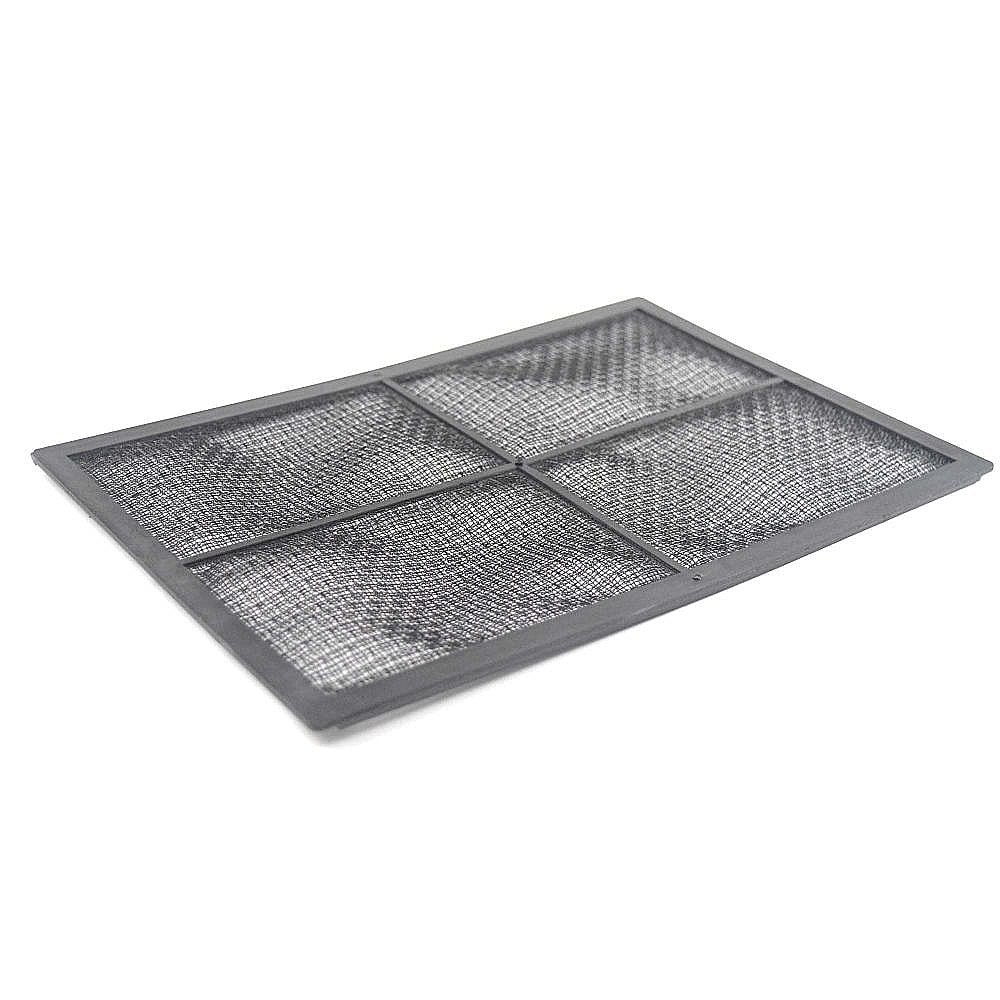

Filter#18

Unit parts Diagram

Filter

Part #250307-001

The manufacturer no longer makes this part, and there's no substitute part

Filter#13

Unit parts Diagram

Filter

Part #350074-001

The manufacturer no longer makes this part, and there's no substitute part

Panel#14

Unit parts Diagram

Panel

Part #450043-001

The manufacturer no longer makes this part, and there's no substitute part

Power Cord

#NI

All parts Diagram

Power cord

Part #250250-001

The manufacturer no longer makes this part, and there's no substitute part

Control Panel#2

Unit parts Diagram

Control panel

Part #450039-001

The manufacturer no longer makes this part, and there's no substitute part

Fan#7

Unit parts Diagram

Fan

Part #350244-001

The manufacturer no longer makes this part, and there's no substitute part

Panel#21

Unit parts Diagram

Panel

Part #450042-001

The manufacturer no longer makes this part, and there's no substitute part

Needle#22

Unit parts Diagram

Needle

Part #150617-001

The manufacturer no longer makes this part, and there's no substitute part

Grill#4

Unit parts Diagram

Grill

Part #450038-001

The manufacturer no longer makes this part, and there's no substitute part
