Top-Mount Refrigerator

Model #GTH20JBBARBB Official GE refrigerator - b series

Here are the diagrams and repair parts for GE GTH20JBBARBB refrigerator - b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

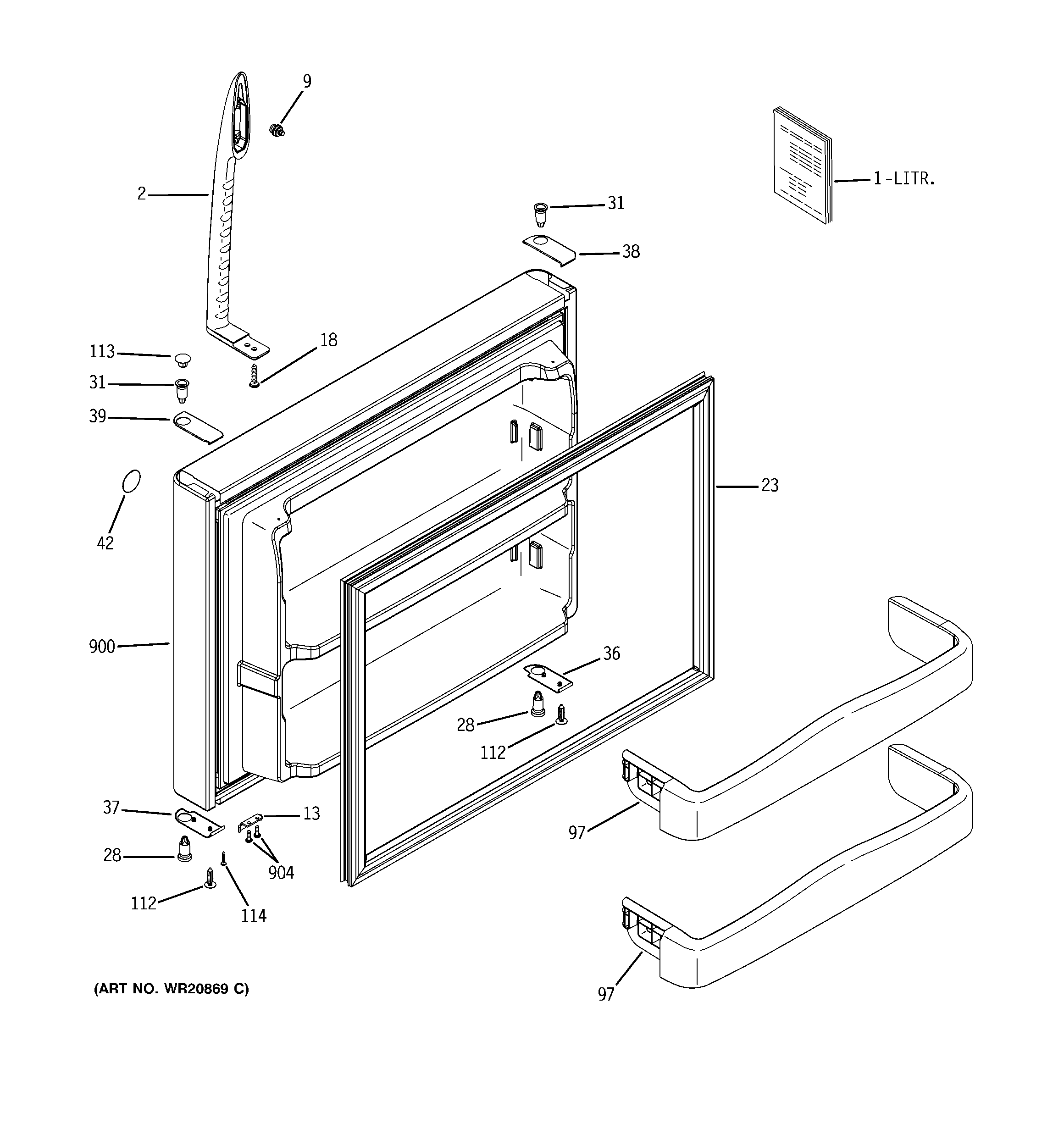

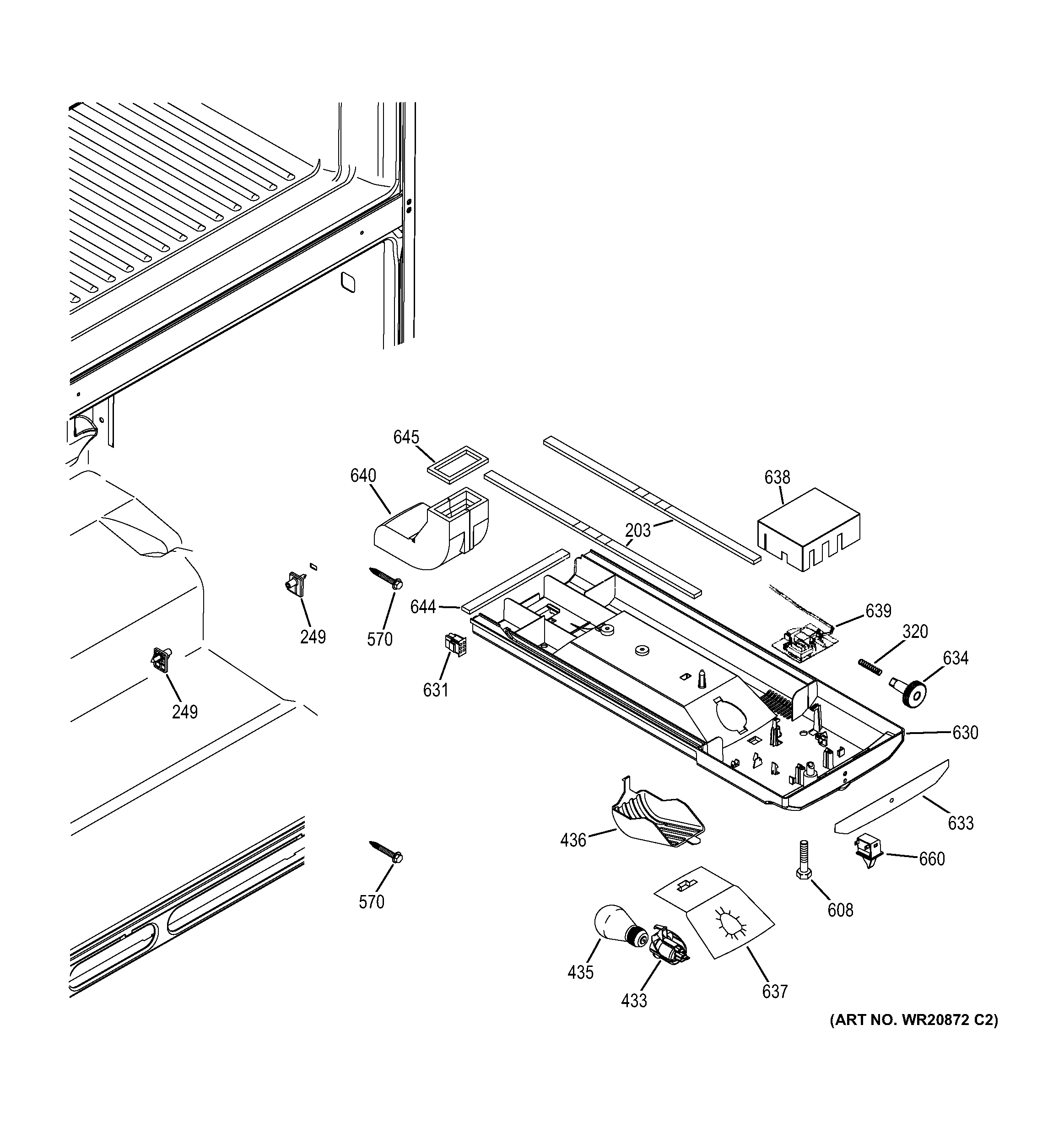

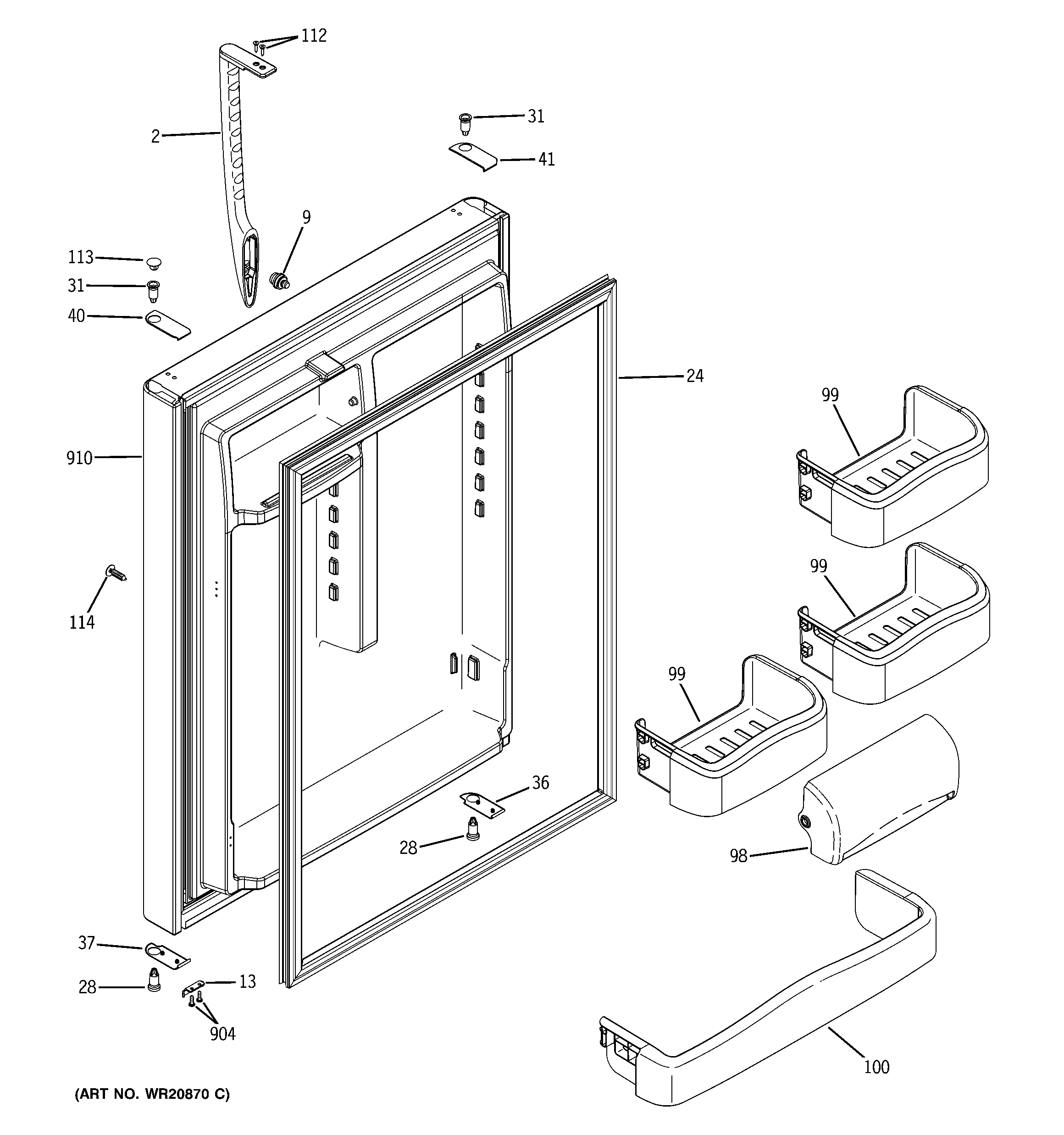

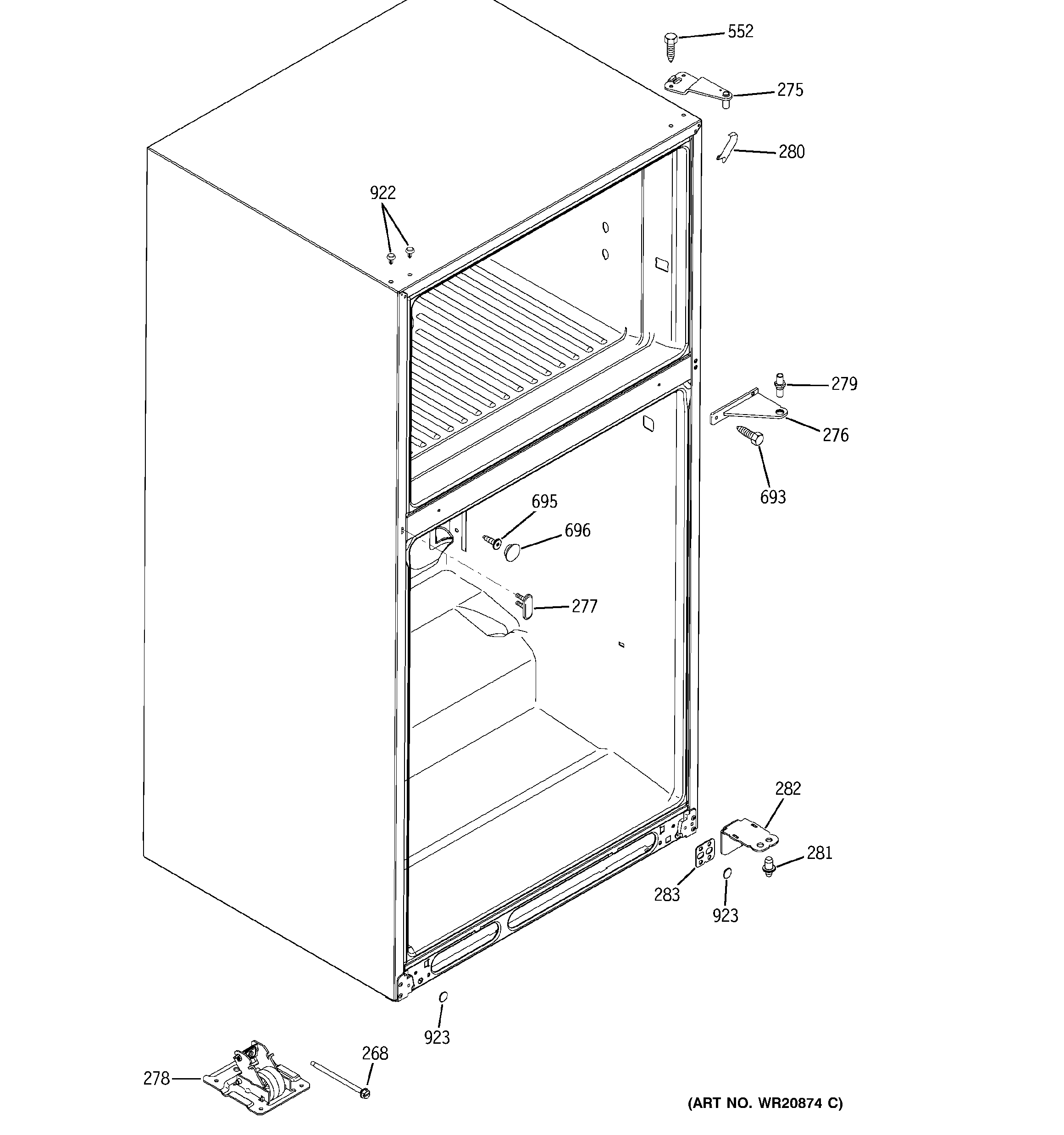

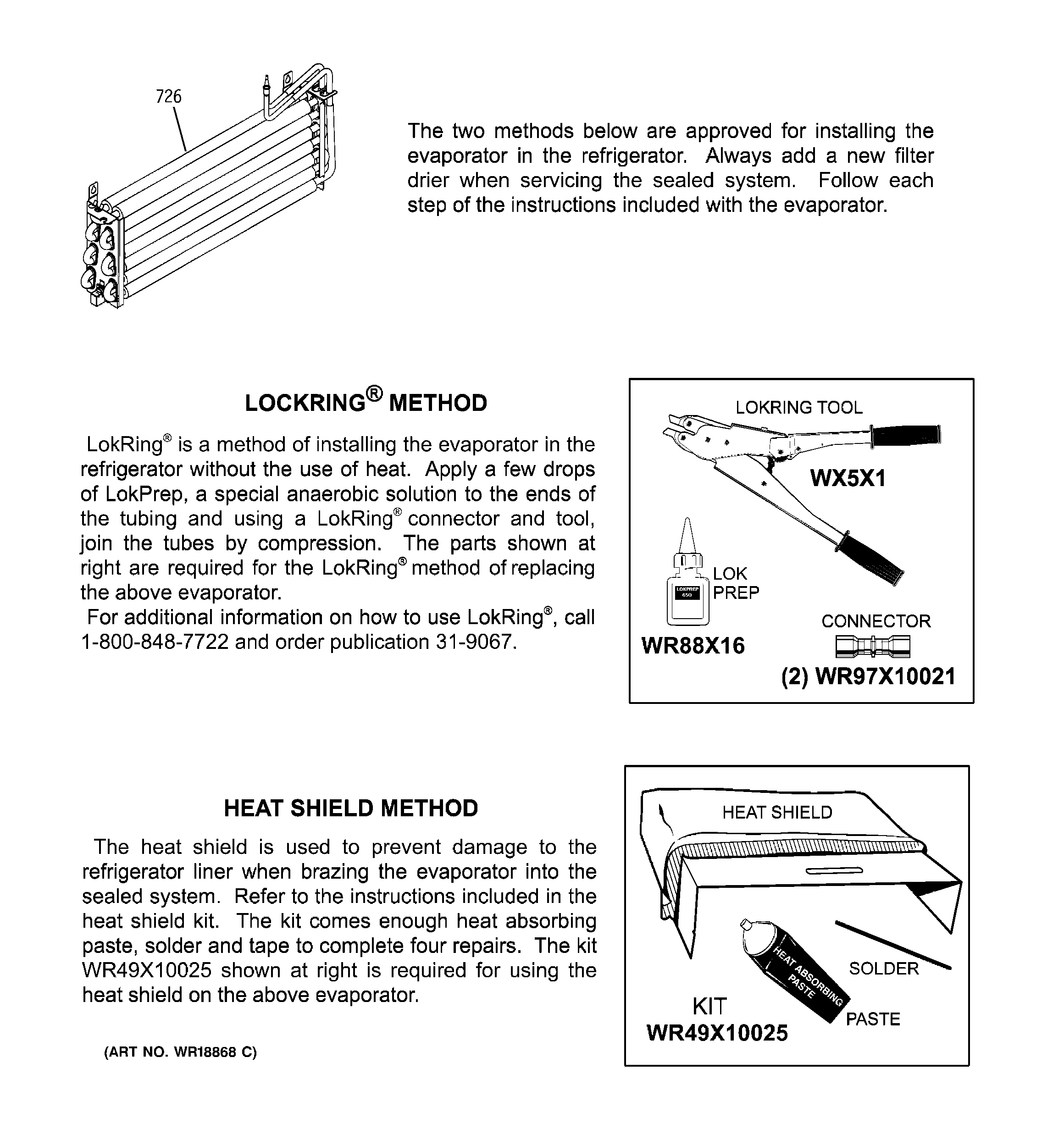

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

    Showing 10 of 134 parts

    Refrigerator Condenser Fan#650

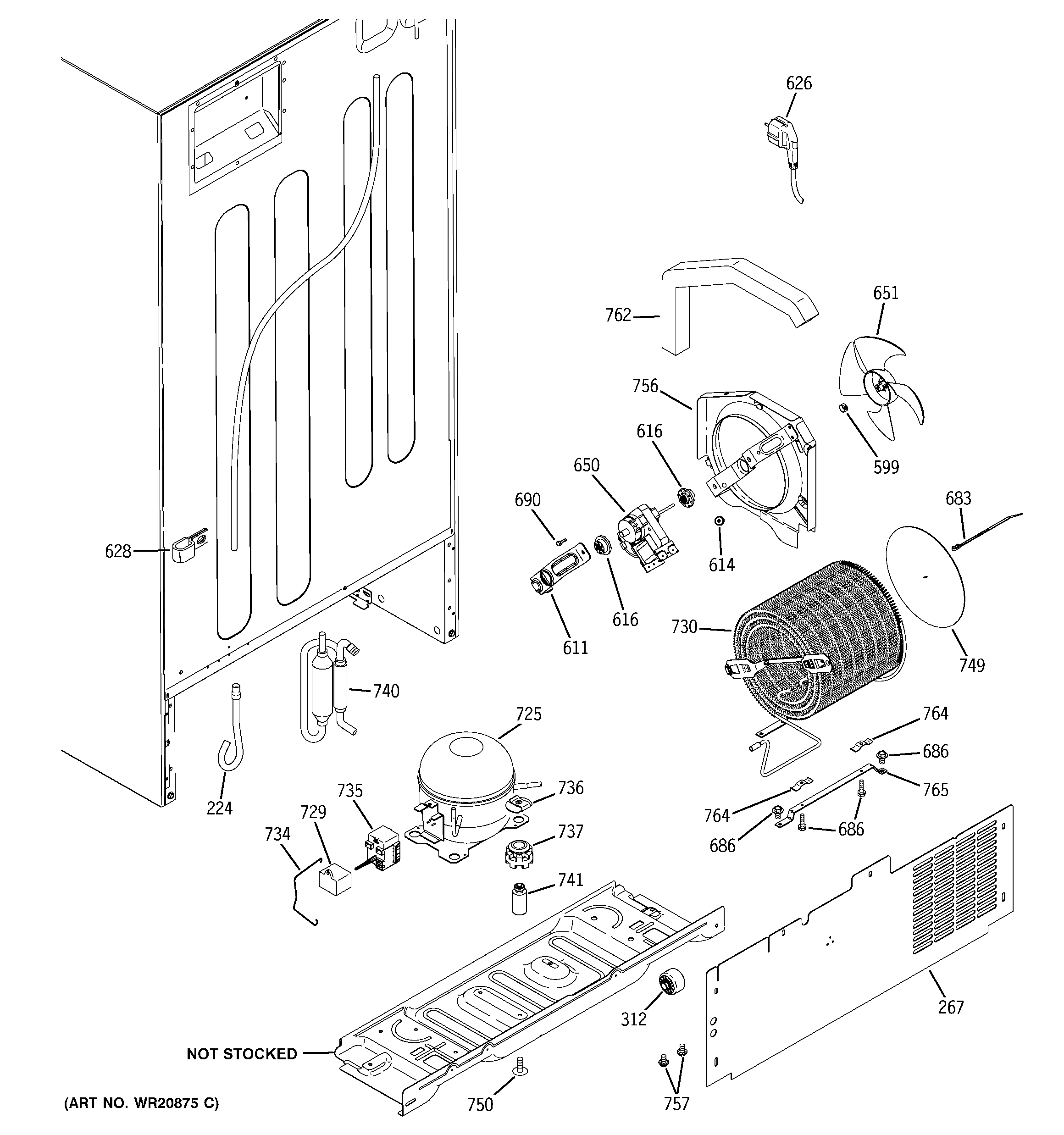

    Machine compartment Diagram

    Refrigerator condenser fan

    Part #WR60X10220
    BEST SELLER
    In Stock
    $41.39 |
    11% OFF
    Phone Price: $46.39
    Refrigerator Evaporator Fan Blade#613

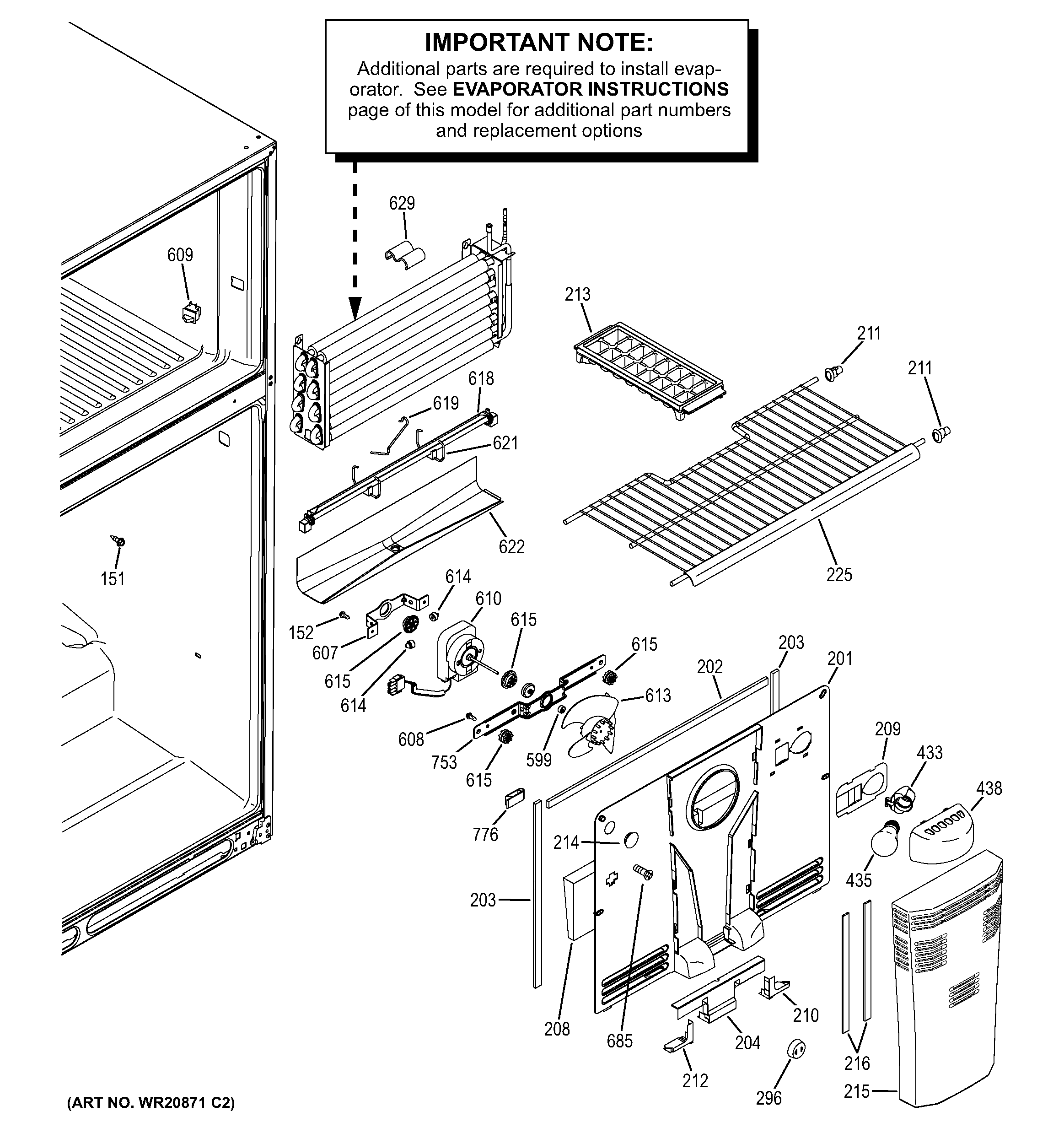

    Freezer section Diagram

    Refrigerator evaporator fan blade

    Part #WR60X10208

    The manufacturer no longer makes this part, and there's no substitute part

    Freezer Basket Bumper

    See All Related Diagrams

    Freezer basket bumper

    Part #WR02X10540
    This item is not returnable
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
    Refrigerator Fan Blade Retainer Ring

    See All Related Diagrams

    Refrigerator fan blade retainer ring

    Part #WR02X12149
    This item is not returnable
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
    Refrigerator Crisper Drawer Cover Insert#242

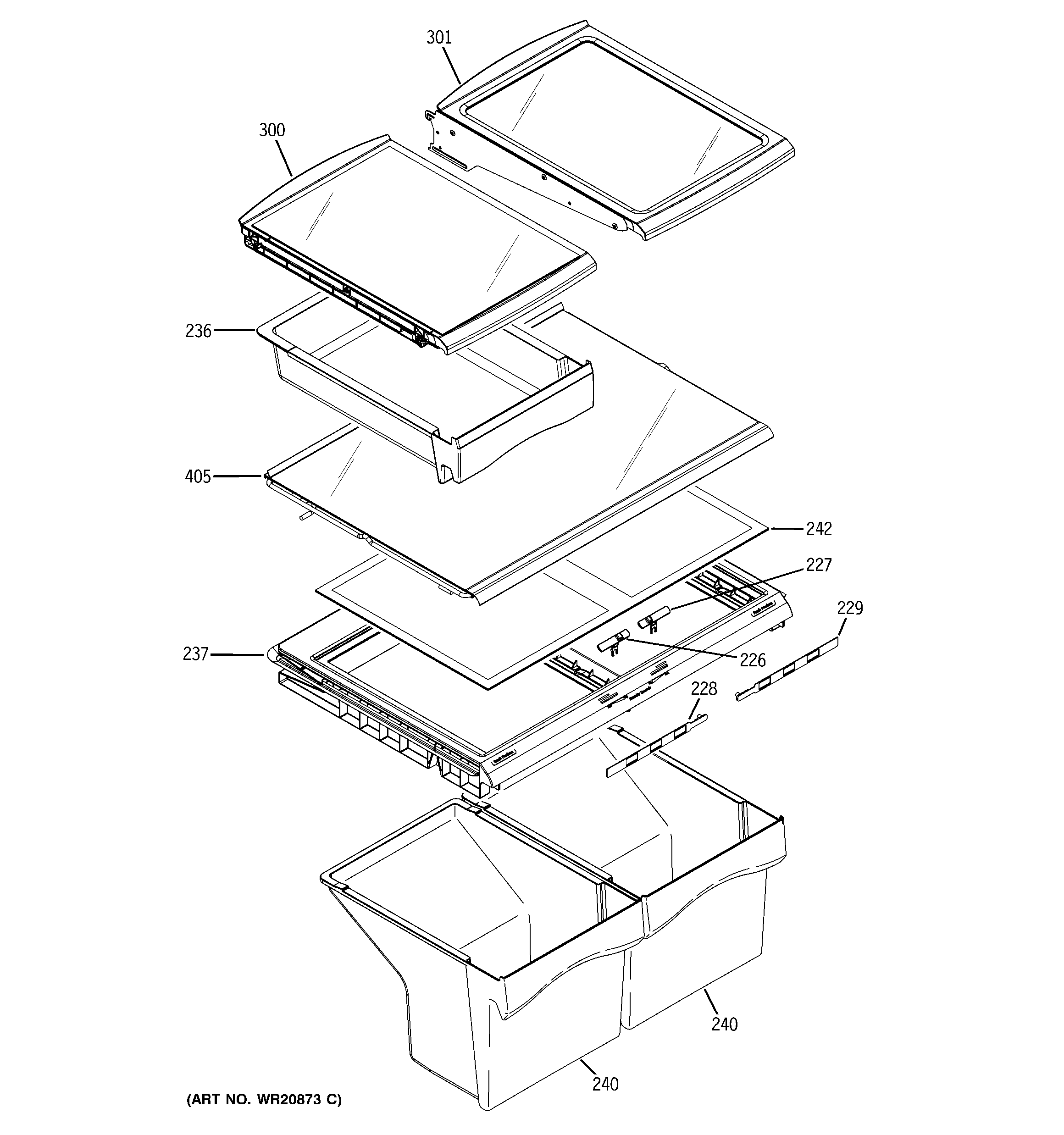

    Fresh food shelves Diagram
