Model #38TRA048 SERIES360 Official Carrier condensing unit

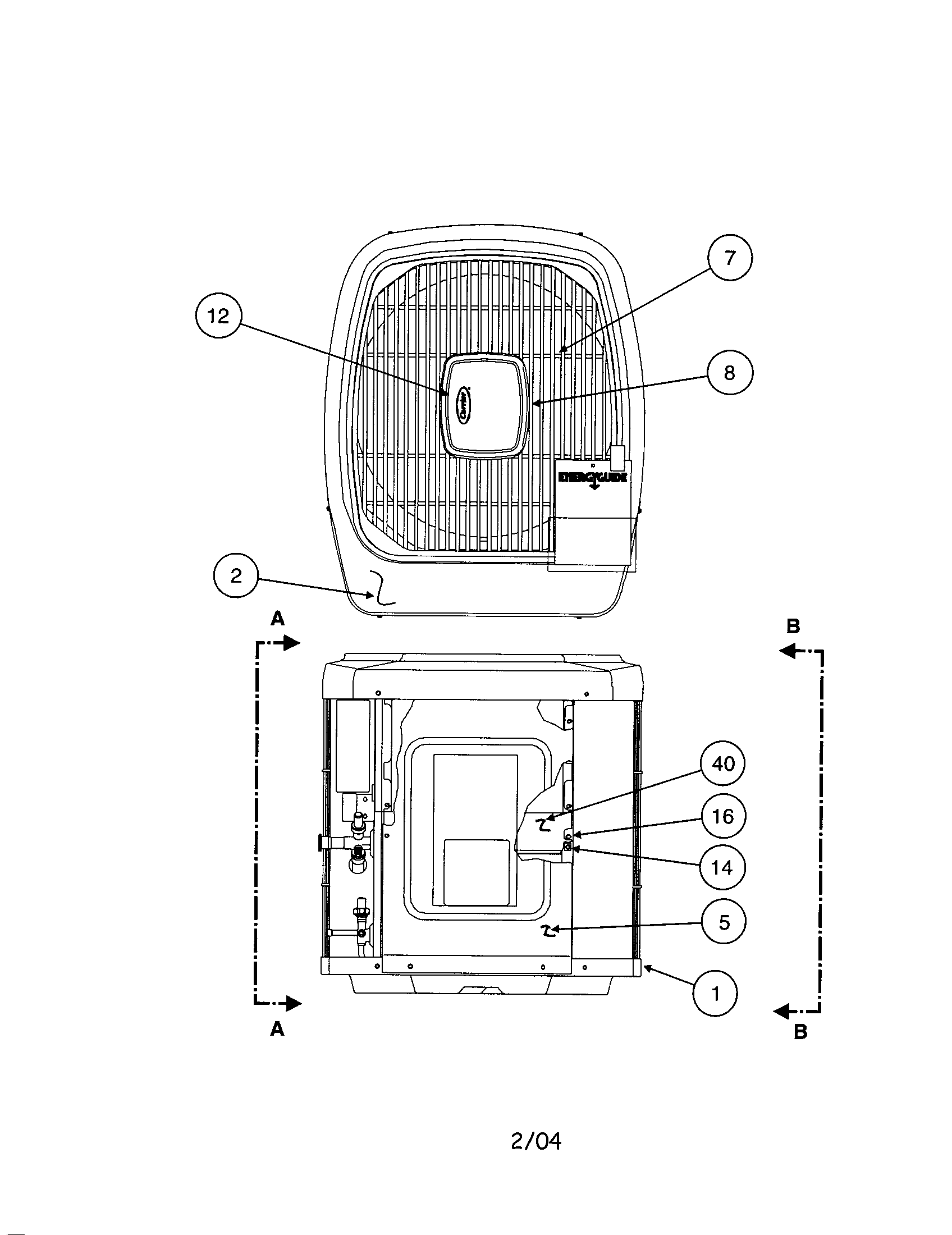

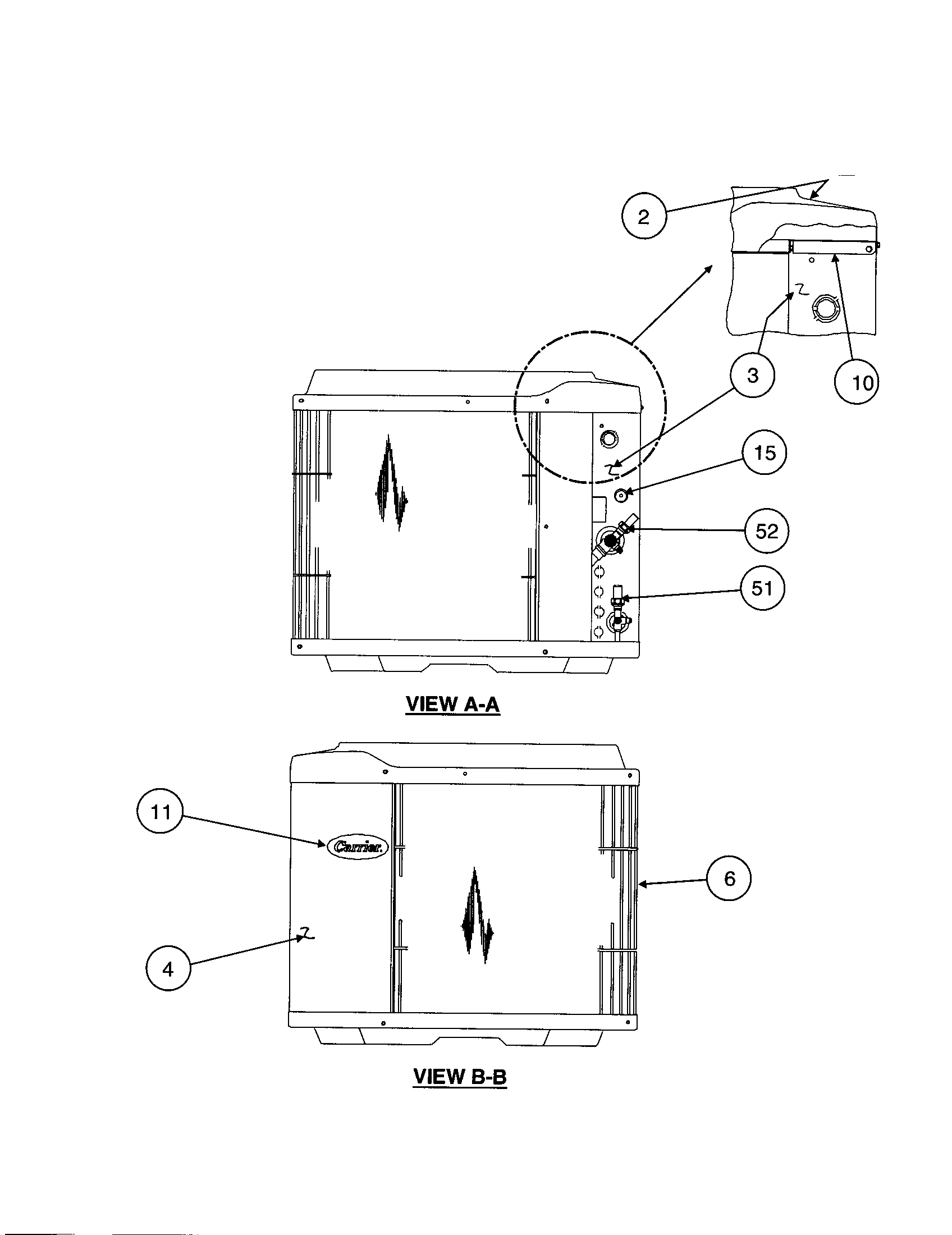

Here are the diagrams and repair parts for Carrier 38TRA048-SERIES360 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 110 parts

    Mtr Mountng

    #46

    All parts Diagram

    Mtr mountng

    Part #316709-201
    This item is not returnable
    In Stock
    $2.16
    Central Air Conditioner Compressor Grommet

    #29

    All parts Diagram

    Central air conditioner compressor grommet

    Part #KA75UG100
    This item is not returnable
    In Stock
    $23.39 |
    18% OFF
    Phone Price: $28.39
    Strap Cap

    #34

    All parts Diagram

    Strap cap

    Part #317739-303
    This item is not returnable
    In Stock
    $2.64
    Central Air Conditioner Start Capacitor

    #79C

    All parts Diagram

    In Stock
    $26.34
    Inlet Grille

    #6

    All parts Diagram

    Inlet grille

    Part #324591-402
    In Stock
    $272.99
    Bolt-mounting

    #21

    All parts Diagram

    Bolt-mounting

    Part #AH10ES202
    This item is not returnable
    In Stock
    $3.49
    Central Air Conditioner Condenser Fan Motor

    #91

    All parts Diagram

    In Stock
    $418.00
    Sw Temp Ac

    #27A

    All parts Diagram

    Sw temp ac

    Part #HH18HA285
    In Stock
    $42.85
    Cover

    #2

    All parts Diagram

    Cover

    Part #320038-701137
    In Stock
    $483.99
    Panel

    #3

    All parts Diagram

    Panel

    Part #312230-703138
    In Stock
    $16.49
