Die Grinder

Model #DW888 TYPE3 Official DeWalt die grinder

Here are the diagrams and repair parts for DeWalt DW888-TYPE3 die grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

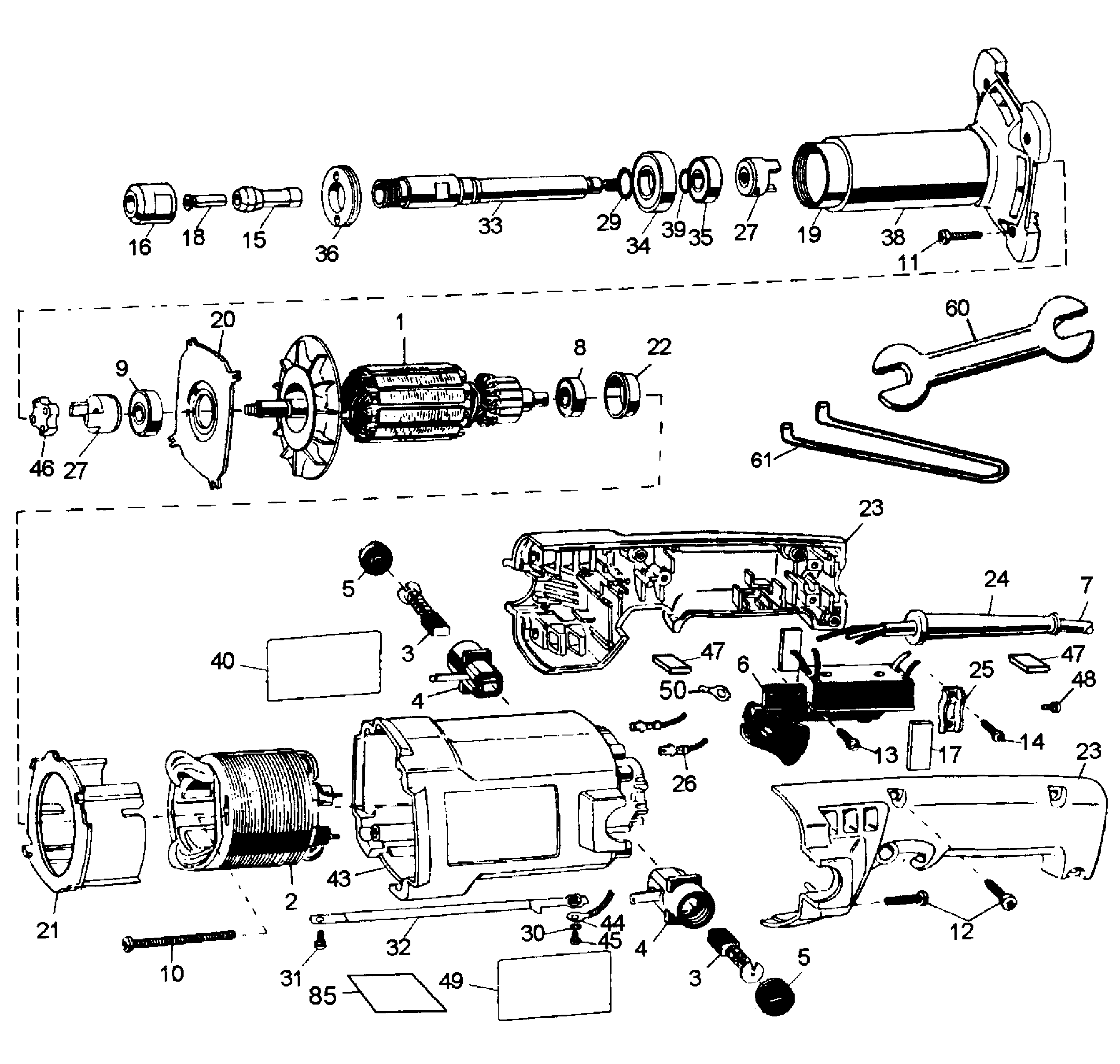

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 49 parts

Terminal#50

Die grinder Diagram

Terminal

Part #395716-00

The manufacturer no longer makes this part, and there's no substitute part

Sleeve#22

Die grinder Diagram

Sleeve

Part #445217-02

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord#7

Die grinder Diagram

Power tool power cord

Part #36480-98

The manufacturer no longer makes this part, and there's no substitute part

Nameplate#40

Die grinder Diagram

Nameplate

Part #651231-00

The manufacturer no longer makes this part, and there's no substitute part

Handle& Co#23

Die grinder Diagram

Handle& co

Part #448170-11

The manufacturer no longer makes this part, and there's no substitute part

Grinder Motor Brush#3

Die grinder Diagram

Grinder motor brush

Part #450374-12

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Screw#48

Die grinder Diagram

Power tool screw

Part #384127-01

The manufacturer no longer makes this part, and there's no substitute part

Wrench#60

Die grinder Diagram

Wrench

Part #020285-00

The manufacturer no longer makes this part, and there's no substitute part

Screw#11

Die grinder Diagram

Screw

Part #330019-15

The manufacturer no longer makes this part, and there's no substitute part

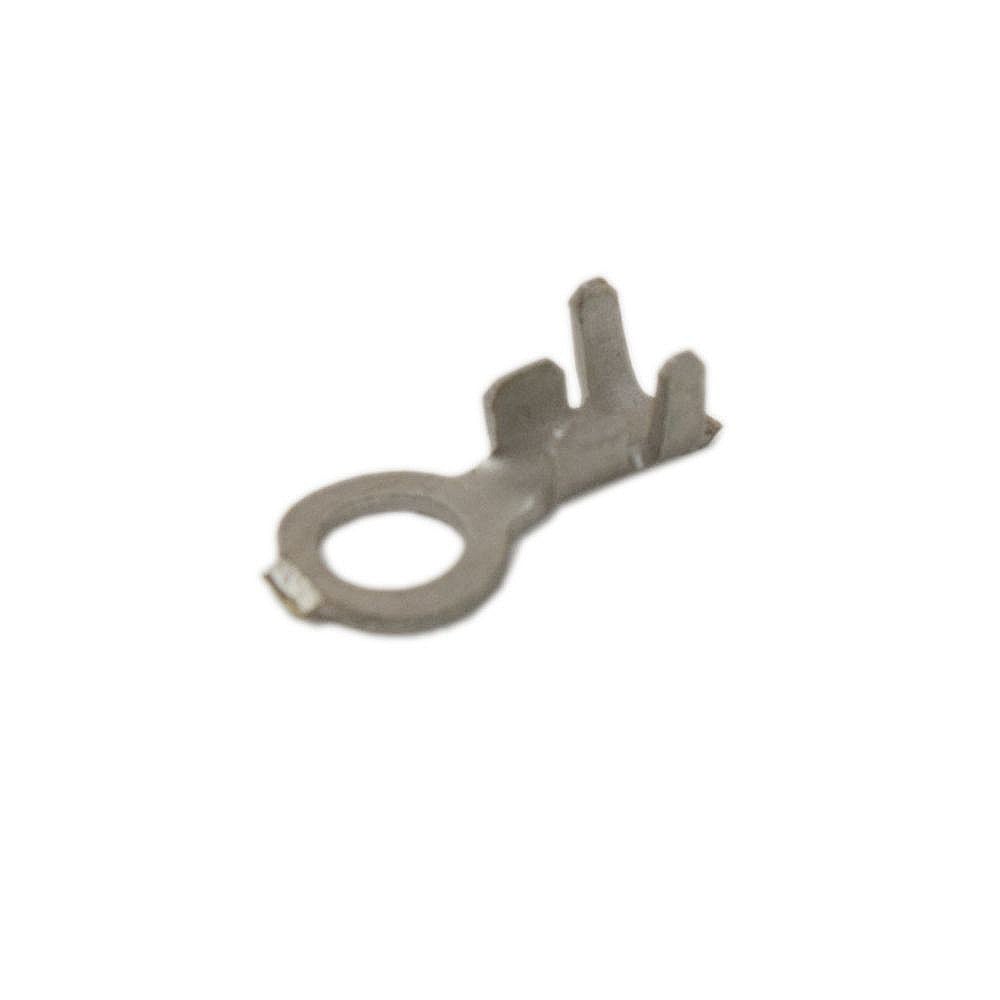

Terminal#44

Die grinder Diagram

Terminal

Part #053650-00

The manufacturer no longer makes this part, and there's no substitute part
