Model #502479940 Official Sears 20" spyder bicycle

Here are the diagrams and repair parts for Sears 502479940 20" spyder bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 64 parts

R Wheel Assy#21

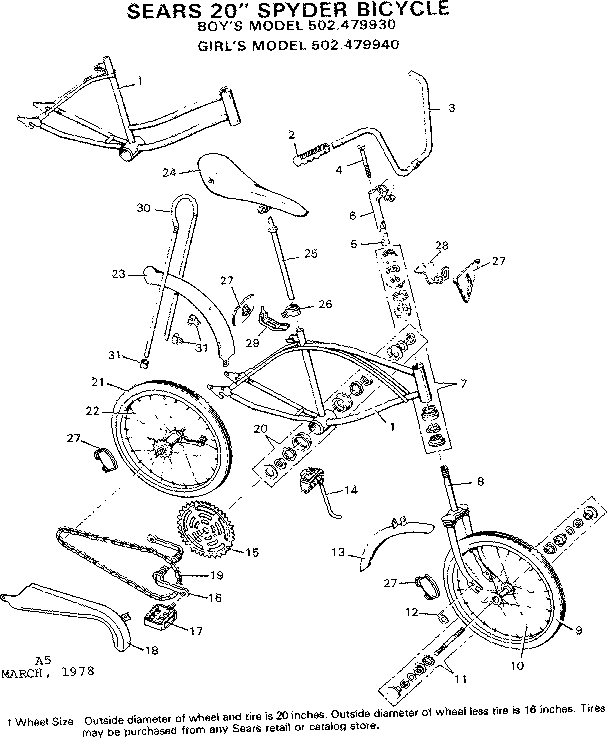

Unit parts Diagram

R wheel assy

Part #303013C

The manufacturer no longer makes this part, and there's no substitute part

Axle Mx#11

Unit parts Diagram

Axle mx

Part #303520

The manufacturer no longer makes this part, and there's no substitute part

Sprocket#21C

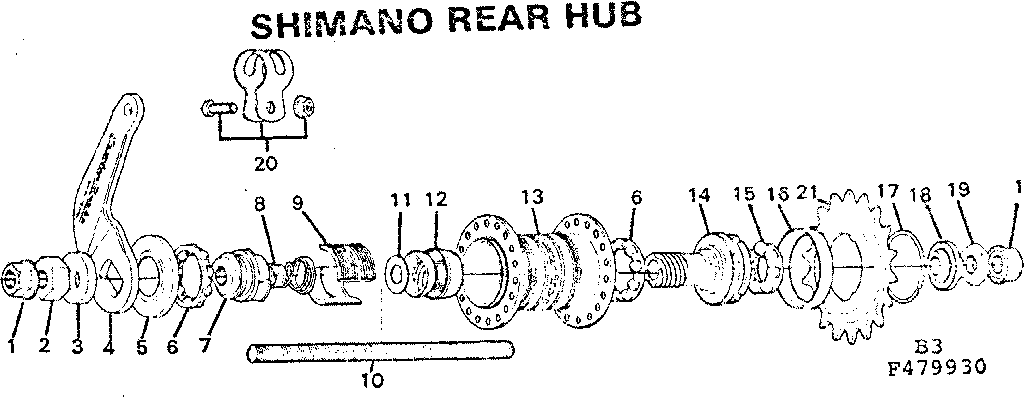

Shimano rear hub Diagram

Sprocket

Part #300424

The manufacturer no longer makes this part, and there's no substitute part

F Wheel#9

Unit parts Diagram

F wheel

Part #303005C

The manufacturer no longer makes this part, and there's no substitute part

Spk 7-9/16

See All Related Diagrams

Spk 7-9/16

Part #303155

The manufacturer no longer makes this part, and there's no substitute part

Grip#2A

Unit parts Diagram

Grip

Part #34139

The manufacturer no longer makes this part, and there's no substitute part

Sprocket#21A

Shimano rear hub Diagram

Sprocket

Part #300422

The manufacturer no longer makes this part, and there's no substitute part

Sprocket#21B

Shimano rear hub Diagram

Sprocket

Part #300423

The manufacturer no longer makes this part, and there's no substitute part

Bar Stem

#NI

All parts Diagram

Bar stem

Part #27162

The manufacturer no longer makes this part, and there's no substitute part

Clutch Spring#8

Shimano rear hub Diagram

Clutch spring

Part #300465

The manufacturer no longer makes this part, and there's no substitute part
