Model # NET8068UC/01 Official Bosch electric cooktop

Here are the diagrams and repair parts for Official Bosch NET8068UC-01 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |

Pcb Control 11016215
#131

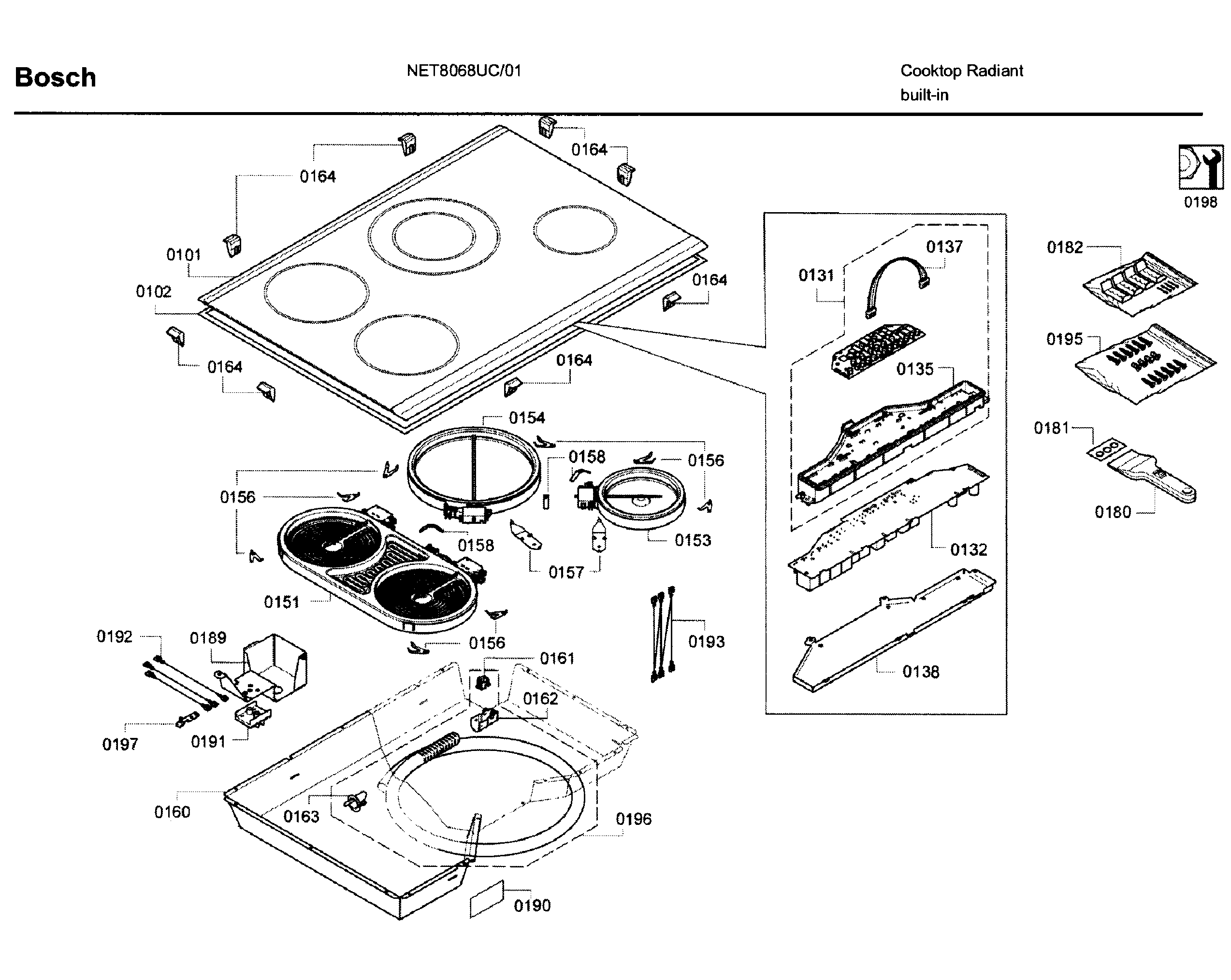

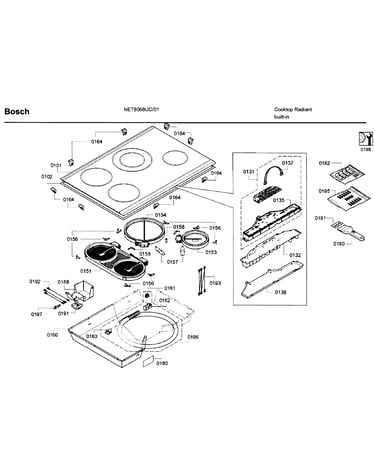

Main asy diagram

Pcb control

Part #11016215

In Stock
Cooktop Wire Harness Retainer, 1/2-in 00414692
#162

Main asy diagram

Cooktop wire harness retainer, 1/2-in

Part #00414692

In Stock
Harness  Display 10001238
#137

Main asy diagram

Harness display

Part #10001238

In Stock
Range Surface Element (replaces 00500244, 491295) 00491295
#153

Main asy diagram

Range surface element (replaces 00500244, 491295)

Part #00491295

$134.69
7% OFF Phone Price : $144.69
In Stock
Insert 00416289
#163

Main asy diagram

Insert

Part #00416289

This item is not returnable
In Stock
Pcb Relay 11016219
#132

Main asy diagram

Pcb relay

Part #11016219

$196.59
5% OFF Phone Price : $206.59
In Stock
Washer 00415812
#161

Main asy diagram

Washer

Part #00415812

This item is not returnable
In Stock
Cable 00668959
#193

Main asy diagram

Cable

Part #00668959

In Stock
Cooktop Main Top Seal (replaces 613888) 00613888
#102

Main asy diagram

Cooktop main top seal (replaces 613888)

Part #00613888

$24.69
17% OFF Phone Price : $29.69
In Stock
Owner's Manual 18021341
#NI

Main asy diagram

Owner's manual

Part #18021341

In Stock
