GE
Countertop Microwave

Model #JE1240WW02 Official GE microwave

Here are the diagrams and repair parts for GE JE1240WW02 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 59 parts

    Use/care Gui#9999B

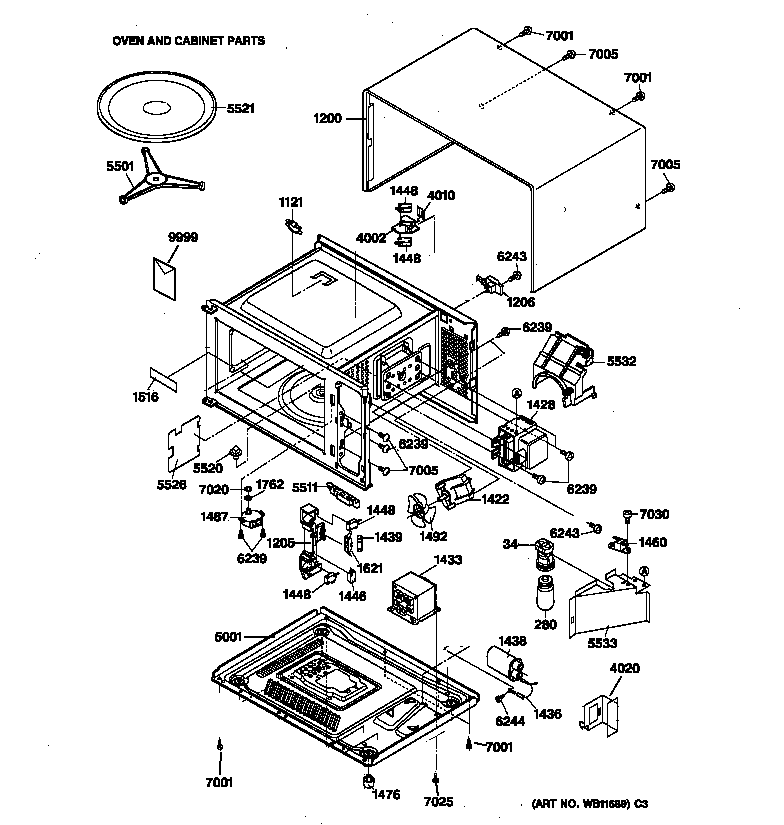

    Oven & cabinet parts Diagram

    Use/care gui

    Part #49-8649
    This item is not returnable
    In Stock
    $2.99
    Smartboard#1655

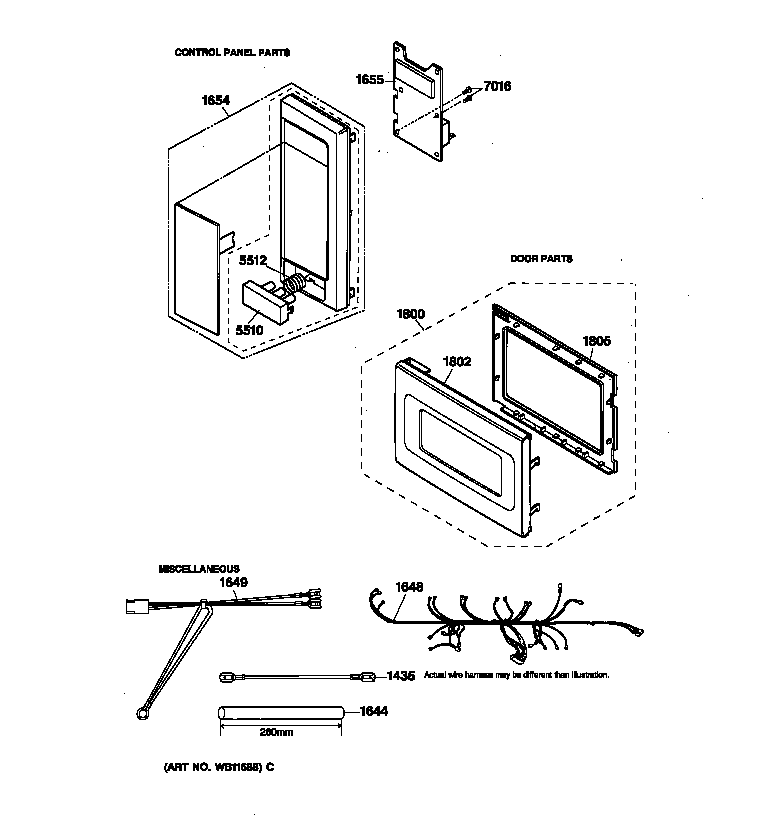

    Controls panel, door & wiring Diagram

    Smartboard

    Part #WB27X1073
    In Stock
    $95.99
    "button, D"#5510

    Controls panel, door & wiring Diagram

    "button, d"

    Part #WB3X874

    The manufacturer no longer makes this part, and there's no substitute part

    Actuator#4010

    Oven & cabinet parts Diagram

    Actuator

    Part #WB6X10044

    The manufacturer no longer makes this part, and there's no substitute part

    Microwave Turntable Support#5501

    Oven & cabinet parts Diagram

    Microwave turntable support

    Part #WB6X160

    The manufacturer no longer makes this part, and there's no substitute part

    Microwave Turntable Motor#1487

    Oven & cabinet parts Diagram

    Microwave turntable motor

    Part #WB26X137

    The manufacturer no longer makes this part, and there's no substitute part

    Plate#5001

    Oven & cabinet parts Diagram

    Plate

    Part #WB56X2171

    The manufacturer no longer makes this part, and there's no substitute part

    Screw#7001

    Oven & cabinet parts Diagram

    Screw

    Part #WB1X1213

    The manufacturer no longer makes this part, and there's no substitute part

    Screw#7005

    Oven & cabinet parts Diagram

    Screw

    Part #WB1X1247

    The manufacturer no longer makes this part, and there's no substitute part

    Fan Blade#1492

    Oven & cabinet parts Diagram

    Fan blade

    Part #WB2X9470

    The manufacturer no longer makes this part, and there's no substitute part
