Panasonic
LCD Television

Model # TC-L65E60 Official Panasonic led television

Here are the diagrams and repair parts for Official Panasonic TC-L65E60 led television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Television Remote Control N2QAYB000828
#6

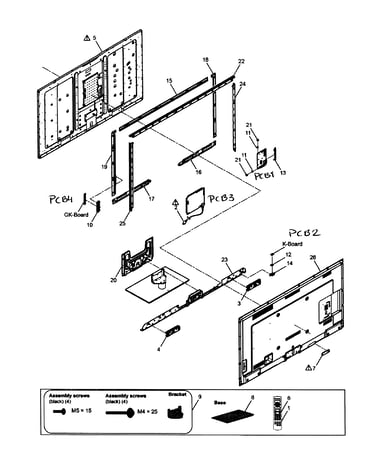

Cabinet parts diagram

Television remote control

Part #N2QAYB000828

The manufacturer no longer makes this part, and there's no substitute part

Television Printed Circuit Board N5HBZ0000101
#7

Cabinet parts diagram

Television printed circuit board

Part #N5HBZ0000101

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Rr TXFKU3813SER
#26

Cabinet parts diagram

Cabinet rr

Part #TXFKU3813SER

The manufacturer no longer makes this part, and there's no substitute part

Pcb-gk TXNGK1VGUU
#PCB4

Cabinet parts diagram

Pcb-gk

Part #TXNGK1VGUU

The manufacturer no longer makes this part, and there's no substitute part

Bracket-ke TBX5ZA02501B
#10

Cabinet parts diagram

Bracket-ke

Part #TBX5ZA02501B

The manufacturer no longer makes this part, and there's no substitute part

Cable TXJ/P4VGUU
#NI

Cabinet parts diagram

Cable

Part #TXJ/P4VGUU

The manufacturer no longer makes this part, and there's no substitute part

P 1.5uf K ECWFD2W155KC
#NI

Cabinet parts diagram

P 1.5uf k

Part #ECWFD2W155KC

The manufacturer no longer makes this part, and there's no substitute part

Metal-rigt TKZ2AA50051
#17

Cabinet parts diagram

Metal-rigt

Part #TKZ2AA50051

The manufacturer no longer makes this part, and there's no substitute part

Coil Choke G0B103H00018
#NI

Cabinet parts diagram

Coil choke

Part #G0B103H00018

The manufacturer no longer makes this part, and there's no substitute part

Pcb-k TXN/K1VKUUS
#PCB2

Cabinet parts diagram

Pcb-k

Part #TXN/K1VKUUS

The manufacturer no longer makes this part, and there's no substitute part
