Model # PLMVZ169HCA Official Frigidaire microwave/hood combo

Here are the diagrams and repair parts for Official Frigidaire PLMVZ169HCA microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

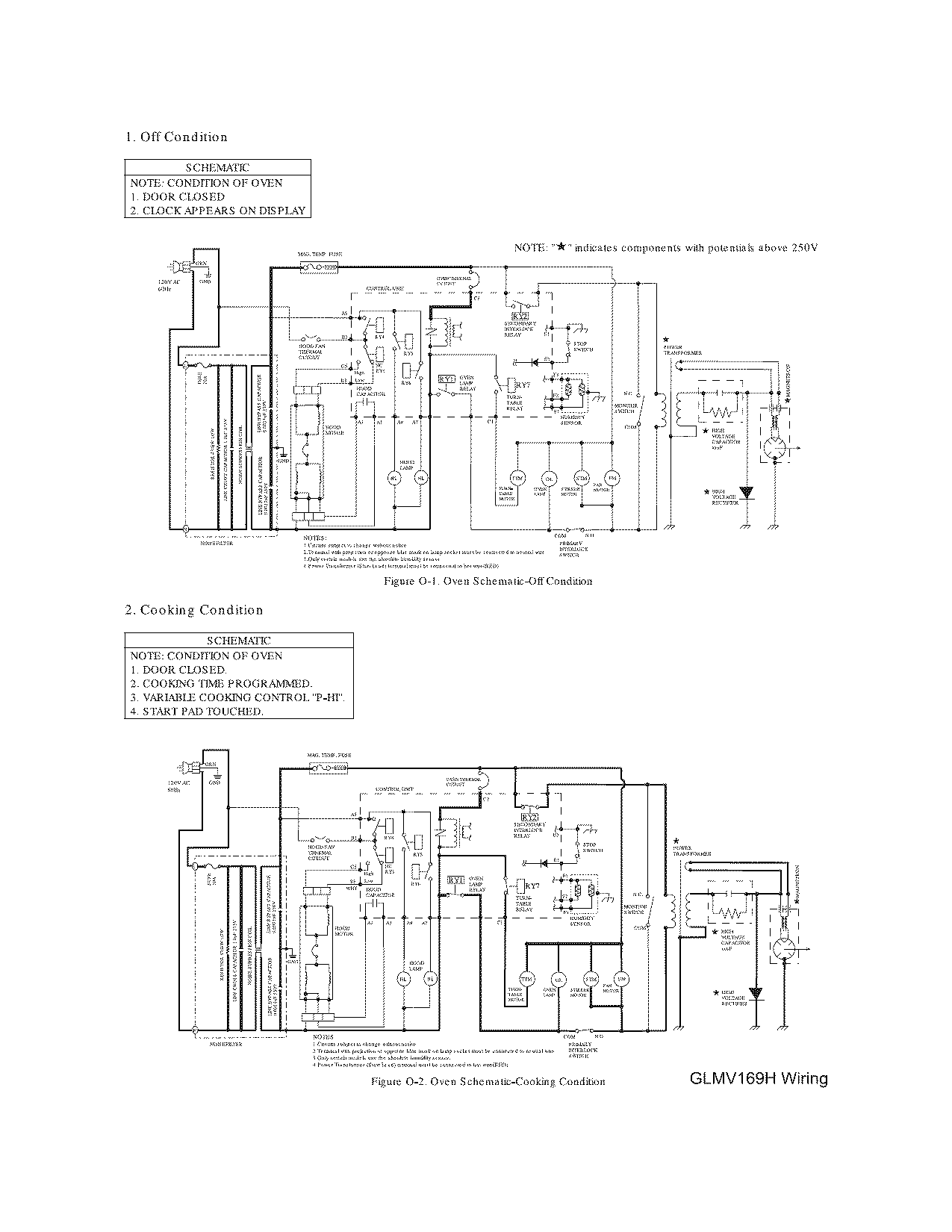

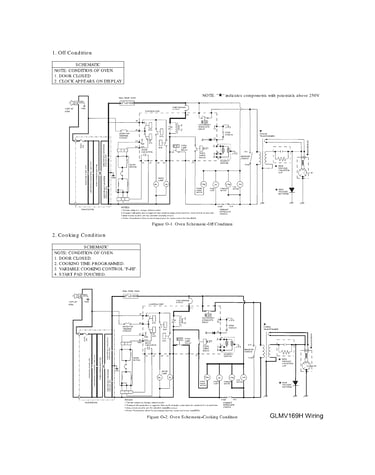

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Microwave Door Interlock Switch 5304440026
#8

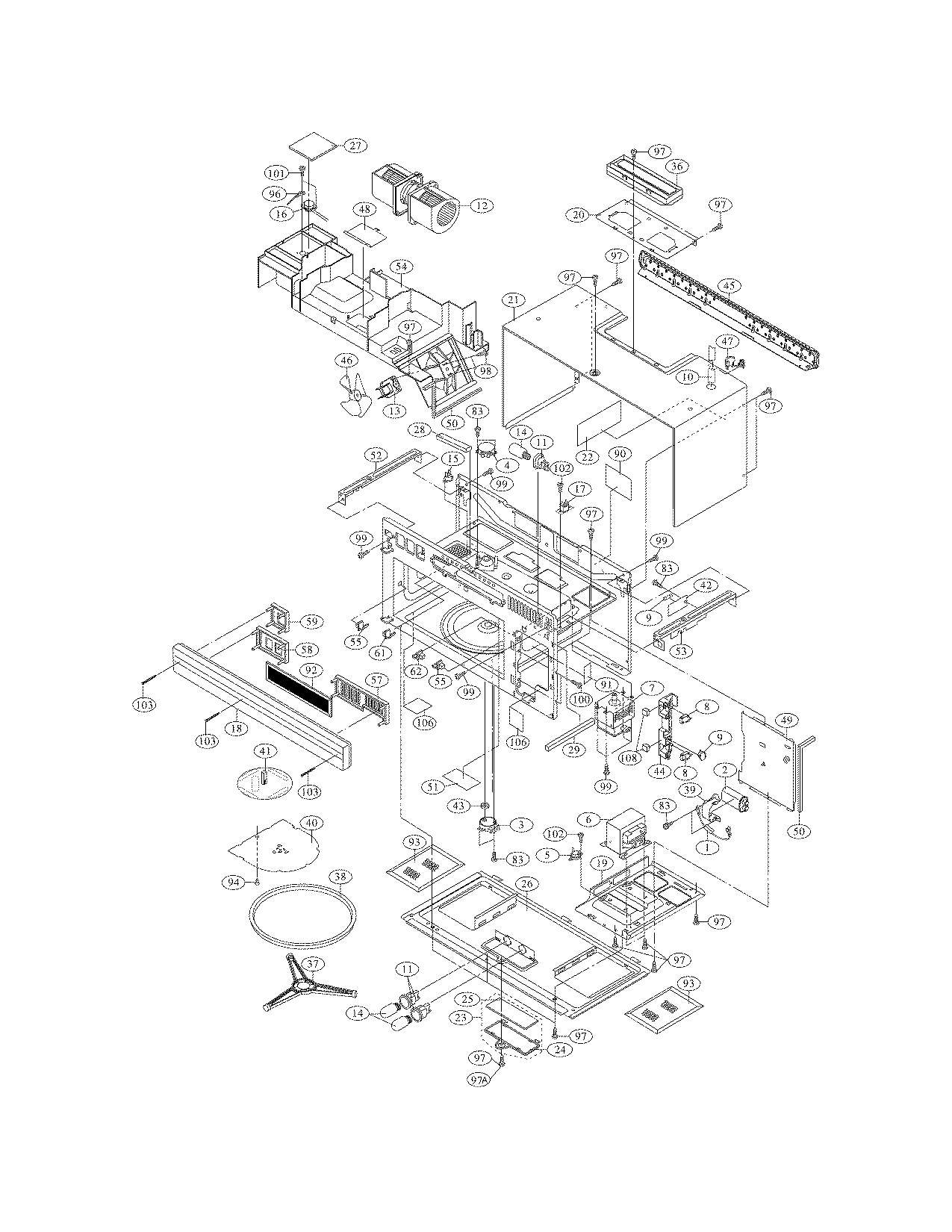

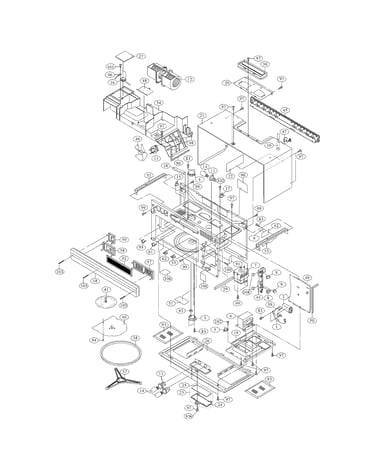

Oven,cabinet diagram

Microwave door interlock switch

Part #5304440026

BEST SELLER
$39.53 |
11% OFF Phone Price : $44.53
In Stock
Microwave Charcoal Filter 5304440335
#92

Oven,cabinet diagram

Microwave charcoal filter

Part #5304440335

$40.63 |
11% OFF Phone Price : $45.63
In Stock
Microwave Door Latch 5304440314
#67

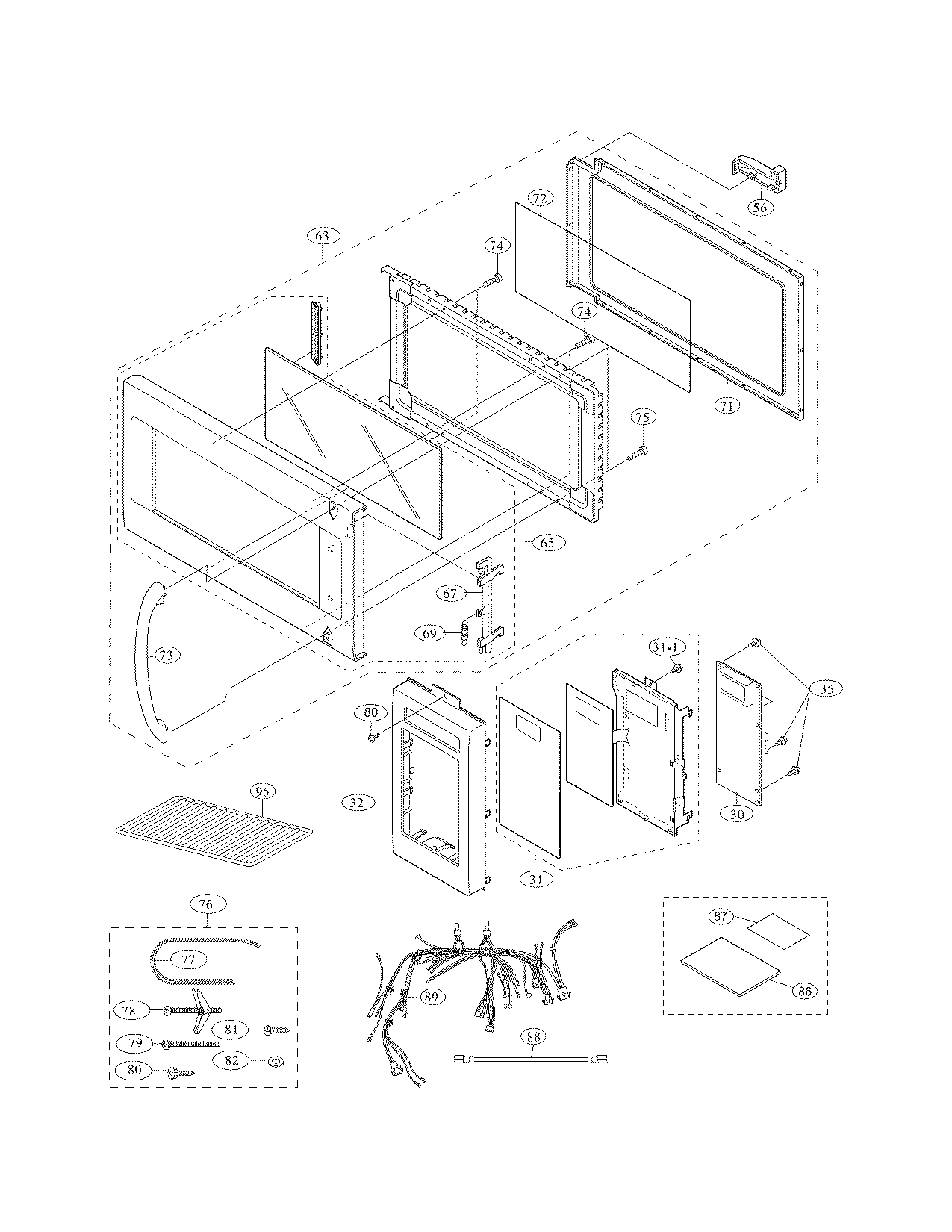

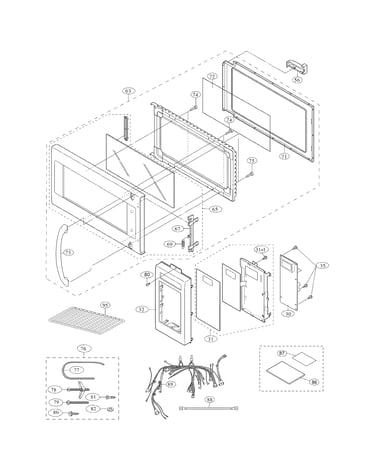

Control panel,door,misc. diagram

Microwave door latch

Part #5304440314

$43.96 |
10% OFF Phone Price : $48.96
In Stock
Microwave Light Bulb (replaces 5303319562, 75304440031) 5304440031
#14

Oven,cabinet diagram

Microwave light bulb (replaces 5303319562, 75304440031)

Part #5304440031

This item is not returnable
$14.59 |
12% OFF Phone Price : $16.59
In Stock
Microwave Rectifier (replaces 75304467670) 5304467670
#1

Oven,cabinet diagram

Microwave rectifier (replaces 75304467670)

Part #5304467670

$44.39 |
10% OFF Phone Price : $49.39
In Stock
Microwave Door Monitor Switch (replaces 75304467695) 5304467695
#9

Oven,cabinet diagram

Microwave door monitor switch (replaces 75304467695)

Part #5304467695

$38.11
In Stock
Microwave Control Board 5304468192
#30

Control panel,door,misc. diagram

Microwave control board

Part #5304468192

$202.53
In Stock
Screw 5304451552
Screw

Part #5304451552

This item is not returnable
$4.68
In Stock
Microwave High-voltage Capacitor 5304467671
#2

Oven,cabinet diagram

Microwave high-voltage capacitor

Part #5304467671

$69.67
In Stock
Microwave Screw, 4 X 8-mm 5304467780
#99

Oven,cabinet diagram

Microwave screw, 4 x 8-mm

Part #5304467780

$10.40
In Stock
