Countertop Microwave

Model #JE80T01 Official GE countertop microwave

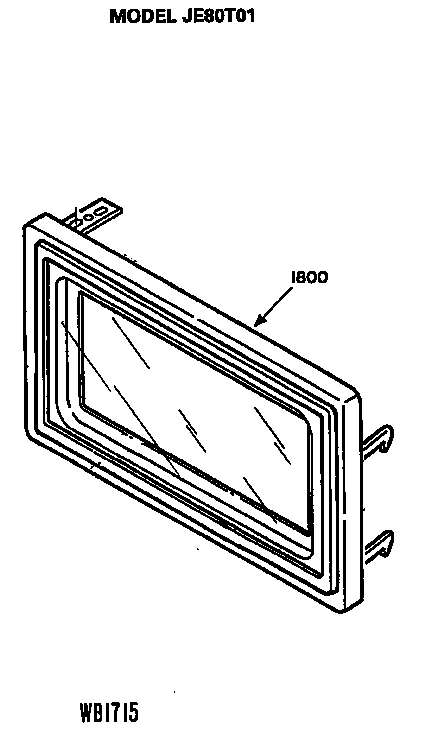

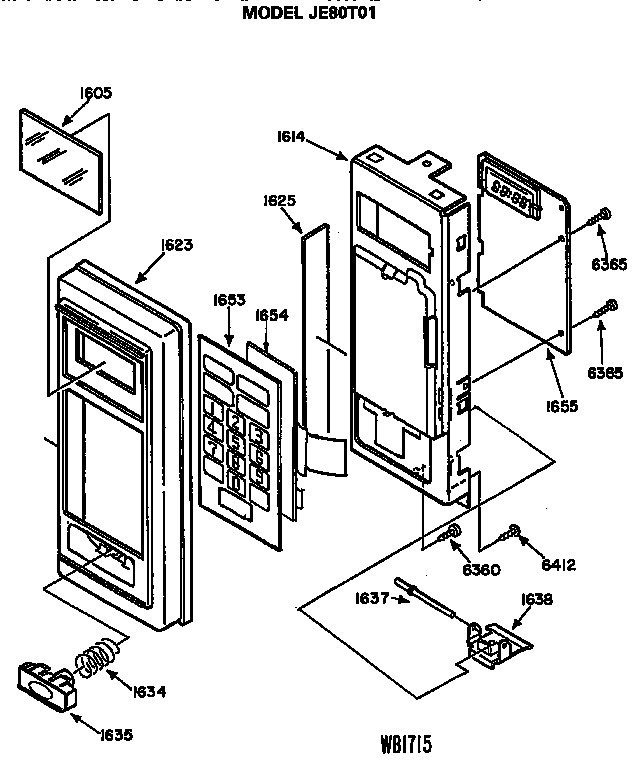

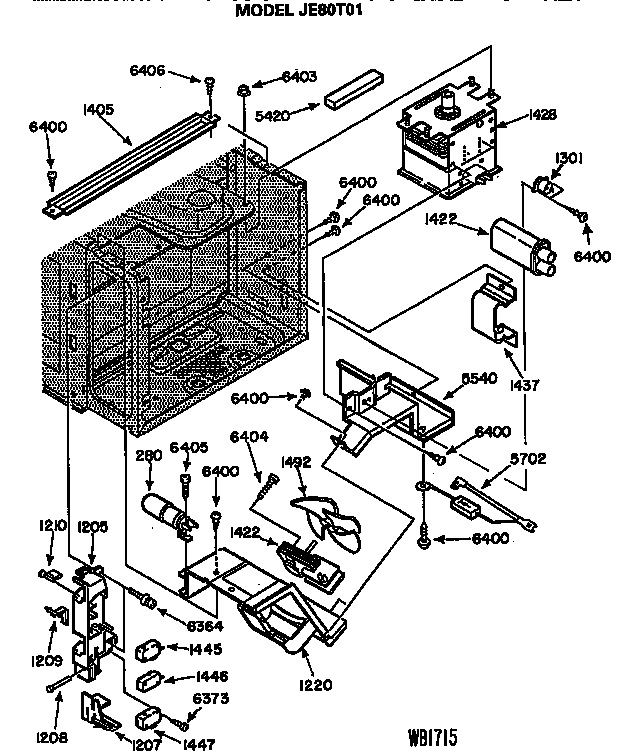

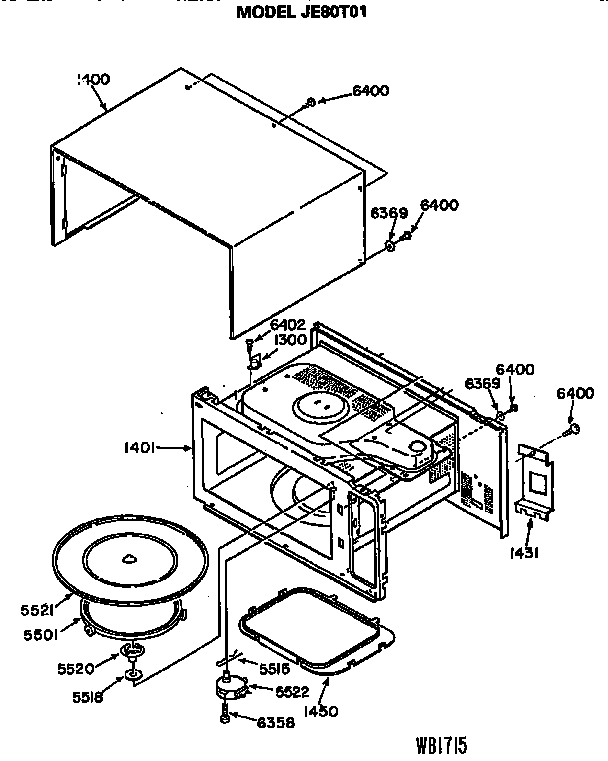

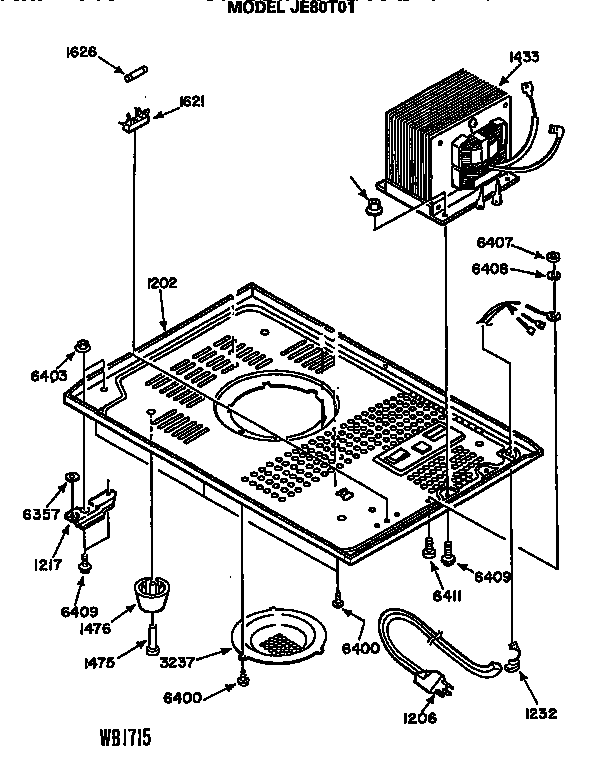

Here are the diagrams and repair parts for GE JE80T01 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 73 parts

Microwave High-Voltage Diode

#5702

All parts Diagram

Diode

Part #WB27X537
Replaced by #WB27X1160
?
Manufacturer substitution
This part replaces WB27X537. Substitute parts can look different from the original.
In Stock
$82.22 |
6% OFF
Phone Price: $87.22
Outer Case

#1400

All parts Diagram

Outer case

Part #WB56X2047
In Stock
$126.49
Use and Care Guide

#LITR

All parts Diagram

Use and care guide

Part #49-8012
In Stock
$8.49
MAGNETRON

#1428

All parts Diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Power Cord

#1206

All parts Diagram

Power cord

Part #WB18X375

The manufacturer no longer makes this part, and there's no substitute part

Canoe Cli

#1375

All parts Diagram

Canoe cli

Part #WB2X9986

The manufacturer no longer makes this part, and there's no substitute part

Swutcg-pr

#1447

All parts Diagram

Swutcg-pr

Part #WB24X459

The manufacturer no longer makes this part, and there's no substitute part

Drive Spring

#1640

All parts Diagram

Drive spring

Part #WB9X269

The manufacturer no longer makes this part, and there's no substitute part

Latch Lever

#1215

All parts Diagram

Latch lever

Part #WB2X9784

The manufacturer no longer makes this part, and there's no substitute part

Key Panel

#1653

All parts Diagram

Key panel

Part #WB2X9988

The manufacturer no longer makes this part, and there's no substitute part
