Dacor
Warming Drawer

Model # PWD30AG Official Dacor warming drawer

Here are the diagrams and repair parts for Official Dacor PWD30AG warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

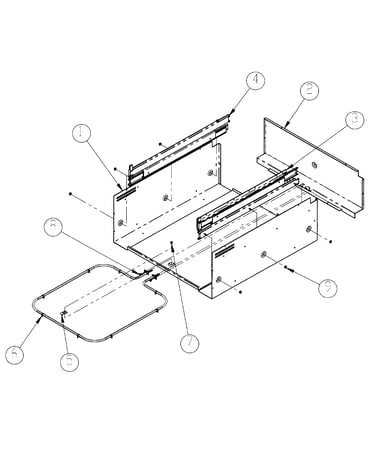

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |

Appliance Screw, #8 X 3/8-in 83263
Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
In Stock
Control Panel 701119-03
#NI

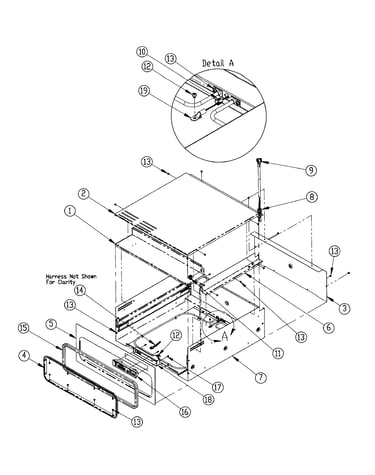

Chassis diagram

Control panel

Part #701119-03

In Stock
Screw 83001
Screw

Part #83001

This item is not returnable
In Stock
Screw 8-32 83532
#10

Chassis diagram

Screw 8-32

Part #83532

This item is not returnable
In Stock
Warming Drawer Electronic Control Board 101645
#16

Chassis diagram

Warming drawer electronic control board

Part #101645

In Stock
Screw 102499
#17

Chassis diagram

Screw

Part #102499

This item is not returnable
In Stock
Gasket 101649
#15

Chassis diagram

Gasket

Part #101649

In Stock
Fr Drawer 701126AG
#2

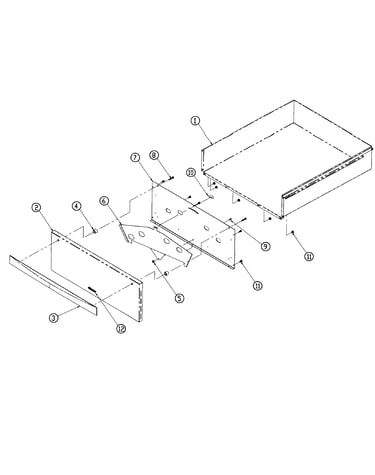

Drawer diagram

Fr drawer

Part #701126AG

In Stock
Bushing 83056
#11

Chassis diagram

Bushing

Part #83056

This item is not returnable
In Stock
Channel Control 700738-03
#1

Chassis diagram

Channel control

Part #700738-03

In Stock
