Canon
Digital Camcorder

Model #HF200A Official Canon camcorder

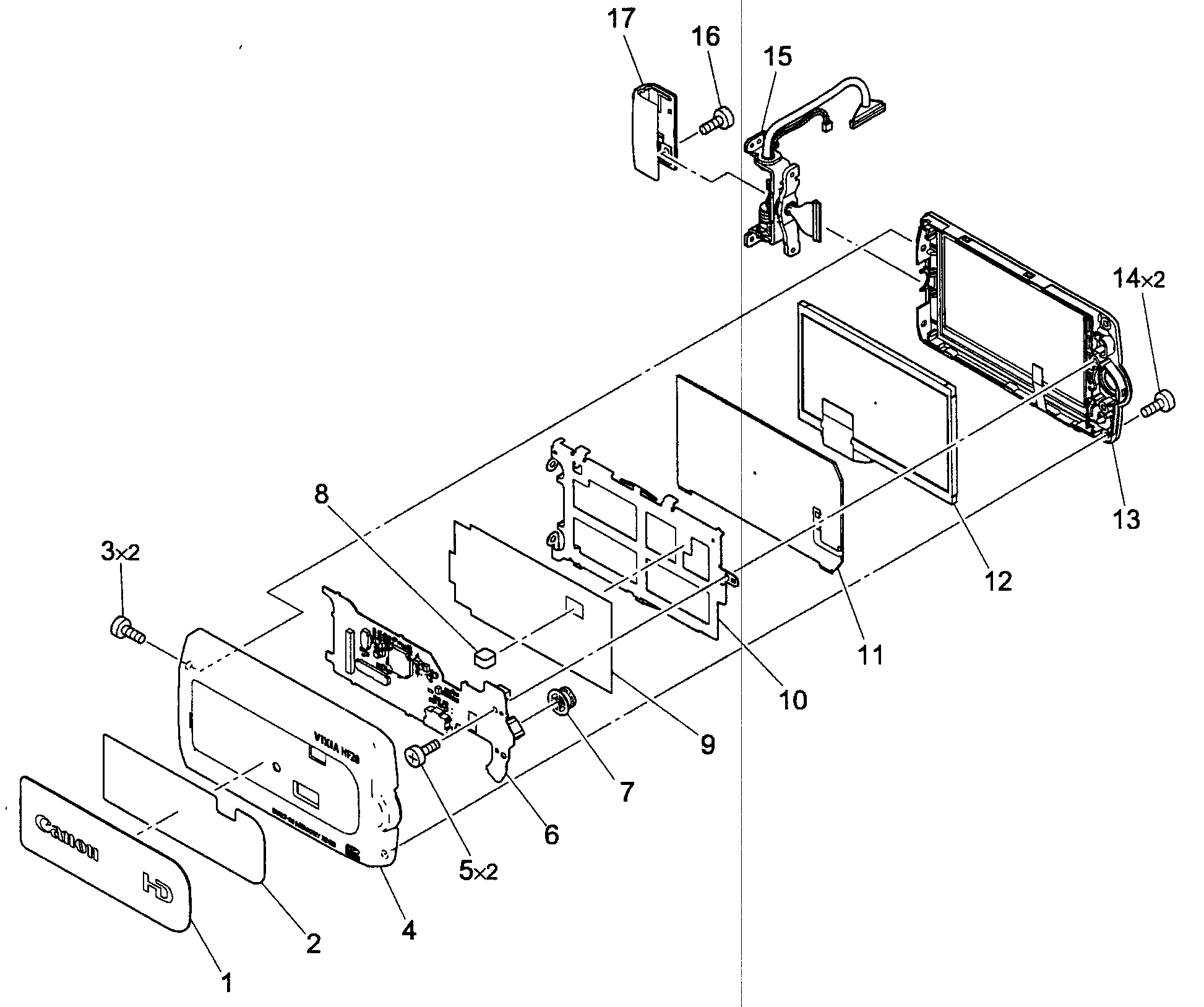

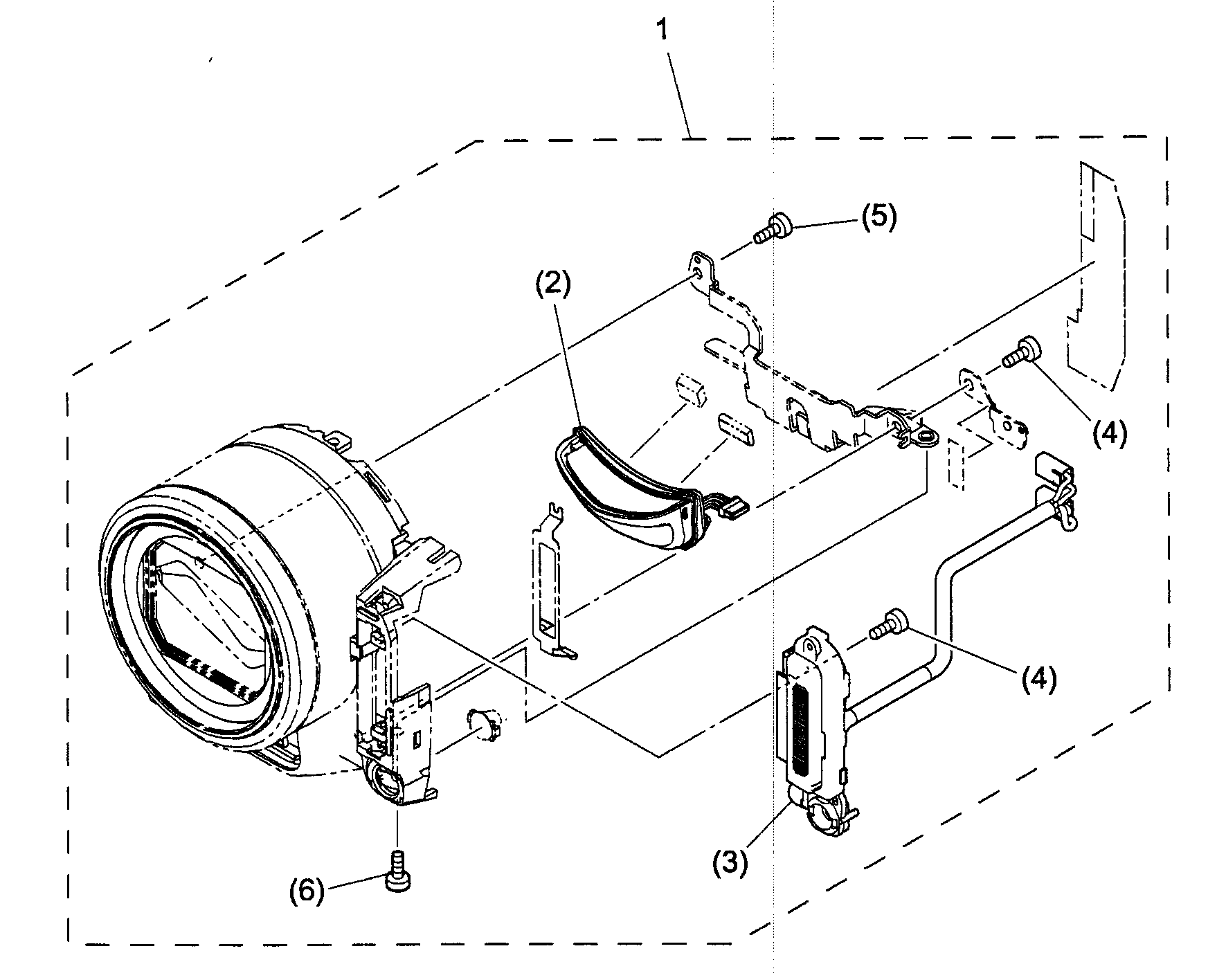

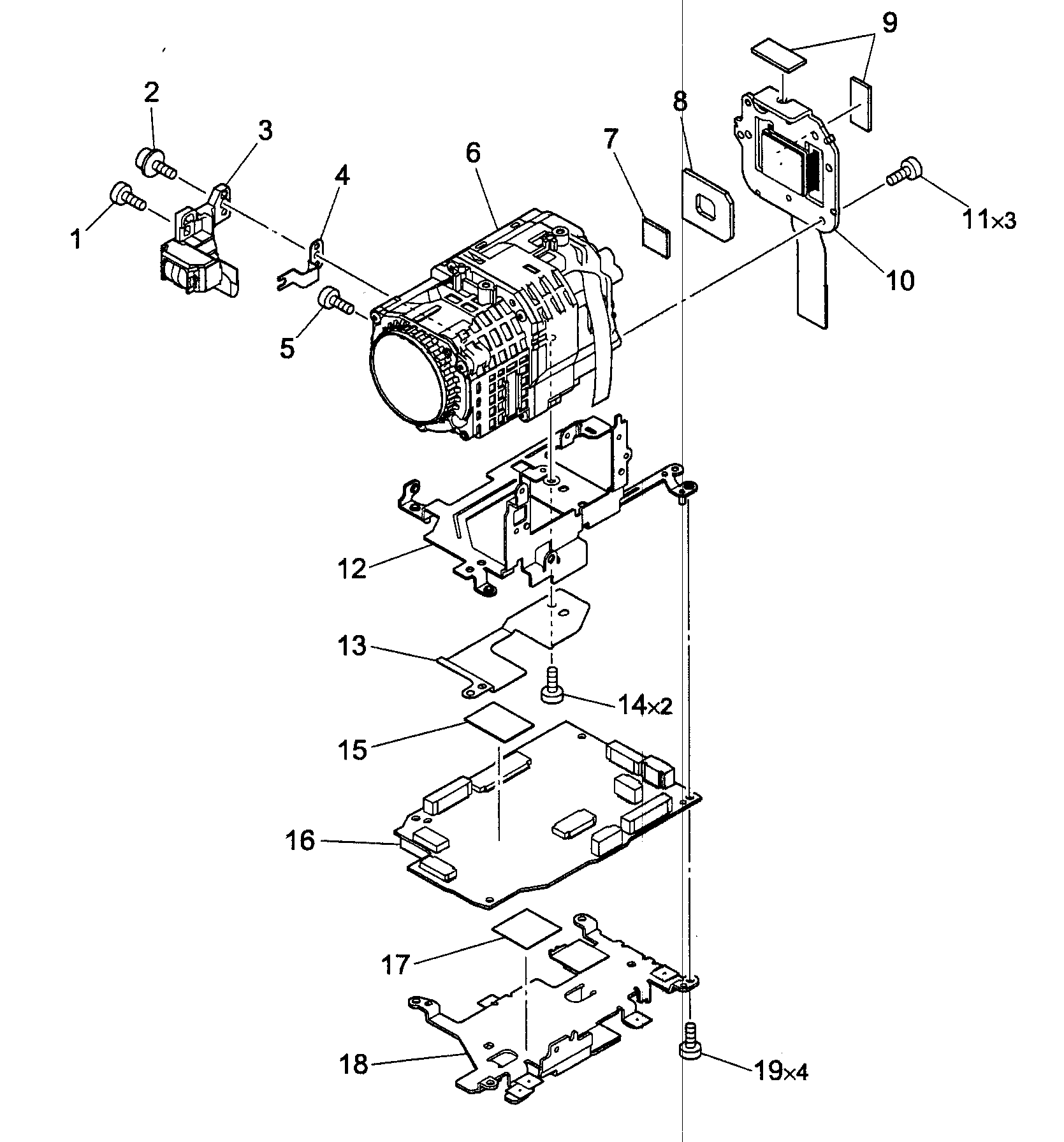

Here are the diagrams and repair parts for Canon HF200A camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 79 parts

Lens Cap,r#NI

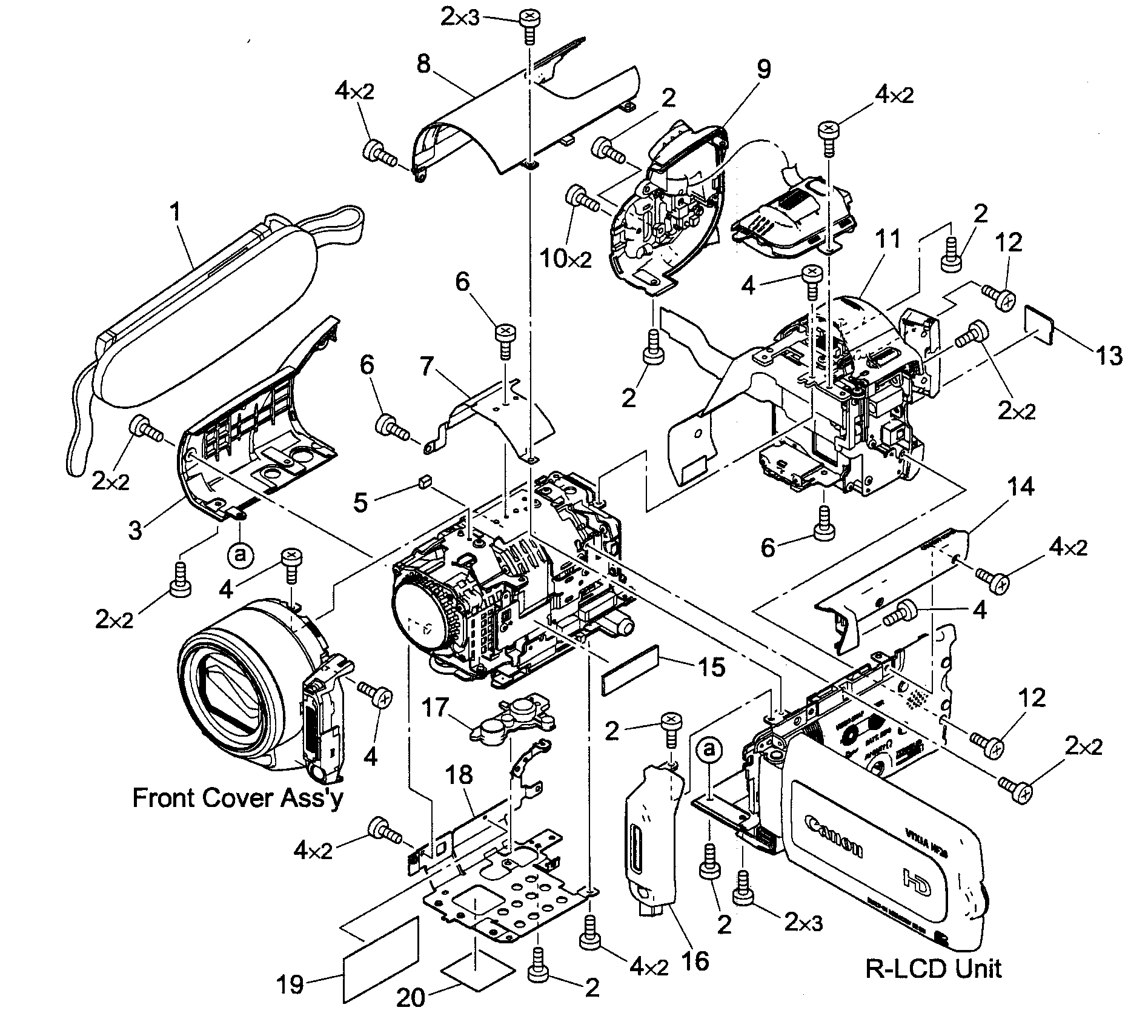

Cabinet parts 1 Diagram

Lens cap,r

Part #DA3-5267-000

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Speaker#7

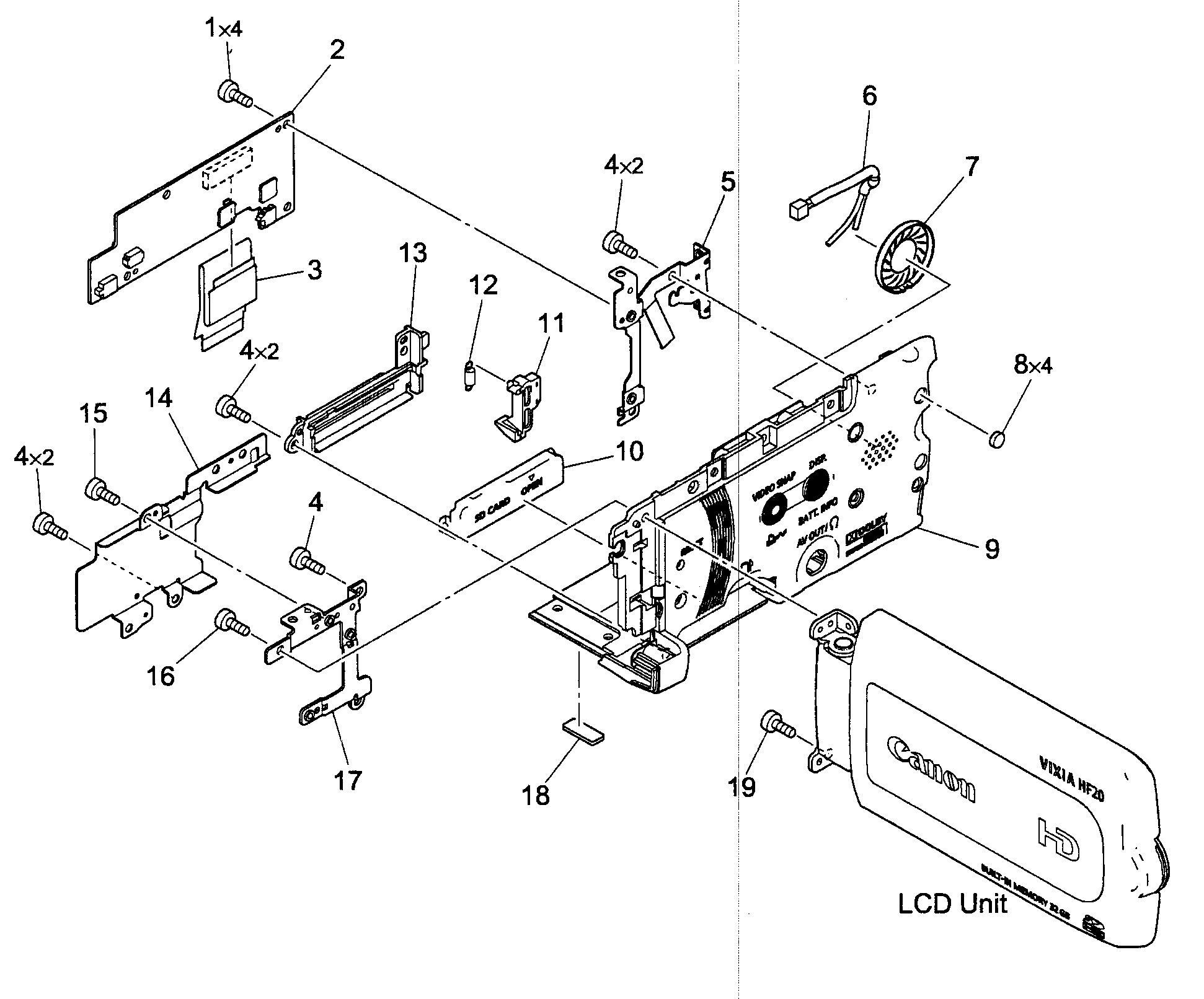

Right cabinet Diagram

Camcorder speaker

Part #WR1-5142-000

The manufacturer no longer makes this part, and there's no substitute part

Battery#22

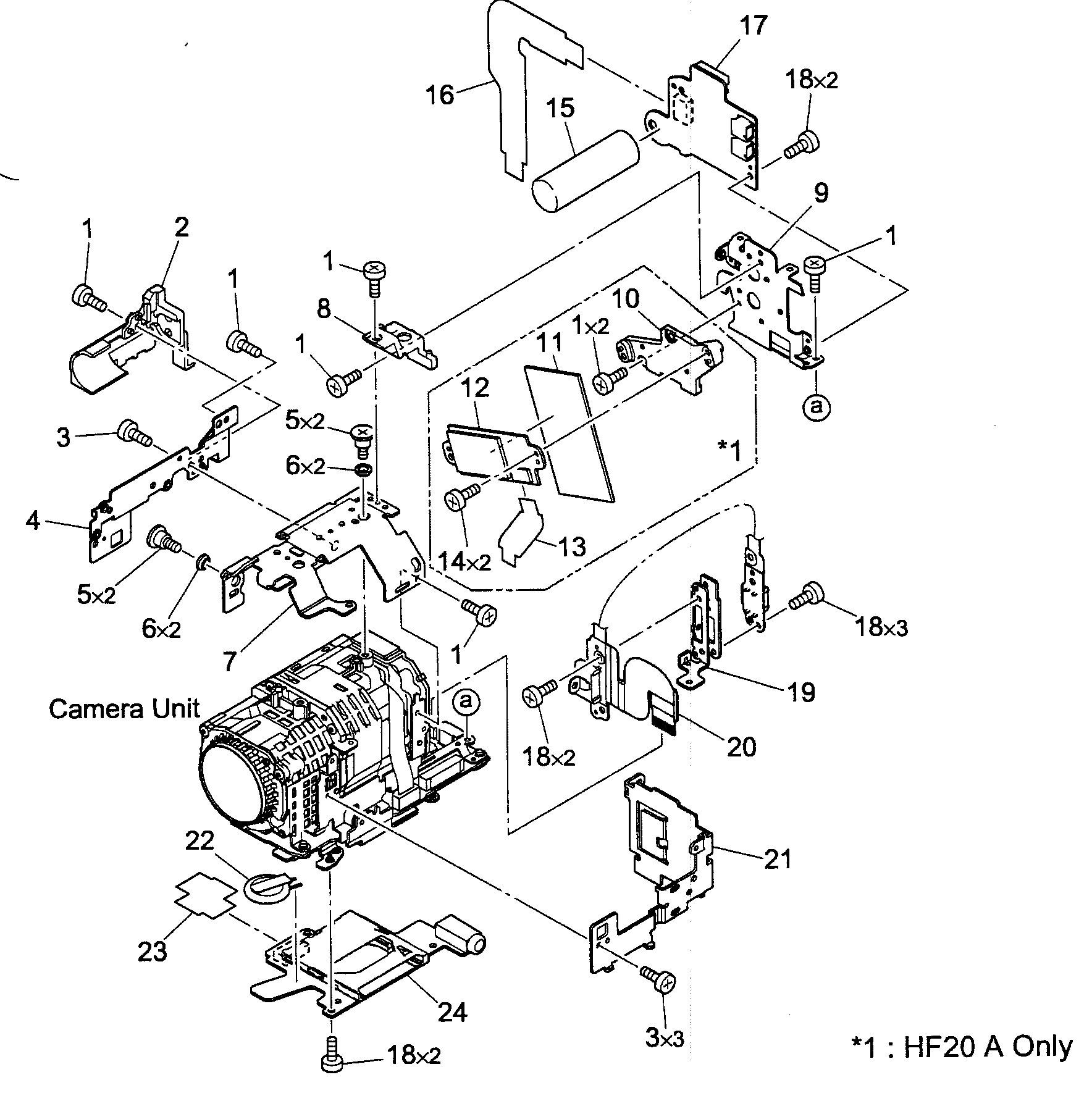

Cabinet parts 2 Diagram

Battery

Part #WK1-5164-000

The manufacturer no longer makes this part, and there's no substitute part

Strap#NI

Cabinet parts 1 Diagram

Strap

Part #D81-1530-000

The manufacturer no longer makes this part, and there's no substitute part

Screw#1

Cabinet parts 2 Diagram

Screw

Part #XA1-7170-309

The manufacturer no longer makes this part, and there's no substitute part

Charger Battery#NI

Cabinet parts 1 Diagram

Charger battery

Part #CG-800

The manufacturer no longer makes this part, and there's no substitute part

AC Cord#NI

Cabinet parts 1 Diagram

Ac cord

Part #D82-0642-000

The manufacturer no longer makes this part, and there's no substitute part

CAP FRONT#NI

Cabinet parts 1 Diagram

Cap front

Part #DY1-8560-000

The manufacturer no longer makes this part, and there's no substitute part

Top Cover#8

Cabinet parts 1 Diagram

Top cover

Part #DA3-9237-000

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Speaker Holder#5

Right cabinet Diagram

Camcorder speaker holder

Part #DA3-9139-000

The manufacturer no longer makes this part, and there's no substitute part
