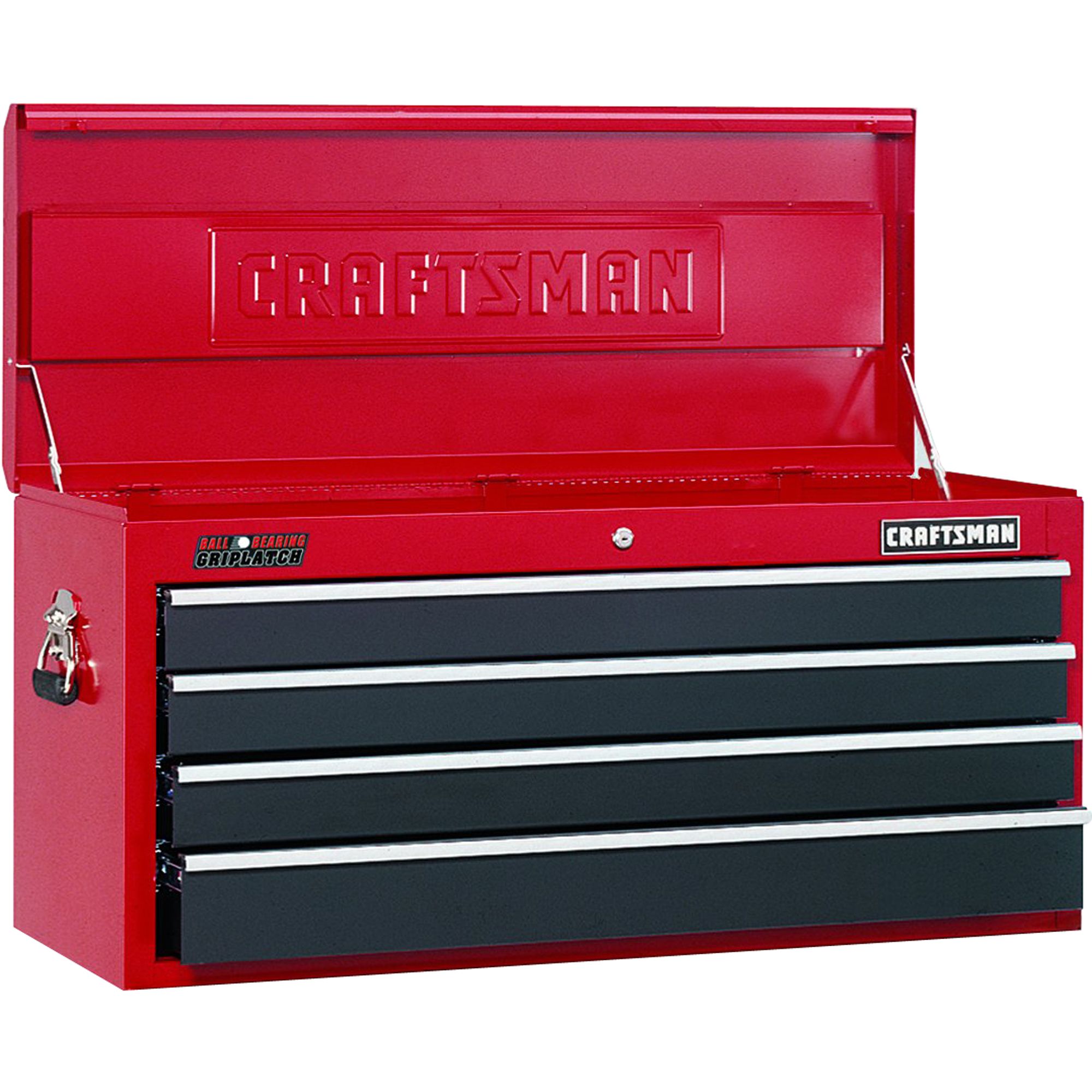

Model #706597250 Official Craftsman tool chest

Here are the diagrams and repair parts for Craftsman 706597250 tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 22 parts

Plug#7

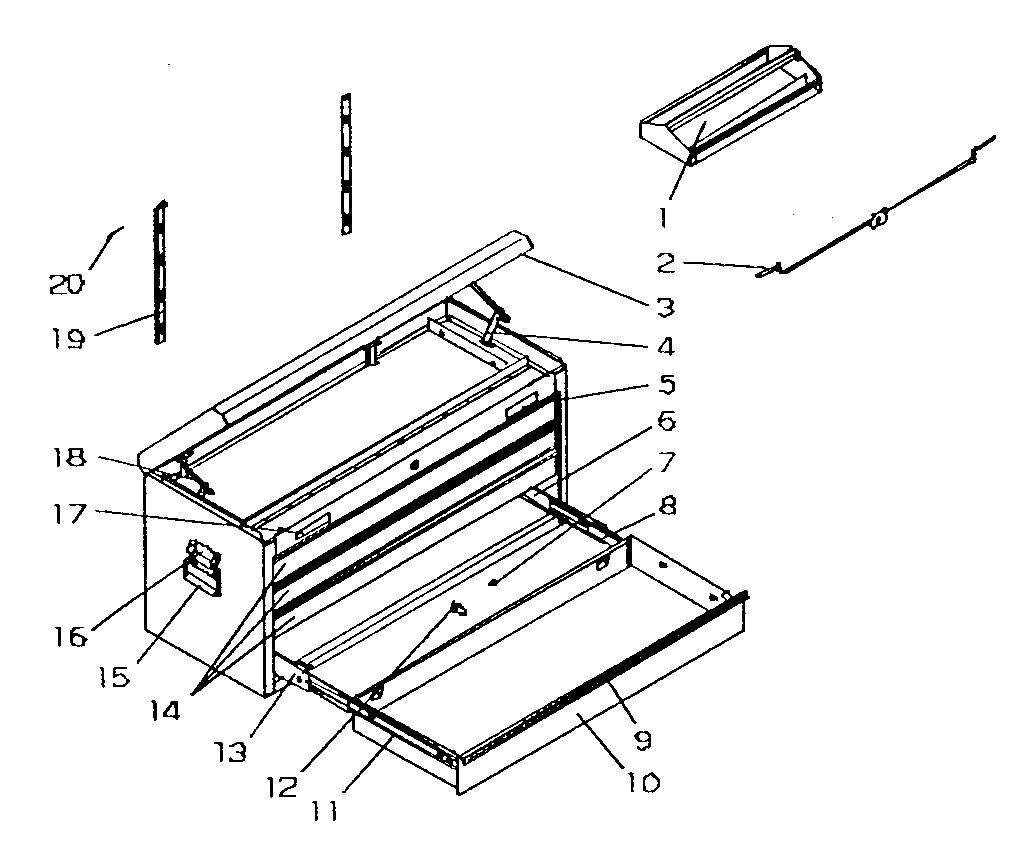

Tool chest Diagram

Plug

Part #M14593

The manufacturer no longer makes this part, and there's no substitute part

Label#17

Tool chest Diagram

Label

Part #M14658

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Clip#NI

Tool chest Diagram

Tool chest clip

Part #M9371

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Handle#15

Tool chest Diagram

Tool chest handle

Part #M10647A1

The manufacturer no longer makes this part, and there's no substitute part

Lock Bar#19

Tool chest Diagram

Lock bar

Part #T17659-ER

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Door Hinge Pin#20

Tool chest Diagram

Tool chest door hinge pin

Part #M1495

The manufacturer no longer makes this part, and there's no substitute part

Drawer Trim#9

Tool chest Diagram

Drawer trim

Part #T18571A4

The manufacturer no longer makes this part, and there's no substitute part

Drawer, 4-in#10

Tool chest Diagram

Drawer, 4-in

Part #A17020A1-EG

The manufacturer no longer makes this part, and there's no substitute part

Tray#1

Tool chest Diagram

Tray

Part #A4828-EG

The manufacturer no longer makes this part, and there's no substitute part

Backplate#16

Tool chest Diagram

Backplate

Part #T13640-PN

The manufacturer no longer makes this part, and there's no substitute part
