Model #CM200-E Official Jenn-Air electric counter unit cooktop

Here are the diagrams and repair parts for Jenn-Air CM200-E electric counter unit cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Showing 10 of 45 parts

Cooktop Downdraft Vent Grease Filter#20

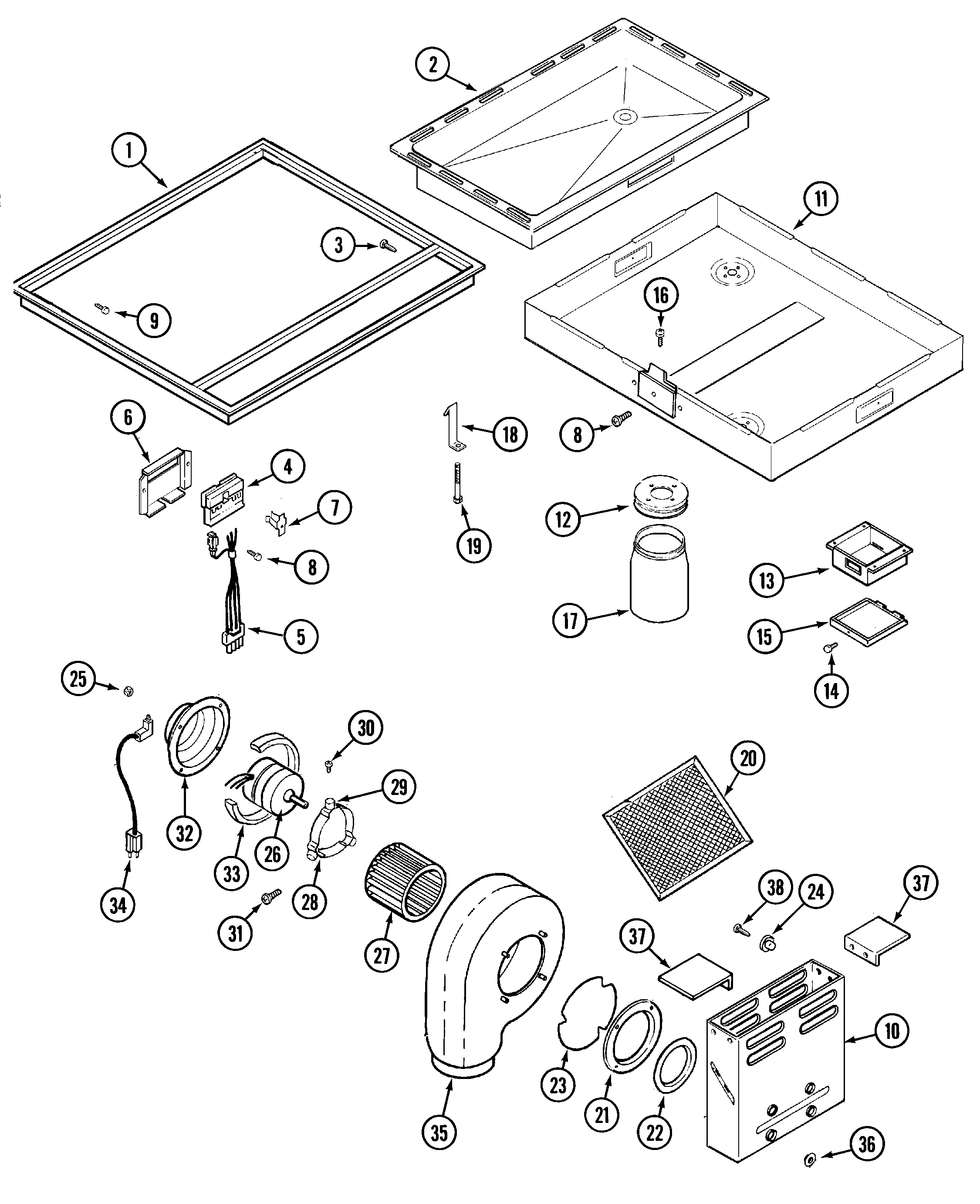

Top assembly Diagram

Filter

Part #706012
Replaced by #WPY706012
?
Manufacturer substitution
This part replaces 706012. Substitute parts can look different from the original.
In Stock
$34.29 |
13% OFF
Phone Price: $39.29
Range Screw

See All Related Diagrams

Screw

Part #715798
Replaced by #WPY706189
?
Manufacturer substitution
This part replaces 715798. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39
Range Screw#38

Top assembly Diagram

Screw #8 tru

Part #04100274
Replaced by #WPY706189
?
Manufacturer substitution
This part replaces 04100274. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39
Cooktop Downdraft Vent Blower Wheel#27A

Top assembly Diagram

Blower wheel

Part #707985
Replaced by #WPY707985
?
Manufacturer substitution
This part replaces 707985. Substitute parts can look different from the original.
In Stock
$69.79 |
7% OFF
Phone Price: $74.79
Range Screw#30

Top assembly Diagram

Range screw

Part #707407
This item is not returnable
In Stock
$5.09
Refrigerator Screw#3

Top assembly Diagram

Screw

Part #04100110
Replaced by #W11233072
?
Manufacturer substitution
This part replaces 04100110. Substitute parts can look different from the original.
In Stock
$16.79 |
11% OFF
Phone Price: $18.79
Appliance Cap Screw, 1/4-20 x 5-in#19

Top assembly Diagram

Screw

Part #706197
Replaced by #WP3400202
?
Manufacturer substitution
This part replaces 706197. Substitute parts can look different from the original.
This item is not returnable
In Stock
$6.15
Band Motor#28

Top assembly Diagram

Band motor

Part #707393
Replaced by #3415F003-51
?
Manufacturer substitution
This part replaces 707393. Substitute parts can look different from the original.
In Stock
$31.09 |
14% OFF
Phone Price: $36.09
Range Hood Motor Isolator#29

Top assembly Diagram

Isolator

Part #708926
Replaced by #WP71003558
?
Manufacturer substitution
This part replaces 708926. Substitute parts can look different from the original.
This item is not returnable
In Stock
$9.19 |
10% OFF
Phone Price: $10.19
Range Lock Nut#24

Top assembly Diagram

Lock nut

Part #707702
Replaced by #WPY707702
?
Manufacturer substitution
This part replaces 707702. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39
