Whirlpool
Washer

Model # WTW4655JW0 Official Whirlpool washer

Here are the diagrams and repair parts for Official Whirlpool WTW4655JW0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |

Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$12.27
44% OFF MSRP : $22.00
In Stock
Washer Actuator W10815026
#12

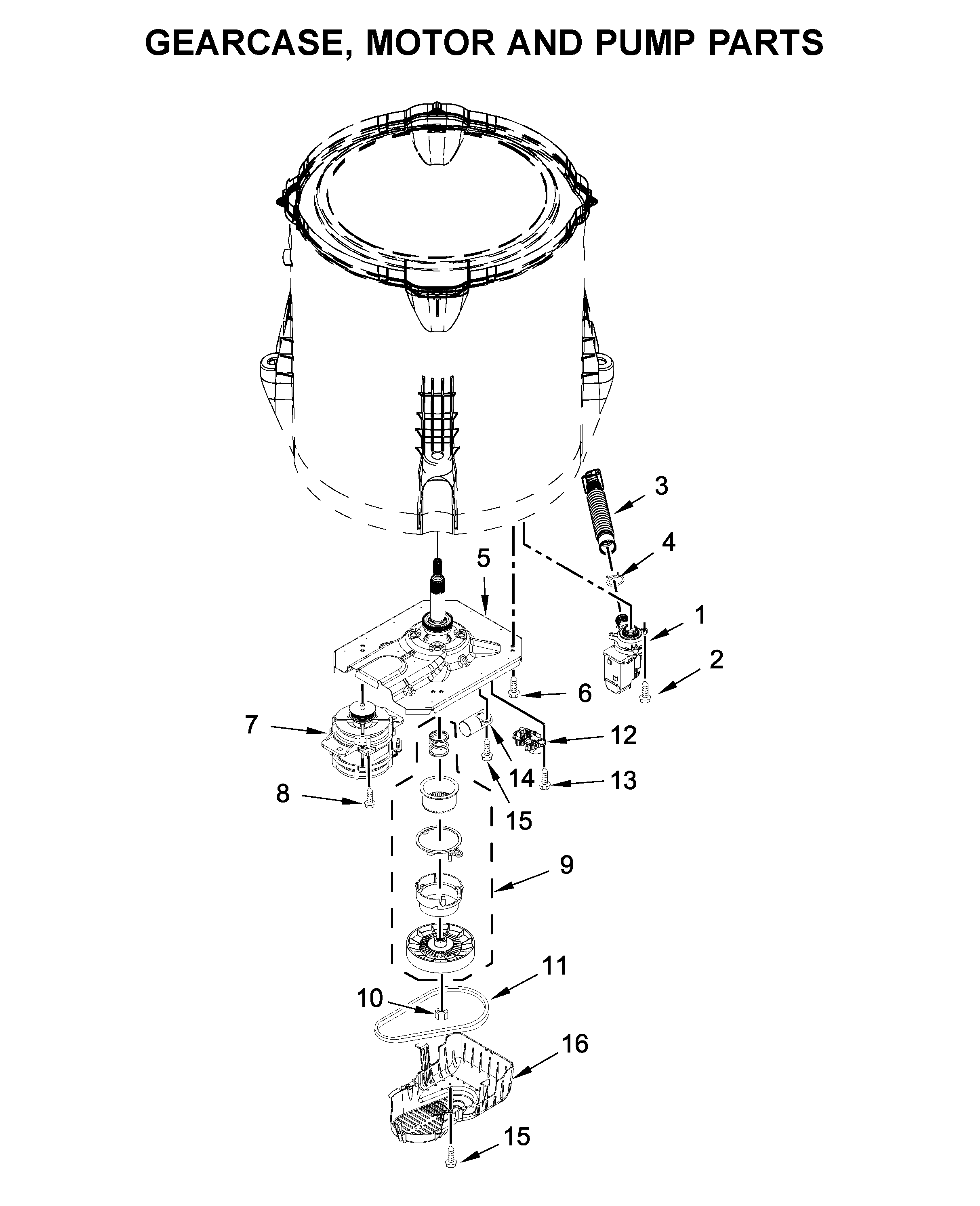

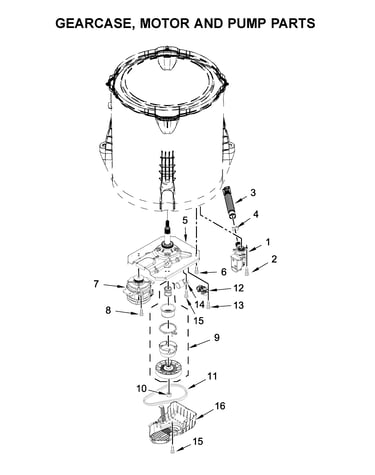

Gearcase, motor and pump parts diagram

Washer actuator

Part #W10815026

Replaced by #W10913953

?
Manufacturer substitution
This part replaces W10815026. Substitute parts can look different from the original.
BEST SELLER
$66.06
7% OFF Phone Price : $71.06
In Stock
Washer Drive Pulley (replaces W10006356, W10239973, W10315818, W10536113, W11396423) W10721967
#9

Gearcase, motor and pump parts diagram

Washer drive pulley (replaces w10006356, w10239973, w10315818, w10536113, w11396423)

Part #W10721967

BEST SELLER
$49.34
9% OFF Phone Price : $54.34
In Stock
Washer Lid Lock W10682535
#14

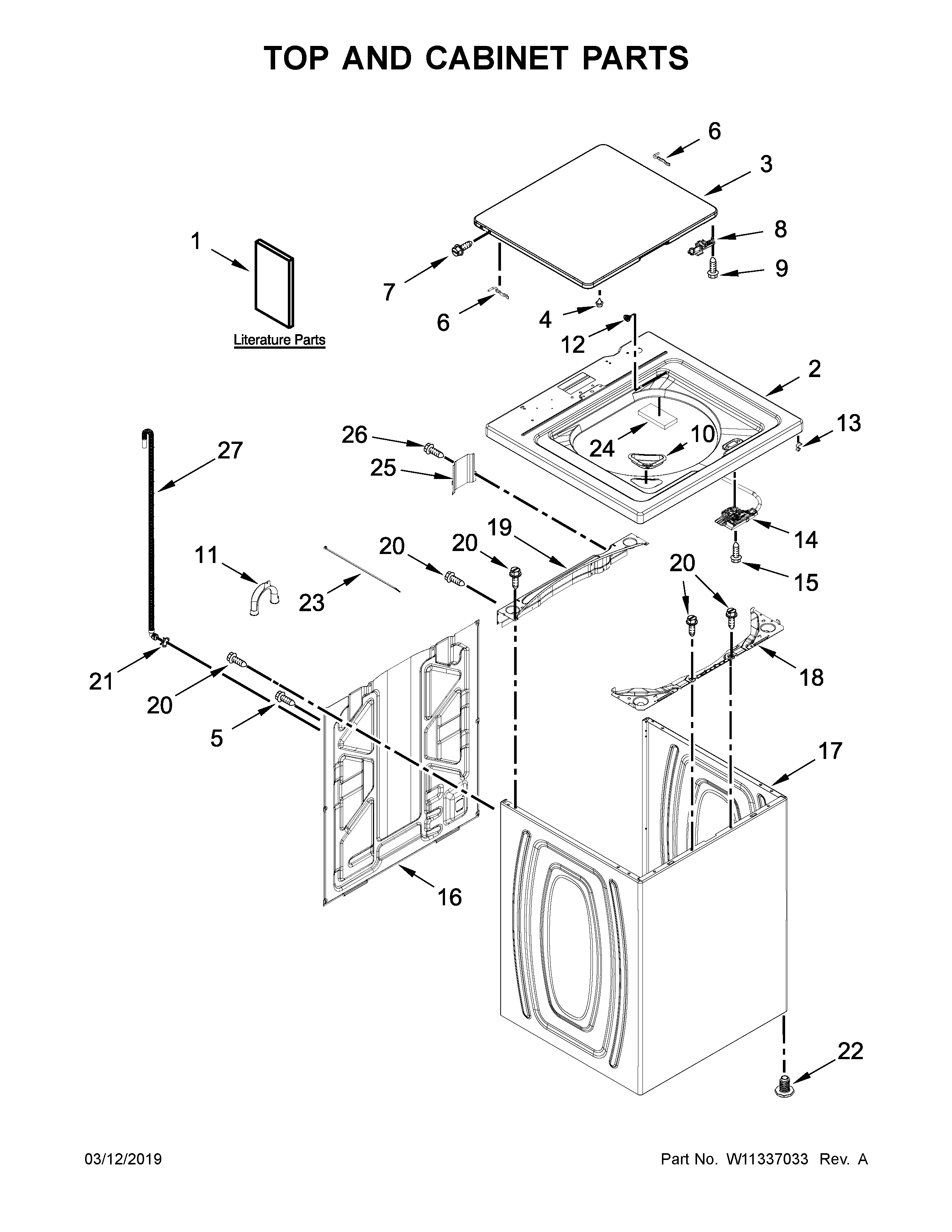

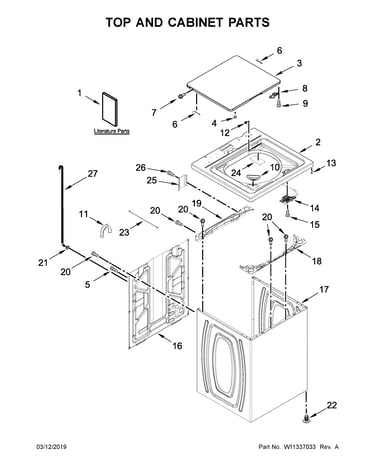

Top and cabinet parts diagram

Washer lid lock

Part #W10682535

Replaced by #W11307244

?
Manufacturer substitution
This part replaces W10682535. Substitute parts can look different from the original.
BEST SELLER
$104.29
13% OFF MSRP : $120.00
In Stock
Driveblock - W10396887
#8

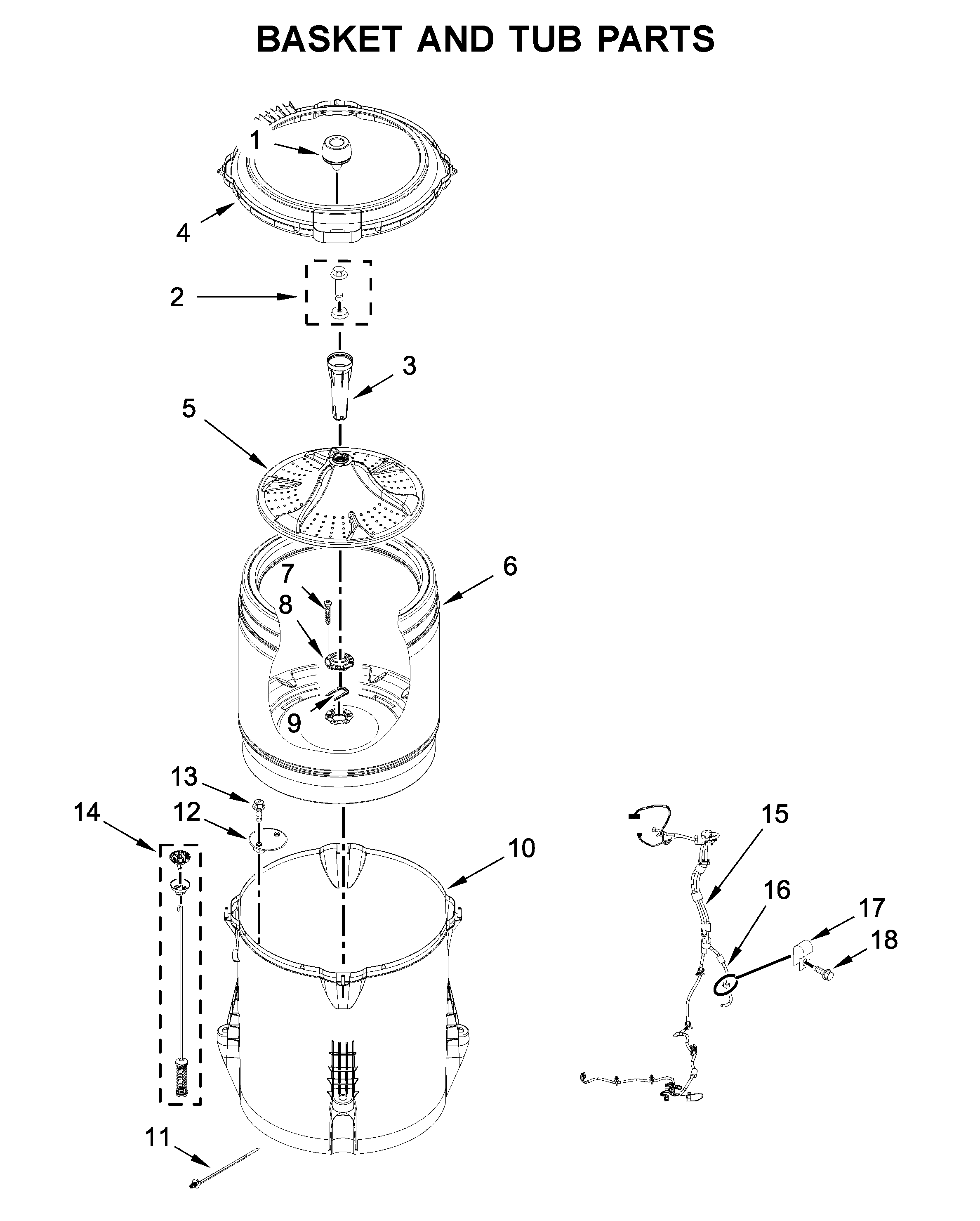

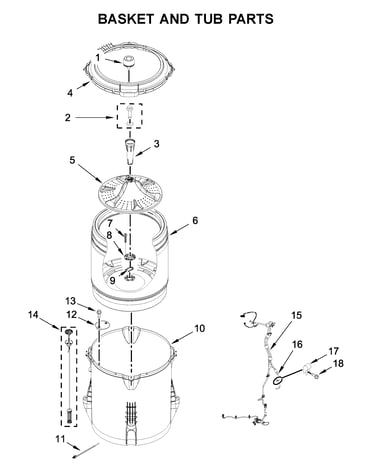

Basket and tub parts diagram

Driveblock -

Part #W10396887

Replaced by #W10528947

?
Manufacturer substitution
This part replaces W10396887. Substitute parts can look different from the original.
BEST SELLER
$33.62
13% OFF Phone Price : $38.62
In Stock
Hose Asm - D W11203364
#27

Top and cabinet parts diagram

Hose asm - d

Part #W11203364

Replaced by #W11244231

?
Manufacturer substitution
This part replaces W11203364. Substitute parts can look different from the original.
BEST SELLER
$20.01
35% OFF MSRP : $31.00
In Stock
Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Strike Pima W10714899
#8

Top and cabinet parts diagram

Strike pima

Part #W10714899

Replaced by #W10837741

?
Manufacturer substitution
This part replaces W10714899. Substitute parts can look different from the original.
BEST SELLER
$16.46
39% OFF MSRP : $27.00
In Stock
Dryer Control Knob W10711289
#1

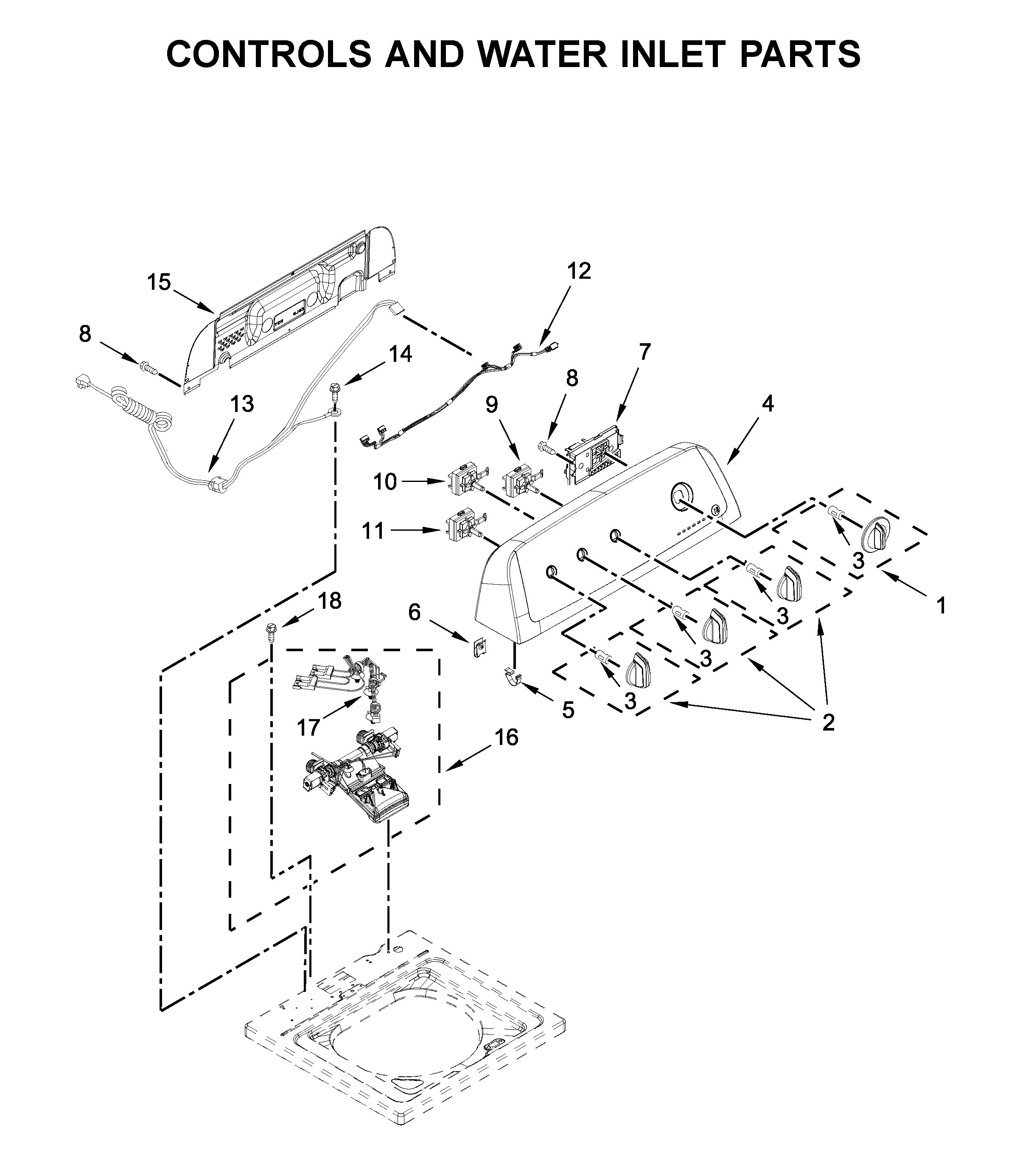

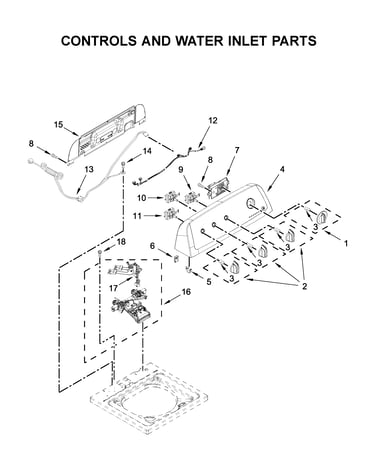

Controls and water inlet parts diagram

Dryer control knob

Part #W10711289

Replaced by #WPW10711289

?
Manufacturer substitution
This part replaces W10711289. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49
66% OFF MSRP : $19.00
In Stock
Washer Lid Bumper 9724509
#4

Top and cabinet parts diagram

Washer lid bumper

Part #9724509

Replaced by #WP9724509

?
Manufacturer substitution
This part replaces 9724509. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
