Goodman
Air Conditioner

Model #CPLE18-1 Official Goodman split-system heat pump

Here are the diagrams and repair parts for Goodman CPLE18-1 split-system heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Showing 10 of 26 parts

Central Air Conditioner Compressor#201

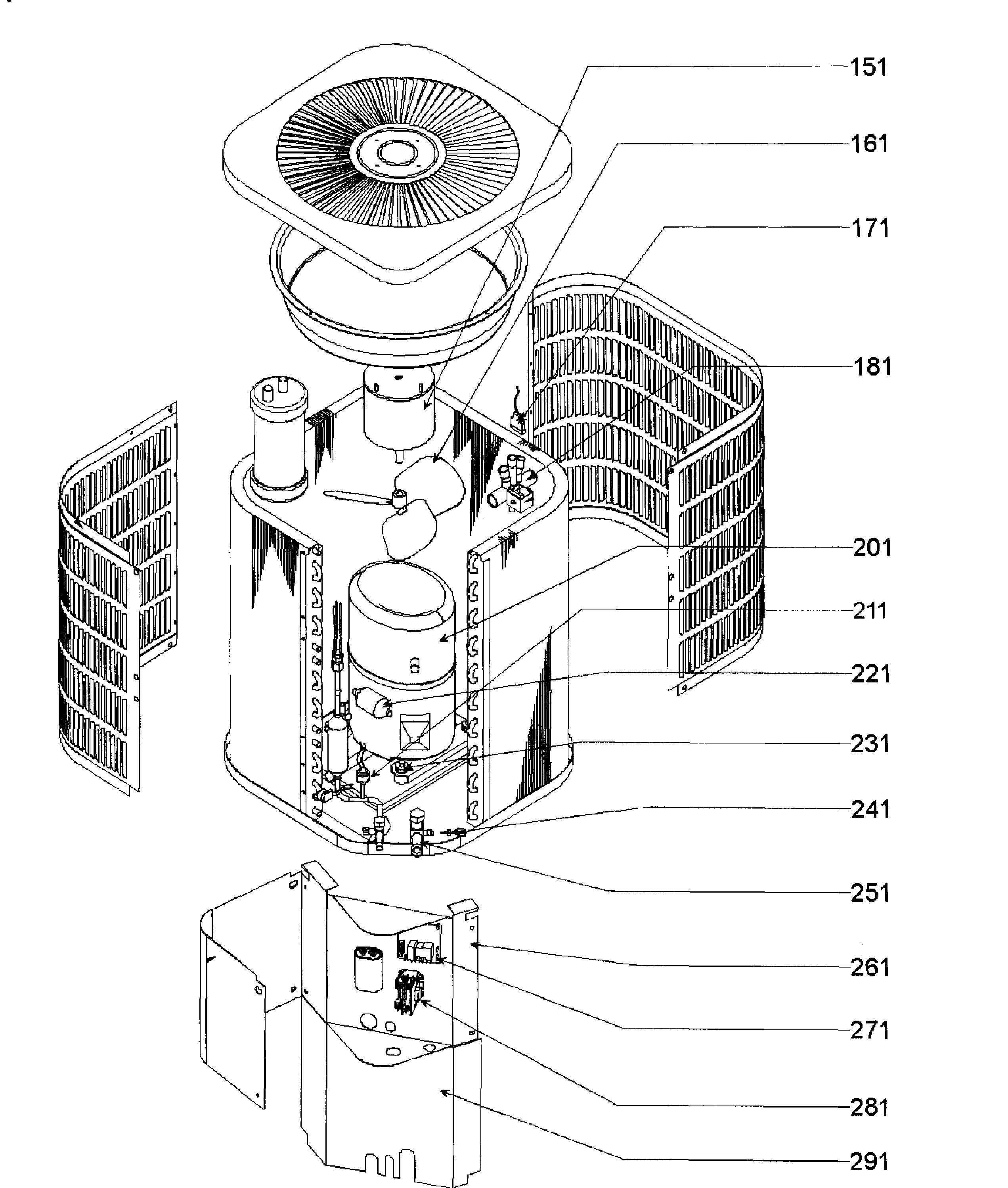

Main asy 2 Diagram

Compressor

Part #CR18K6PFV960
Replaced by #CR18K6EPFV875
?
Manufacturer substitution
This part replaces CR18K6PFV960. Substitute parts can look different from the original.
In Stock
$424.89 |
$10.00 OFF
Phone Price: $434.89
Central Air Conditioner Contactor#281

Main asy 2 Diagram

Pole 25amp

Part #CONT1P025024VS
Replaced by #CONT2P030024V5
?
Manufacturer substitution
This part replaces CONT1P025024VS. Substitute parts can look different from the original.
In Stock
$59.69 |
8% OFF
Phone Price: $64.69
Base Valve#121

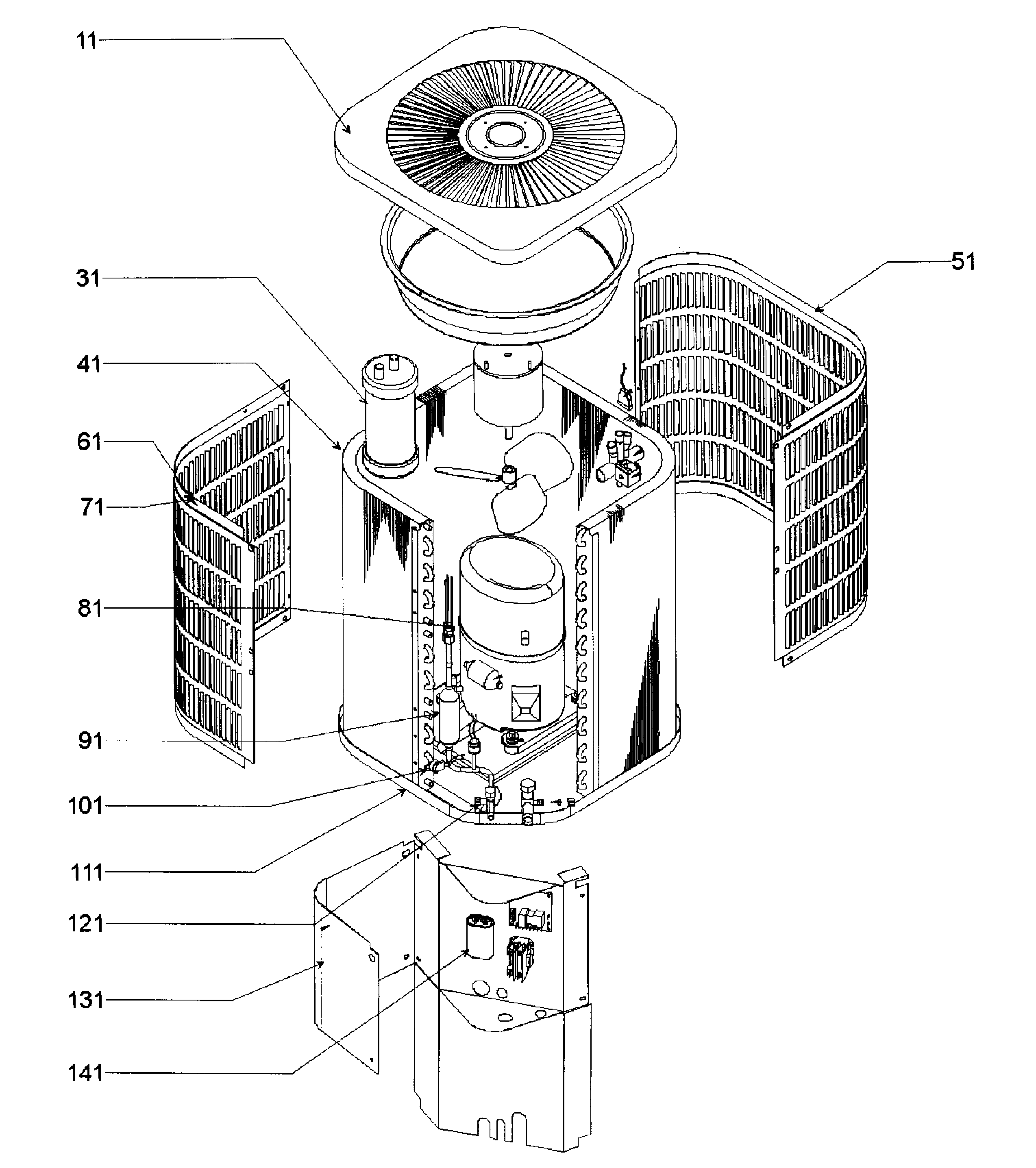

Main asy 1 Diagram

Base

Part #B12825171
Replaced by #0151R00078S
?
Manufacturer substitution
This part replaces B12825171. Substitute parts can look different from the original.
In Stock
$11.49
Central Air Conditioner Condenser Fan Motor#151

Main asy 2 Diagram

In Stock
$226.09 |
$10.00 OFF
Phone Price: $236.09
Central Air Conditioner Condenser Fan Blade#161

Main asy 2 Diagram

In Stock
$107.97
Solenoid#171

Main asy 2 Diagram

Solenoid

Part #B1225020
This item is not returnable
In Stock
$6.49
Muffler#221

Main asy 2 Diagram

Muffler

Part #B1219300
In Stock
$10.99
Thermostat#101

Main asy 1 Diagram

Thermostat

Part #B1370803
In Stock
$19.88
Core,valve#241

Main asy 2 Diagram

Core,valve

Part #B1787000
This item is not returnable
In Stock
$2.49
PANEL ACCE#291

Main asy 2 Diagram

Panel acce

Part #1787706P
This item is not returnable
In Stock
$7.49
