Model # LMH2016ST/01 Official LG microwave/hood combo

Here are the diagrams and repair parts for Official LG LMH2016ST-01 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Owner’s manual

Error Codes

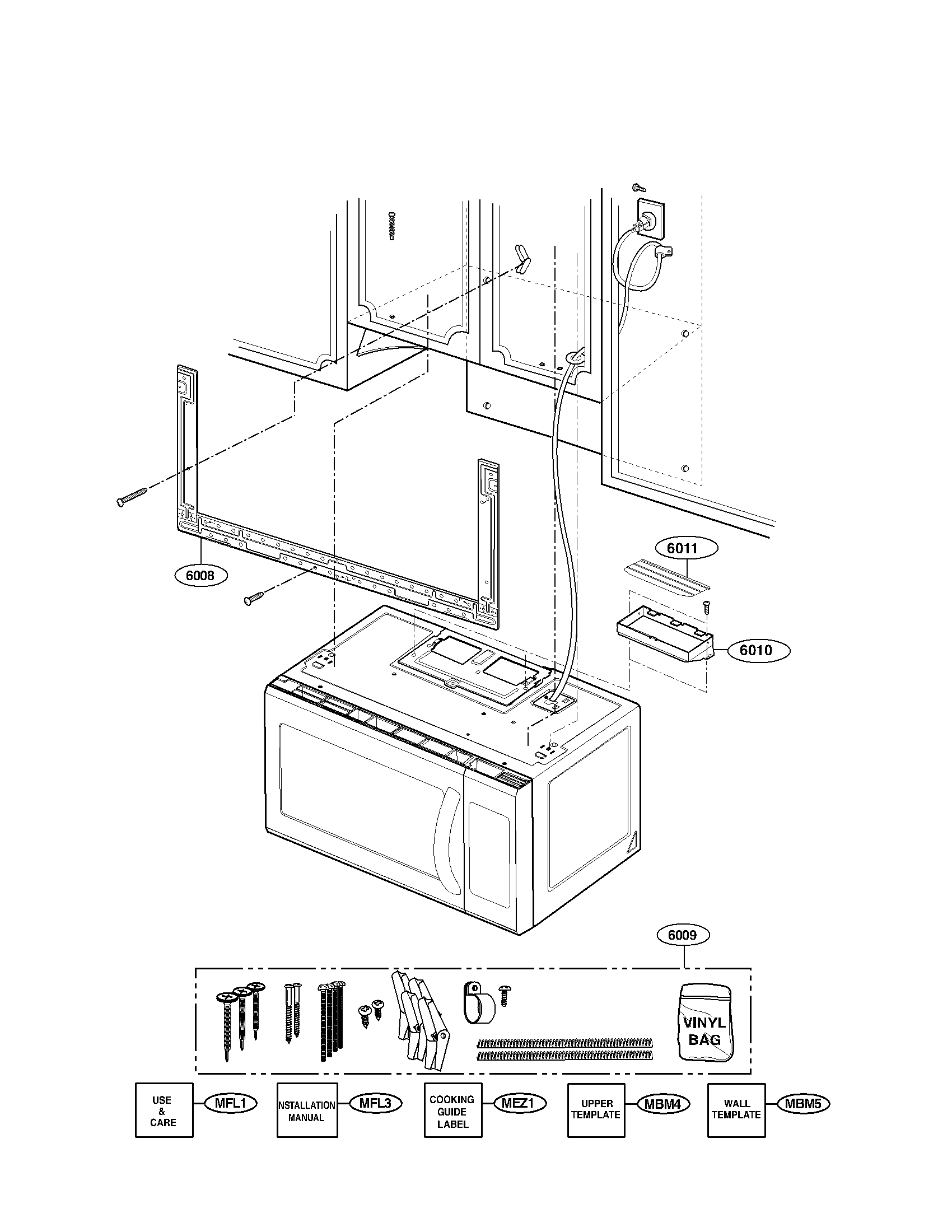

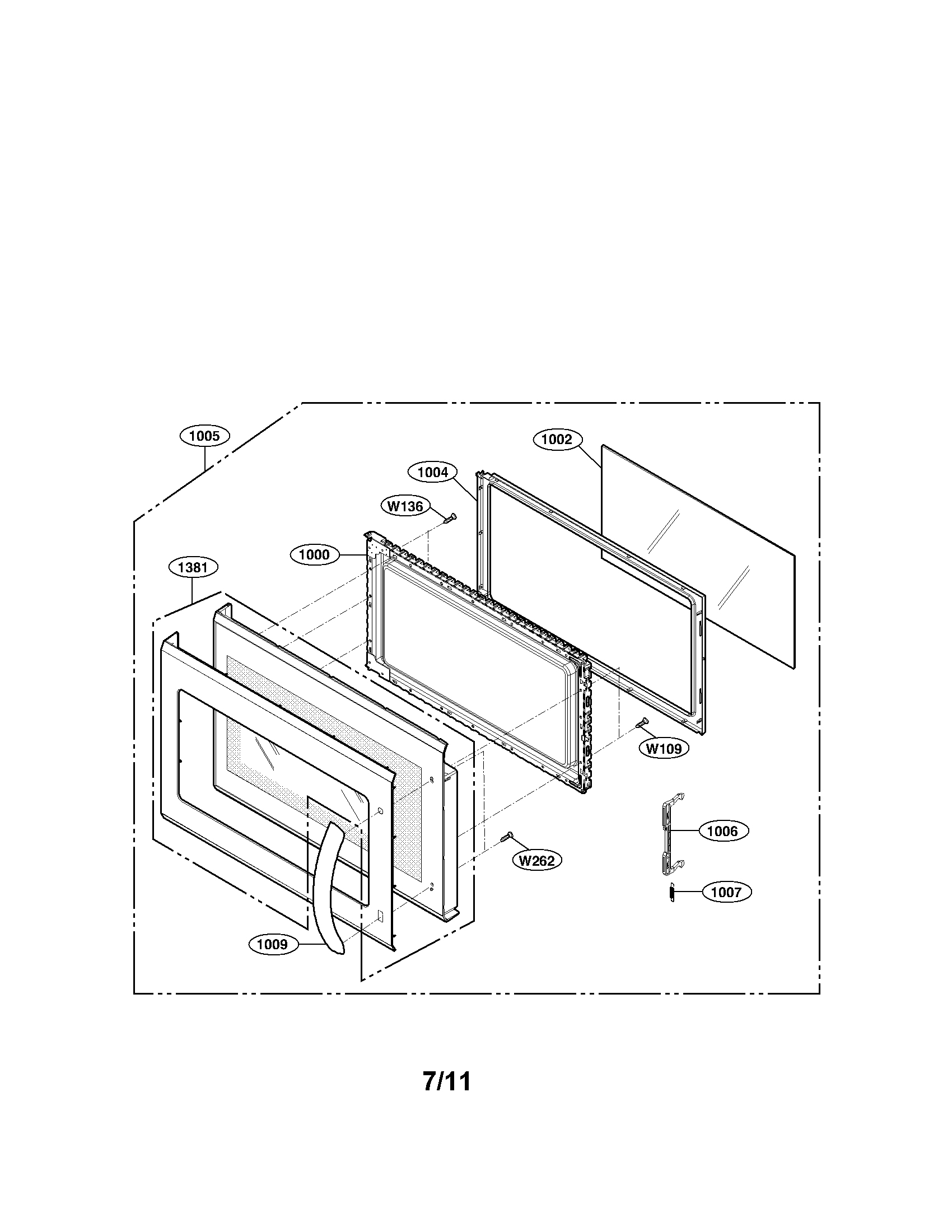

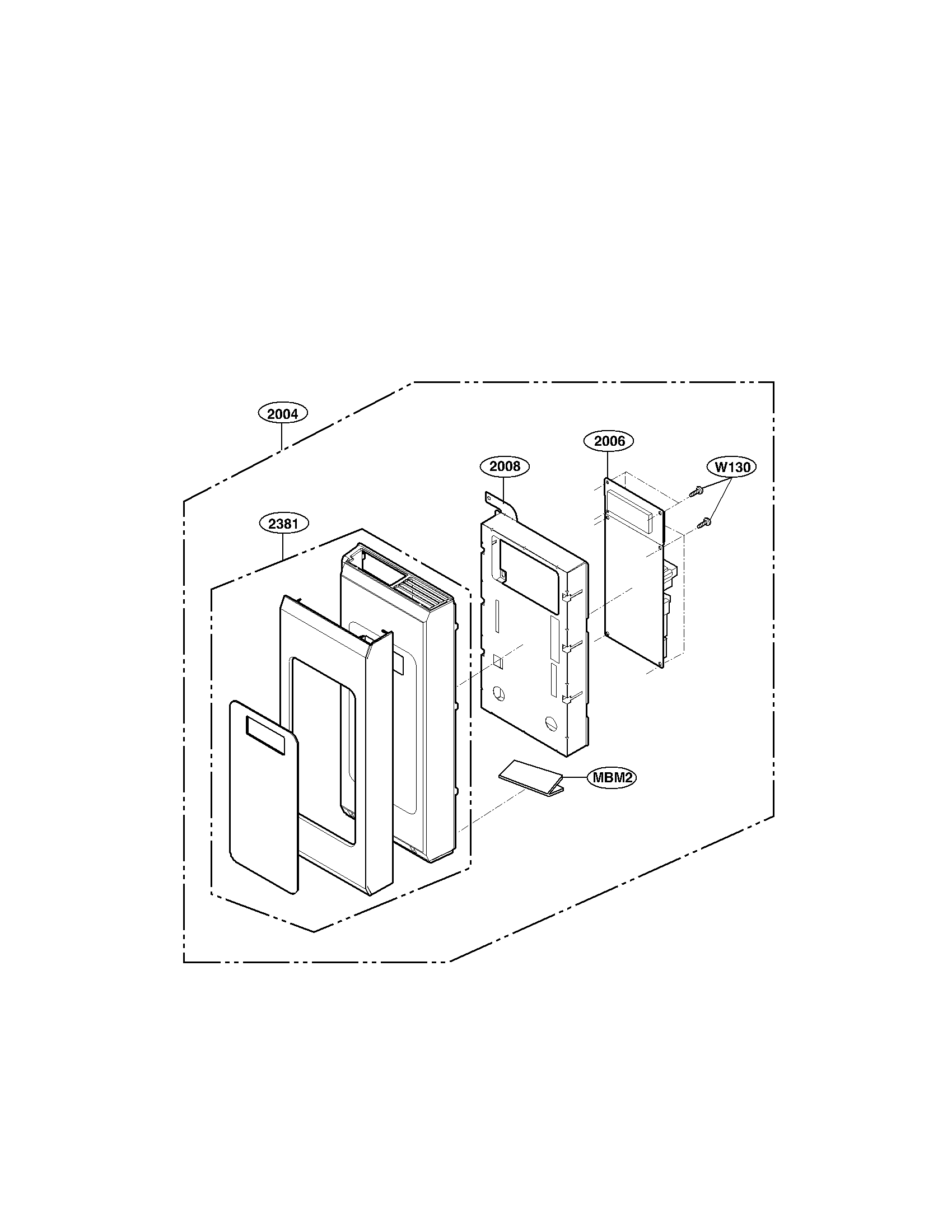

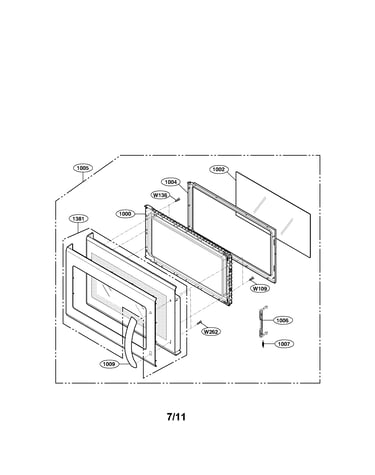

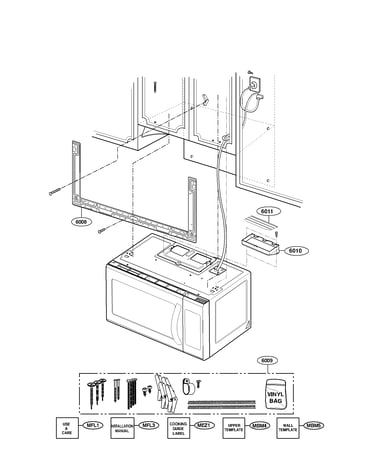

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Screws

ALL PARTS

Showing 10 of 116 parts |

Microwave Vent Grille (black) MDX61912701

#3024

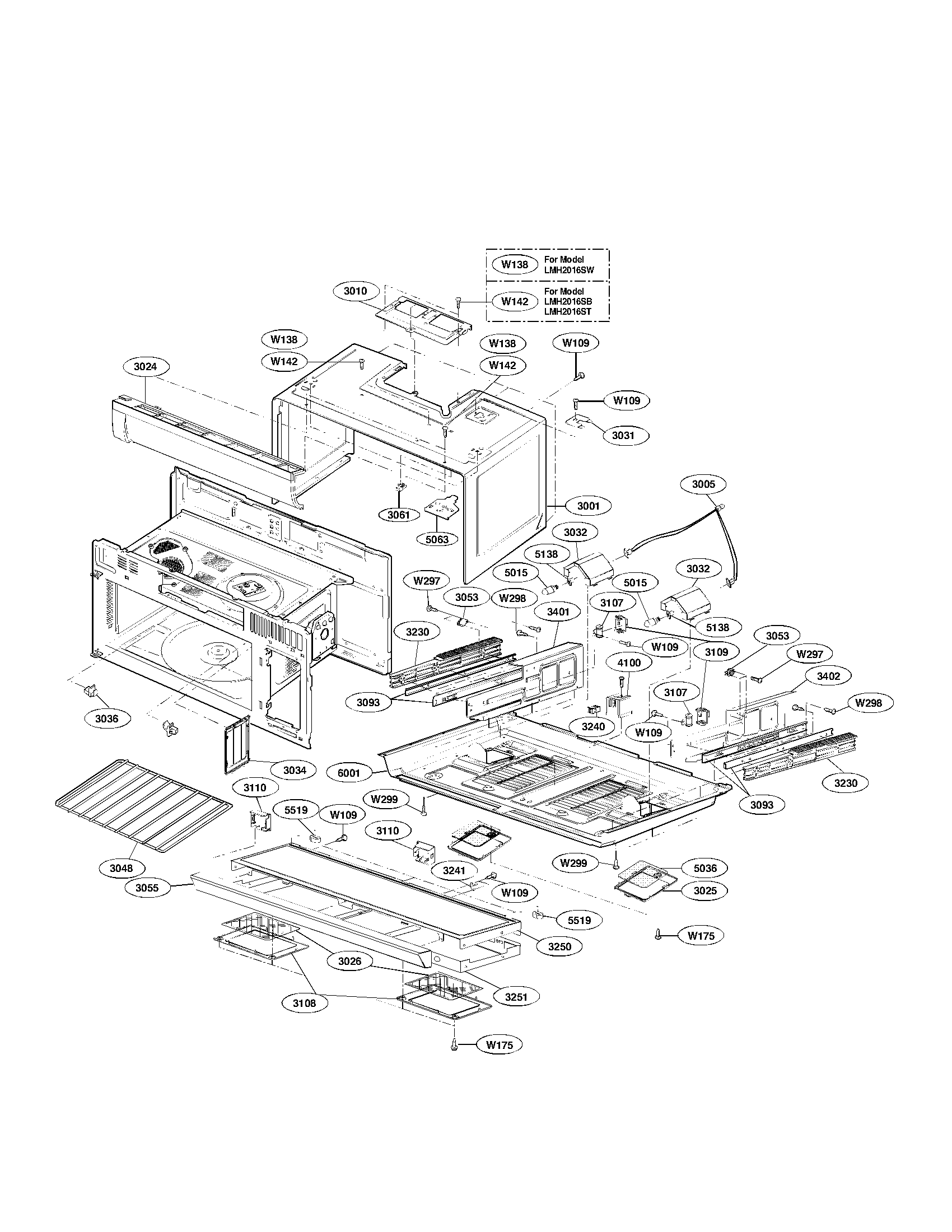

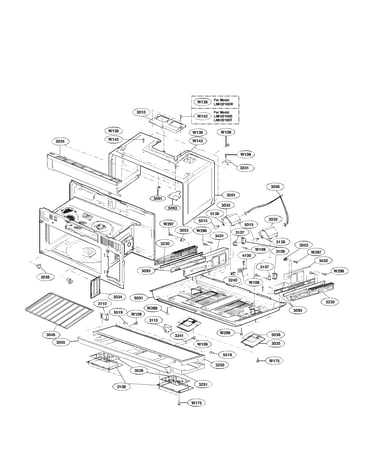

Oven cavity parts diagram

Microwave vent grille (black)

Part #MDX61912701

$55.97 |

8% OFF Phone Price : $60.97

In Stock

Qty

Microwave magnetron (replaces 6324w1a001h)

Part #6324W1A001L

$91.94 |

5% OFF Phone Price : $96.94

In Stock

Qty

#5009

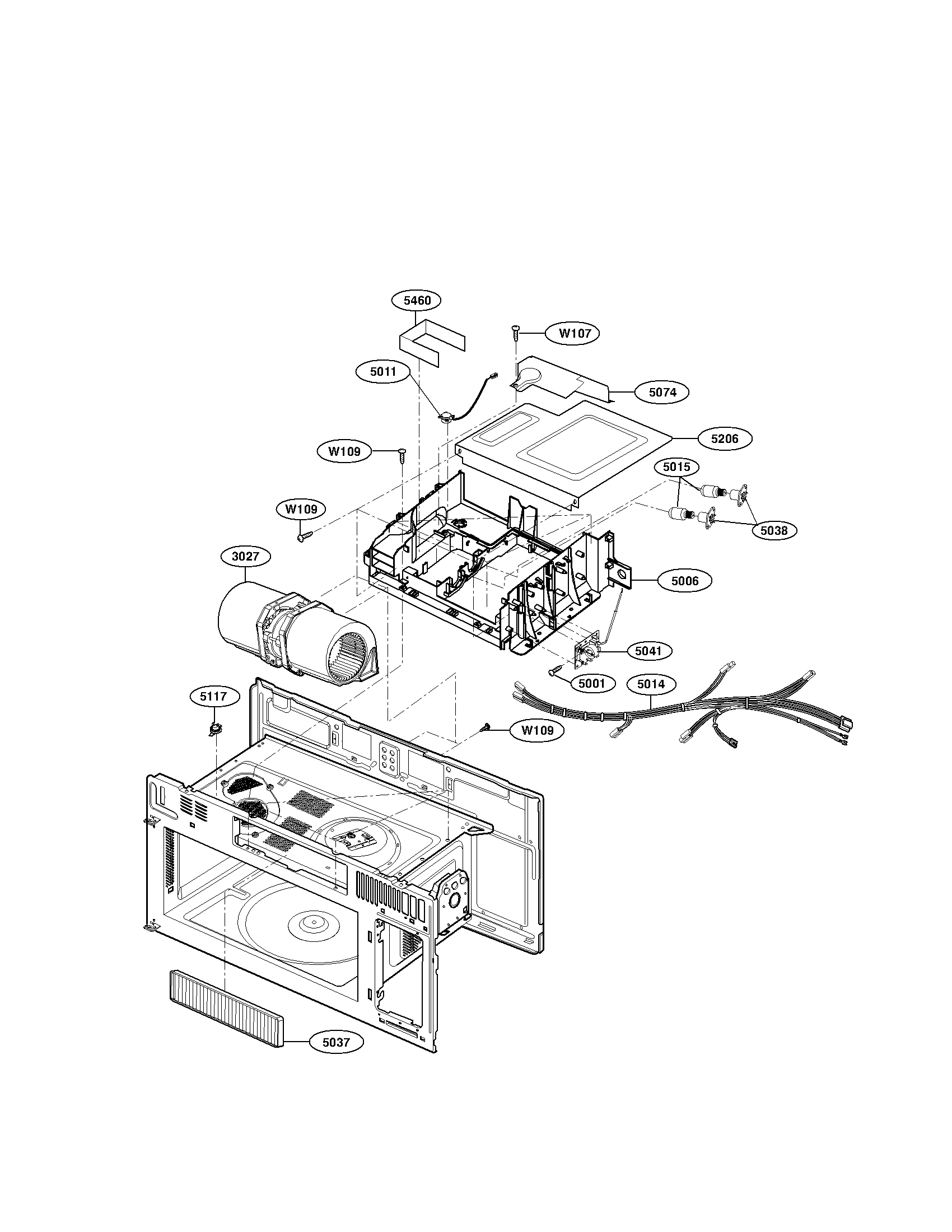

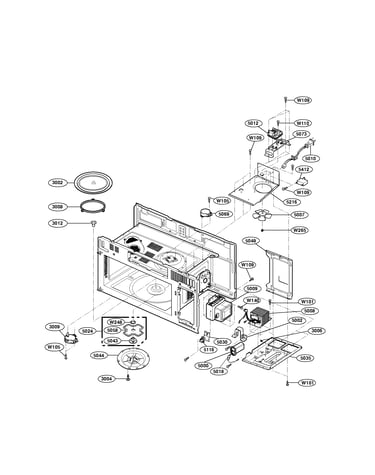

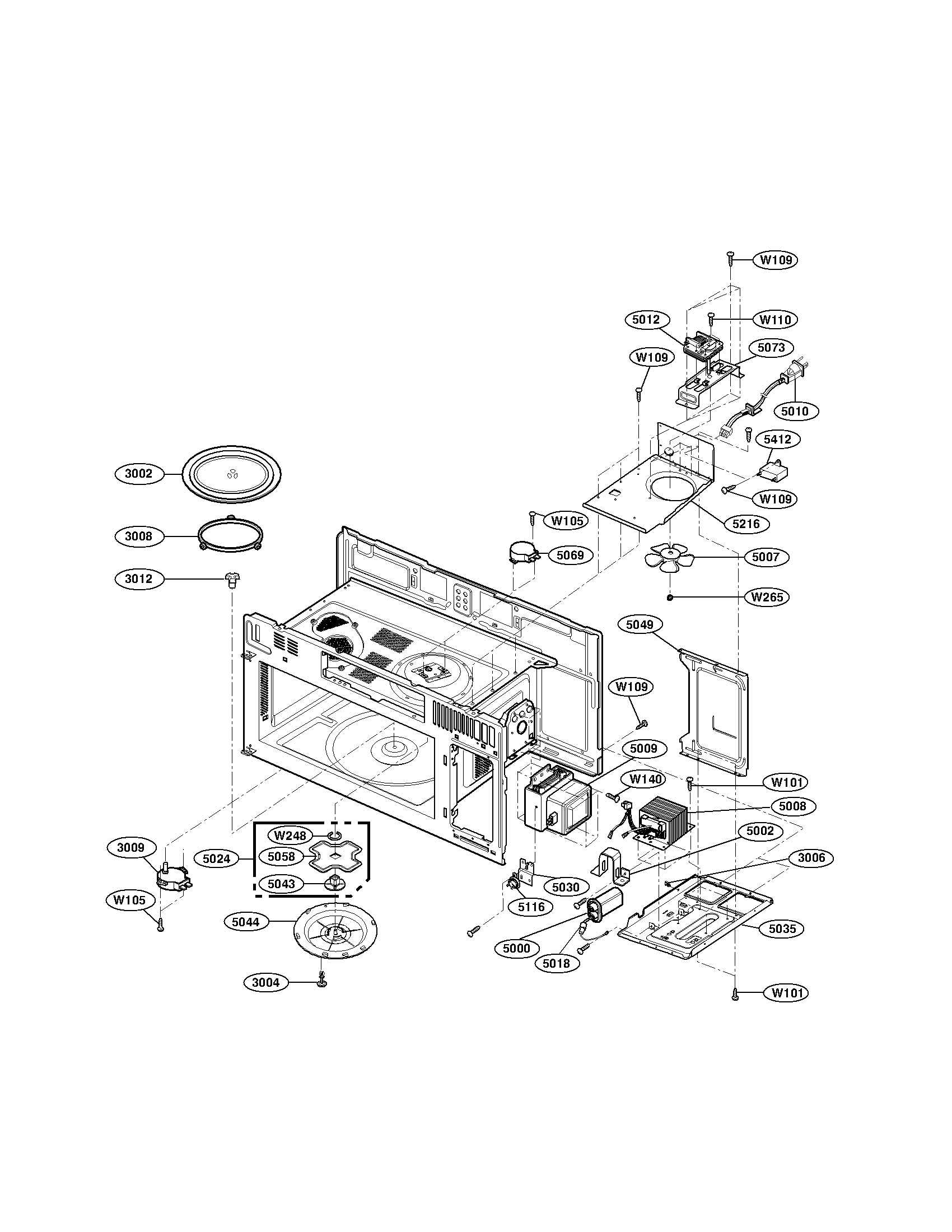

Interior parts diagram

Magnetron

Part #6324W1A001B

The manufacturer no longer makes this part, and there's no substitute part

Microwave Light Bulb (replaces 3b70067f, 6912w3q001a, 6912w3q001d) 6912W1Z004B

#5015

Oven cavity parts diagram

Microwave light bulb (replaces 3b70067f, 6912w3q001a, 6912w3q001d)

Part #6912W1Z004B

$9.42 |

10% OFF Phone Price : $10.42

In Stock

Qty

Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C

#4003

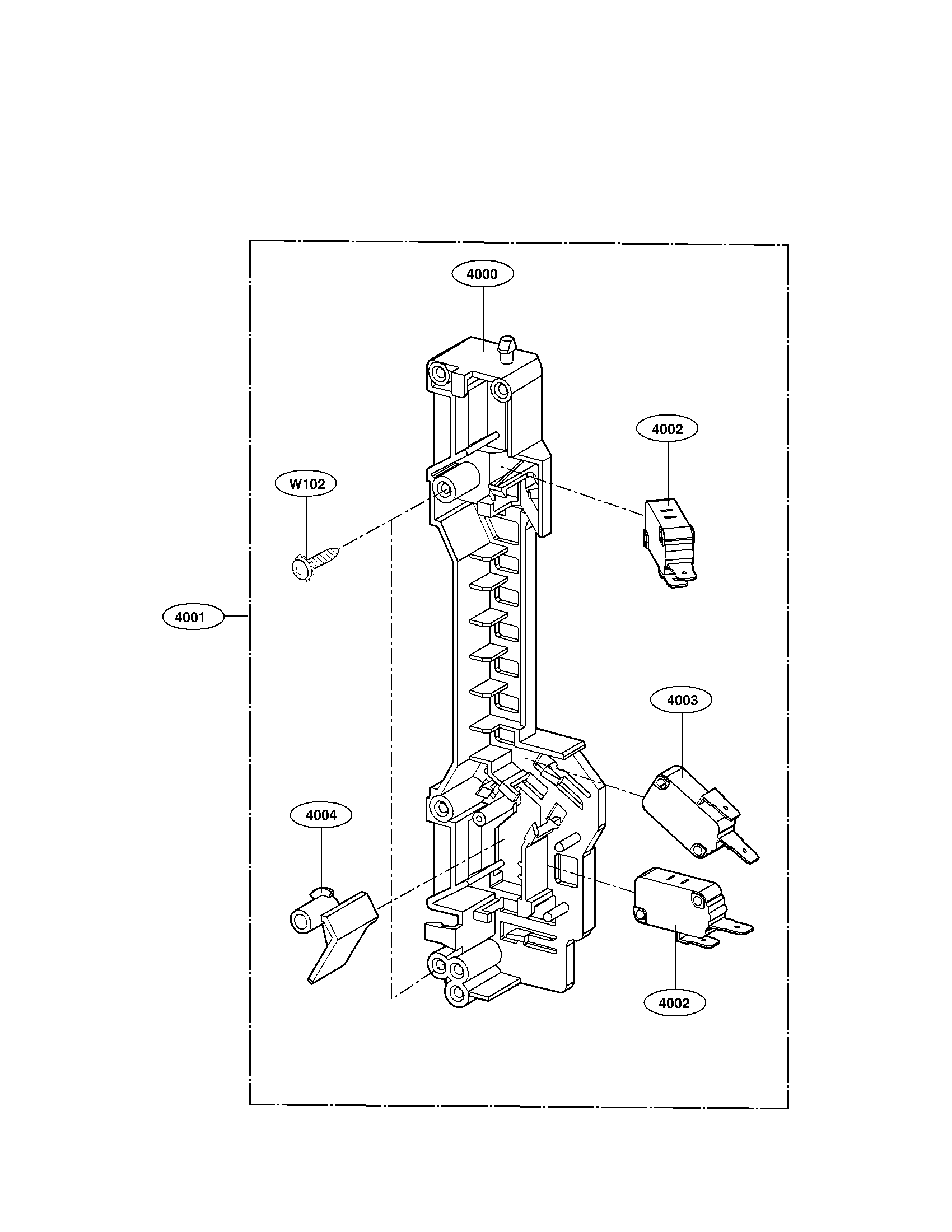

Latch board parts diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

$12.16 |

14% OFF Phone Price : $14.16

In Stock

Qty

#5000

Interior parts diagram

Capacitor

Part #0CZZW1H001Q

Replaced by #0CZZW1H004C

$17.81 |

10% OFF Phone Price : $19.81

In Stock

Qty

Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D

#4002

Latch board parts diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

$9.76 |

9% OFF Phone Price : $10.76

In Stock

Qty

Microwave Door Latch Housing And Interlock Switch Assembly 3501W1A019D

#4001

Latch board parts diagram

Microwave door latch housing and interlock switch assembly

Part #3501W1A019D

The manufacturer no longer makes this part, and there's no substitute part

#3055

Oven cavity parts diagram

Microwave base plate trim

Part #MCR62347202

$65.91 |

7% OFF Phone Price : $70.91

In Stock

Qty

#5001

Interior parts 2 diagram

Microwave fuse

Part #3B74133K

$7.62 |

12% OFF Phone Price : $8.62

In Stock

Qty
