Model # EIED55HMB0 Official Electrolux gas dryer

Here are the diagrams and repair parts for Official Electrolux EIED55HMB0 gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

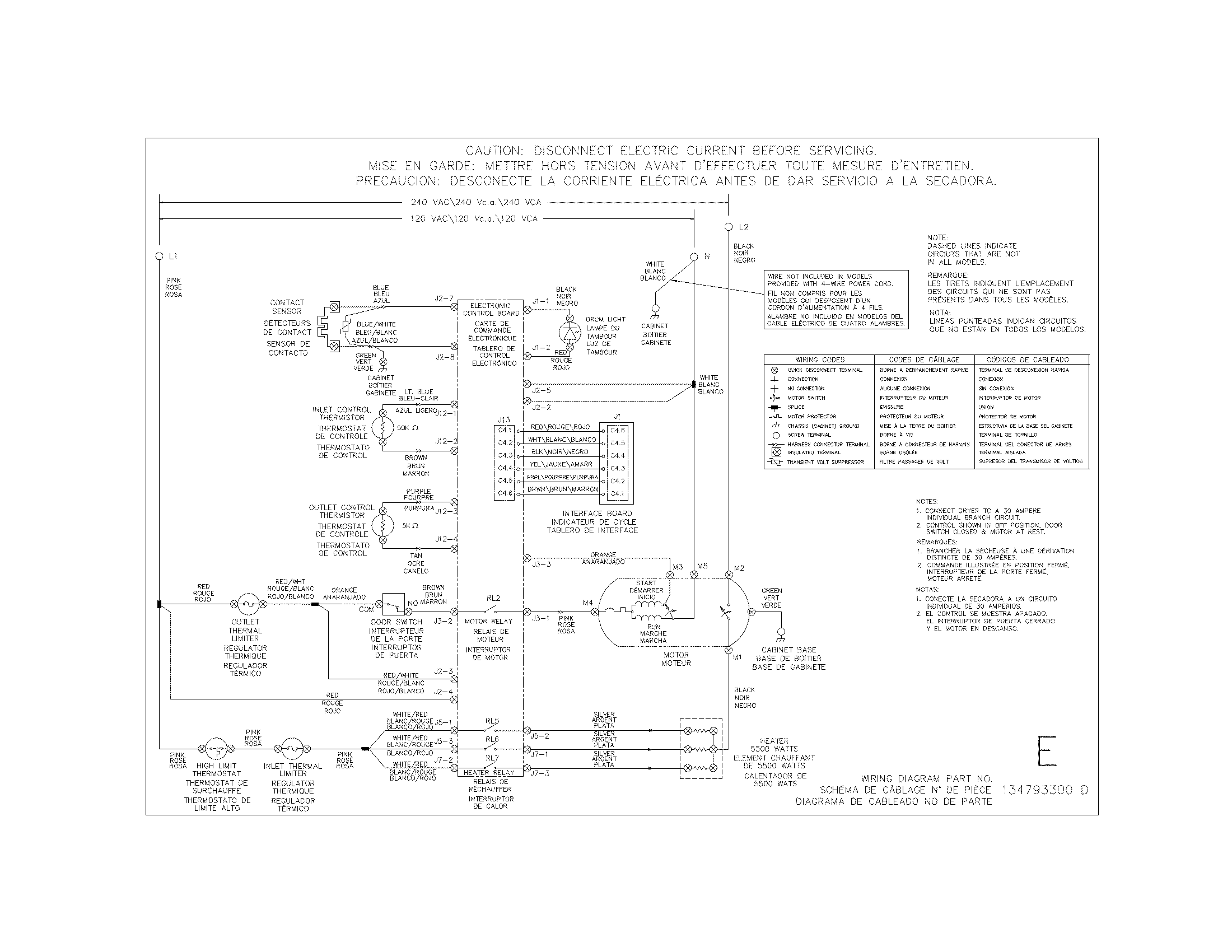

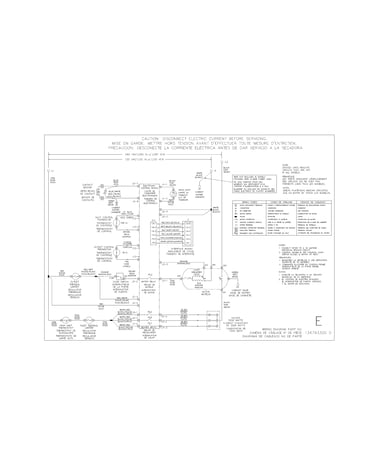

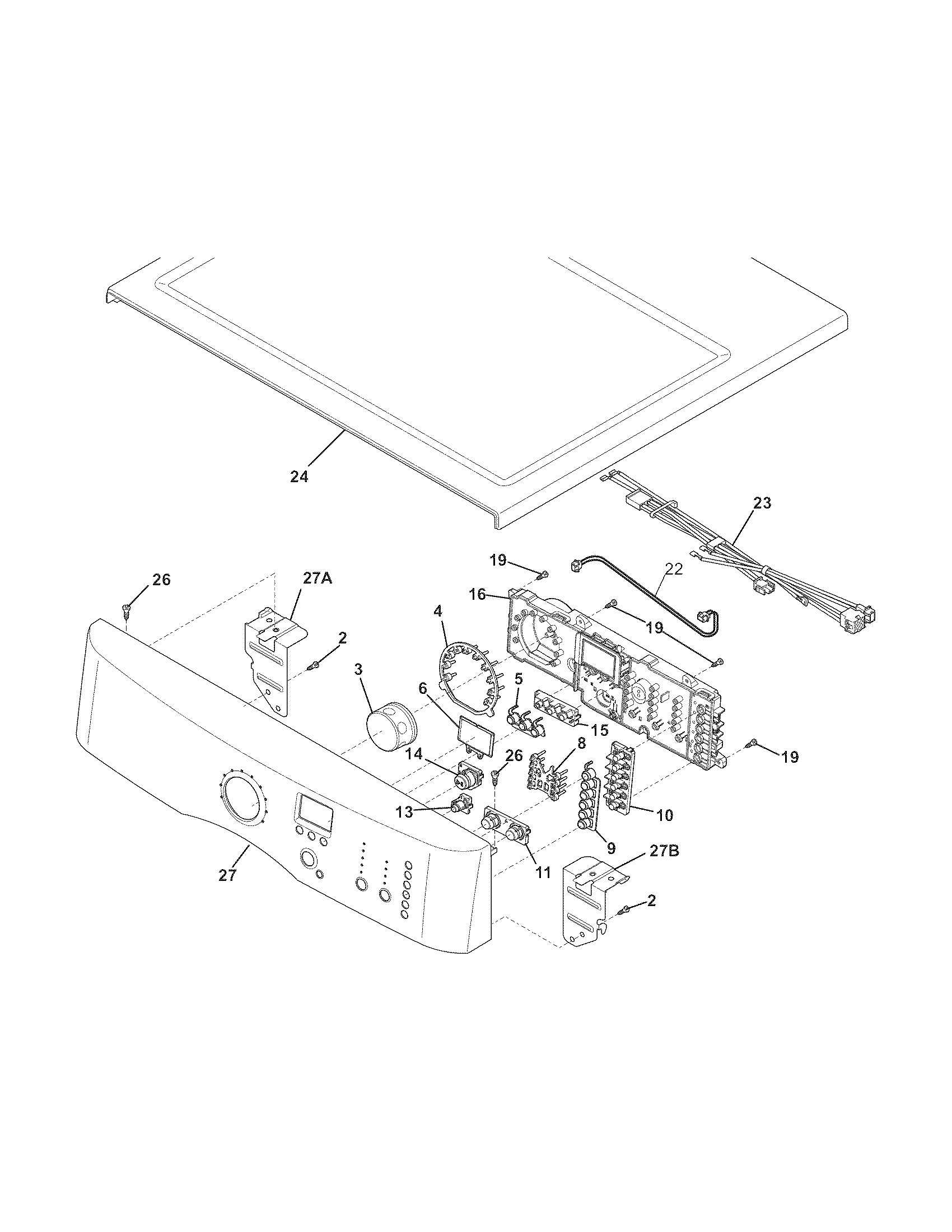

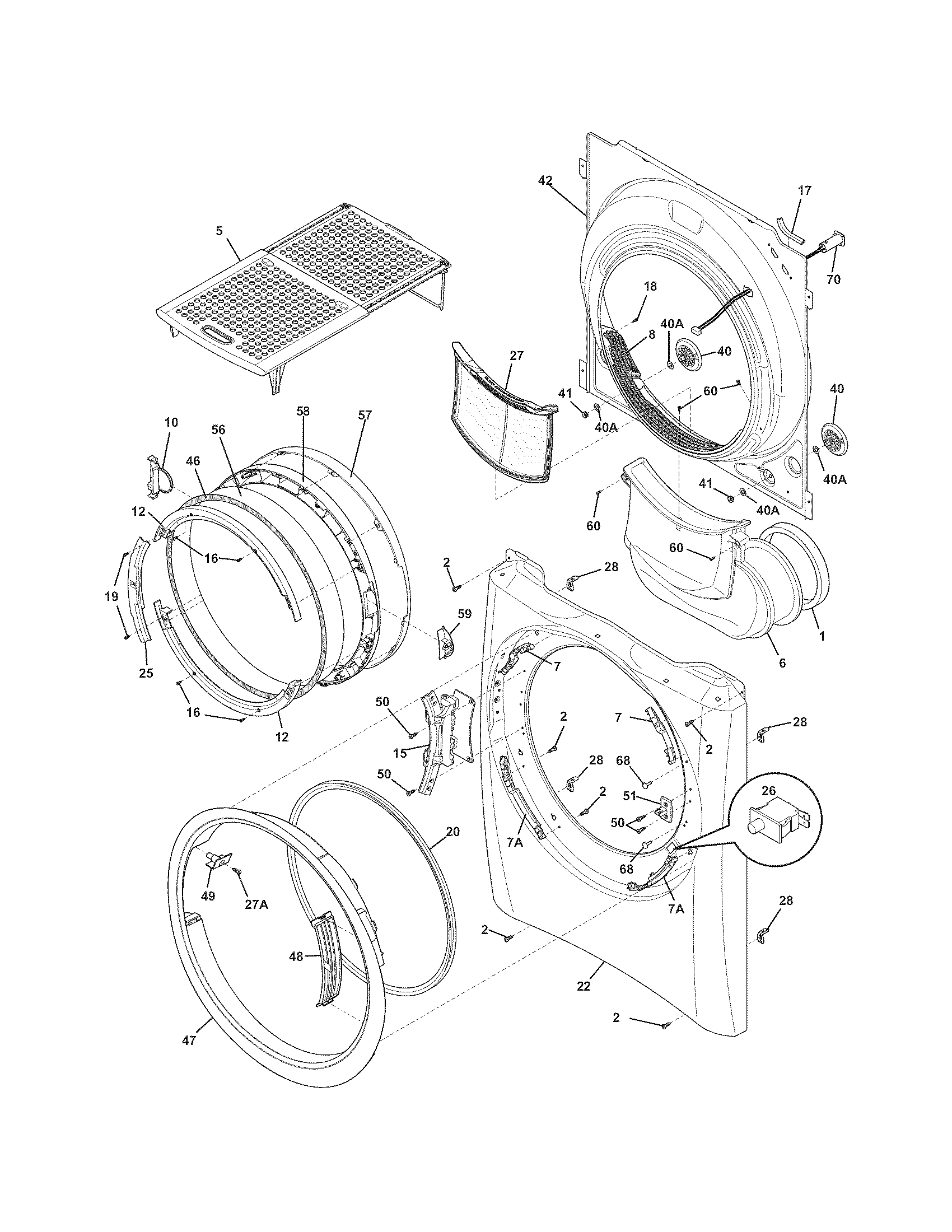

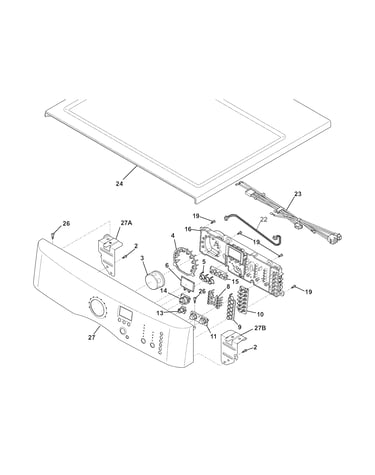

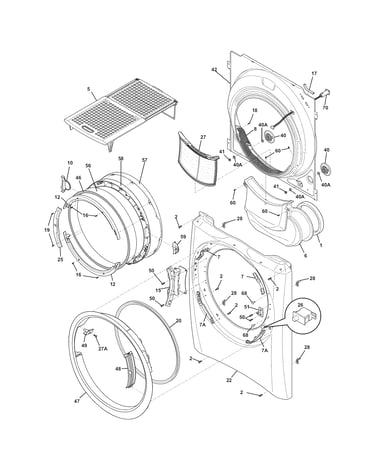

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Belt,"h",pol 7134719300
#25

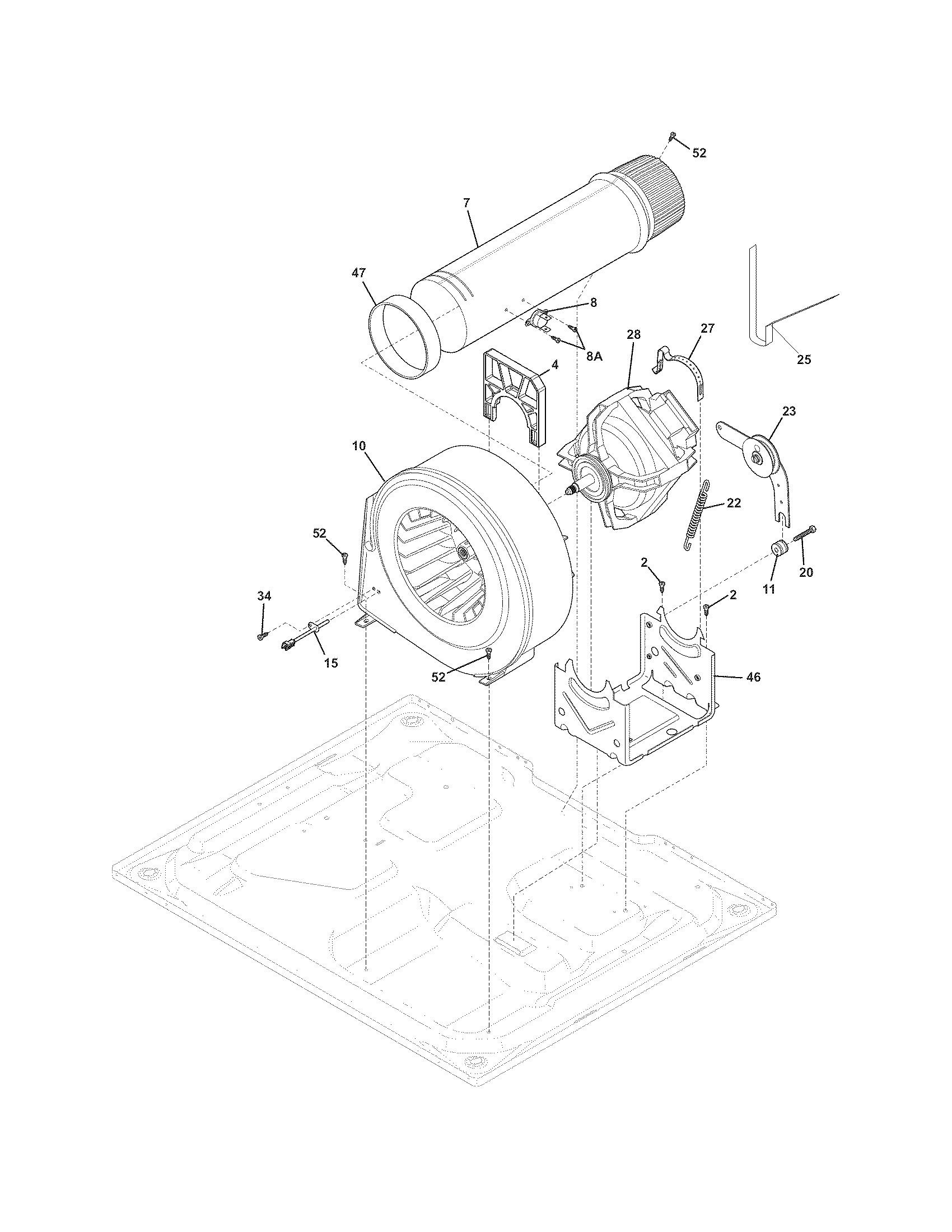

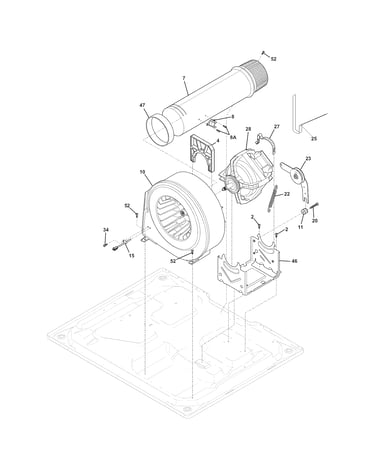

Motor diagram

Belt,"h",pol

Part #7134719300

Replaced by #134719300

?
Manufacturer substitution
This part replaces 7134719300. Substitute parts can look different from the original.
BEST SELLER
$50.41 |
9% OFF Phone Price : $55.41
In Stock
Thermostat,s 73204267
#33

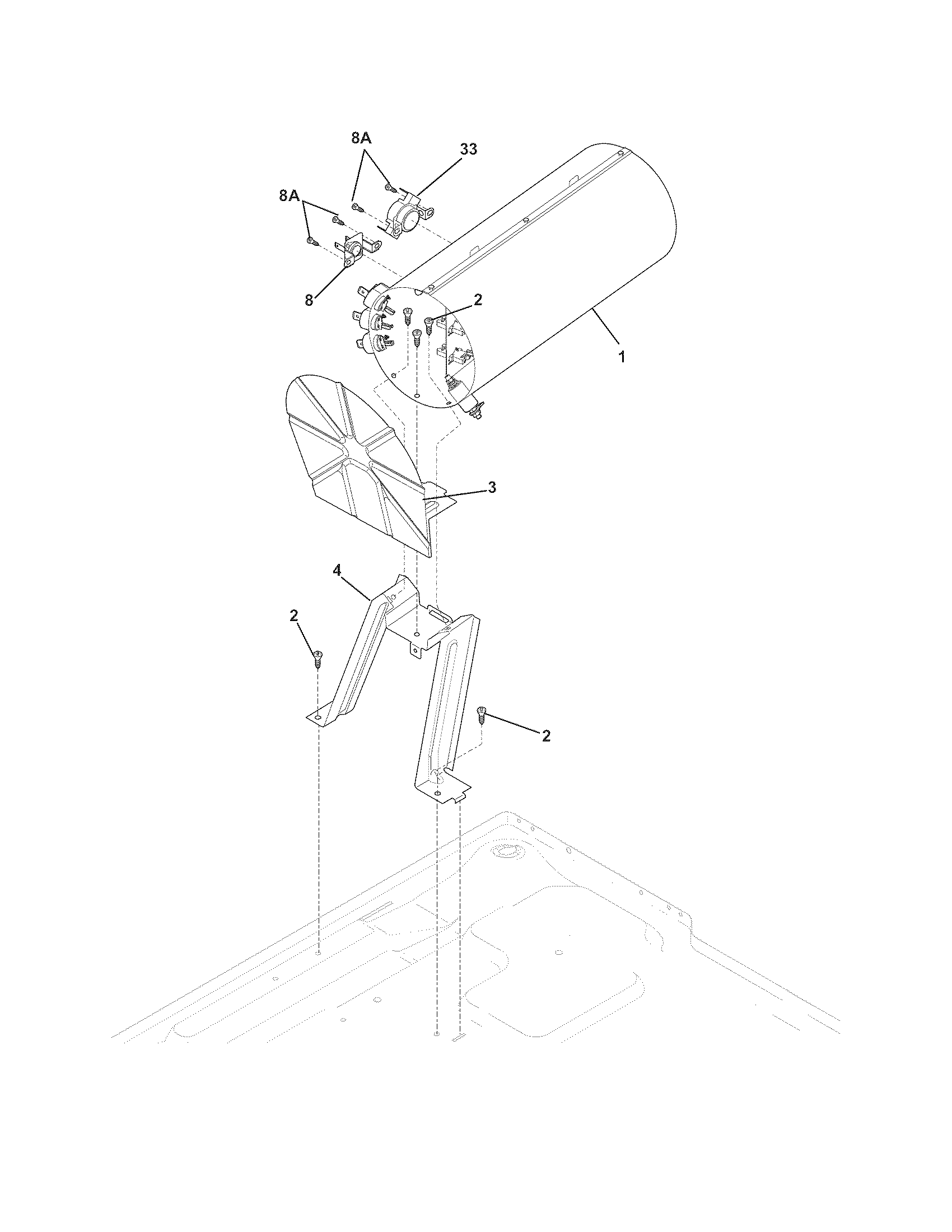

Burner diagram

Thermostat,s

Part #73204267

Replaced by #3204267

?
Manufacturer substitution
This part replaces 73204267. Substitute parts can look different from the original.
BEST SELLER
$76.29 |
6% OFF Phone Price : $81.29
In Stock
Heater,3 Ele 7134792700
#1

Burner diagram

Heater,3 ele

Part #7134792700

Replaced by #134792700

?
Manufacturer substitution
This part replaces 7134792700. Substitute parts can look different from the original.
BEST SELLER
$201.96 |
12% OFF MSRP : $230.00
In Stock
Limiter,ther 7137032600
#8

Burner diagram

Limiter,ther

Part #7137032600

Replaced by #137032600

?
Manufacturer substitution
This part replaces 7137032600. Substitute parts can look different from the original.
BEST SELLER
$52.88 |
9% OFF Phone Price : $57.88
In Stock
Pulley 7134793500
#23

Motor diagram

Pulley

Part #7134793500

Replaced by #134793511

?
Manufacturer substitution
This part replaces 7134793500. Substitute parts can look different from the original.
BEST SELLER
$40.99 |
11% OFF Phone Price : $45.99
In Stock
Blower,housi 7134690800
#10

Motor diagram

Blower,housi

Part #7134690800

Replaced by #134690800

?
Manufacturer substitution
This part replaces 7134690800. Substitute parts can look different from the original.
BEST SELLER
$140.75 |
7% OFF Phone Price : $150.75
In Stock
Limiter,ther 7134711400
#8

Motor diagram

Limiter,ther

Part #7134711400

Replaced by #134711401

?
Manufacturer substitution
This part replaces 7134711400. Substitute parts can look different from the original.
BEST SELLER
$20.95 |
19% OFF Phone Price : $25.95
In Stock
Duct,heat,re 7134694020
#16

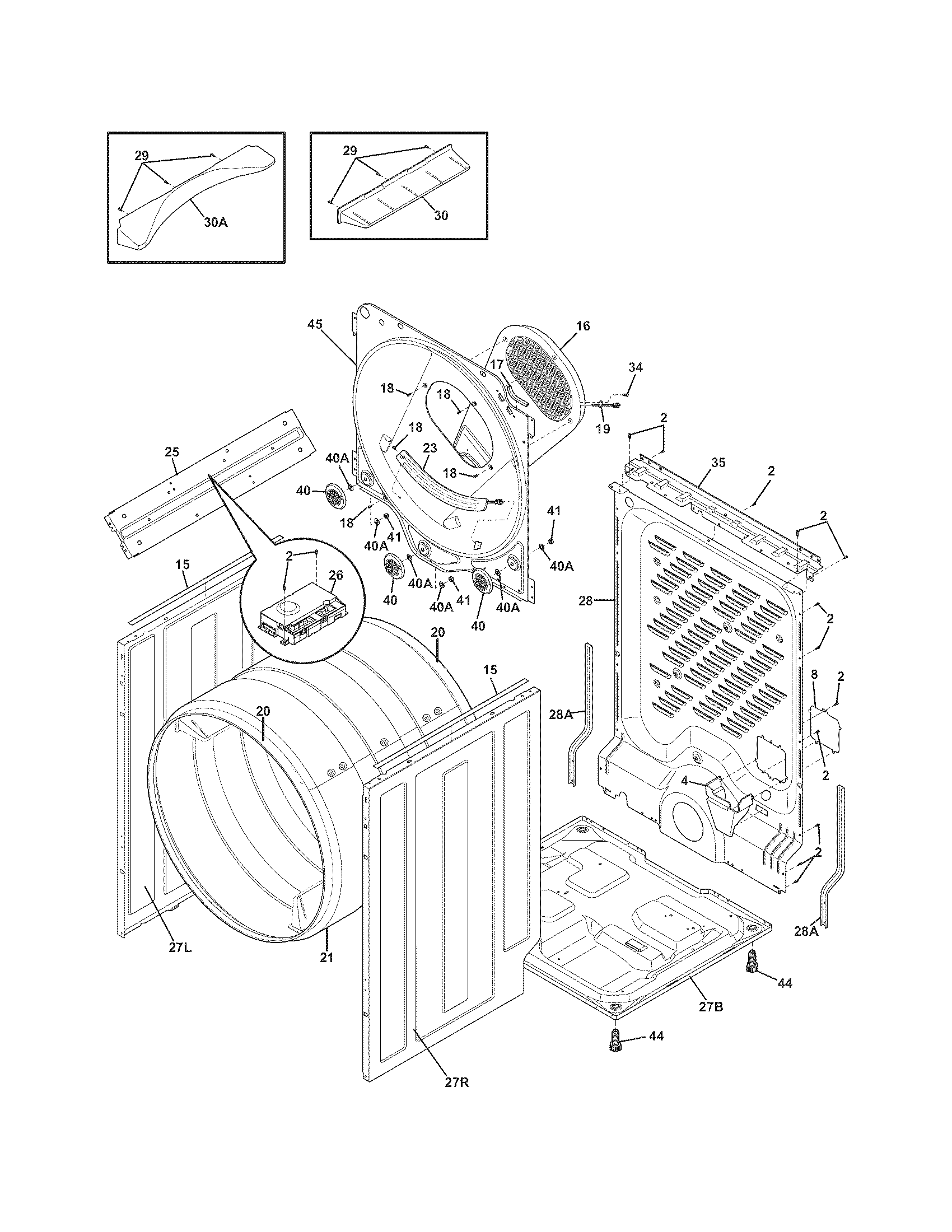

Cabinet/drum diagram

Duct,heat,re

Part #7134694020

Replaced by #5304508449

?
Manufacturer substitution
This part replaces 7134694020. Substitute parts can look different from the original.
BEST SELLER
$63.21 |
7% OFF Phone Price : $68.21
In Stock
Screw 7137034600
#52

Motor diagram

Screw

Part #7137034600

Replaced by #131168200

?
Manufacturer substitution
This part replaces 7137034600. Substitute parts can look different from the original.
BEST SELLER
$9.78 |
42% OFF MSRP : $17.00
In Stock
Screw,pan He 7131168200
Screw,pan he

Part #7131168200

Replaced by #131168200

?
Manufacturer substitution
This part replaces 7131168200. Substitute parts can look different from the original.
BEST SELLER
$9.78 |
42% OFF MSRP : $17.00
In Stock
