Model #T009N Official Proctor Silex toaster

Here are the diagrams and repair parts for Proctor Silex T009N toaster, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 16 parts

Front Panel#15

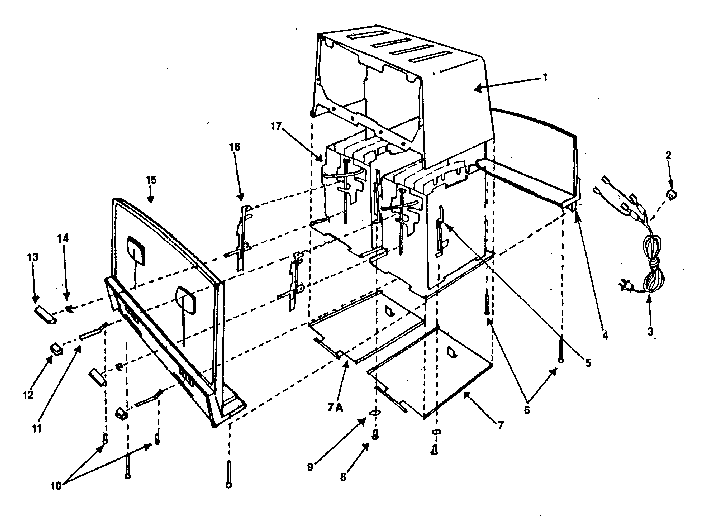

Replacement parts Diagram

Front panel

Part #645210

The manufacturer no longer makes this part, and there's no substitute part

(L/P) SCREW, 6-18 X 3/8", PAN HD. PH. S.T., BODY TO PANEL (TOP REAR OF BODY-OUTER SCREW) (ONE PER PANEL)

See All Related Diagrams

(l/p) screw, 6-18 x 3/8", pan hd. ph. s.t., body to panel (top rear of body-outer screw) (one per panel)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Liftr Knob B#13

Replacement parts Diagram

Liftr knob b

Part #139001

The manufacturer no longer makes this part, and there's no substitute part

Rear Panel#4

Replacement parts Diagram

Rear panel

Part #969454

The manufacturer no longer makes this part, and there's no substitute part

B/k Try Crmb#7

Replacement parts Diagram

B/k try crmb

Part #935675

The manufacturer no longer makes this part, and there's no substitute part

Chassis#17

Replacement parts Diagram

Chassis

Part #642968

The manufacturer no longer makes this part, and there's no substitute part

Spring#14

Replacement parts Diagram

Spring

Part #105005

The manufacturer no longer makes this part, and there's no substitute part

Grid Cord#2

Replacement parts Diagram

Grid cord

Part #121097

The manufacturer no longer makes this part, and there's no substitute part

Thermostat#5

Replacement parts Diagram

Thermostat

Part #920806

The manufacturer no longer makes this part, and there's no substitute part

Cord Power#3

Replacement parts Diagram

Cord power

Part #908764

The manufacturer no longer makes this part, and there's no substitute part
