Kenmore
Canister Vacuum

Model #1163289490C Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Kenmore 1163289490C vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 73 parts

    Vacuum Motor Safety Filter#22

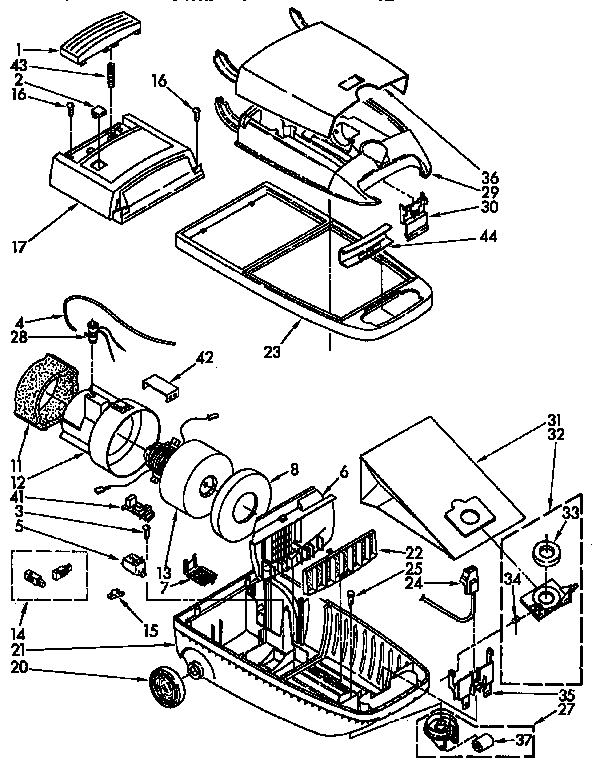

    Vacuum cleaner parts Diagram

    Filtr-sfty

    Part #4152969
    Replaced by #KS4152969
    ?
    Manufacturer substitution
    This part replaces 4152969. Substitute parts can look different from the original.
    BEST SELLER

    Get free shipping with Automatic Reorder

    Back Order
    $16.19 |
    11% OFF
    Phone Price: $18.19
    Vacuum Hose Swivel#2

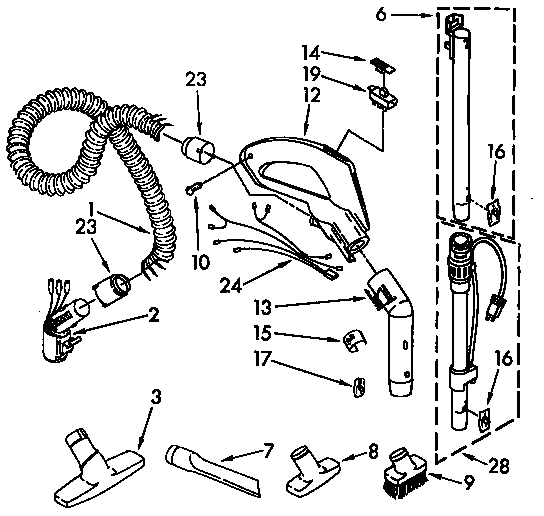

    Hose and attachment parts Diagram

    Hose swivel

    Part #4369106
    Replaced by #4370563
    ?
    Manufacturer substitution
    This part replaces 4369106. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $36.04 |
    12% OFF
    Phone Price: $41.04
    Vacuum Hose Handle Center Tube#13

    Hose and attachment parts Diagram

    Center tube

    Part #4369114
    Replaced by #4370612
    ?
    Manufacturer substitution
    This part replaces 4369114. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $18.59 |
    10% OFF
    Phone Price: $20.59
    Vacuum Upholstery Nozzle#8

    Hose and attachment parts Diagram

    Upholstery brush

    Part #4147115
    Replaced by #52651
    ?
    Manufacturer substitution
    This part replaces 4147115. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $17.99 |
    10% OFF
    Phone Price: $19.99
    Vacuum Wheel#20

    Vacuum cleaner parts Diagram

    Vacuum wheel

    Part #4156434
    Replaced by #KS4156434
    ?
    Manufacturer substitution
    This part replaces 4156434. Substitute parts can look different from the original.
    This item is not returnable
    Back Order
    $8.19 |
    11% OFF
    Phone Price: $9.19
    Vacuum Bag Mount Assembly#32

    Vacuum cleaner parts Diagram

    Mounting bag

    Part #4155800
    Replaced by #4369956
    ?
    Manufacturer substitution
    This part replaces 4155800. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.39 |
    19% OFF
    Phone Price: $5.39
    Vacuum Grip Handle#44

    Vacuum cleaner parts Diagram

    Vacuum grip handle

    Part #4155620
    In Stock
    $11.49
    Screw#11

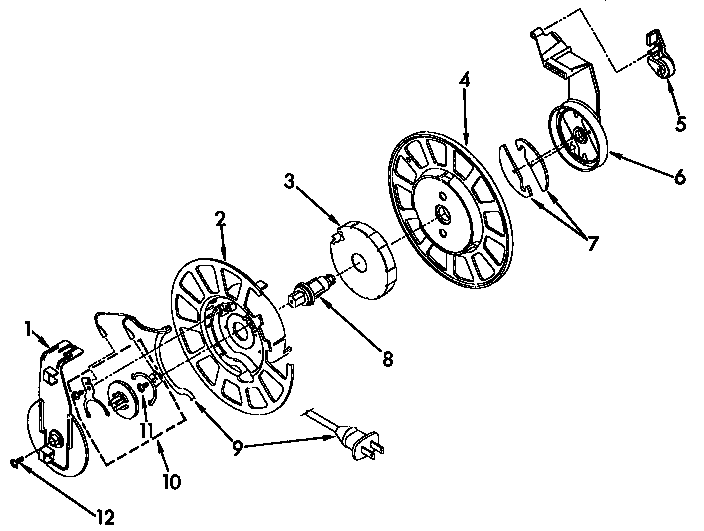

    Power cord reel parts Diagram

    Screw

    Part #595294

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Hose#1

    Hose and attachment parts Diagram

    Hose

    Part #4369110
    Replaced by #4369467
    ?
    Manufacturer substitution
    This part replaces 4369110. Substitute parts can look different from the original.
    In Stock
    $40.99 |
    11% OFF
    Phone Price: $45.99
    Vacuum Wand Assembly#28

    Hose and attachment parts Diagram

    Wand

    Part #4369224
    Replaced by #4369395
    ?
    Manufacturer substitution
    This part replaces 4369224. Substitute parts can look different from the original.
    In Stock
    $30.59 |
    14% OFF
    Phone Price: $35.59

    Symptoms common to all vacuum cleaners

    Choose a symptom to see related vacuum cleaner repairs.

    Main causes: damaged vacuum hose, clogged motor air filter, bad suction motor
    Main causes: broken drive belt, damaged brush roll, tripped brush roll motor overload, bad brush roll motor, wiring failure
    Main causes: lack of power, bad power cord, drive motor failure, wiring failure
    Main causes: weak suction motor, vacuum bag is full, clog in suction air path, dirty exhaust filter, leaky vacuum hose
