Model #CC1E-P1155201SE Official Amana electric cartridge

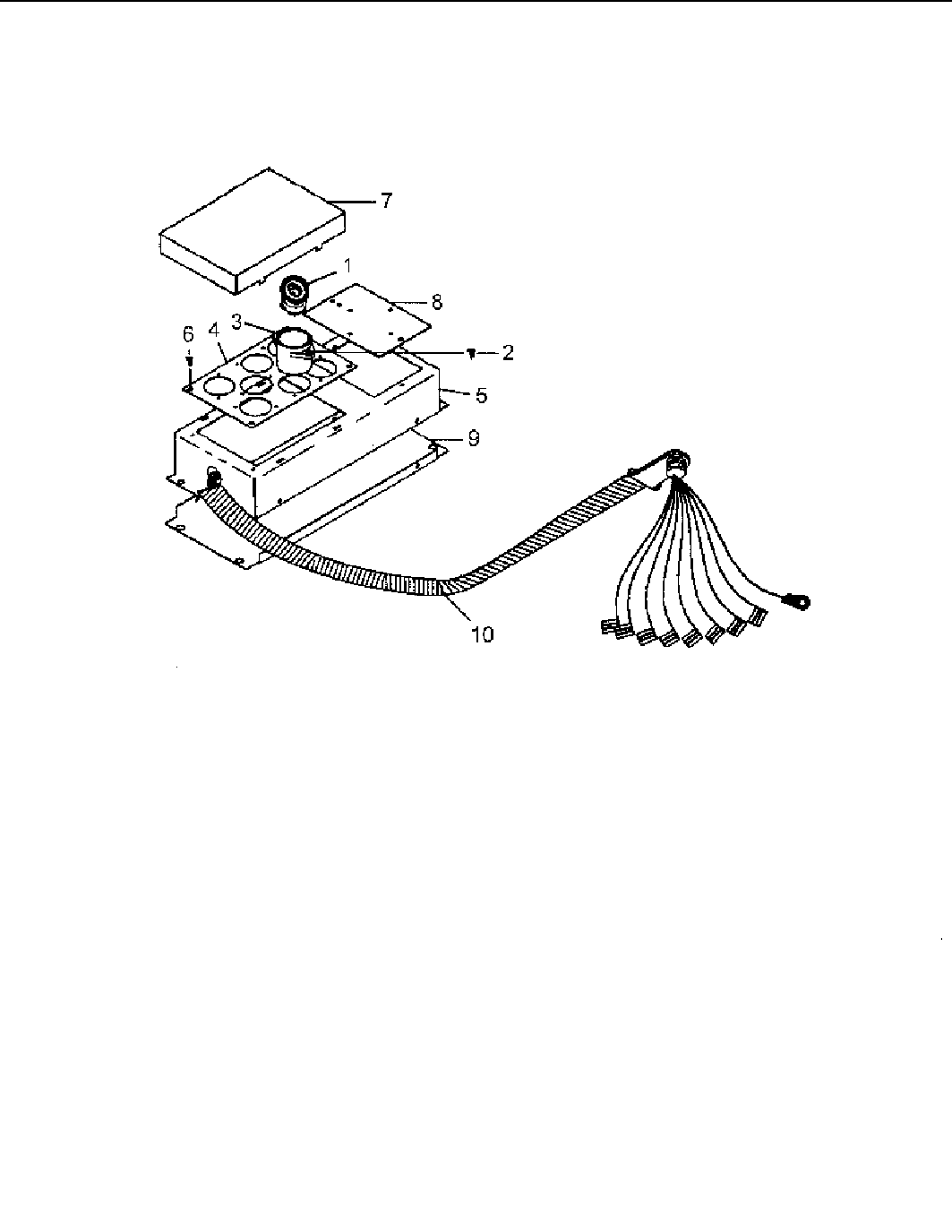

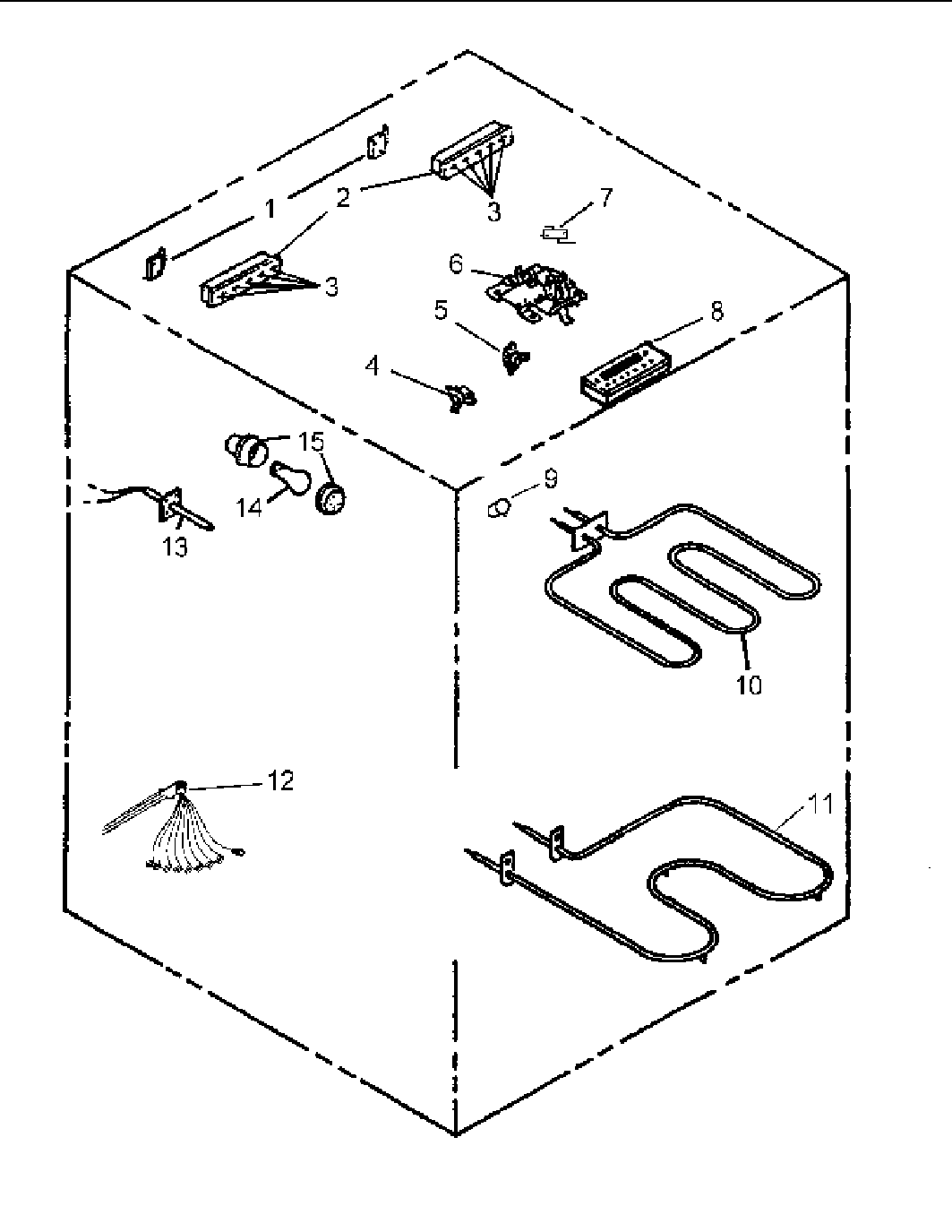

Here are the diagrams and repair parts for Amana CC1E-P1155201SE electric cartridge, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Showing 10 of 19 parts

Refrigerator Screw#10

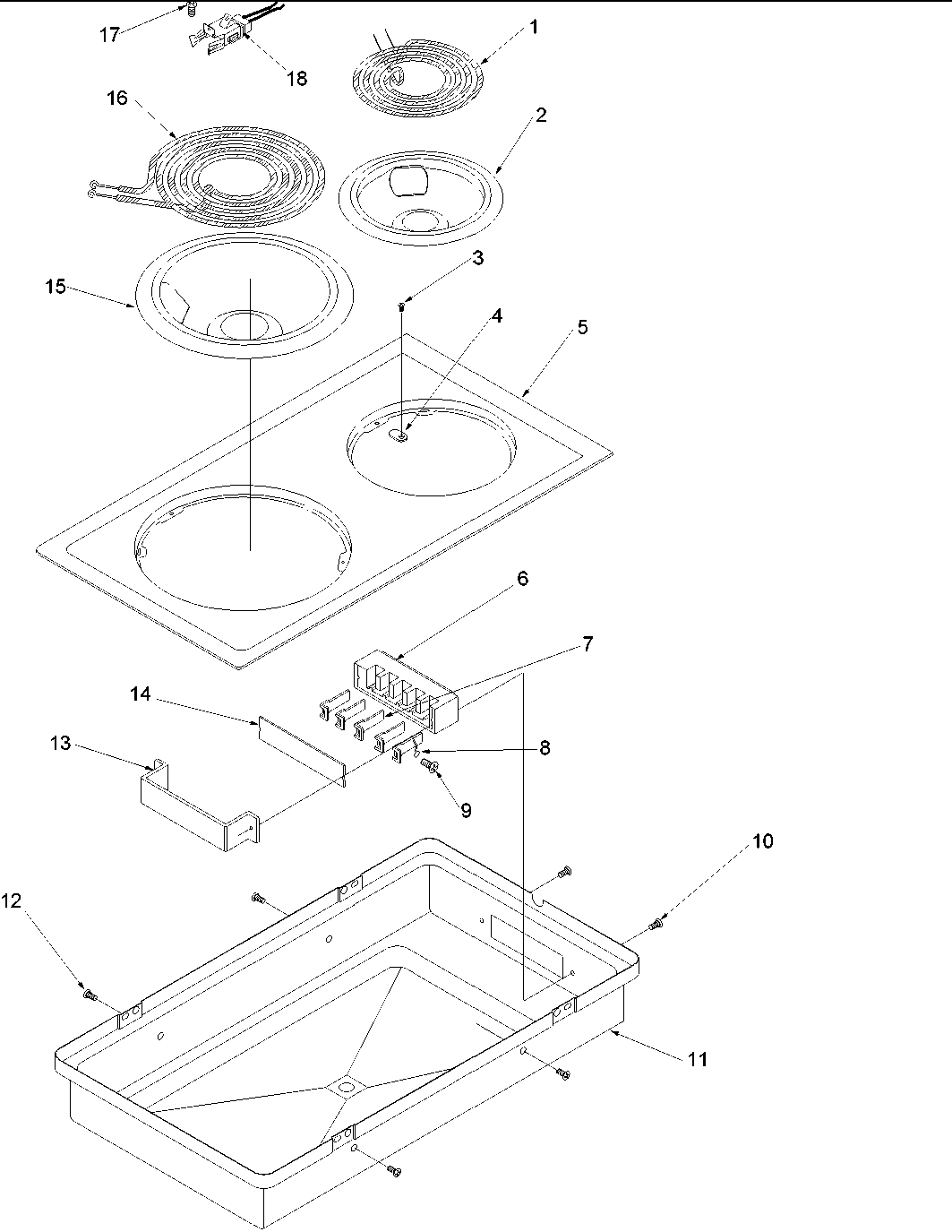

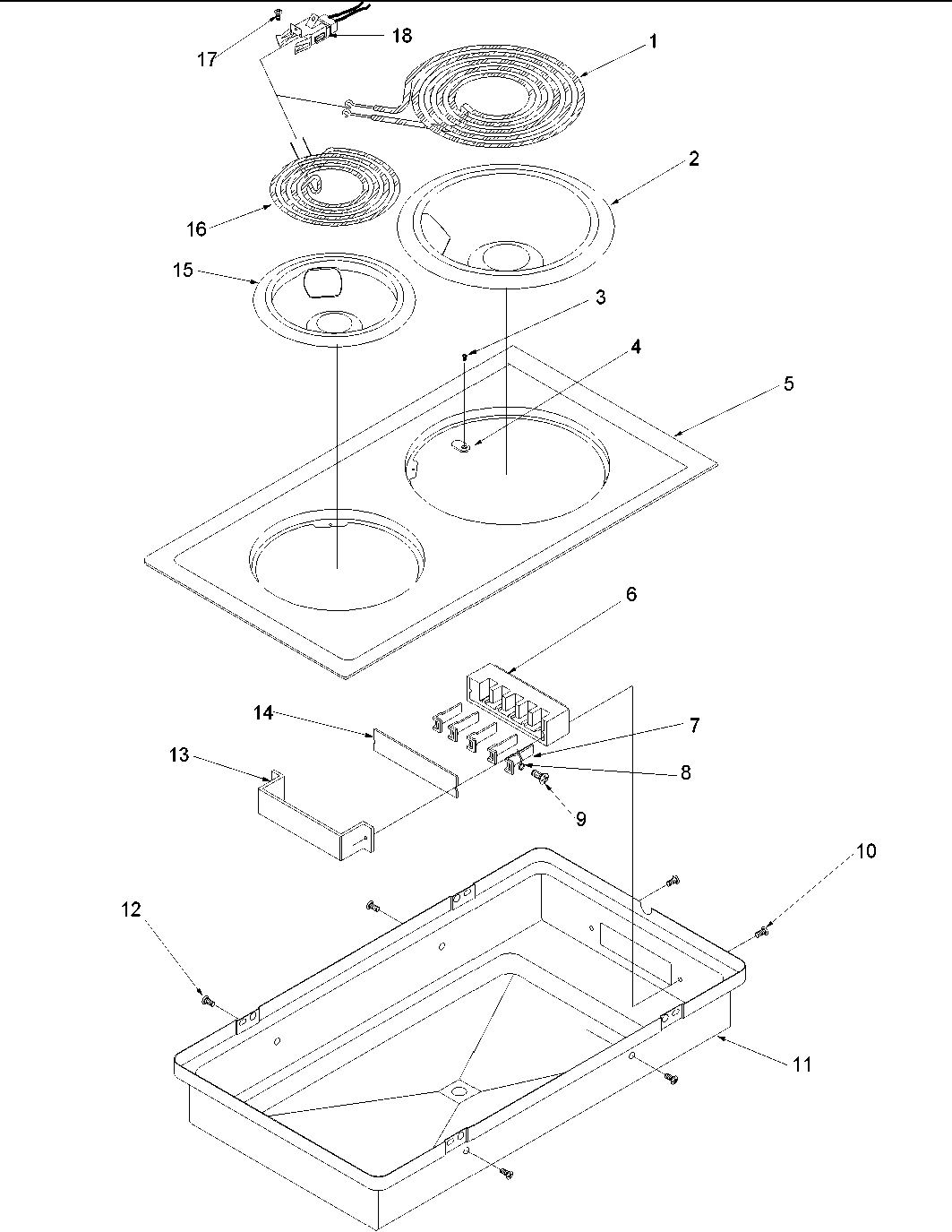

Open coil cooktop - cc1e/w Diagram

Screw

Part #0041809
Replaced by #W11245710
?
Manufacturer substitution
This part replaces 0041809. Substitute parts can look different from the original.
This item is not returnable
In Stock
$16.79 |
11% OFF
Phone Price: $18.79
Range Surface Element Receptacle#18

Open coil cooktop - cc1e/w Diagram

Kit, top ele

Part #0089336
Replaced by #330031
?
Manufacturer substitution
This part replaces 0089336. Substitute parts can look different from the original.
In Stock
$10.09 |
17% OFF
Phone Price: $12.09
Range Coil Surface Element, 8-in#1

Open coil cooktop - cc1e/w Diagram

Element, 5 t

Part #0051570
Replaced by #WP3191454
?
Manufacturer substitution
This part replaces 0051570. Substitute parts can look different from the original.
In Stock
$86.49 |
5% OFF
Phone Price: $91.49
Range Coil Surface Element, 6-in#16

Open coil cooktop - cc1e/w Diagram

Element, 4 t

Part #0051576
Replaced by #WPW10259868
?
Manufacturer substitution
This part replaces 0051576. Substitute parts can look different from the original.
In Stock
$77.30 |
10% OFF
Was: $85.89
Range Screw#9

Open coil cooktop - cc1e/w Diagram

Machine screw

Part #0041768
Replaced by #WP3400882
?
Manufacturer substitution
This part replaces 0041768. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39
Range Drip Pan#15

Open coil cooktop - cc1e/w Diagram

Bowl

Part #059011B
Replaced by #W10290353RW
?
Manufacturer substitution
This part replaces 059011B. Substitute parts can look different from the original.
In Stock
$15.69 |
11% OFF
Phone Price: $17.69
Element Wire#999B

Open coil cooktop - cc1e/w Diagram

Element wire

Part #0309968

The manufacturer no longer makes this part, and there's no substitute part

"T" FITTING (FLANGE)

See All Related Diagrams

"t" fitting (flange)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Bowl#2

Open coil cooktop - cc1e/w Diagram

Bowl

Part #059012B

The manufacturer no longer makes this part, and there's no substitute part

Wire Clamp#999A

Open coil cooktop - cc1e/w Diagram

Wire clamp

Part #0068513

The manufacturer no longer makes this part, and there's no substitute part
