GE
Bottom-Mount Refrigerator

Model # ZICP360NXCLH Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE ZICP360NXCLH bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |

Refrigerator Door Bin WR71X10138
#5391

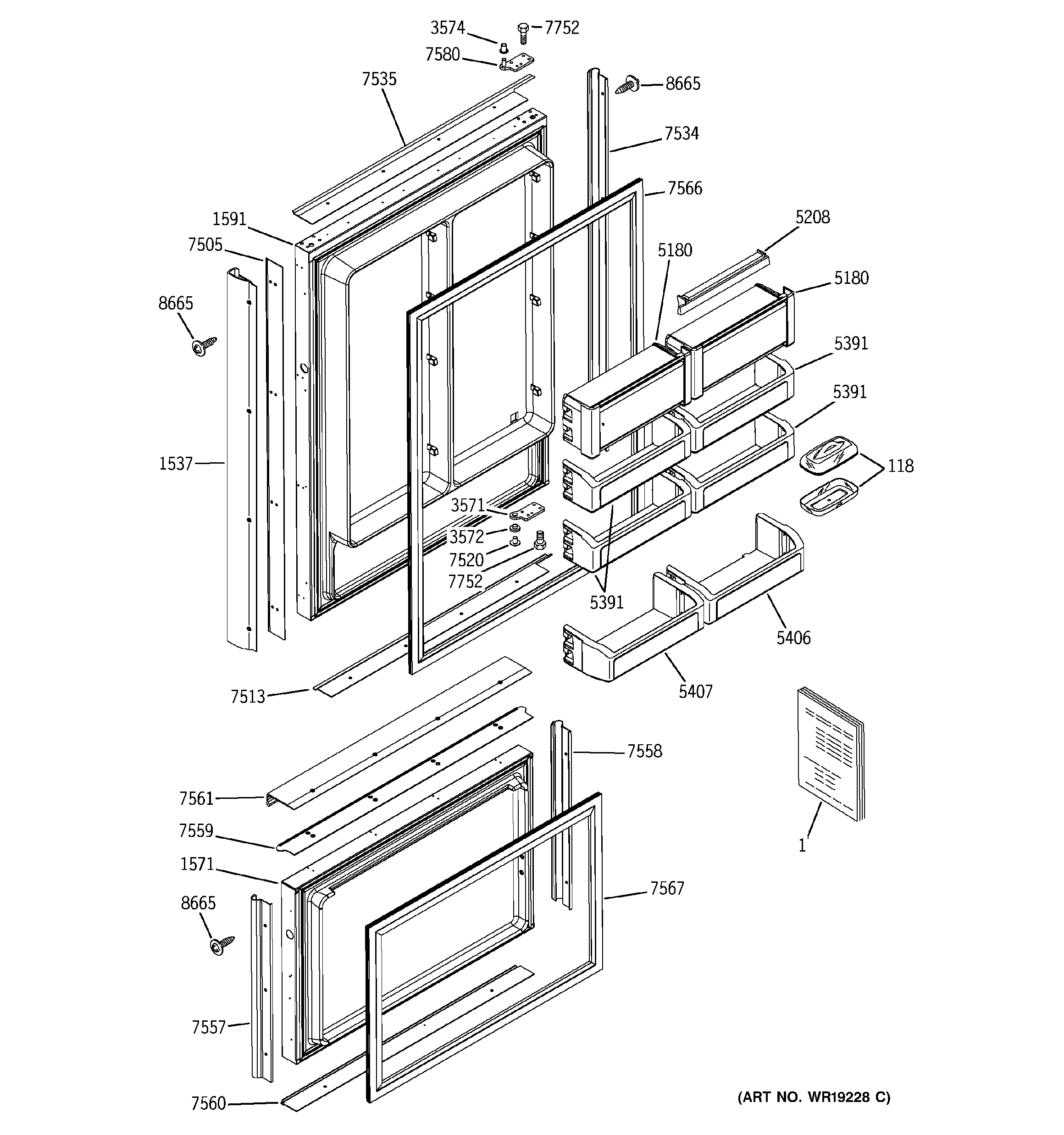

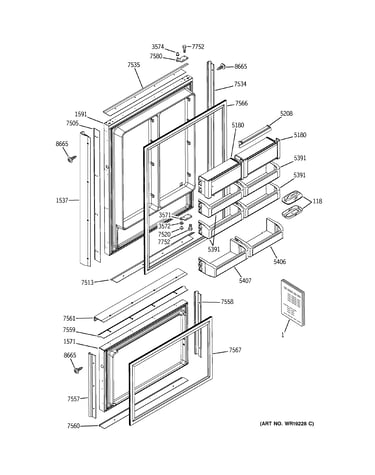

Doors diagram

Refrigerator door bin

Part #WR71X10138

BEST SELLER
$82.27
6% OFF Phone Price : $87.27
In Stock
Compressor V WR87X10123
#725

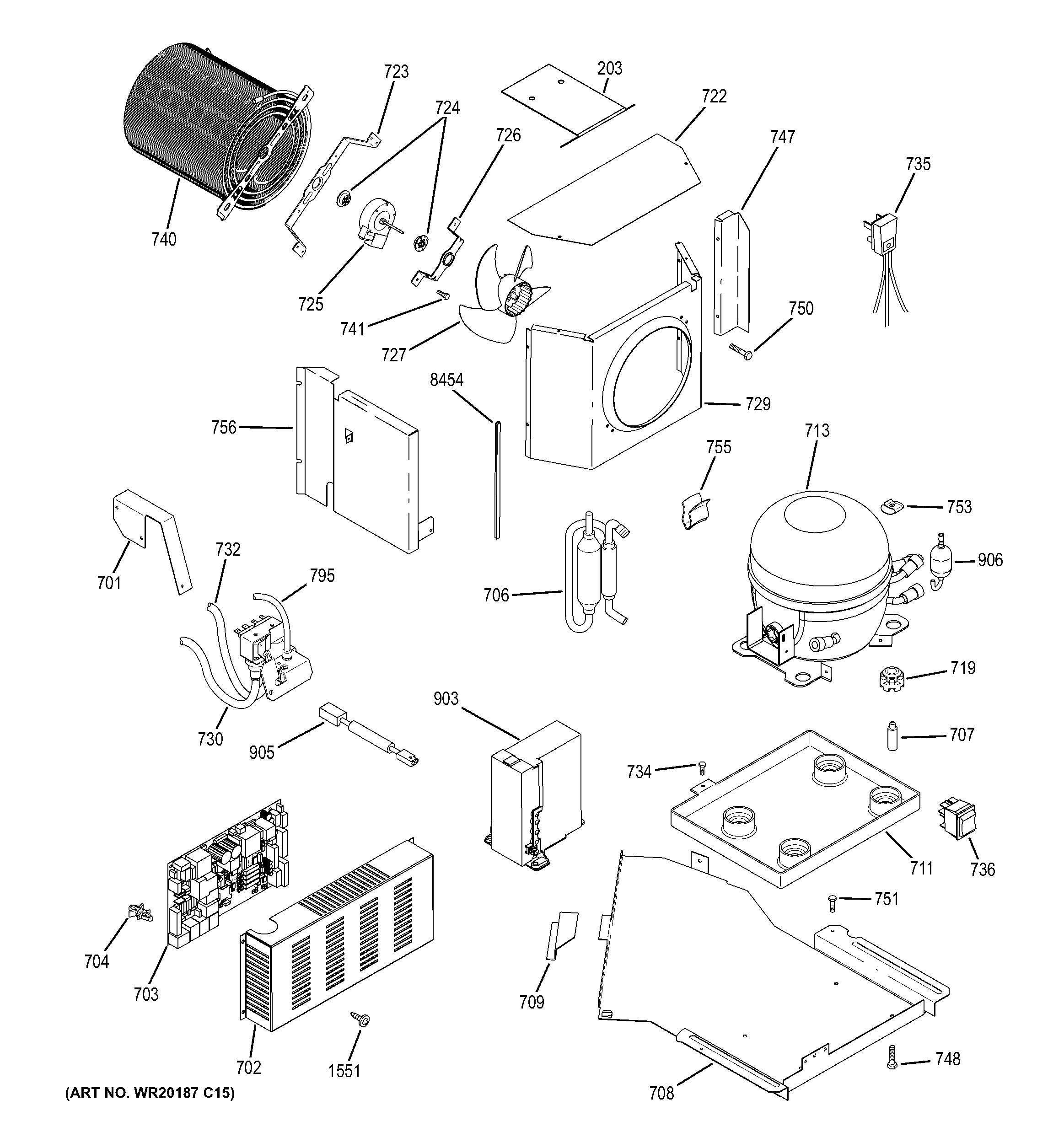

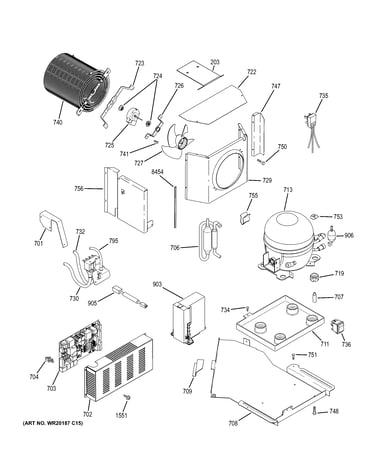

Machine compartment diagram

Compressor v

Part #WR87X10123

Replaced by #WR87X10111

?
Manufacturer substitution
This part replaces WR87X10123. Substitute parts can look different from the original.
$624.56
$10.00 OFF Phone Price : $634.56
In Stock
Refrigerator Door Bin, Left WR71X10140
#5406

Doors diagram

Refrigerator door bin, left

Part #WR71X10140

$187.56
5% OFF Phone Price : $197.56
In Stock
Refrigerator Door Bin, Right WR71X10139
#5406

Doors diagram

Refrigerator door bin, right

Part #WR71X10139

$194.12
5% OFF Phone Price : $204.12
In Stock
Refrigerator Water Inlet Valve Assembly (replaces Wr57x10092) WR57X10084
#795

Machine compartment diagram

Refrigerator water inlet valve assembly (replaces wr57x10092)

Part #WR57X10084

$100.45
9% OFF Phone Price : $110.45
In Stock
Toe Kick WR74X10125
#706

Machine compartment diagram

Toe kick

Part #WR74X10125

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR74X10125. Substitute parts can look different from the original.
$79.18
6% OFF Phone Price : $84.18
In Stock
Refrigerator Control Panel WR55X10714
#7588

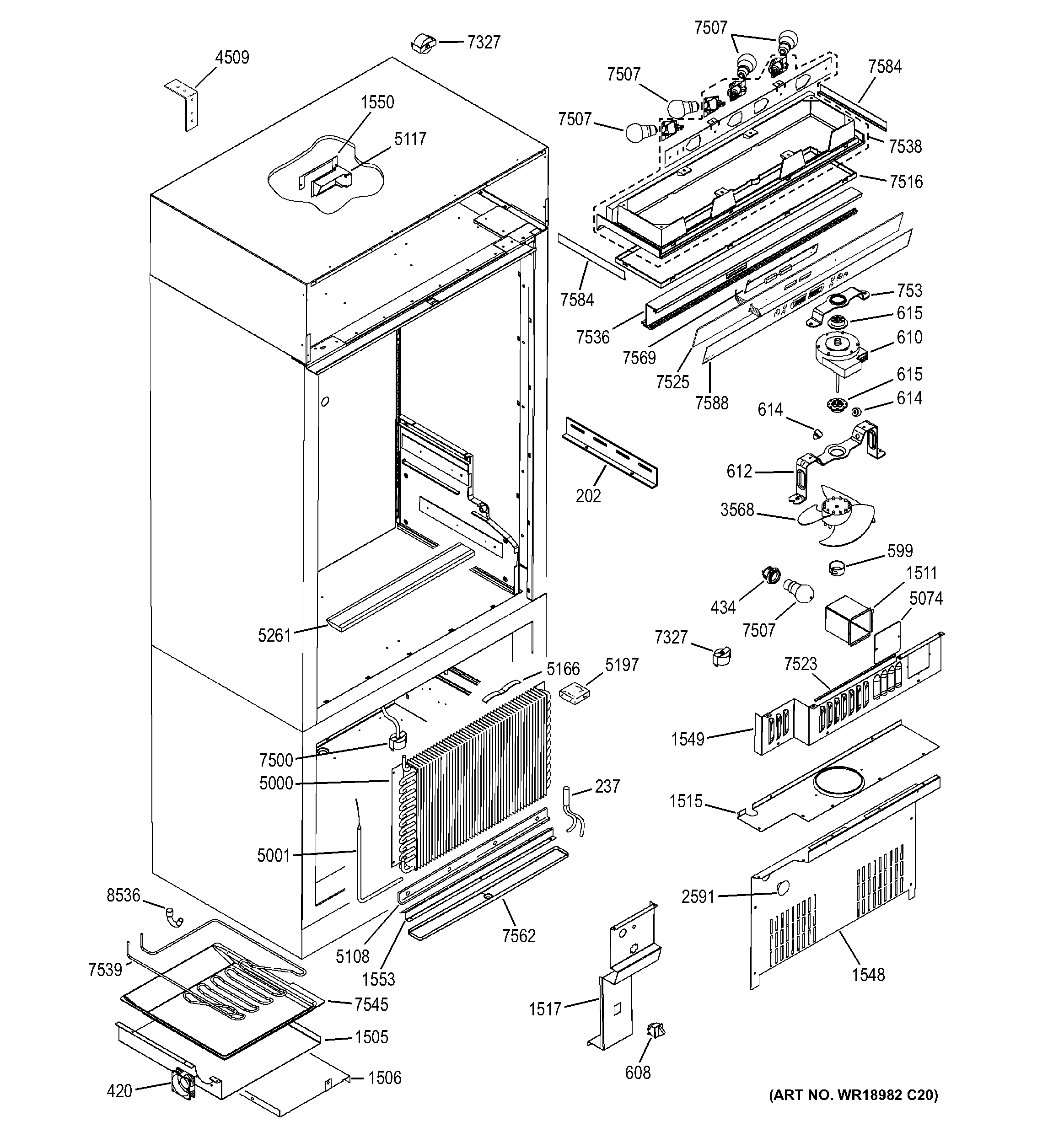

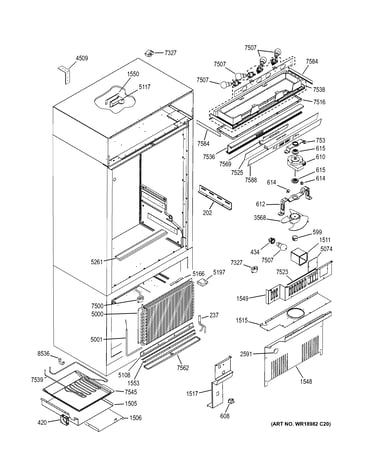

Controls & components diagram

Refrigerator control panel

Part #WR55X10714

Replaced by #WR55X10918

?
Manufacturer substitution
This part replaces WR55X10714. Substitute parts can look different from the original.
In Stock
Refrigerator Crisper Drawer Cover Seal WR14X10040
#9500

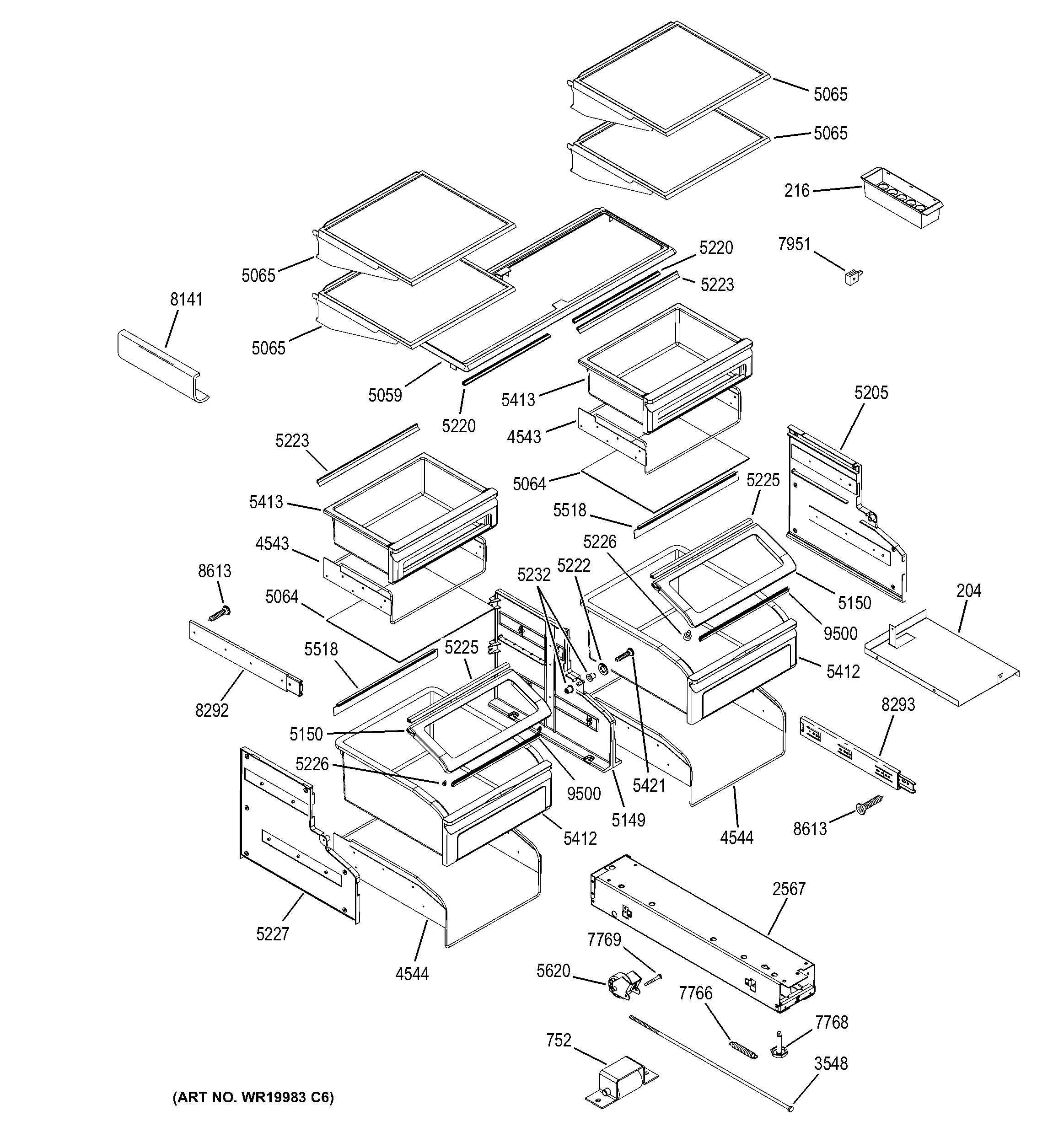

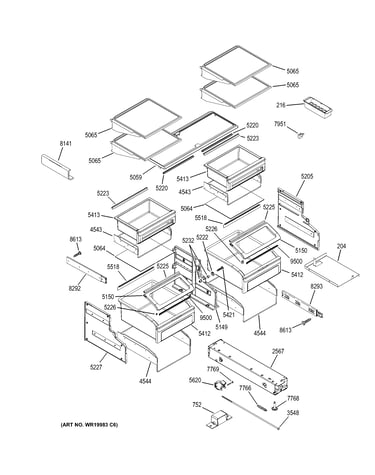

Shelves & drawers diagram

Refrigerator crisper drawer cover seal

Part #WR14X10040

$16.09
11% OFF Phone Price : $18.09
In Stock
Refrigerator Slide Liner WR72X10081
#7509

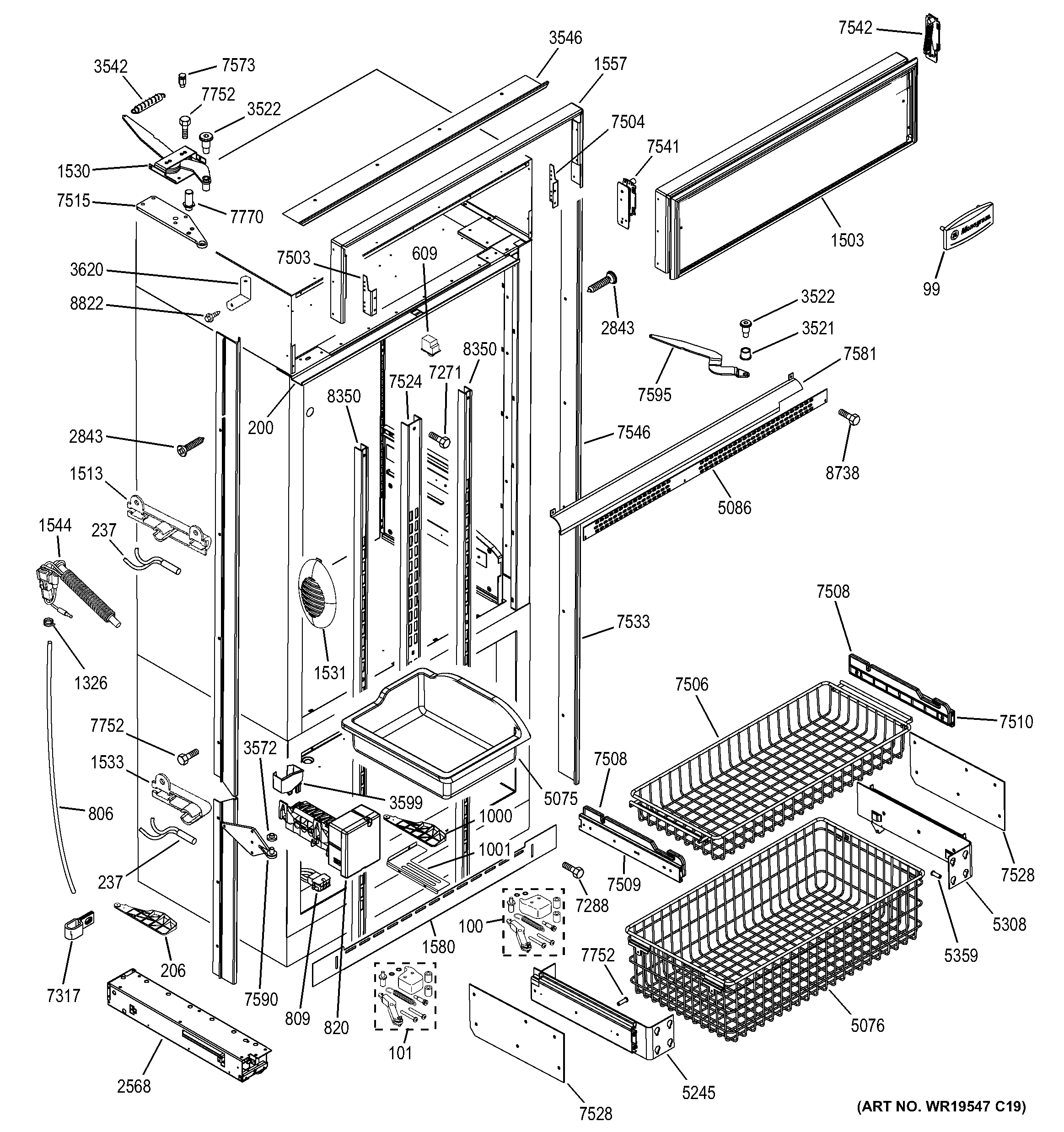

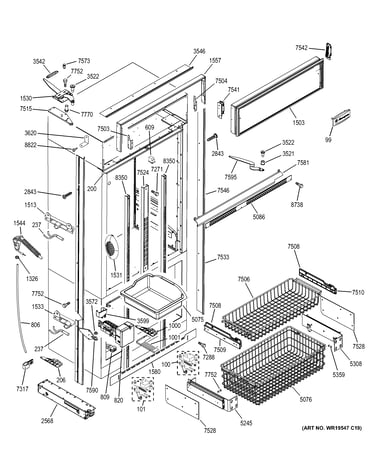

Freezer section, trim & components diagram

Refrigerator slide liner

Part #WR72X10081

In Stock
Refrigerator Door Closure Assembly WR02X10980
#1530

Freezer section, trim & components diagram

Refrigerator door closure assembly

Part #WR02X10980

$69.48
7% OFF Phone Price : $74.48
In Stock
