Craftsman
Band Saw

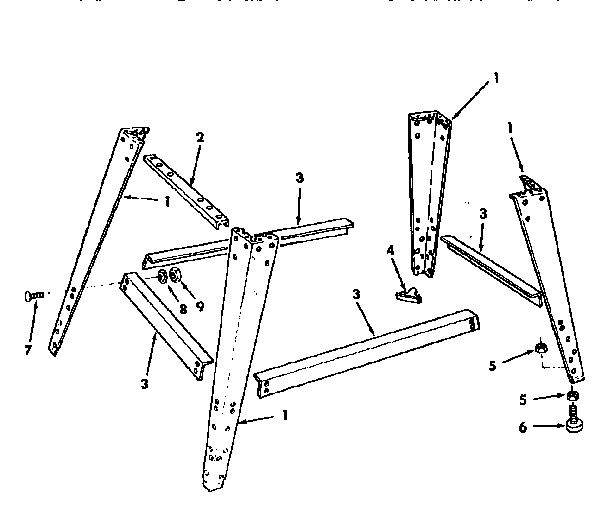

Model #113248322 Official Craftsman band saw with leg set

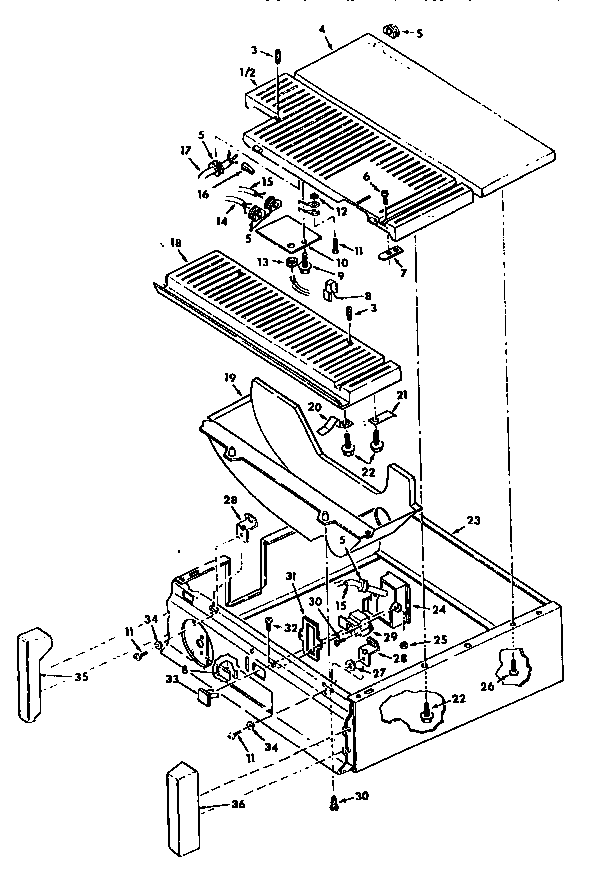

Here are the diagrams and repair parts for Craftsman 113248322 band saw with leg set, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

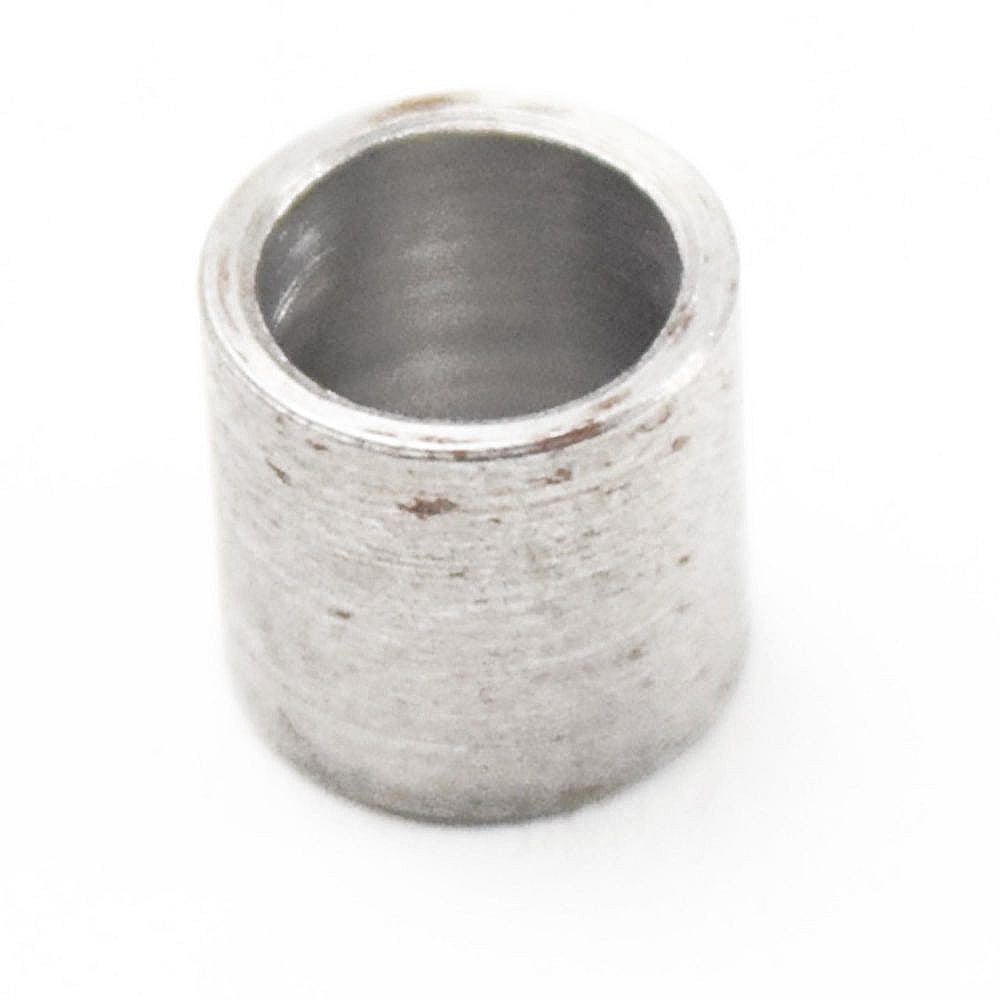

    Showing 10 of 137 parts

    Washer

    See All Related Diagrams

    Washer

    Part #STD551037

    The manufacturer no longer makes this part, and there's no substitute part

    Screw#16

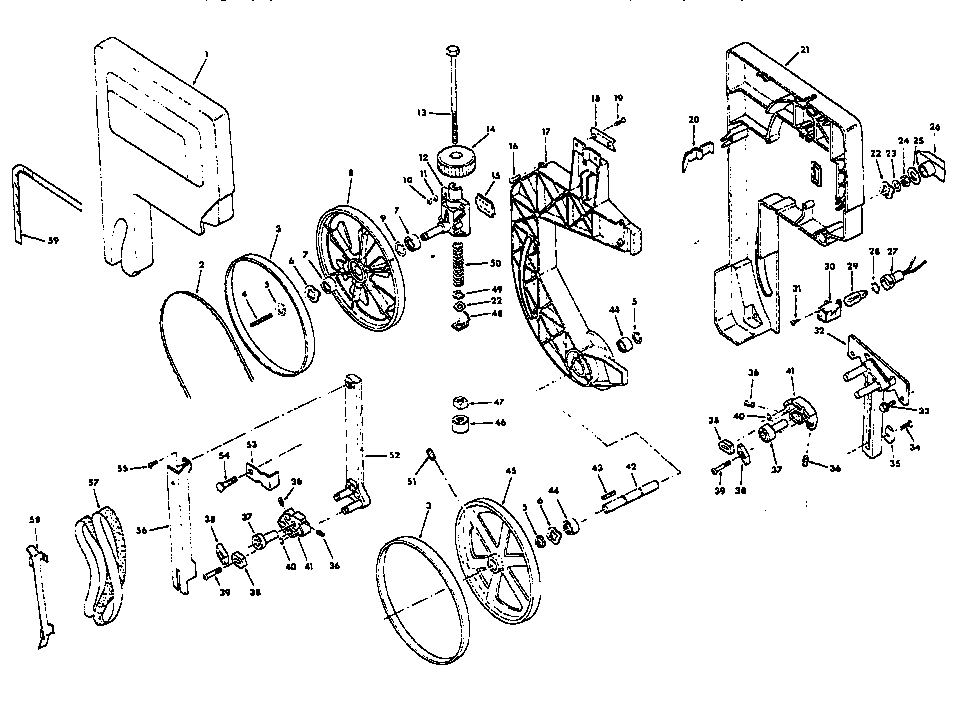

    Drive assembly Diagram

    Screw

    Part #808380-5

    The manufacturer no longer makes this part, and there's no substitute part

    Machine Screw

    See All Related Diagrams

    Machine screw

    Part #STD610805

    The manufacturer no longer makes this part, and there's no substitute part

    Bolt#19

    Drive assembly Diagram

    Bolt

    Part #STD533110

    The manufacturer no longer makes this part, and there's no substitute part

    Radial Arm Saw Hand Wheel Assembly#1

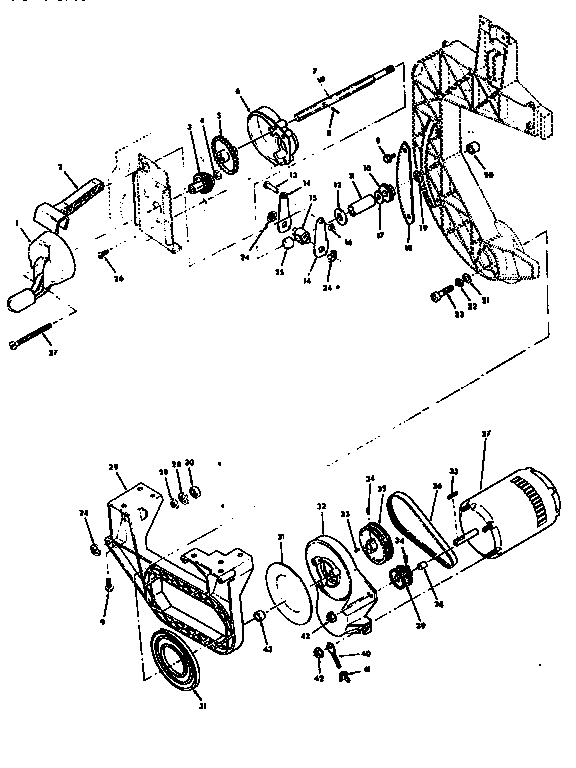

    Drive and motor mount assembly Diagram

    Radial arm saw hand wheel assembly

    Part #816499

    The manufacturer no longer makes this part, and there's no substitute part

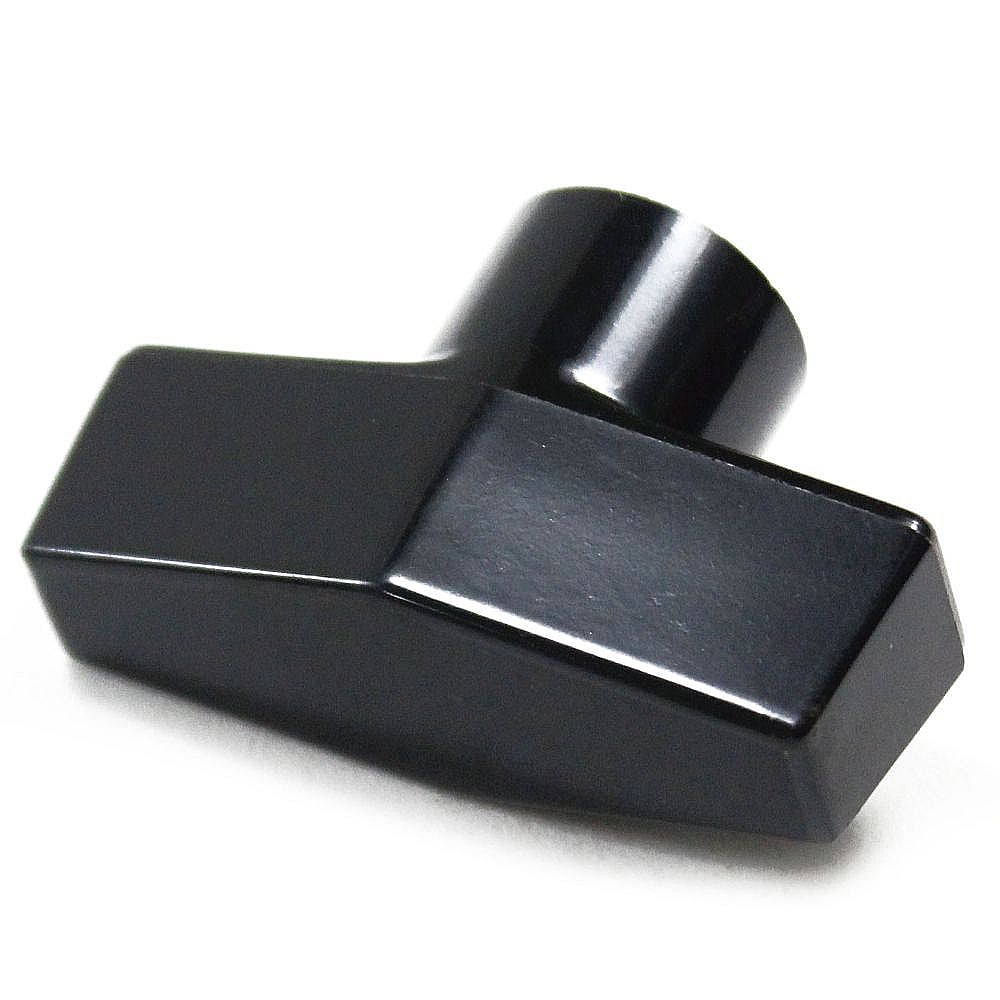

    Band Saw Knob#26

    Drive assembly Diagram

    Band saw knob

    Part #816435

    The manufacturer no longer makes this part, and there's no substitute part

    Carriage Bolt#54

    Drive assembly Diagram

    Carriage bolt

    Part #109093

    The manufacturer no longer makes this part, and there's no substitute part

    Power Tool Retainer Ring#9

    Drive assembly Diagram

    Power tool retainer ring

    Part #38879

    The manufacturer no longer makes this part, and there's no substitute part

    Band Saw Wheel Shaft, Lower#42

    Drive assembly Diagram

    Band saw wheel shaft, lower

    Part #816387

    The manufacturer no longer makes this part, and there's no substitute part

    Pan Head Screw#27

    Drive and motor mount assembly Diagram

    Pan head screw

    Part #809372-18

    The manufacturer no longer makes this part, and there's no substitute part

    Symptoms for band saws

    Choose a symptom to see related band saw repairs.

    Main causes: damaged rubber tire, worn wheel bearings, loose blade tension, dull saw blade
    Main causes: dull blade, improper feeding, loose blade tension, not using a work piece guide
    Main causes: broken saw blade, bad drive belt, damaged rubber tire
    Main causes: lack of electrical power, broken power cord, bad on/off switch, faulty drive motor
    Main causes: dull blade, using the wrong type of blade, weak drive motor
    Main causes: angle indicator needs adjustment, dull blade
    Main causes: dull blade, using the wrong type of blade, feeding work piece to quickly, loose blade tension
