Model # KBCO06XPBL01 Official KitchenAid compact refrigerator

Here are the diagrams and repair parts for Official KitchenAid KBCO06XPBL01 compact refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |

Light Bulb 4344602
#23

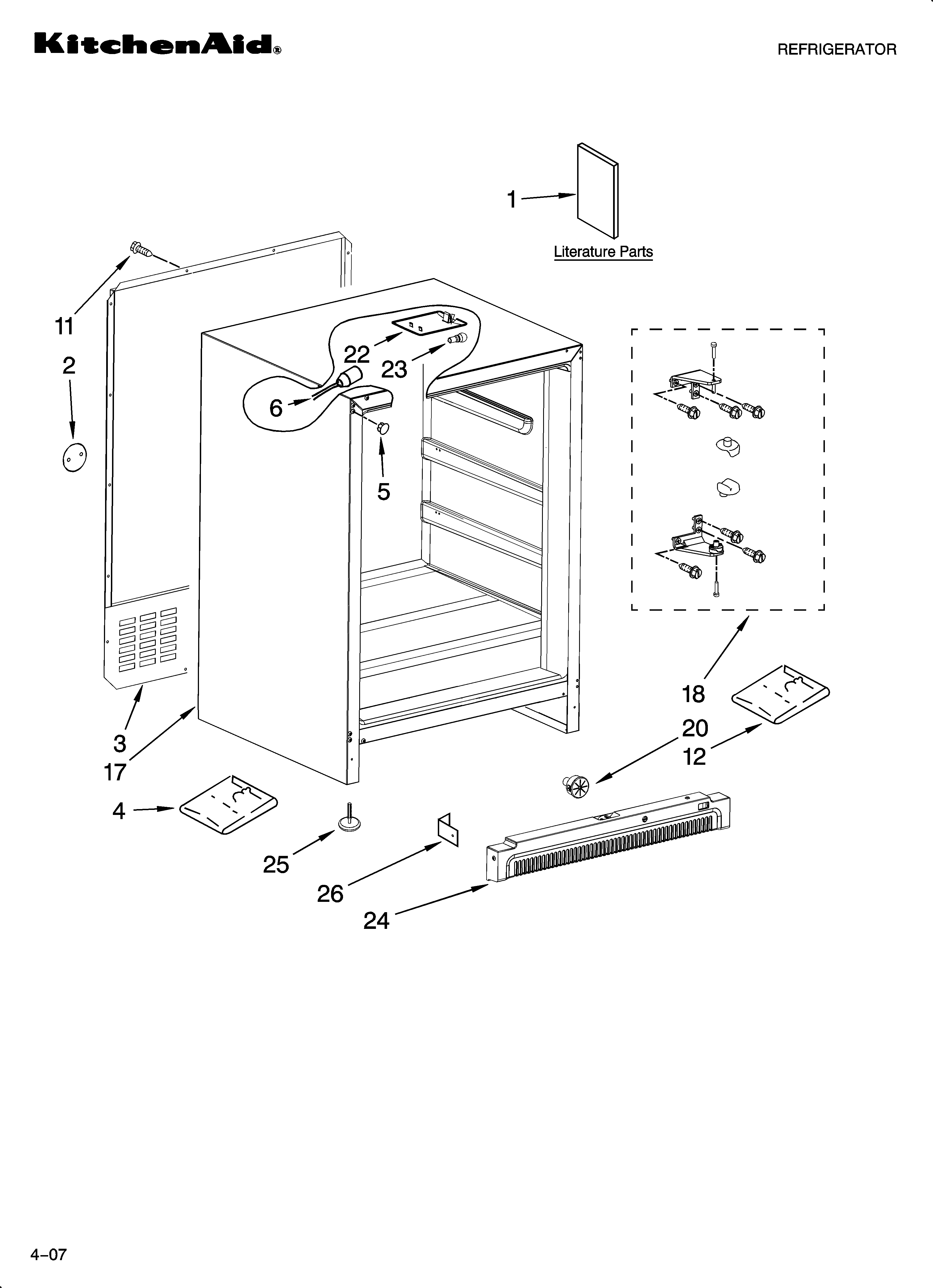

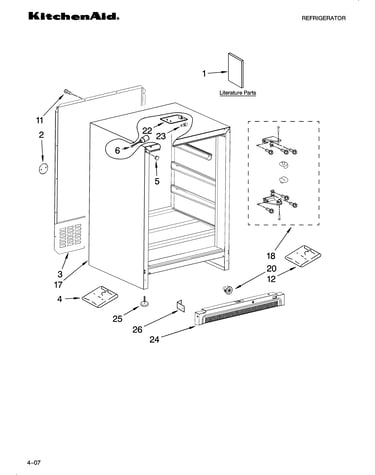

Cabinet parts diagram

Light bulb

Part #4344602

Replaced by #WP22002263

?
Manufacturer substitution
This part replaces 4344602. Substitute parts can look different from the original.
BEST SELLER
$18.02
18% OFF MSRP : $22.00
In Stock
Screw 4344663
#11

Cabinet parts diagram

Screw

Part #4344663

Replaced by #WP8281196

?
Manufacturer substitution
This part replaces 4344663. Substitute parts can look different from the original.
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Screw 4344710
#10

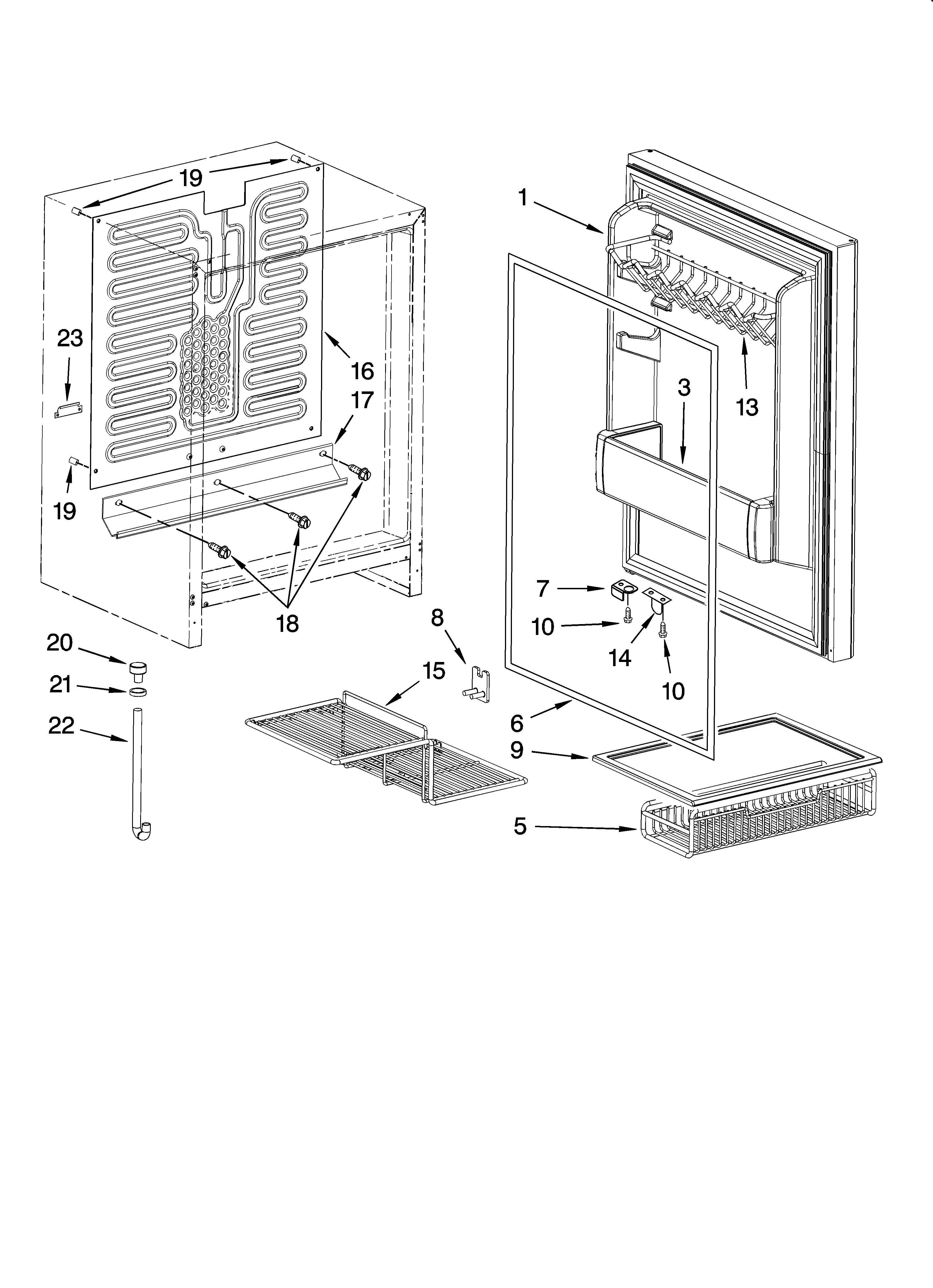

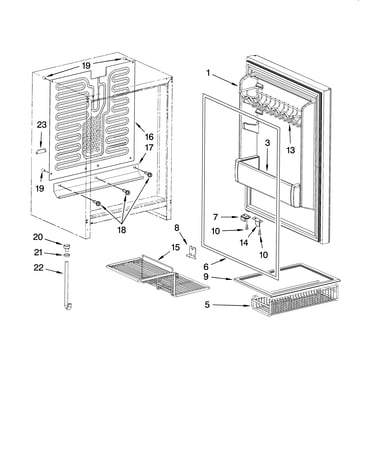

Door and shelf parts diagram

Screw

Part #4344710

Replaced by #WP8281227

?
Manufacturer substitution
This part replaces 4344710. Substitute parts can look different from the original.
This item is not returnable
$7.99
11% OFF Phone Price : $8.99
In Stock
Grommet 2163786
#28

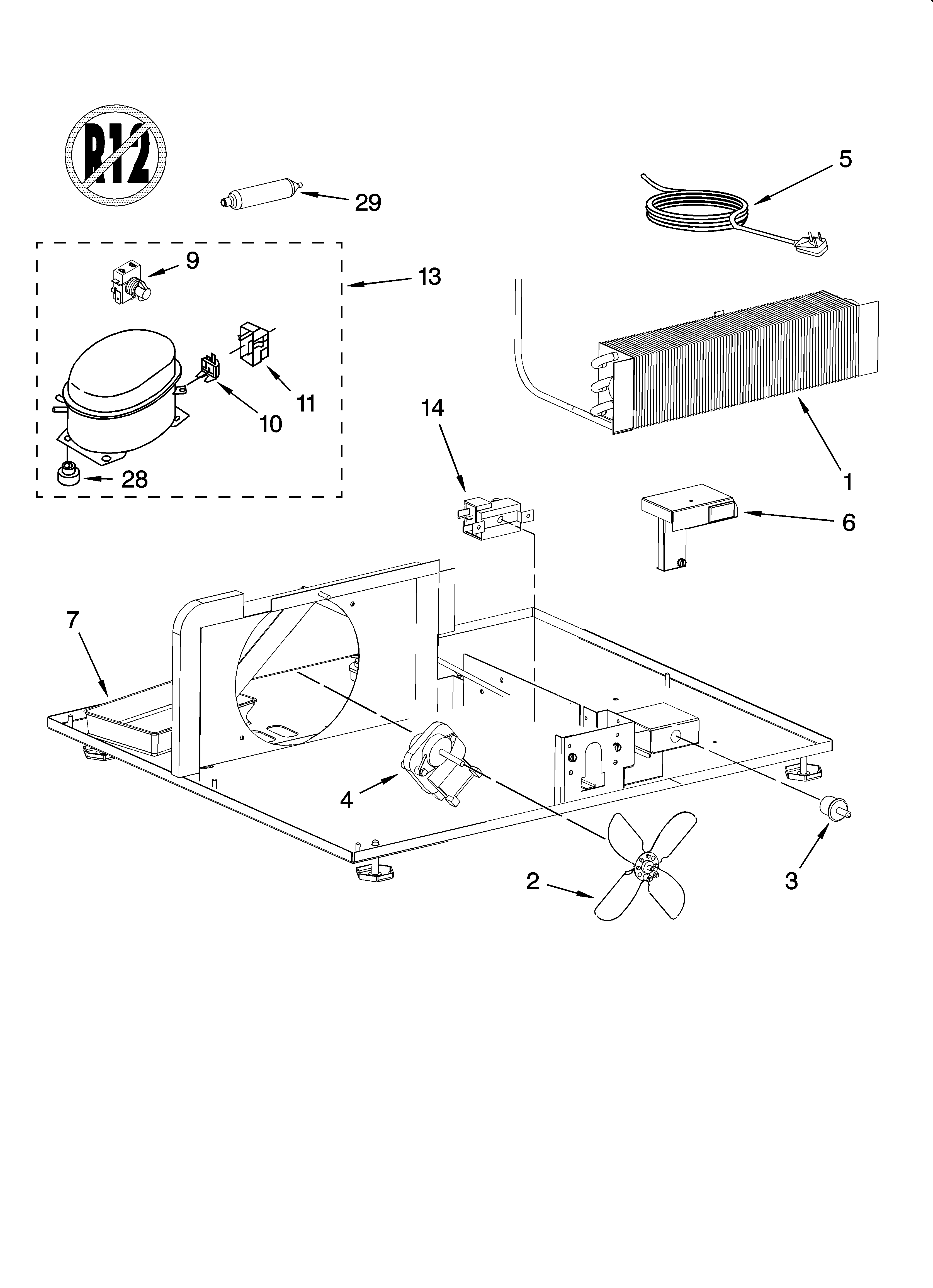

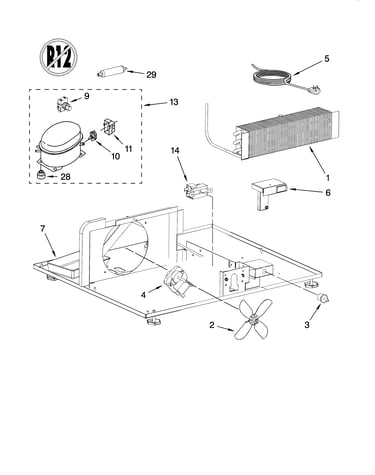

Unit parts diagram

Grommet

Part #2163786

Replaced by #WP2163786

?
Manufacturer substitution
This part replaces 2163786. Substitute parts can look different from the original.
This item is not returnable
In Stock
Terminal Cover 2208371
#11

Unit parts diagram

Terminal cover

Part #2208371

Replaced by #WP2162358

?
Manufacturer substitution
This part replaces 2208371. Substitute parts can look different from the original.
$34.39
13% OFF Phone Price : $39.39
In Stock
Refrigerator Cantilever Bin 2222773
#3

Door and shelf parts diagram

Refrigerator cantilever bin

Part #2222773

Replaced by #W10323599

?
Manufacturer substitution
This part replaces 2222773. Substitute parts can look different from the original.
$66.95
7% OFF Phone Price : $71.95
In Stock
Spacer 4344720
#19

Door and shelf parts diagram

Spacer

Part #4344720

The manufacturer no longer makes this part, and there's no substitute part

Drain Tube 4344723
#22

Door and shelf parts diagram

Drain tube

Part #4344723

The manufacturer no longer makes this part, and there's no substitute part

Drip Pan 4344655
#7

Unit parts diagram

Drip pan

Part #4344655

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Condenser Fan Motor 4344631
#4

Unit parts diagram

Refrigerator condenser fan motor

Part #4344631

The manufacturer no longer makes this part, and there's no substitute part
